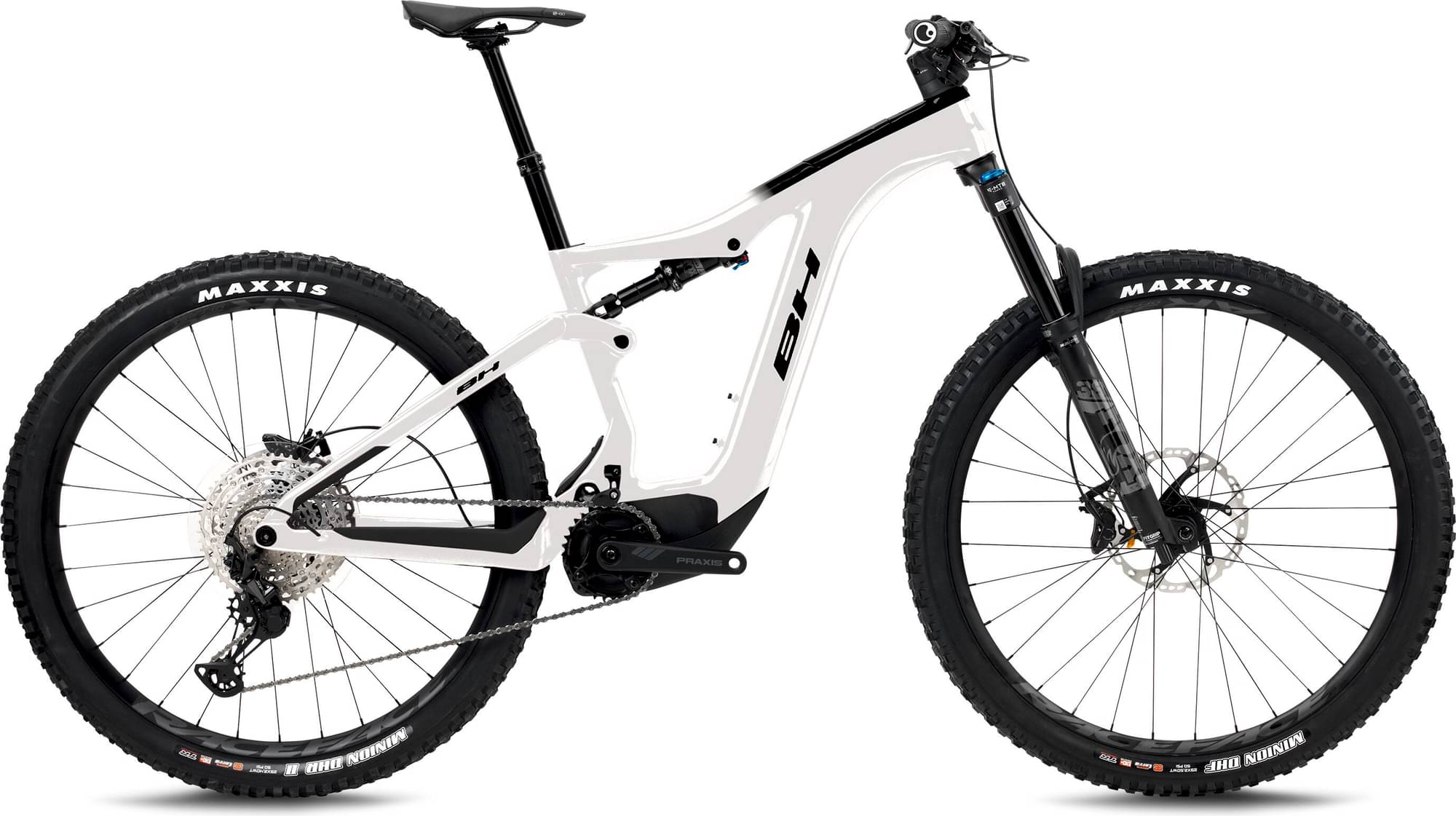

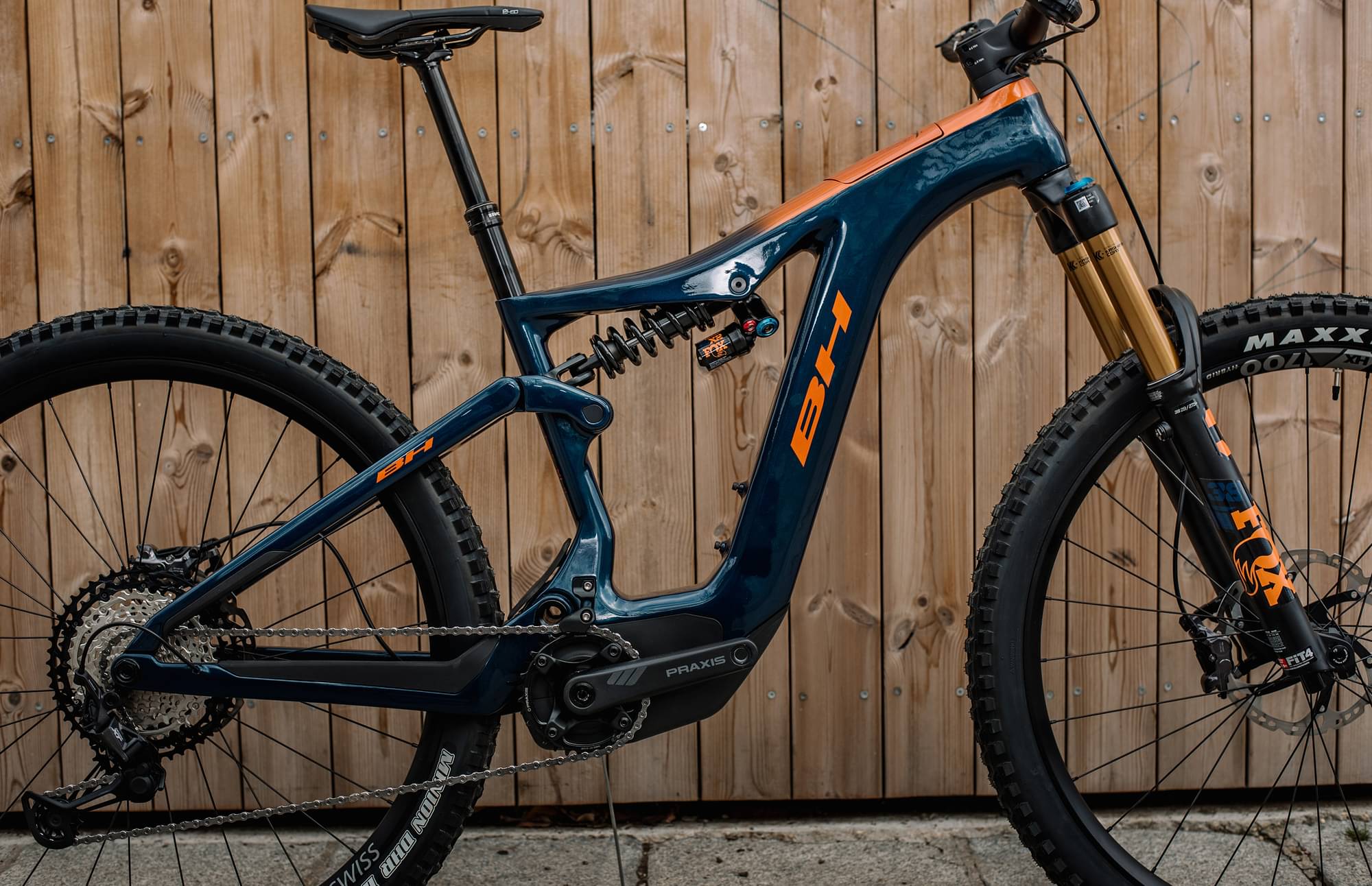

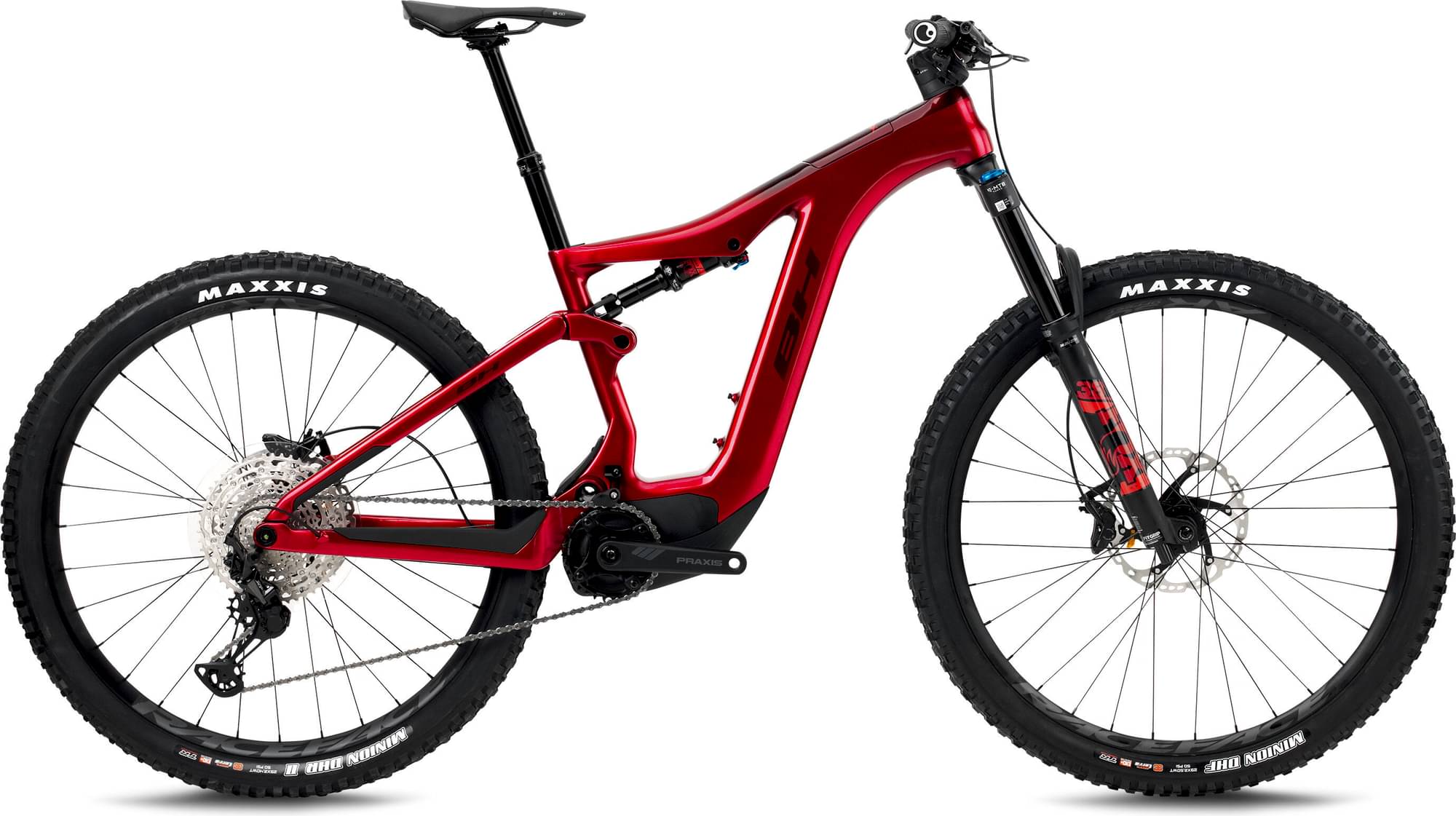

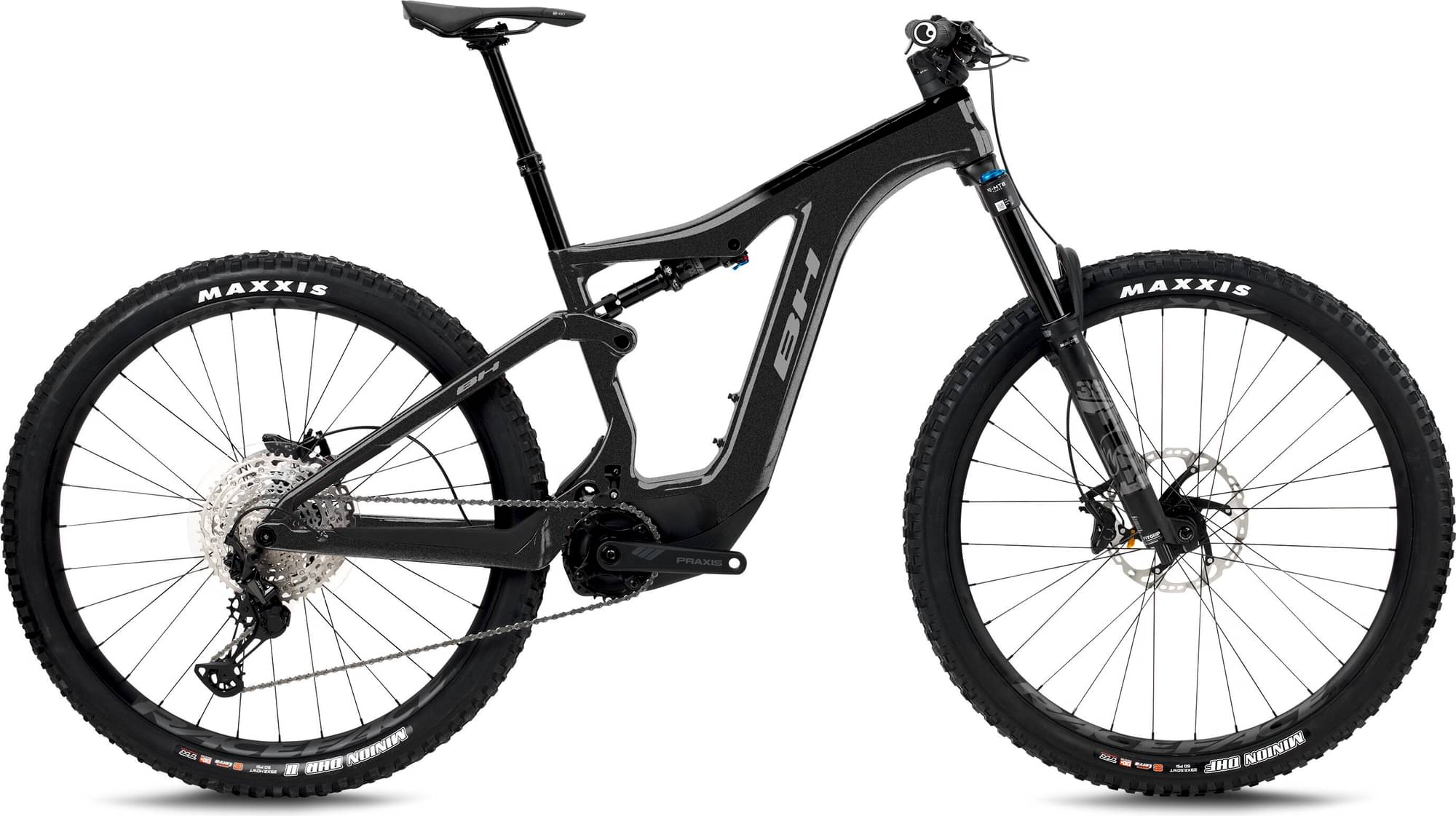

BH ATOMX LYNX PRO 9.7 2024
2024 E-bike
Estimate price |
10,296$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Float 38
-
Groupset XT, Deore -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
160 mm Full Suspension Carbon 29, BC Layup, ICR
Suspension Fork
FOX 38 FLOAT Rhytm 160mm 15QR

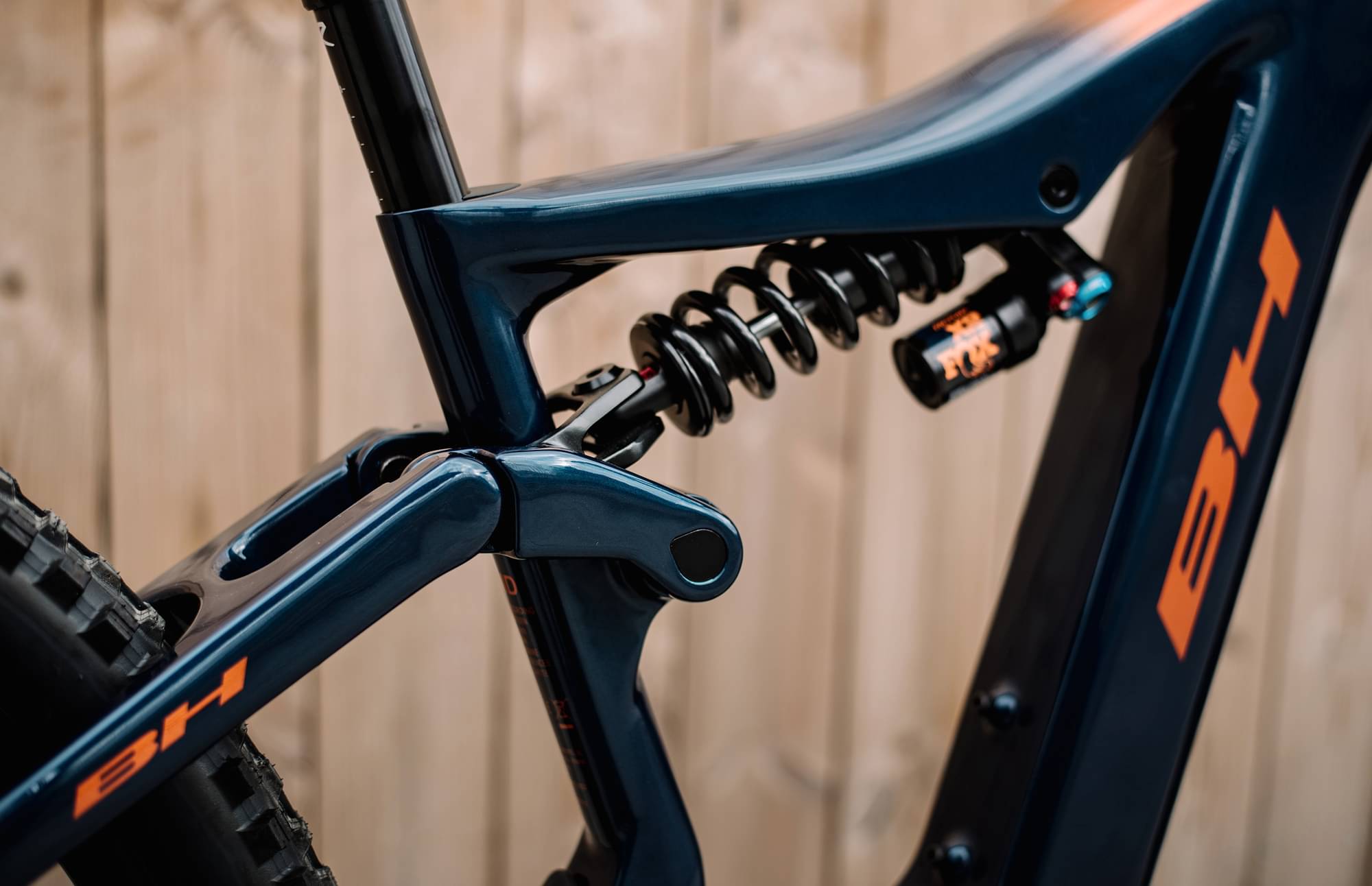

Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano XT 12sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)
Crank
Praxis 32T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
BH
Rear Hub
BH
Rims
Race Face Ar 30 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR 29"X2,5/2,4
Brakes
Brakes
Front: Shimano MT520 4 Piston 203mm, Rear: Shimano MT520 4 Piston 203mm

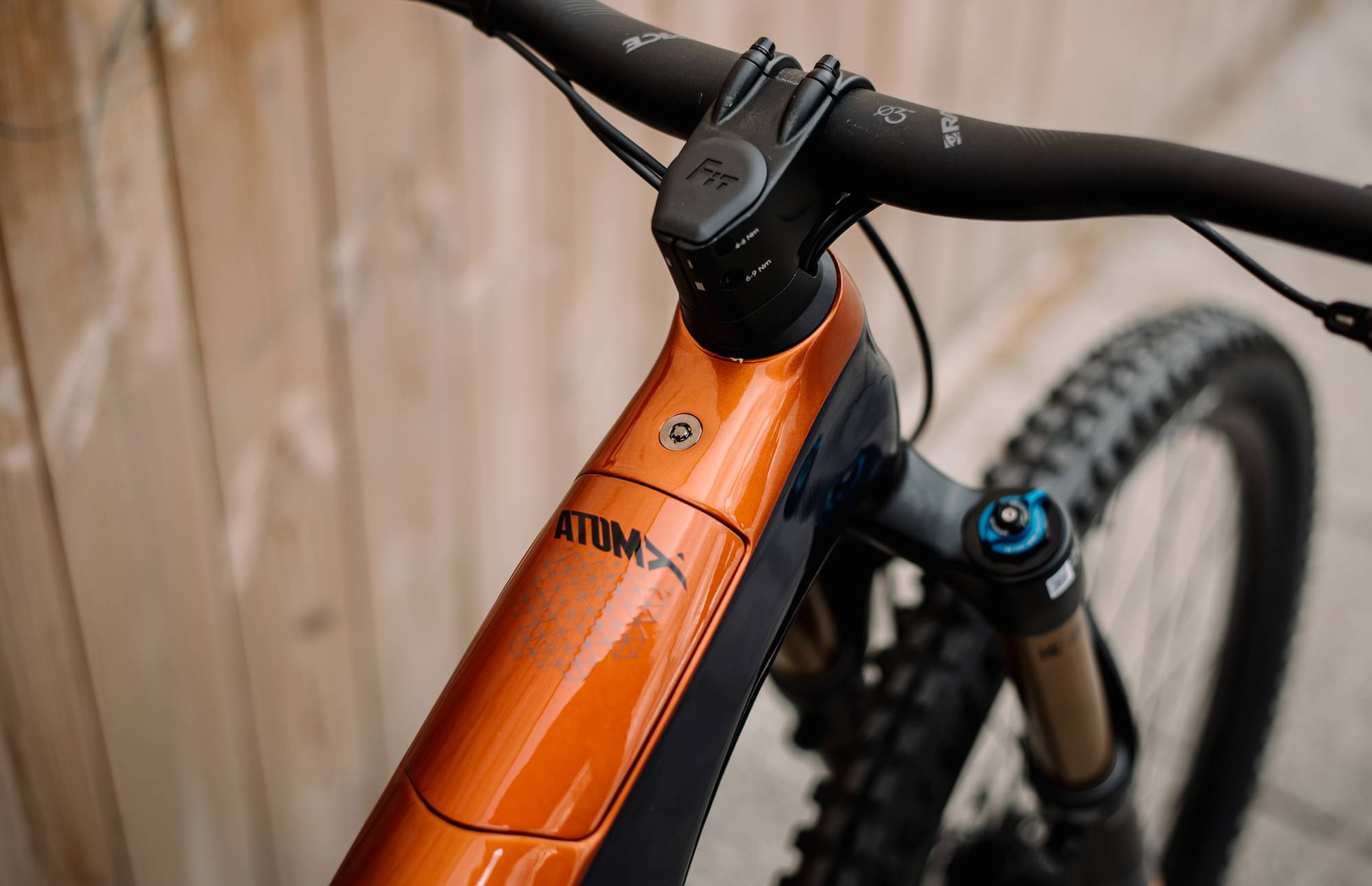

Cockpit
Stem
BH Evo 35 Fit
Handlebar
Race Face Aeffect Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AIF-560 ICR BL.
Seat
Saddle
Prologo Proxim W350 Stn
Seatpost
Race Face DP Aeffect 31,6, X, Seatpost, Race Face DP Aeffect 31,6, SM 100mm, MD 150mm, LA 150mm, XL 170mm
Motor & Battery
Motor
X System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 287 mm | 315 mm | 338 mm | 361 mm |
| Top Tube Length | 570 mm | 598 mm | 620 mm | 638 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 739 mm | 767 mm | 790 mm | 813 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
