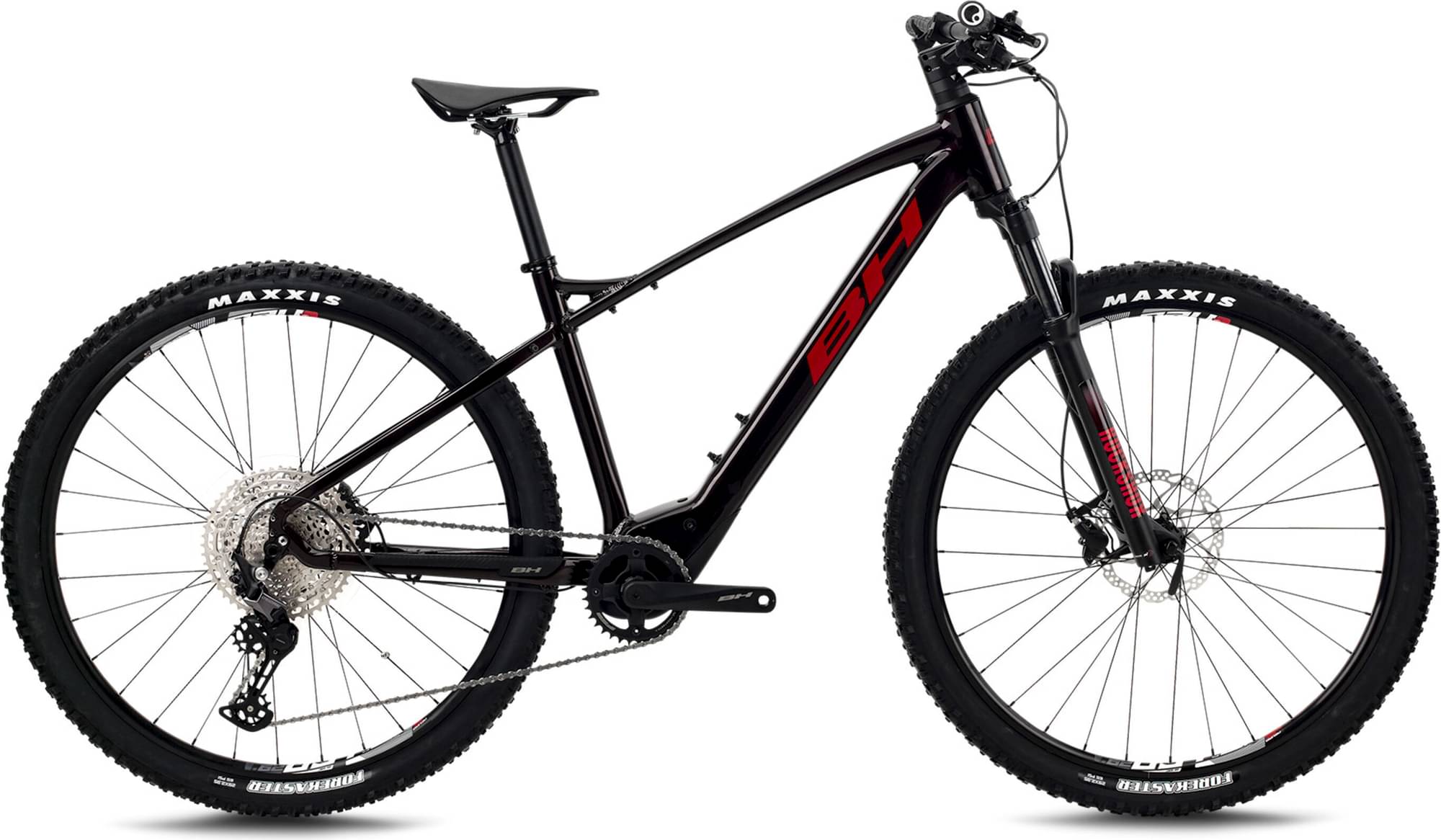

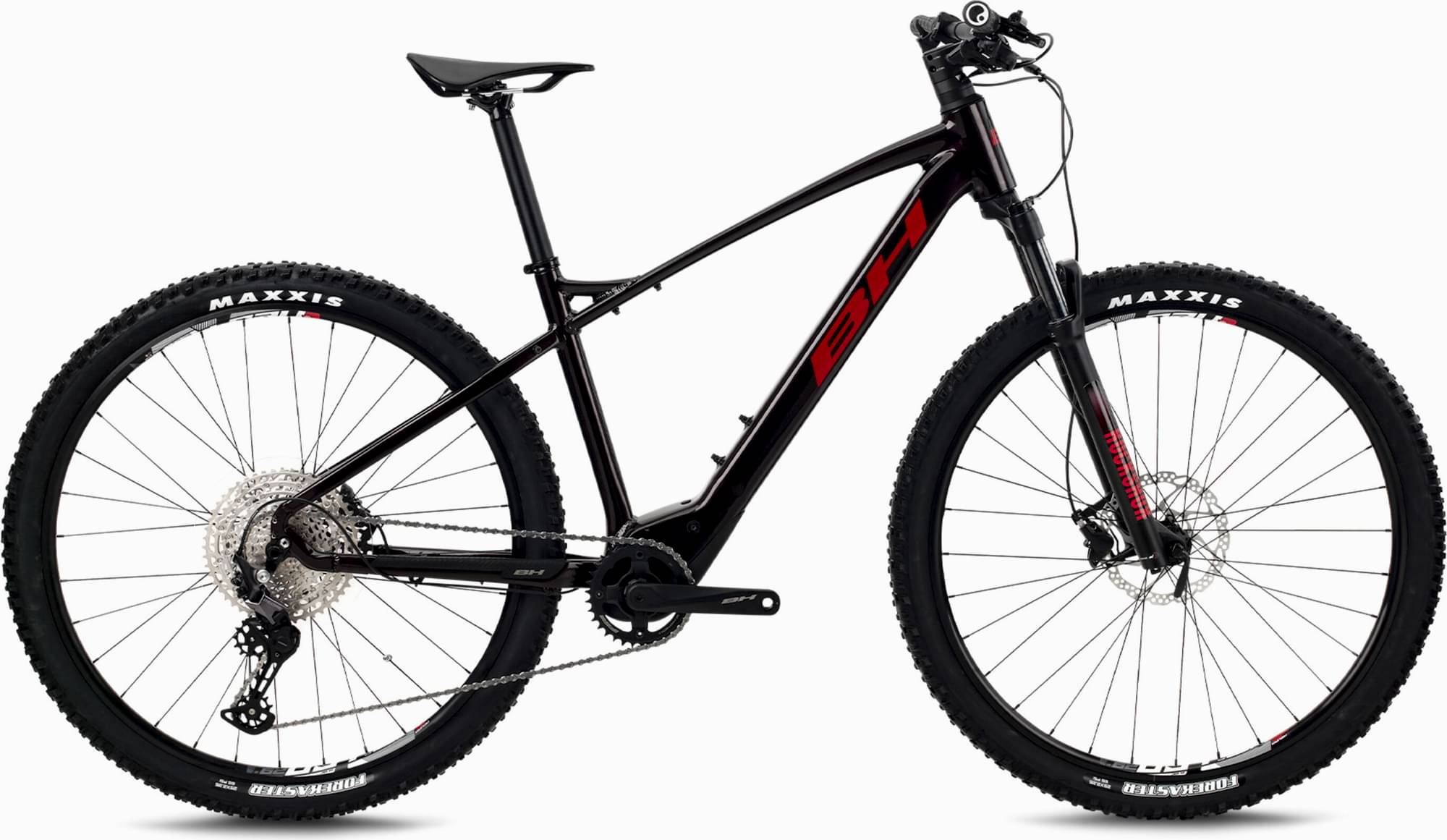

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Alloy 29" internal cable routing

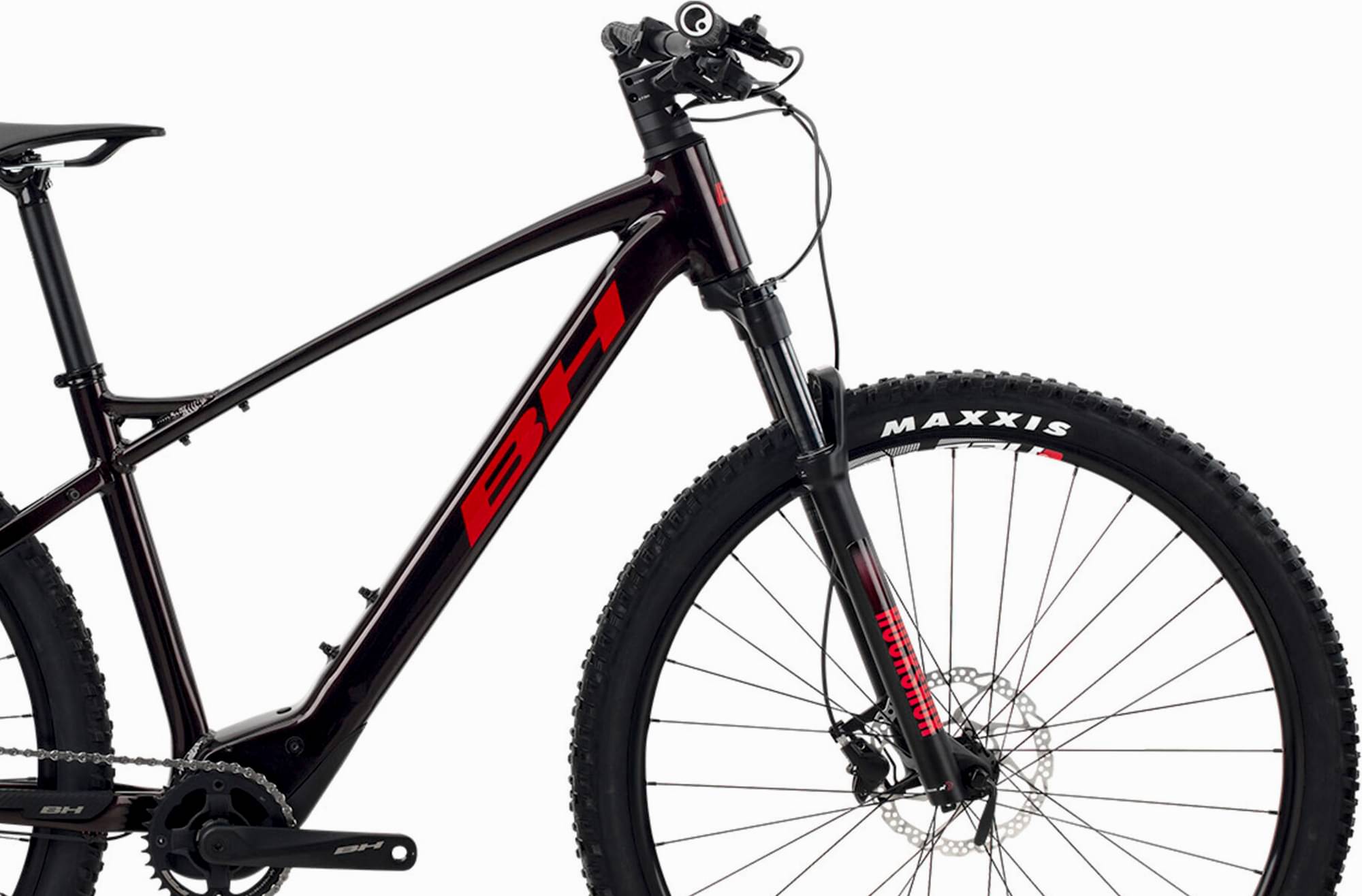

Suspension Fork
Rock Shox Judy Silver Rem 100mm

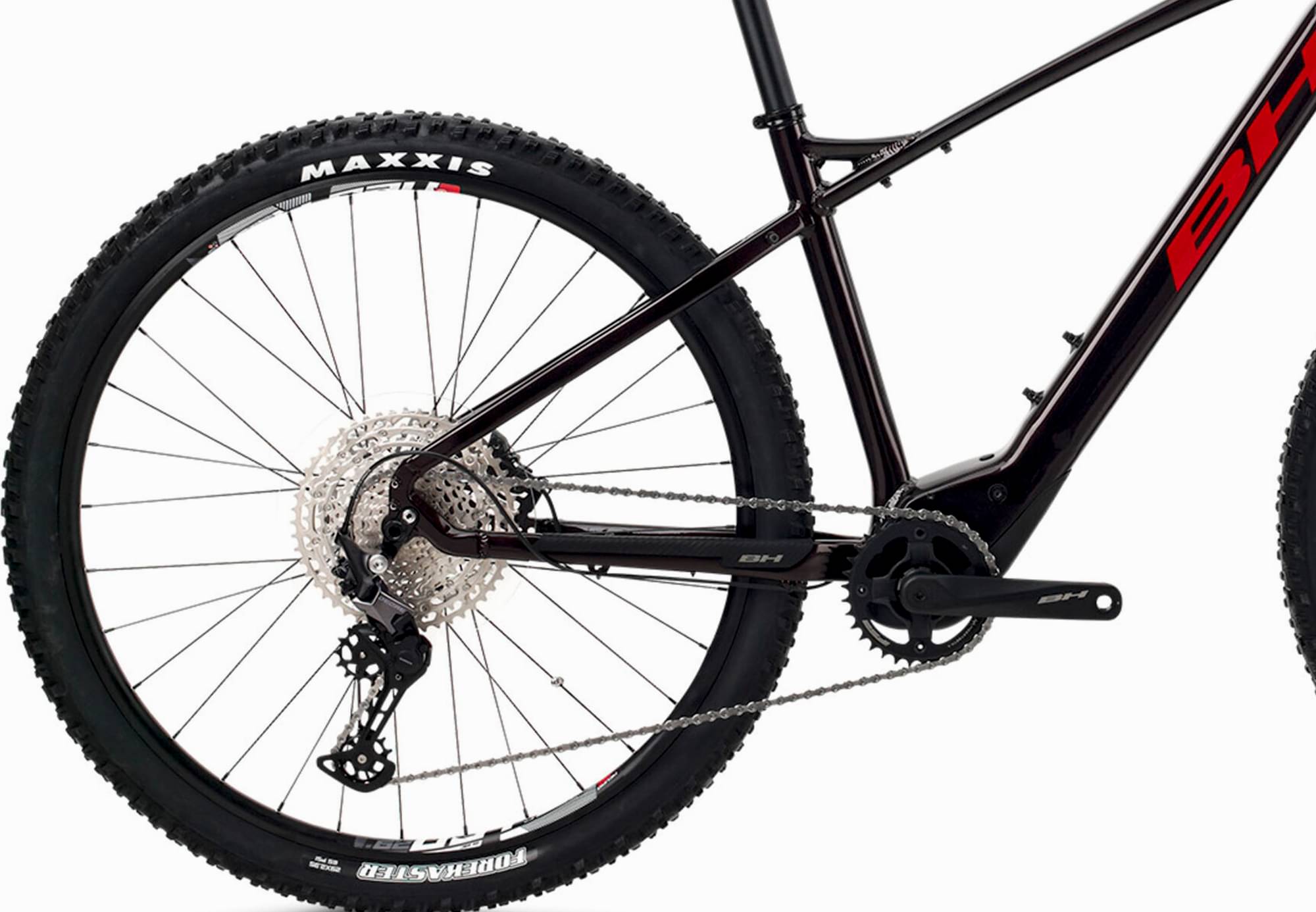

Drivetrain
Rear Derailleur
Shimano Deore 12sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)
Crank
FSA 34T -165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
BH Lite Mach1 Maxx
Spokes
Stainless Steel
Tires
Maxxis Ikon TPI60 Wire 29X2,2
Brakes
Brakes
Front: Shimano MT201 180mm, Rear: Shimano MT201 180mm
Cockpit
Stem
BH Evo 31 Fit
Handlebar
BH MTB Lite Alloy Flat 780 mm
Grips
Ergon GE10
Headset
Acros AZX-581 BL.
Seat
Saddle
Prologo Nago RS
Seatpost
BH MTB Lite Alloy 31,6
Motor & Battery
Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Top Tube Length | 587 mm | 604 mm | 628 mm |
| Seat Tube Angle | 73.75 ° | 73.75 ° | 73.75 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 682 mm | 699 mm | 725 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
