Bike details
Overview
Key information split into simple groups.

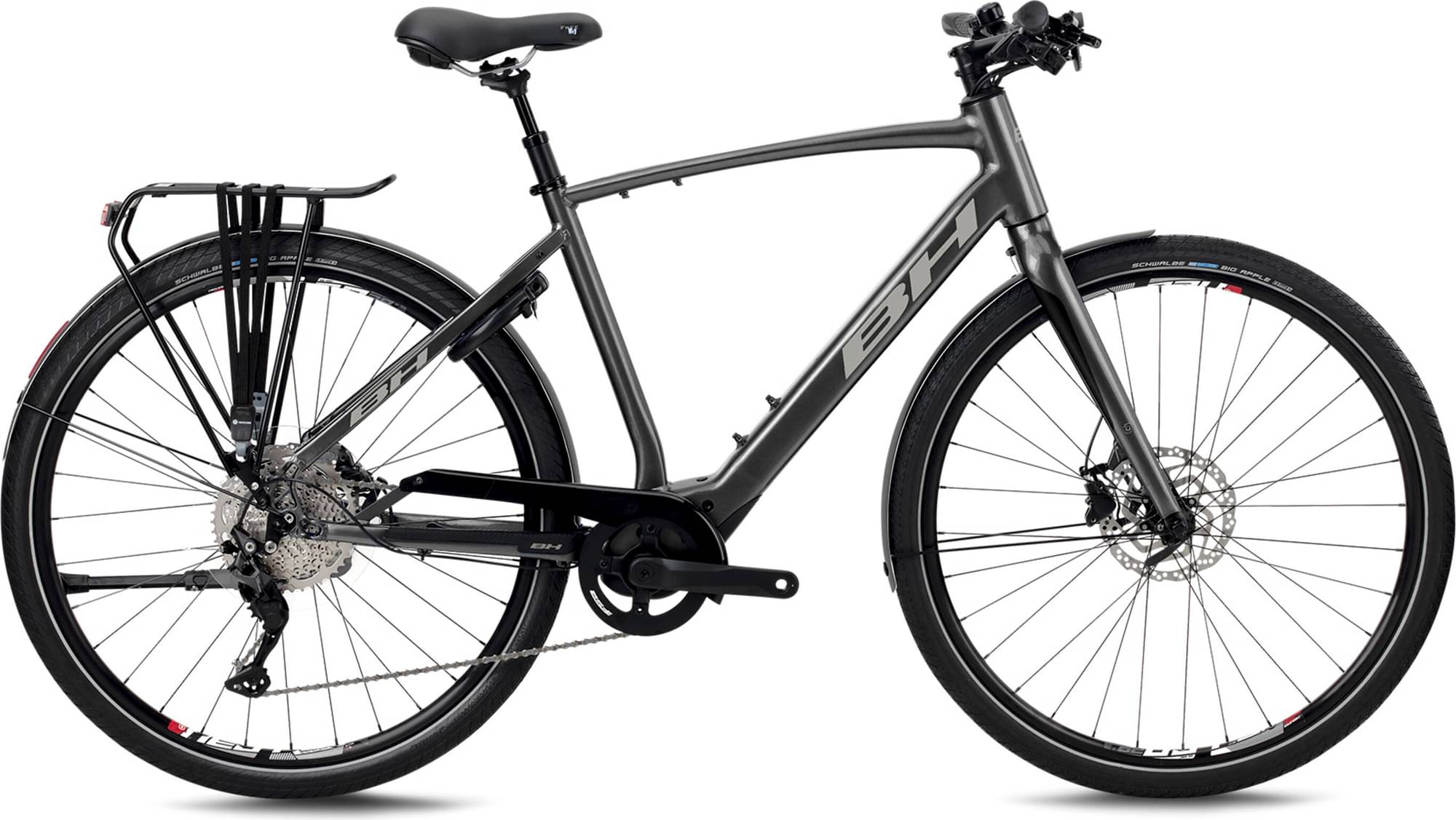

Bike summary
-
Category -
Frame Aluminum -
Groupset Deore -
Suspension Rigid -

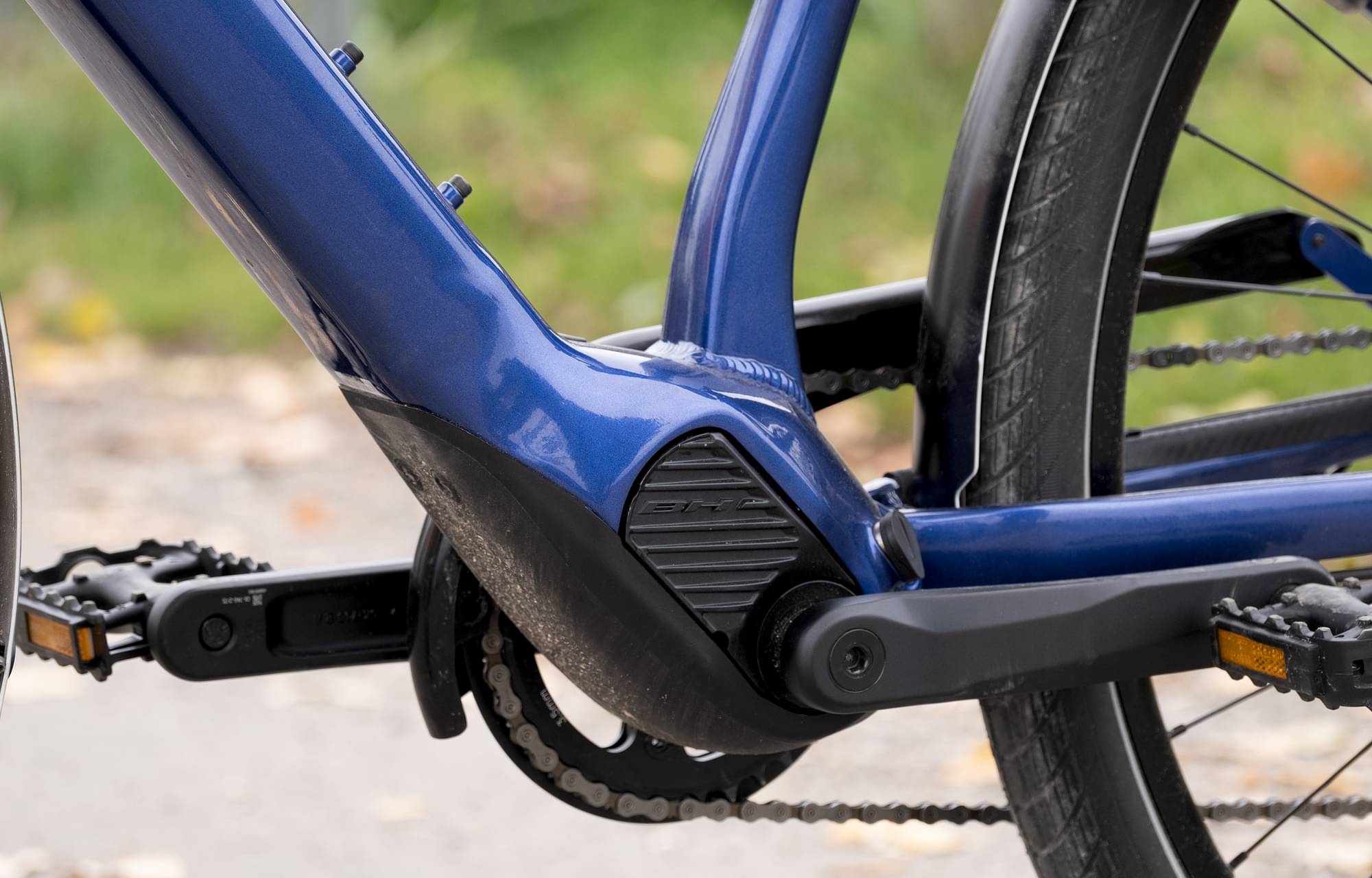

Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

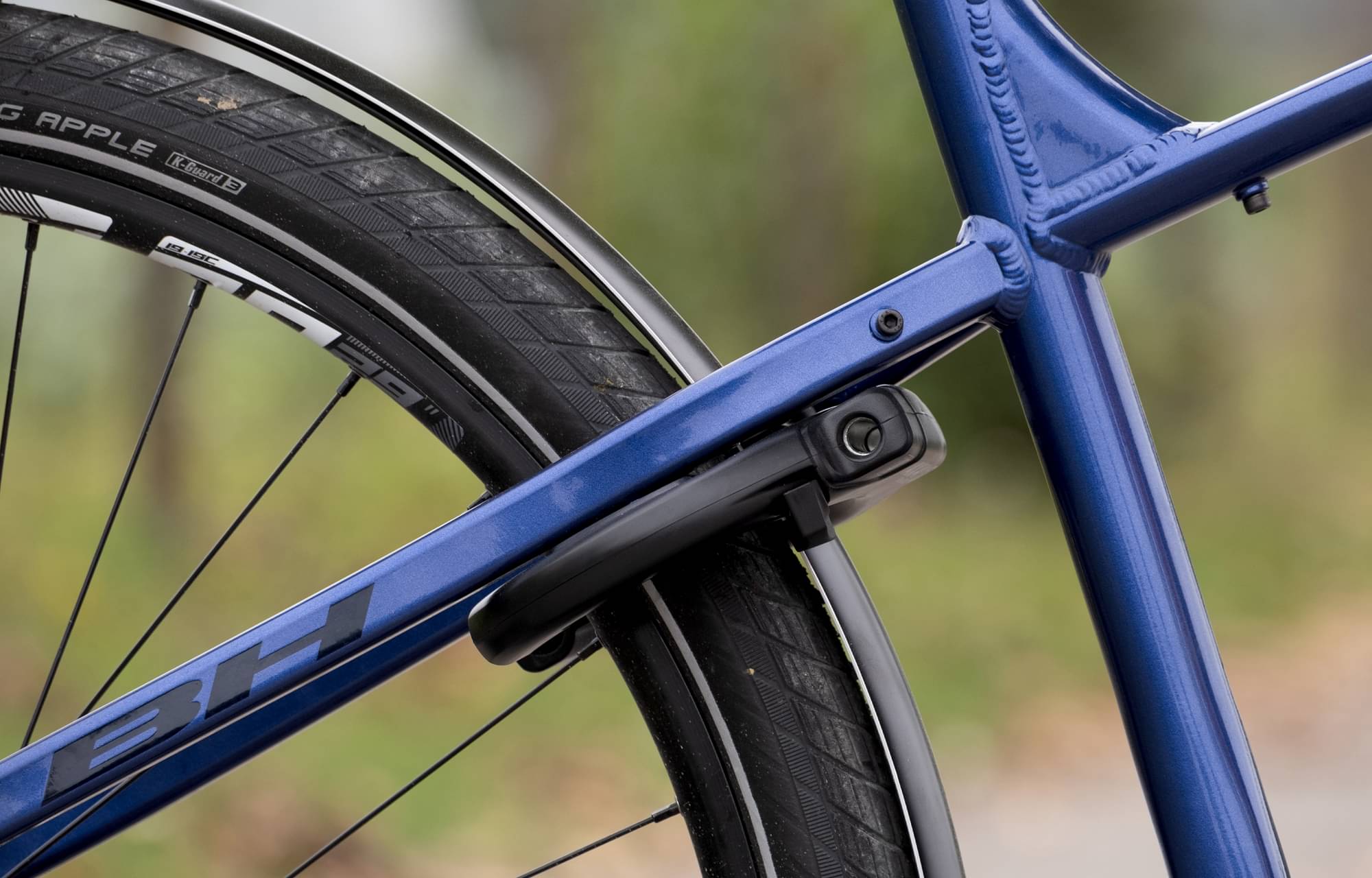

Frame
Frame
Sport Alloy 28" internal cable routing
Suspension Fork
BH Lifestyle Alu
Drivetrain
Rear Derailleur
Shimano Deore 10sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM4100 10sp (11-46T)
Crank
FSA 38T-170mm
Bottom Bracket
-
Chain
Shimano HG54
Pedals
Alloy
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
BH Lite Mach1 260
Spokes
Stainless Steel
Tires
Schwalbe Big Apple 50-622
Brakes
Brakes
Front: Shimano MT200 180mm, Rear: Shimano MT200 180mm

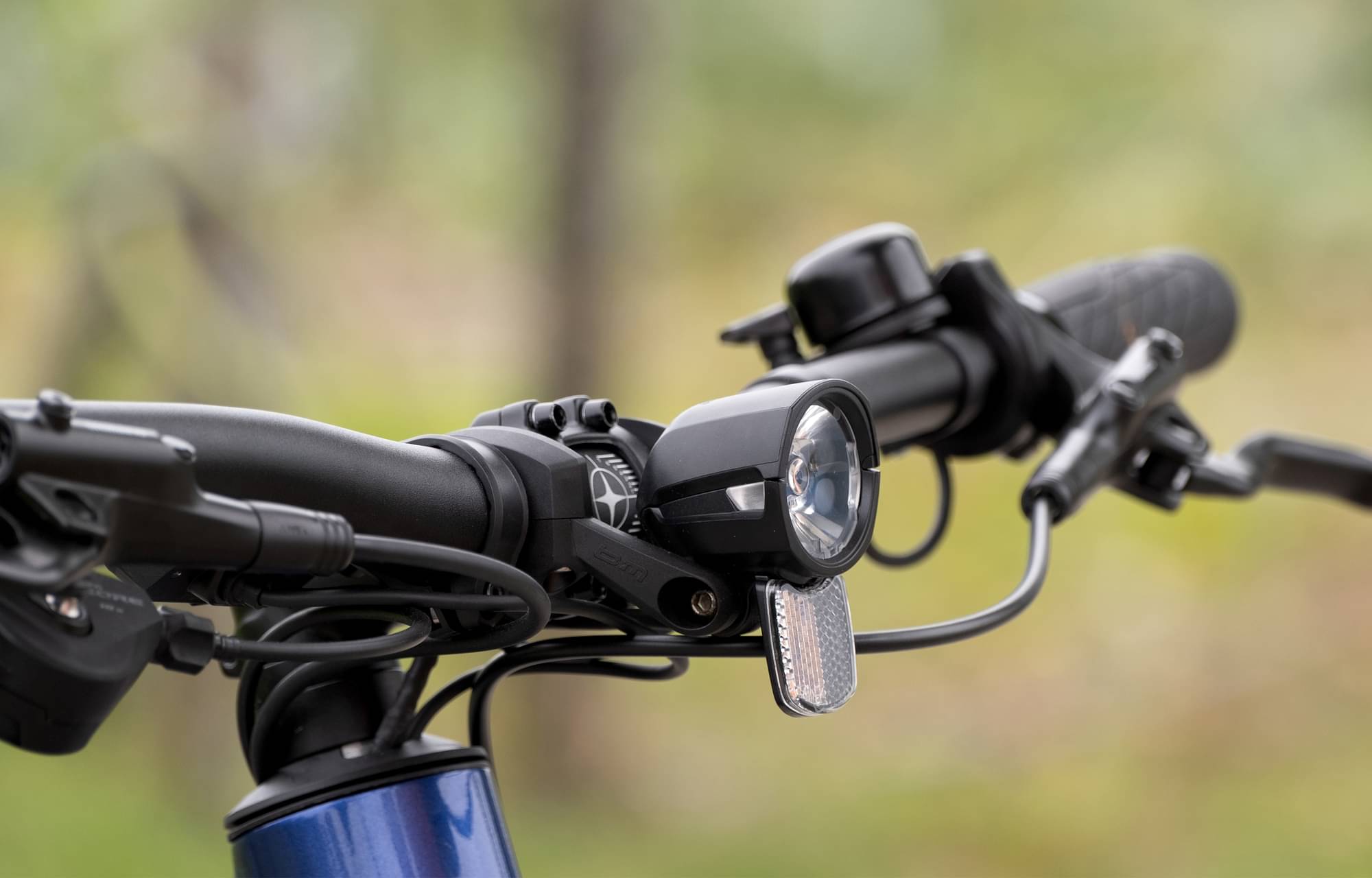

Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 720mm
Grips
BH Ergonomic
Headset
Acros AZX-630 BL.
Seat
Saddle
Selle Royal Lift
Seatpost
Alloy 31,6
Motor & Battery
Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Top Tube Length | 573 mm | 578 mm | 606 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 673 mm | 677 mm | 705 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
