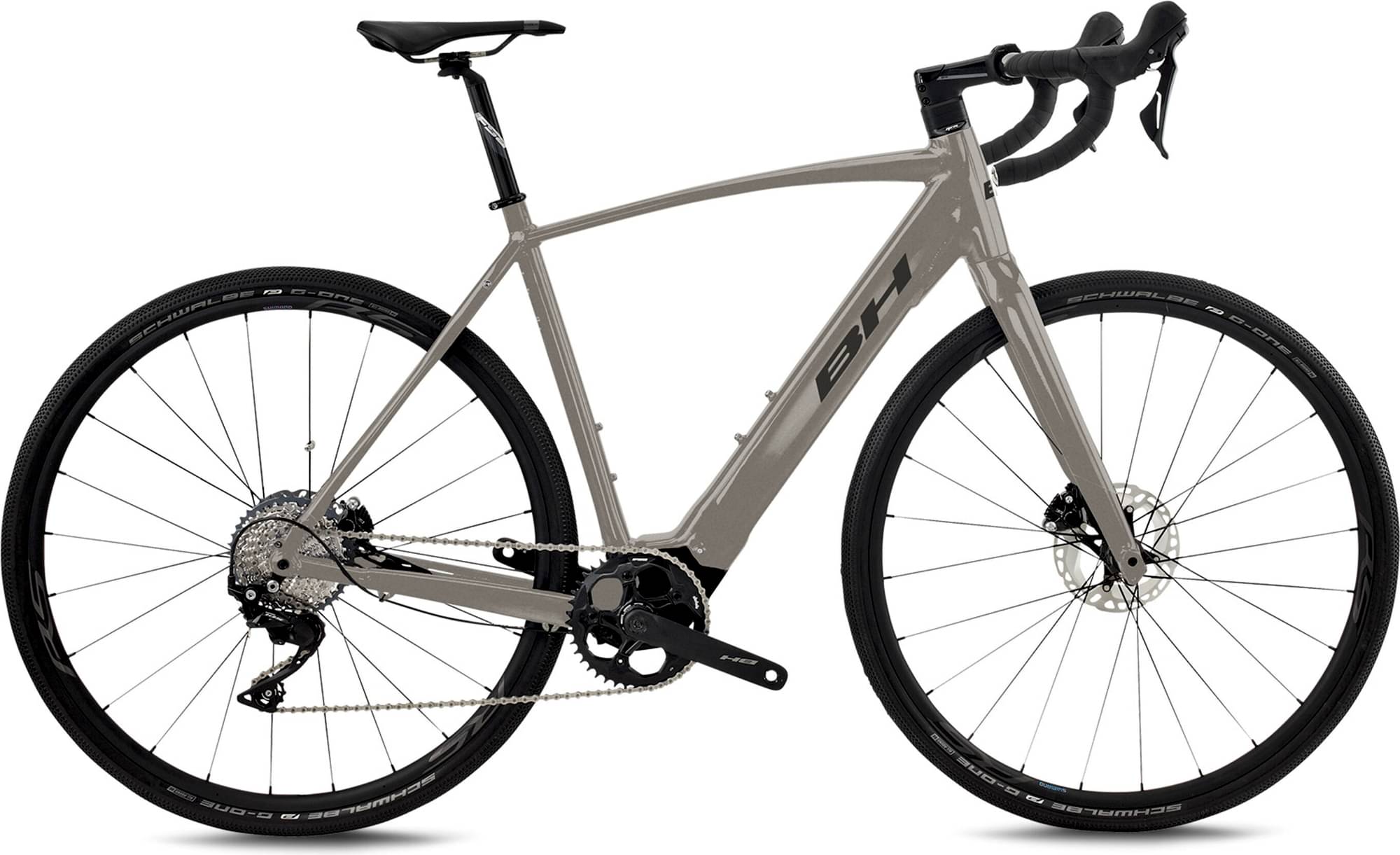

BH CORE GRAVELX 2.2 2024
2024 E-bike
Estimate price |
5,234$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 800 -
Suspension Rigid -
Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

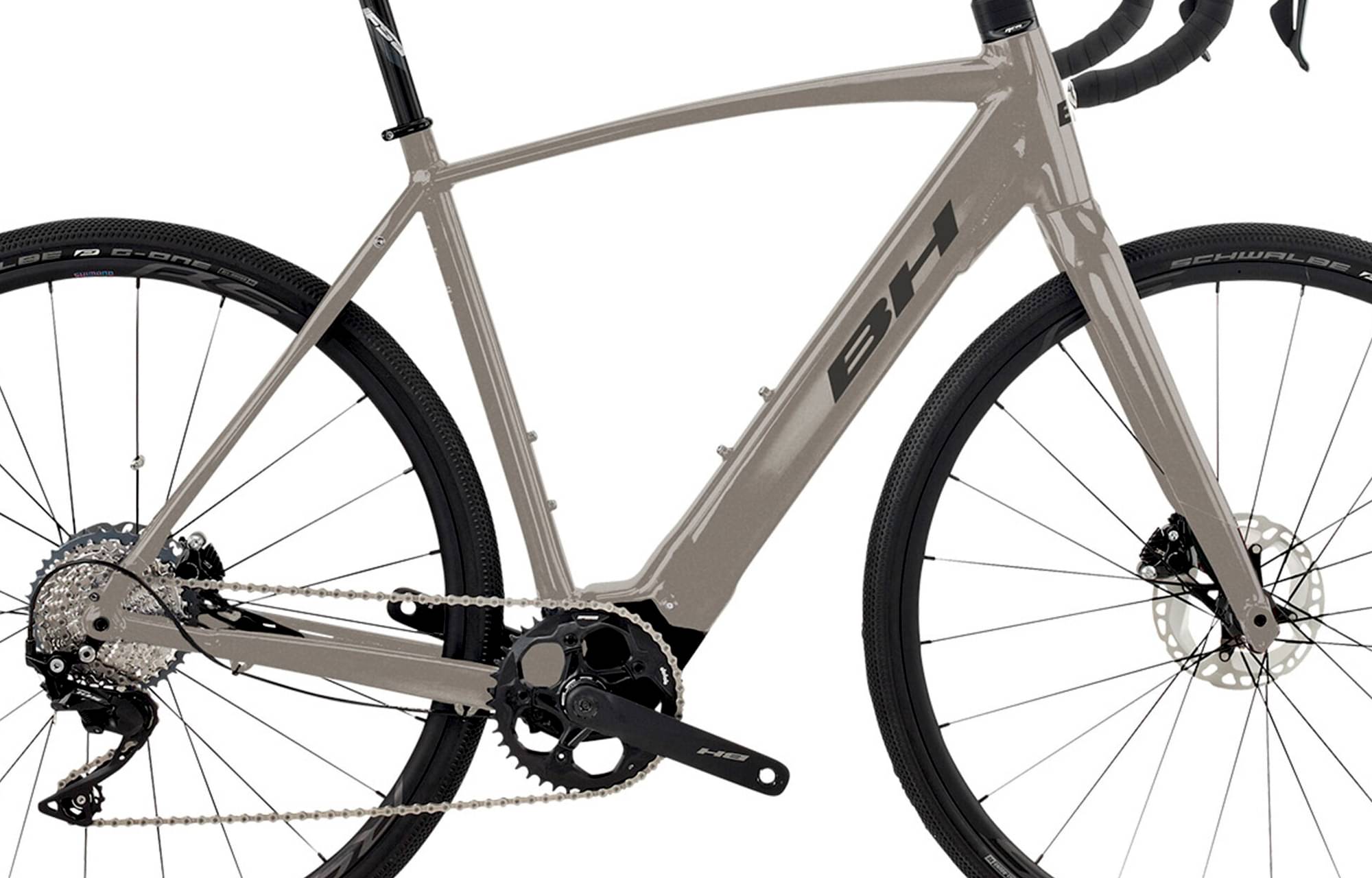

Frame
Frame
Gravel Alloy 28" internal cable routing
Suspension Fork
BH Gravel Carbon ACR

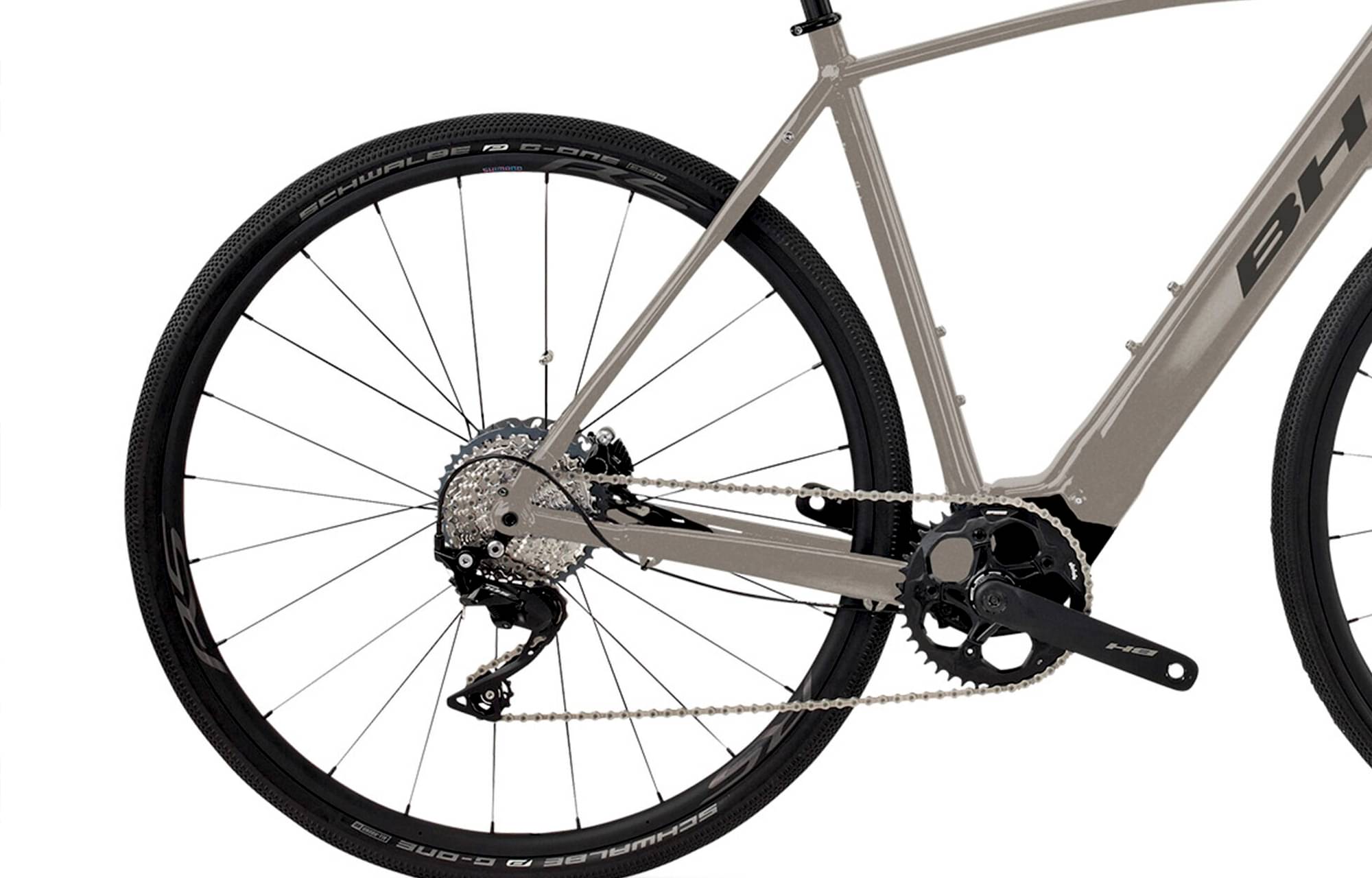

Drivetrain
Rear Derailleur
Shimano GRX 12sp
Front Derailleur
-
Shift Levers
Shimano GRX
Cassette
Shimano CSM7100 12sp (11-36T)
Crank
FSA 42T, X, Crank set, FSA 42T, SM 170mm, MD 172mm, LA 175mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Shimano RS171 TR
Spokes
Stainless Steel
Tires
Schwalbe G-One 700X38
Brakes
Brakes
Front: Shimano GRX 160mm, Rear: Shimano GRX 160mm

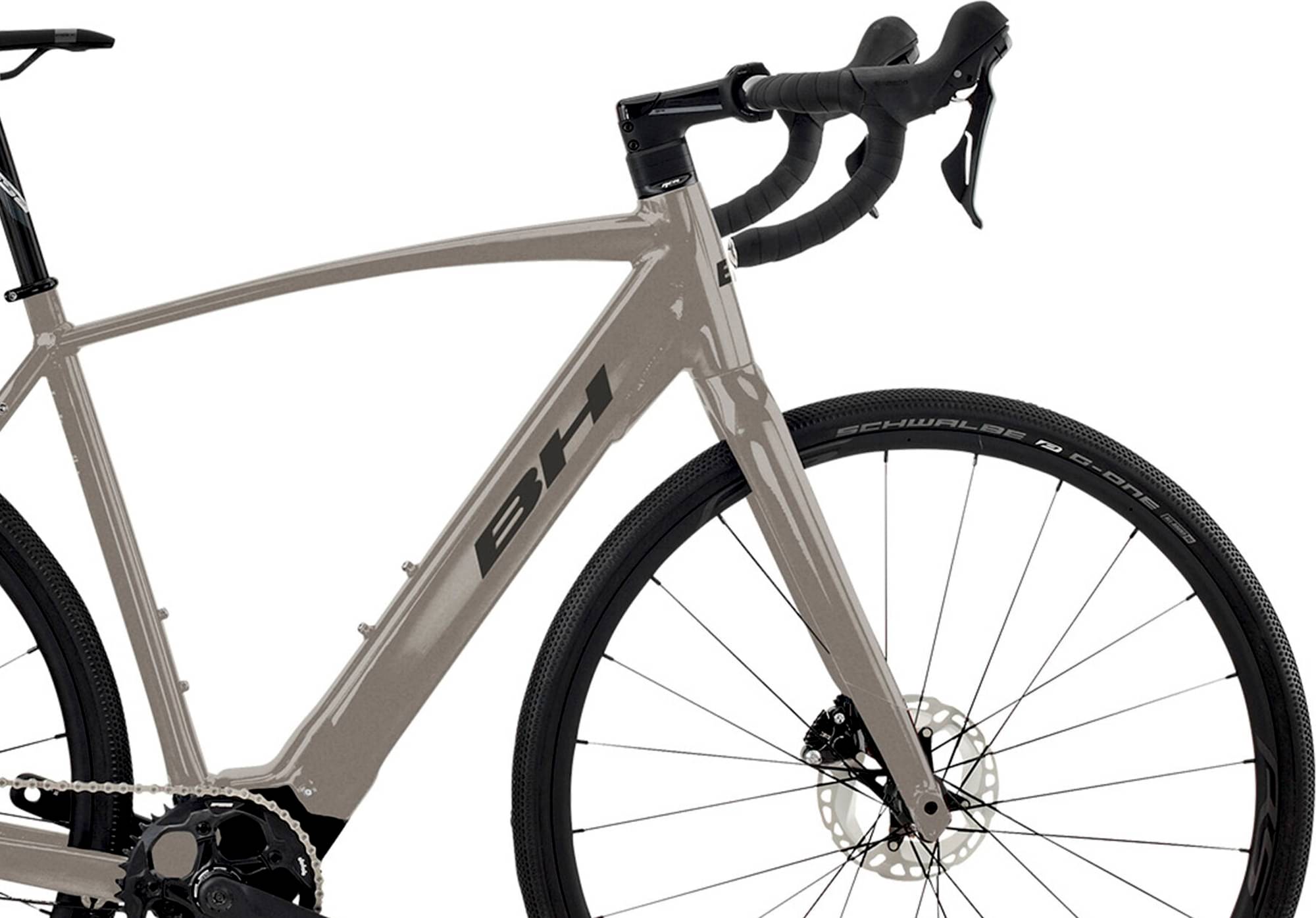

Cockpit
Stem
BH Lite Ahead, X, Stem, BH Lite Ahead, SM 80mm, MD 90mm, LA 100mm
Handlebar
FSA Energy A-WING-PRO, X, Handlebar, FSA Energy A-WING-PRO, SM 400mm, MD 420mm, LA 440mm
Grips
Bar Tape
Headset
FSA ACR
Seat
Saddle
Prologo Nago RS
Seatpost
Lite Alloy 27,2
Motor & Battery
Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Top Tube Length | 552 mm | 566 mm | 586 mm |
| Seat Tube Angle | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 608 mm | 610 mm | 628 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
