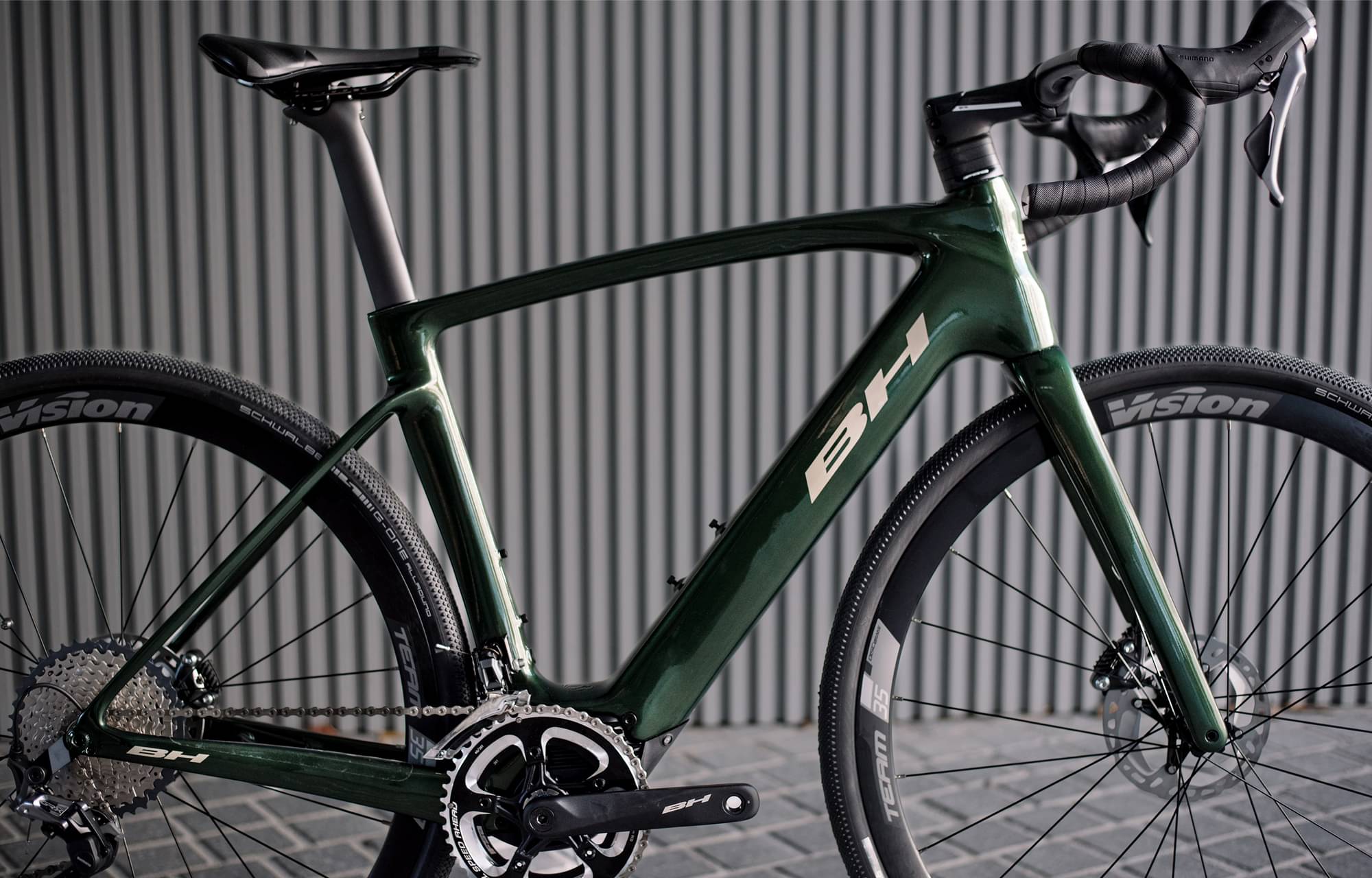

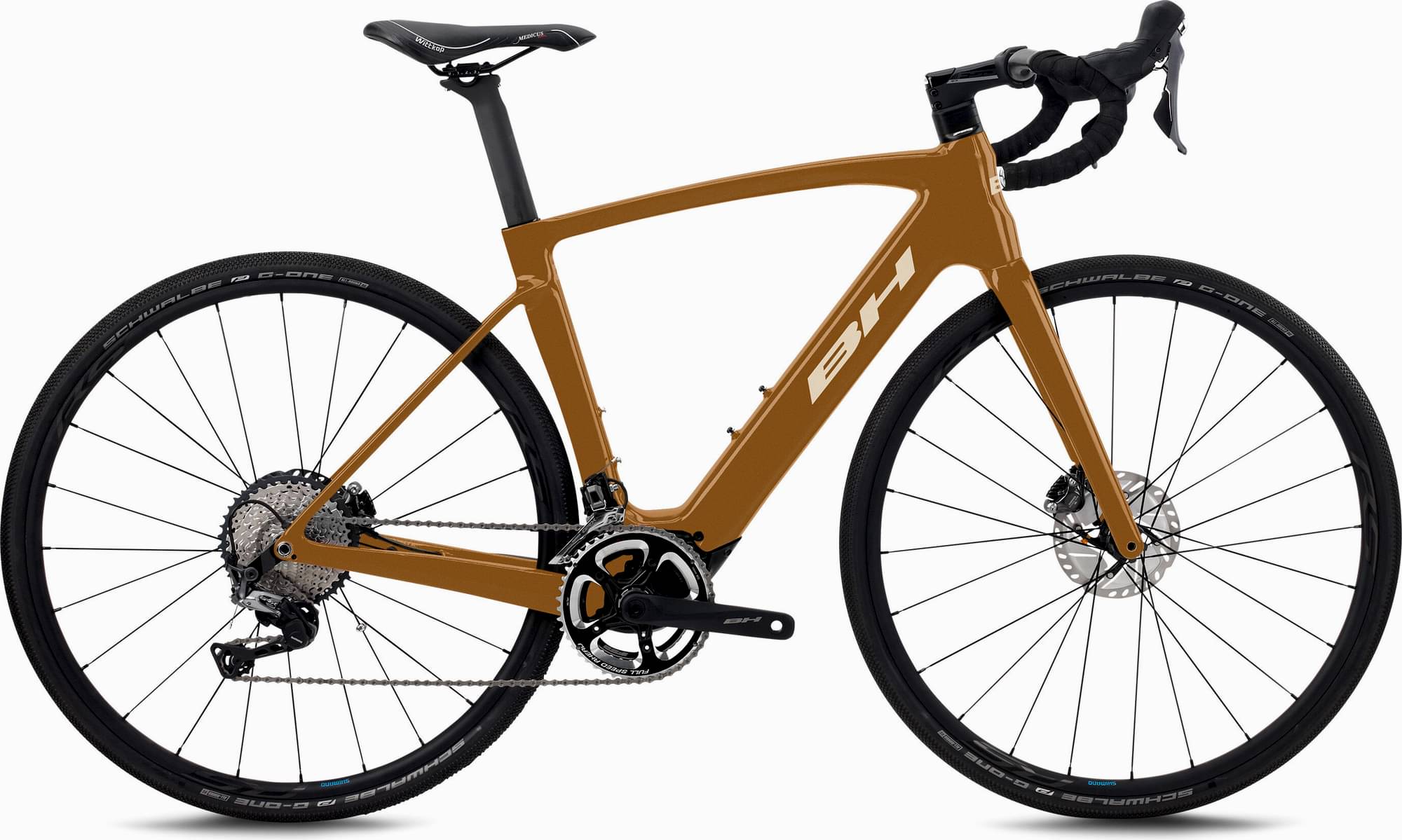

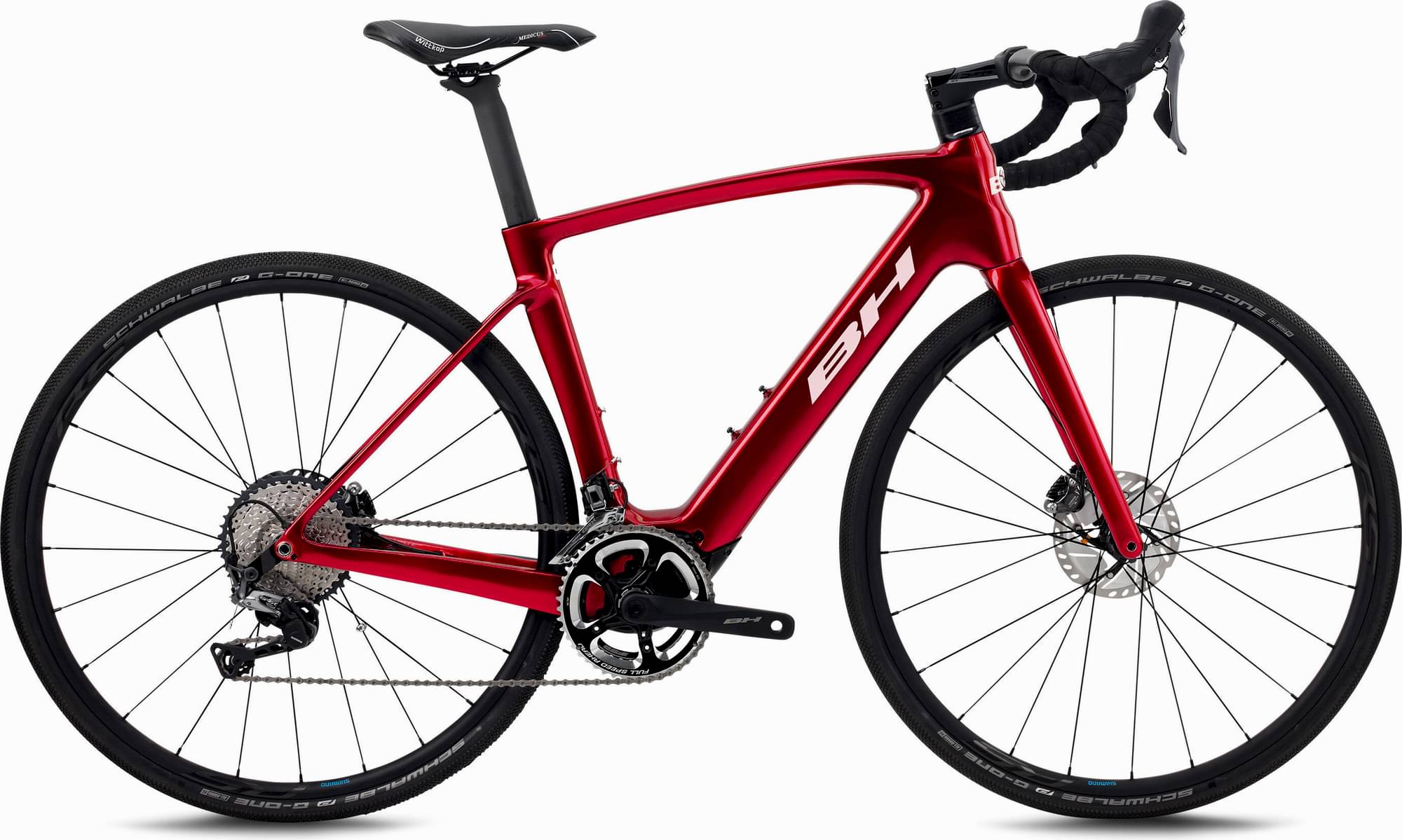

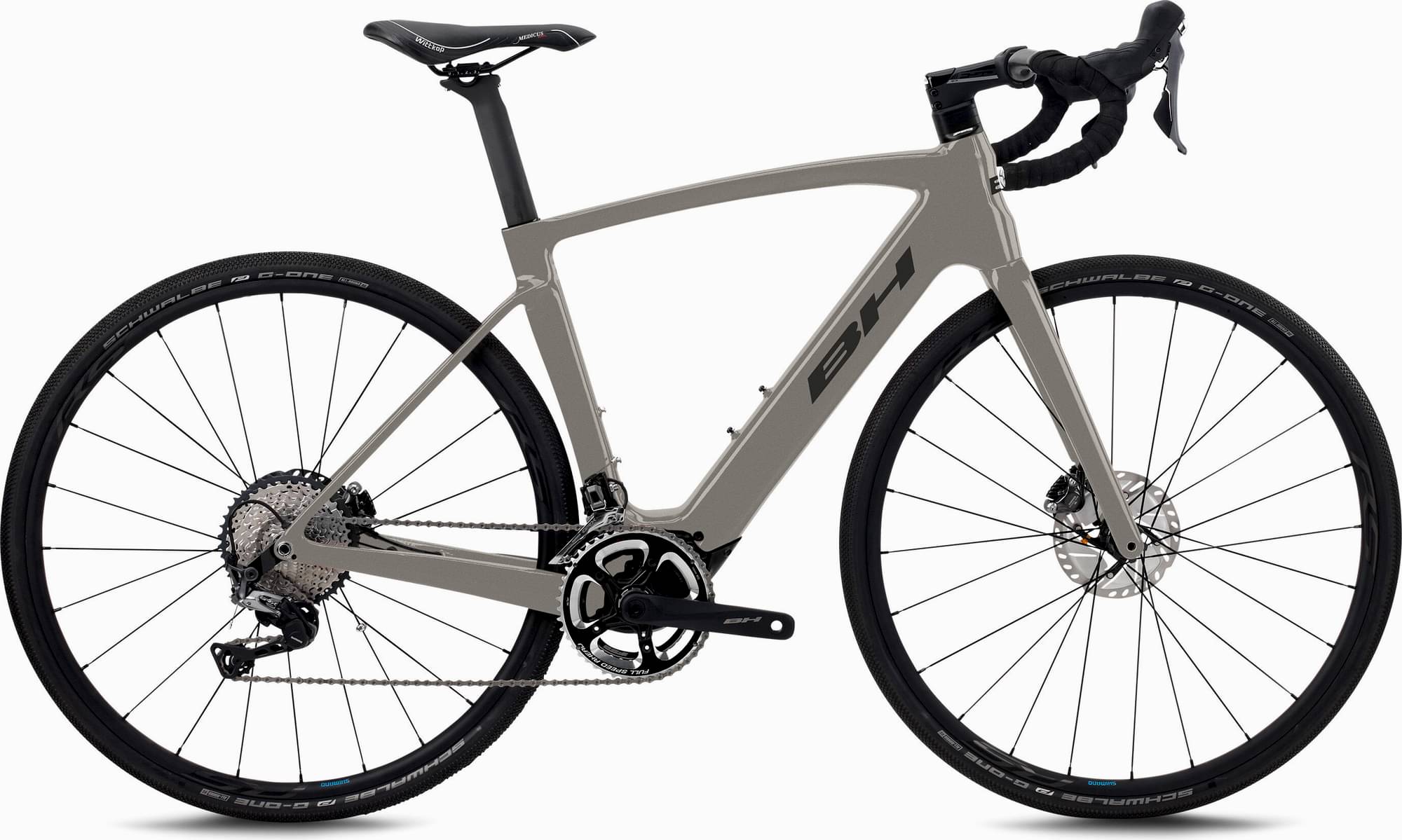

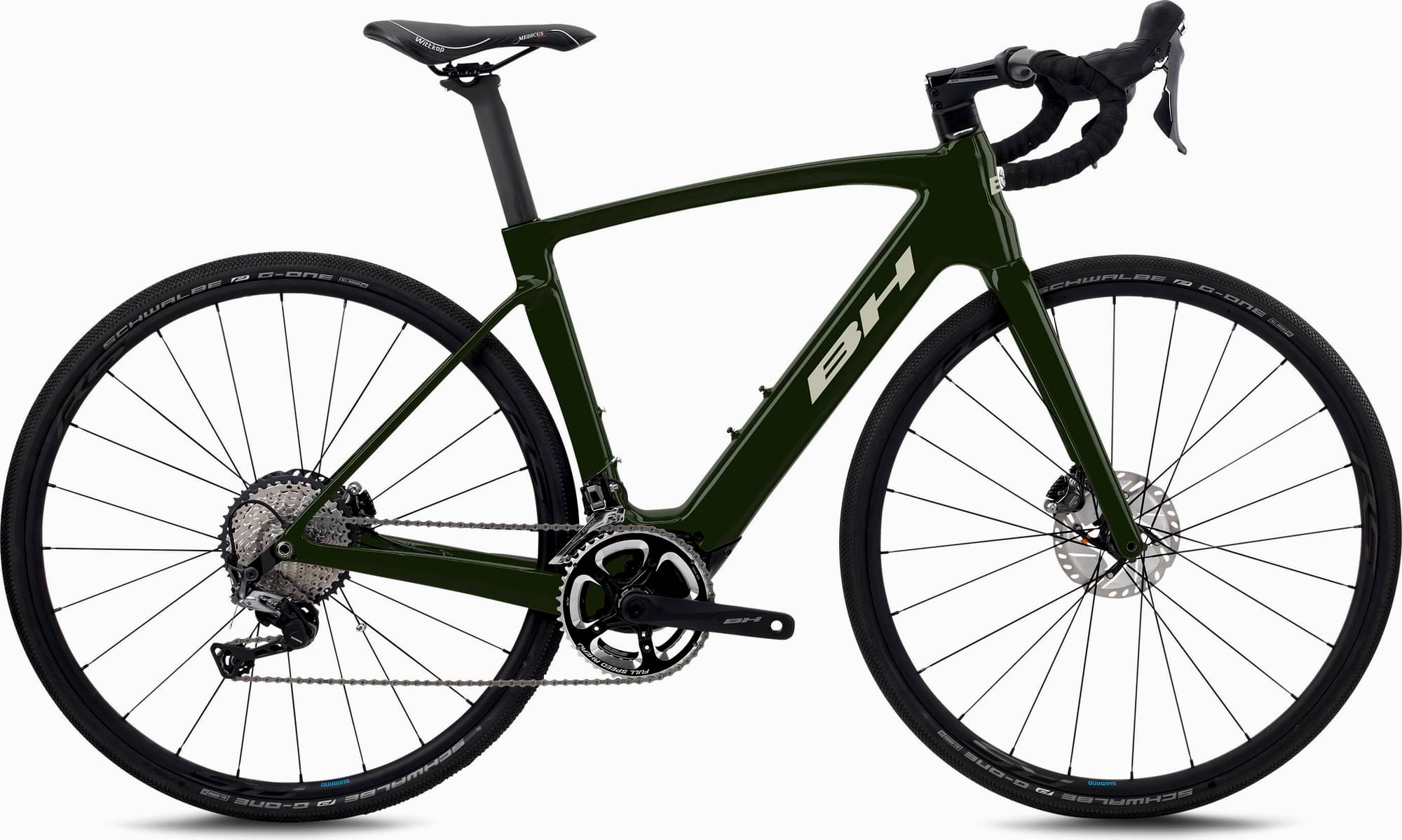

BH CORE GRAVELX CARBON 2.6 2024
2024 E-bike
Estimate price |
7,561$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Motor mid-drive -
Battery 540Wh -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
SM
158cm - 170cm
MD
168cm - 179cm
MD
168cm - 179cm
LG
176cm - 187cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

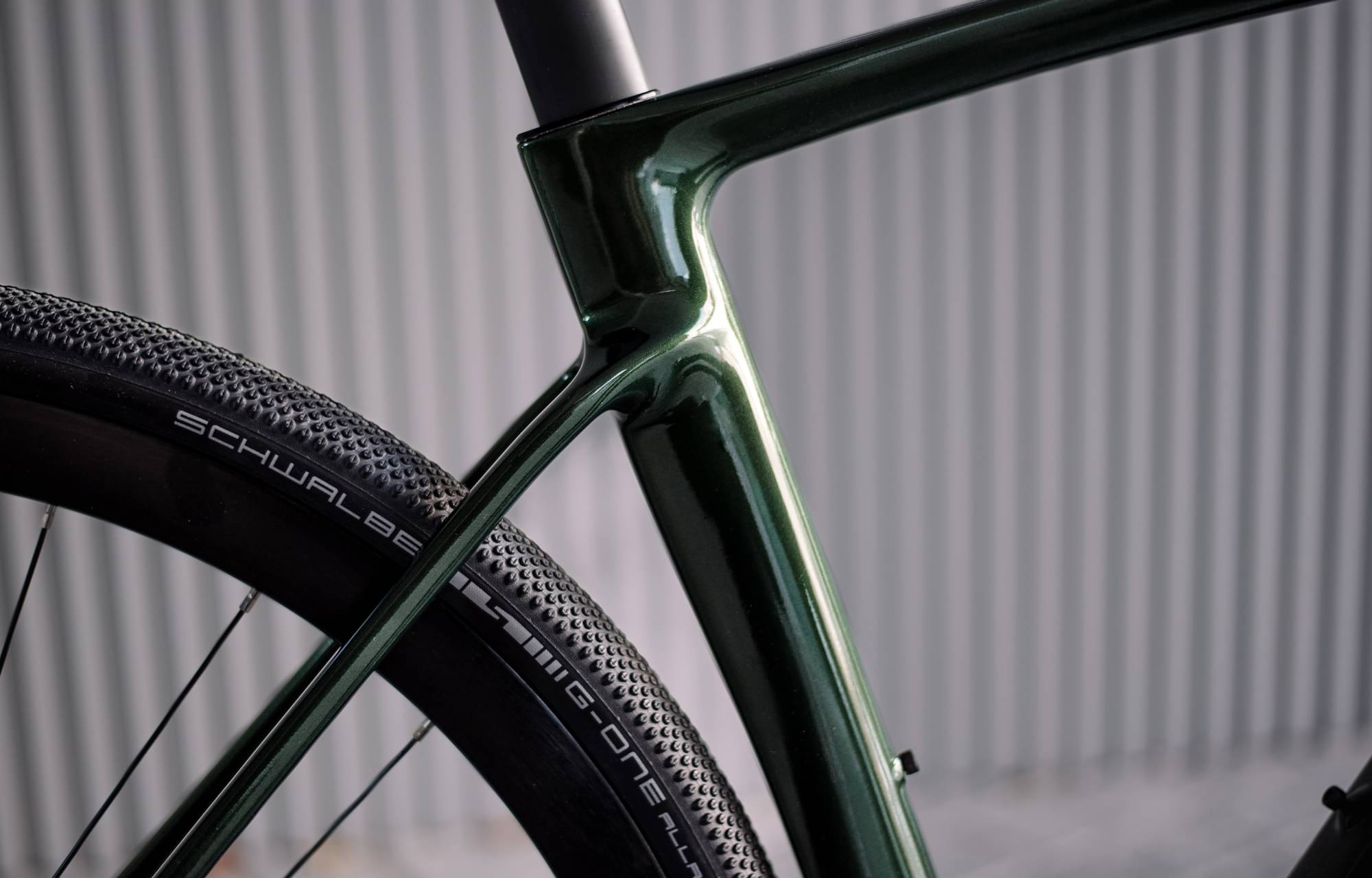

Gravel Carbon, internal cable routing
Suspension Fork
BH Gravel Carbon ACR
Drivetrain
Rear Derailleur
Shimano 105 DI2 24sp
Front Derailleur
Shimano 105 DI2
Shift Levers
Shimano 105 DI2
Cassette
Shimano HG71 12sp (11-36T)
Crank
FSA 46/36T, X, Crank set, FSA 46/36T, SM 170mm, MD 172mm, LA 175mm
Chain
Shimano CNM6100
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
FSA Team 35 TR
Spokes
Stainless Steel
Tires
Schwalbe G-One 700X35
Brakes
Brakes
Front: Shimano 105 DI2 160mm, Rear: Shimano 105 DI2 160mm
Cockpit

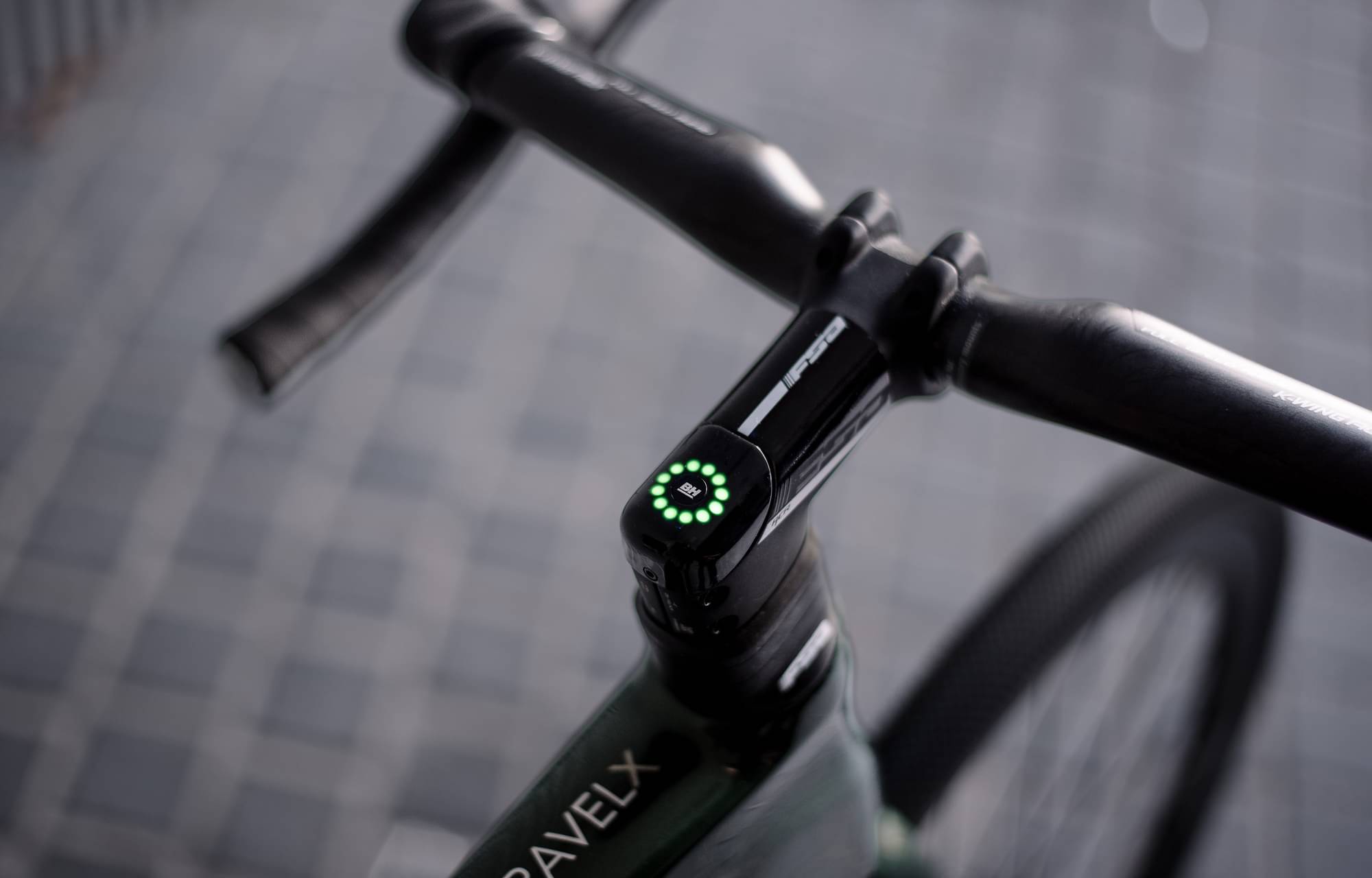

Stem
BH Lite Ahead, X, Stem, BH Lite Ahead, SM 80mm, MD 90mm, LA 100mm
Handlebar
FSA K-Wing AGX Carbon, X, Handlebar, FSA K-Wing AGX Carbon, SM 400mm, MD 420mm, LA 440mm
Grips
Bar Tape

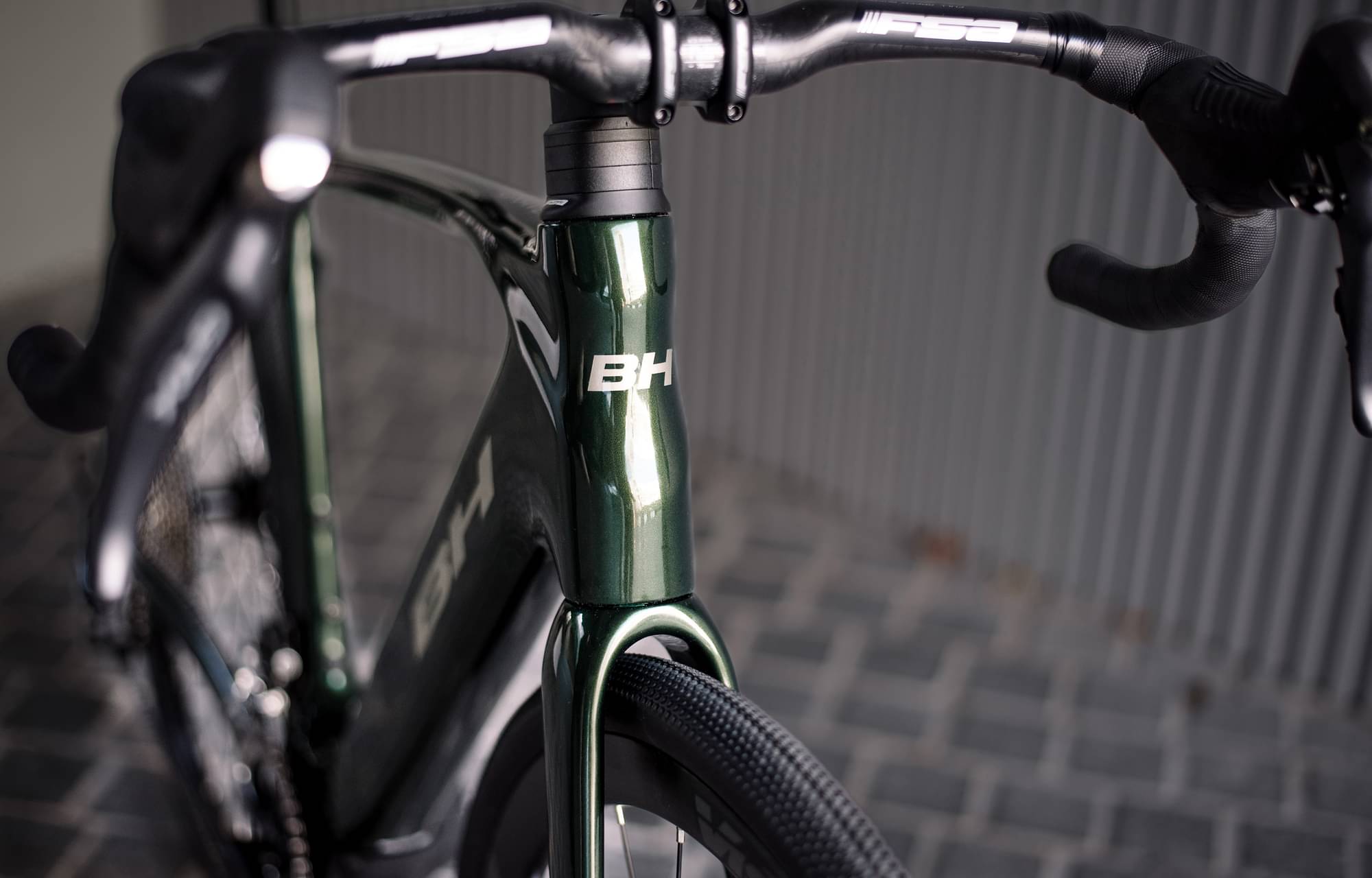

Headset
FSA ACR
Seat
Saddle
Prologo Dimension Agx
Seatpost
BH Aero
Motor & Battery

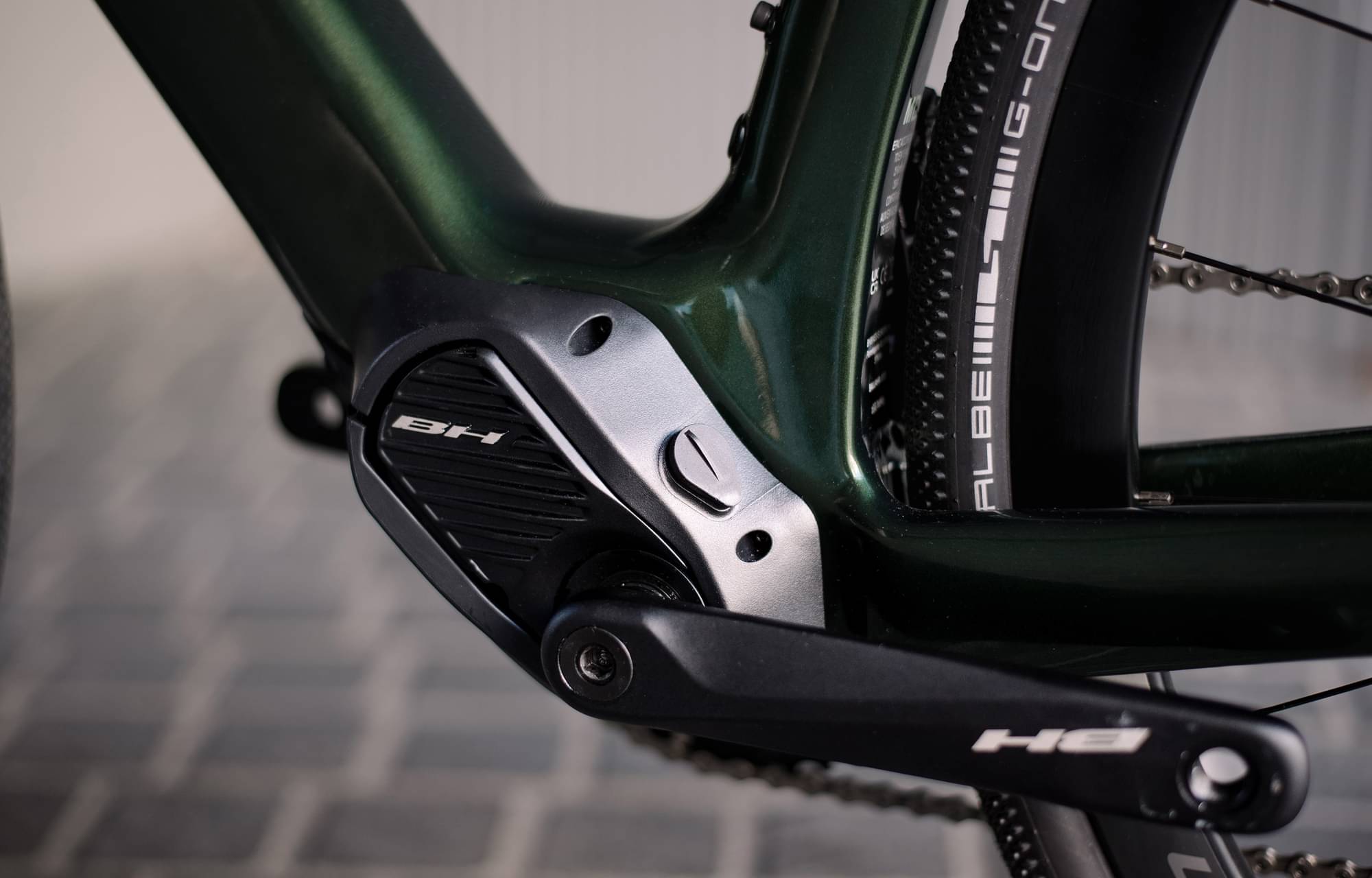

Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG |
|---|---|---|---|---|---|---|
| Top Tube Length | 538 mm | 540 mm | 558 mm | 560 mm | 578 mm | 580 mm |
| Seat Tube Angle | 73.8 ° | 74 ° | 72.8 ° | 73 ° | 72.8 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 72.3 ° | 72.5 ° | 72.8 ° | 73 ° |
| Head Tube Length | 145 mm | 145 mm | 160 mm | 160 mm | 170 mm | 175 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 592 mm | 591 mm | 597 mm | 596 mm | 608 mm | 607 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 176 cm | 176 cm |
| Rider Max Height | 170 cm | 170 cm | 179 cm | 179 cm | 187 cm | 187 cm |
