Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset XT, Deore -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Expert Alu 29", 148x12, integrated headset 42ACB

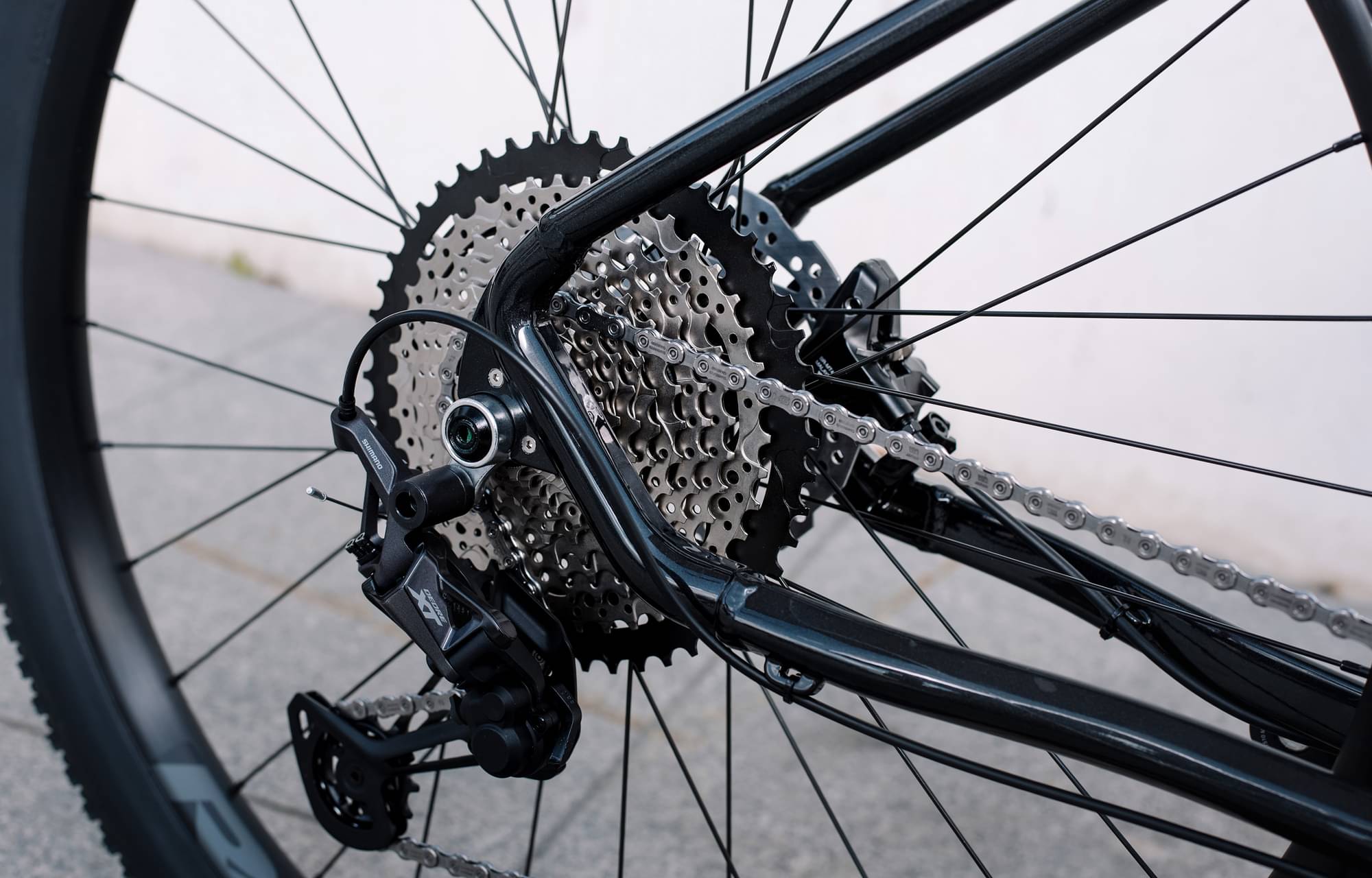

Drivetrain
Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano Deore 6100 12sp
Cassette
Shimano Deore 6100 10/51
Crank
Shimano MT510, 175mm
Bottom Bracket
Shimano
Chain
Shimano Deore
Wheels
Rims
BH Lite
Tires
Maxxis Ikon 2.20/ Continental Race
Brakes
Brakes
Front: Shimano MT201 180mm, Rear: Shimano MT201 160mm

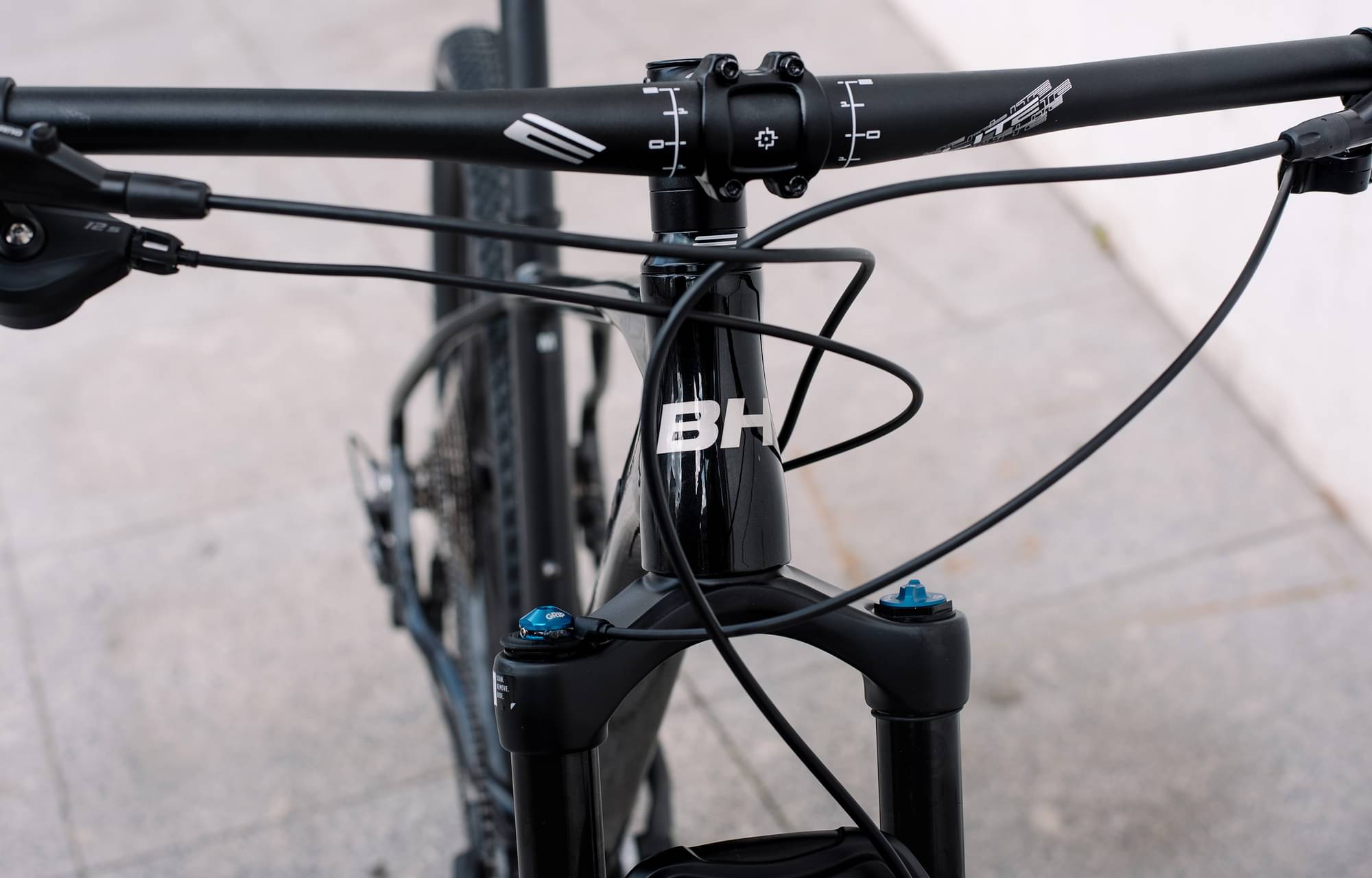

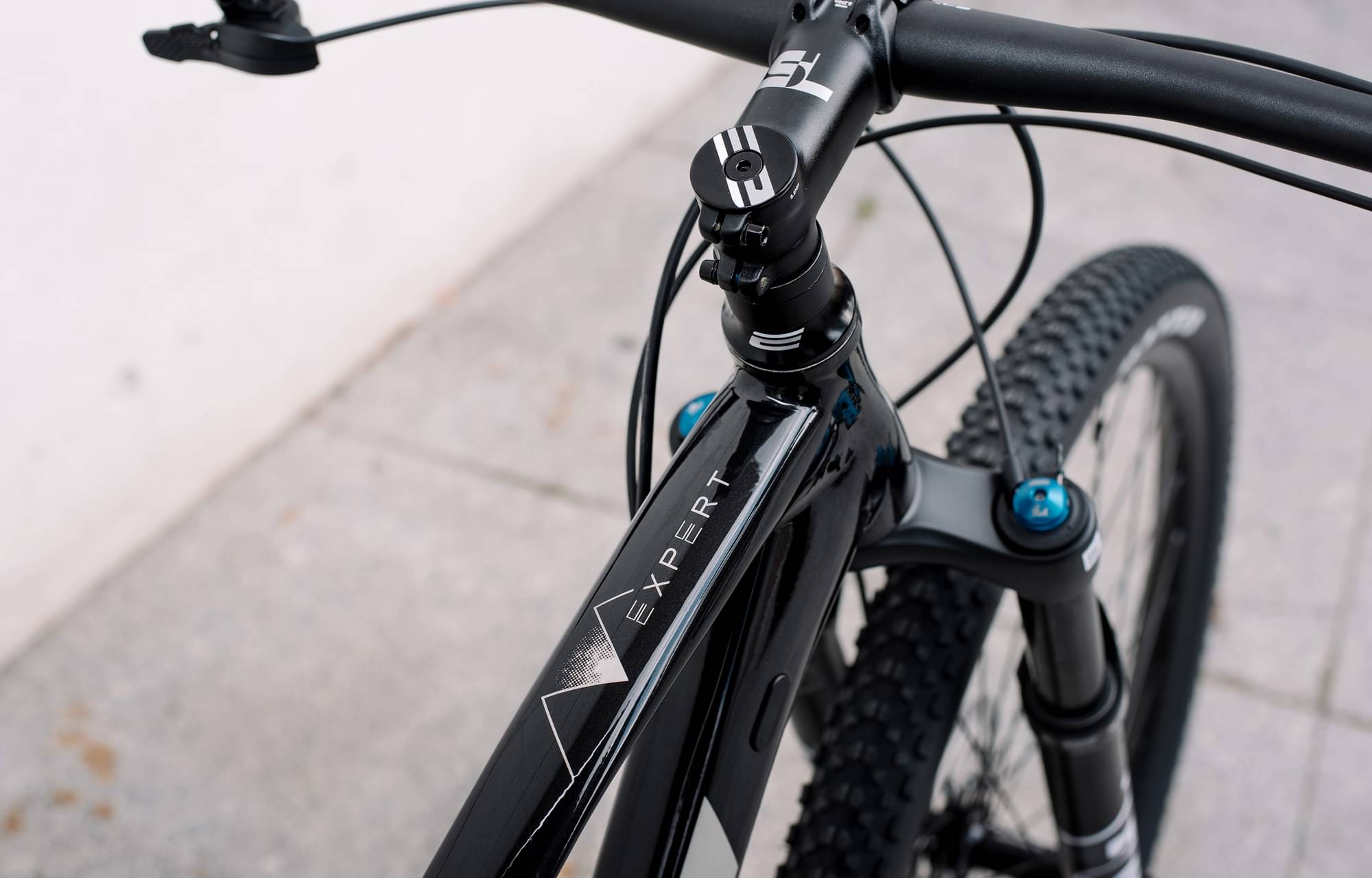

Cockpit
Stem
BH SL 80mm, 31,8mm, +/-6º
Handlebar
BH Lite flat 780mm
Grips
BH Lock On
Headset
BH SL integrated sealed bearing
Seat
Saddle
Prologo Nago RS
Seatpost
BH Lite 31,6mm, 420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 580 mm | 607 mm | 622 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1091 mm | 1121 mm | 1136 mm | 1164 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
