Bike details
Overview
Key information split into simple groups.

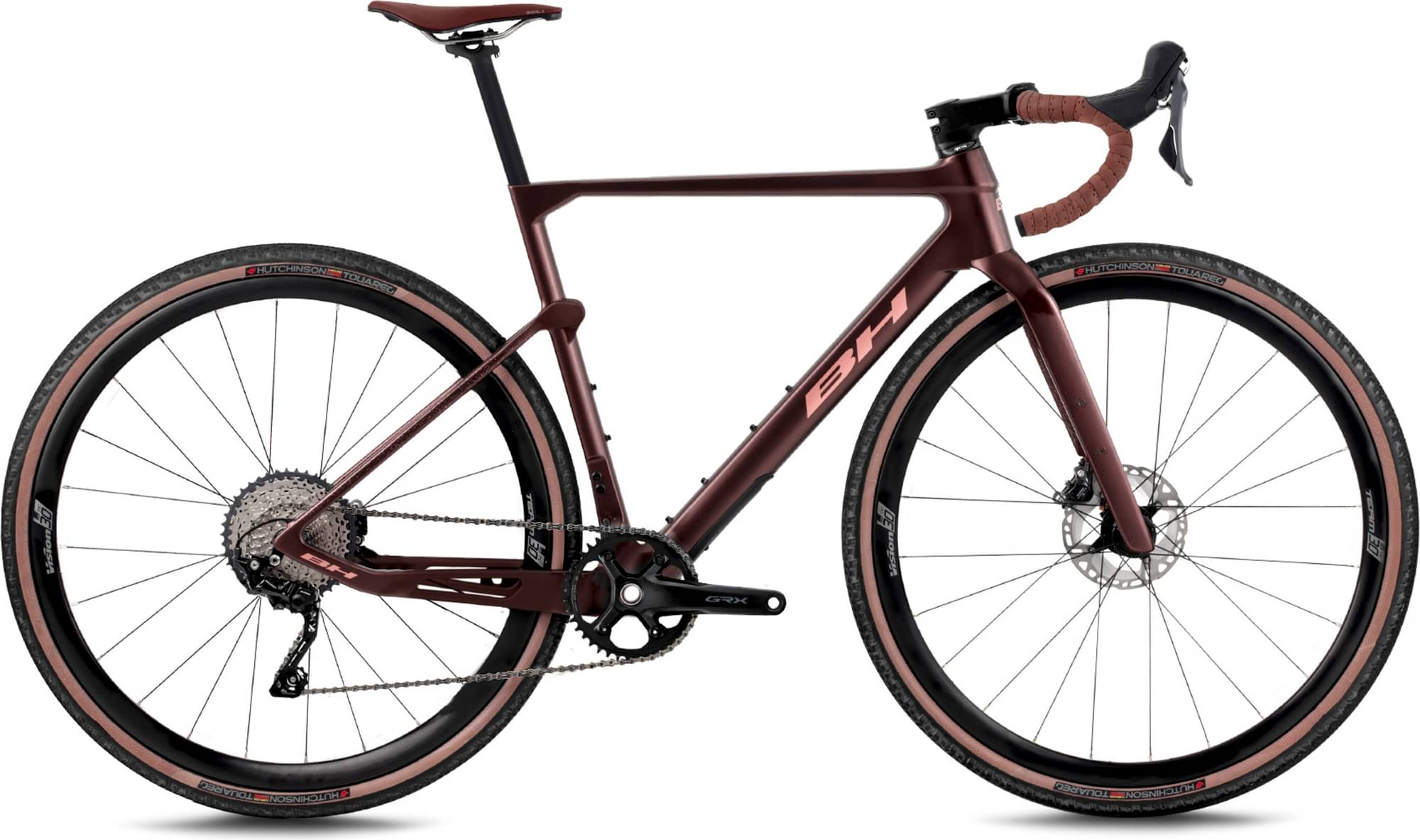

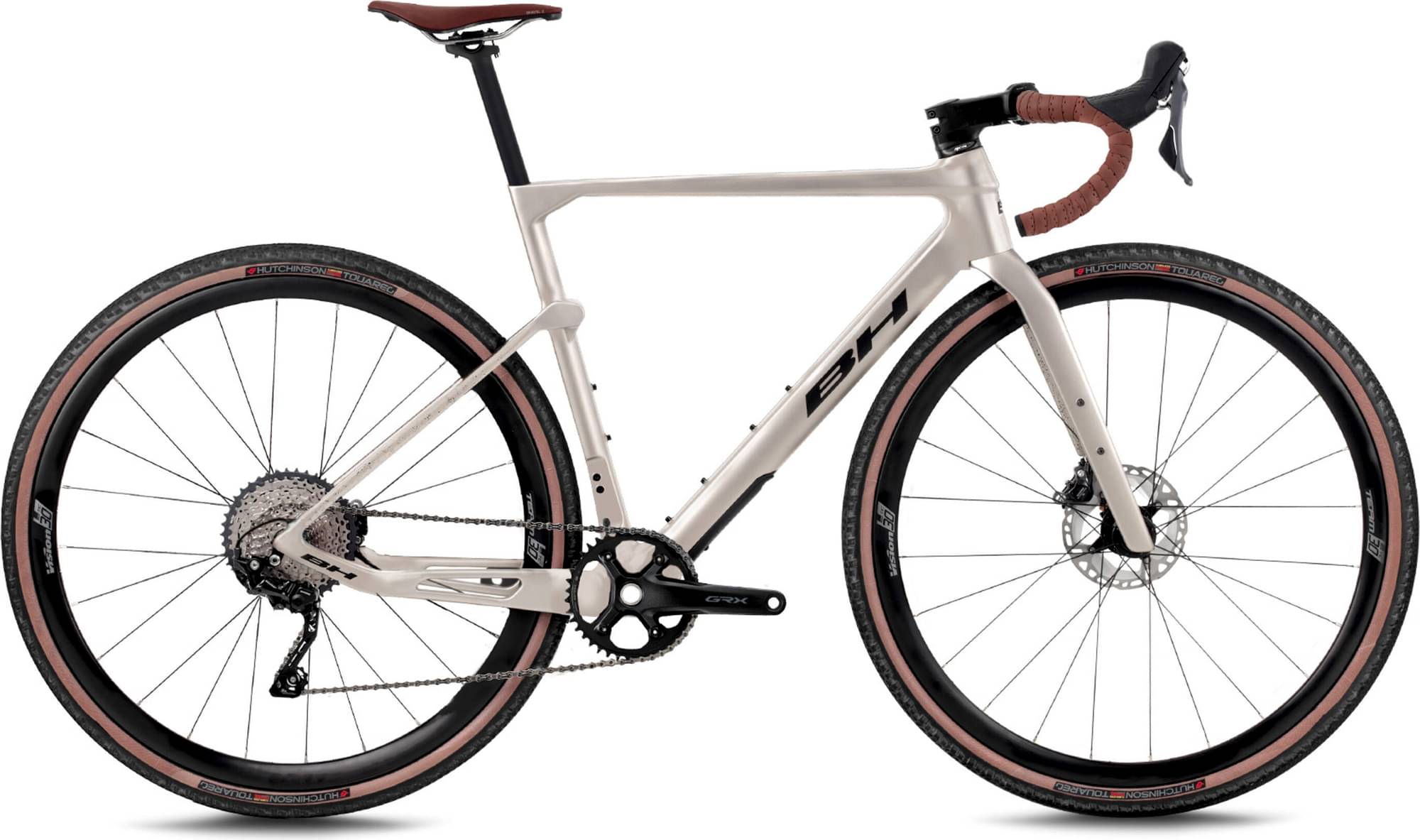

Bike summary
-
-
Frame Carbon -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Shimano GRX 800 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gravel X Carbon Monocoque
Suspension Fork
Gravel X Evo Carbon 1.5
Drivetrain
Rear Derailleur
Shimano GRX 822 12sp
Shift Levers
Shimano GRX hydra
Cassette
Shimano SLX 10/45
Crank
Shimano GRX 820 Mono 40T, X, Crank set, Shimano GRX 820 Mono 40T, XS 170mm, SM 172,5mm, MD 172,5mm, LA 175mm, XL 175mm
Chain
Shimano 105
Wheels
Rims
Vision Team TC30 MS Disc
Tires
Hutchinson Touareg Tan 700x40
Brakes
Brakes
Front: Shimano GRX hydra, Rear: Shimano GRX hydra
Cockpit
Stem
FSA NS SMR, X, Stem, FSA NS SMR, XS 90mm, SM 100mm, MD 100mm, LA 110mm, XL 110mm
Handlebar
FSA NS Gravel, X, Handlebar, FSA NS Gravel, XS 400mm, SM 420mm, MD 420mm, LA 440mm, XL 440mm
Headset
FSA SMR
Seat
Saddle
BH Tud XGR
Seatpost
BH Gravel X
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.459 mm | 1.475 mm | 1.491 mm | 1.503 mm |
| Bottom Bracket Height | 274 mm | 276 mm | 276 mm | 278 mm |
| Front Center | 591 mm | 602 mm | 614 mm | 626 mm |
| Rake | 50 mm | 51 mm | 51 mm | 50 mm |
| Trail | 71 mm | 66 mm | 63 mm | 61 mm |
| Stack | 540 mm | 556 mm | 577 mm | 598 mm |
| Reach | 370 mm | 377 mm | 387 mm | 398 mm |
| Top Tube Length | 527 mm | 548 mm | 567 mm | 587 mm |
| Seat Tube Angle | 73.75 ° | 73 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1009 mm | 1019 mm | 1031 mm | 1044 mm |
| Bottom Bracket Drop | 75 mm | 73 mm | 73 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
