Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Motor mid-drive -
Battery 410Wh -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Road Carbon 28" internal cable routing
Suspension Fork
BH iAerolight Carbon ACR
Drivetrain
Rear Derailleur
Shimano 105 Di2 12sp
Front Derailleur
Shimano 105 Di2
Shift Levers
Shimano 105 Di2
Cassette
Shimano 105 12sp (11-34T)
Crank
FSA 50/34T
Bottom Bracket
-
Chain
Shimano CNM7100
Wheels
Front Hub
FSA
Rear Hub
FSA
Rims
FSA Team 35 TR
Spokes
Stainless Steel
Tires
Hutchinson Fusion 5 700X28
Brakes
Brakes
Front: Shimano 105 160mm, Rear: Shimano 105 160mm
Cockpit
Stem
BH Lite Ahead
Handlebar
FSA SLK Compact Carbon
Grips
Bar Tape
Headset
FSA ACR
Seat
Saddle
Prologo Dimension Stn
Seatpost
BH iAerolight
Motor & Battery

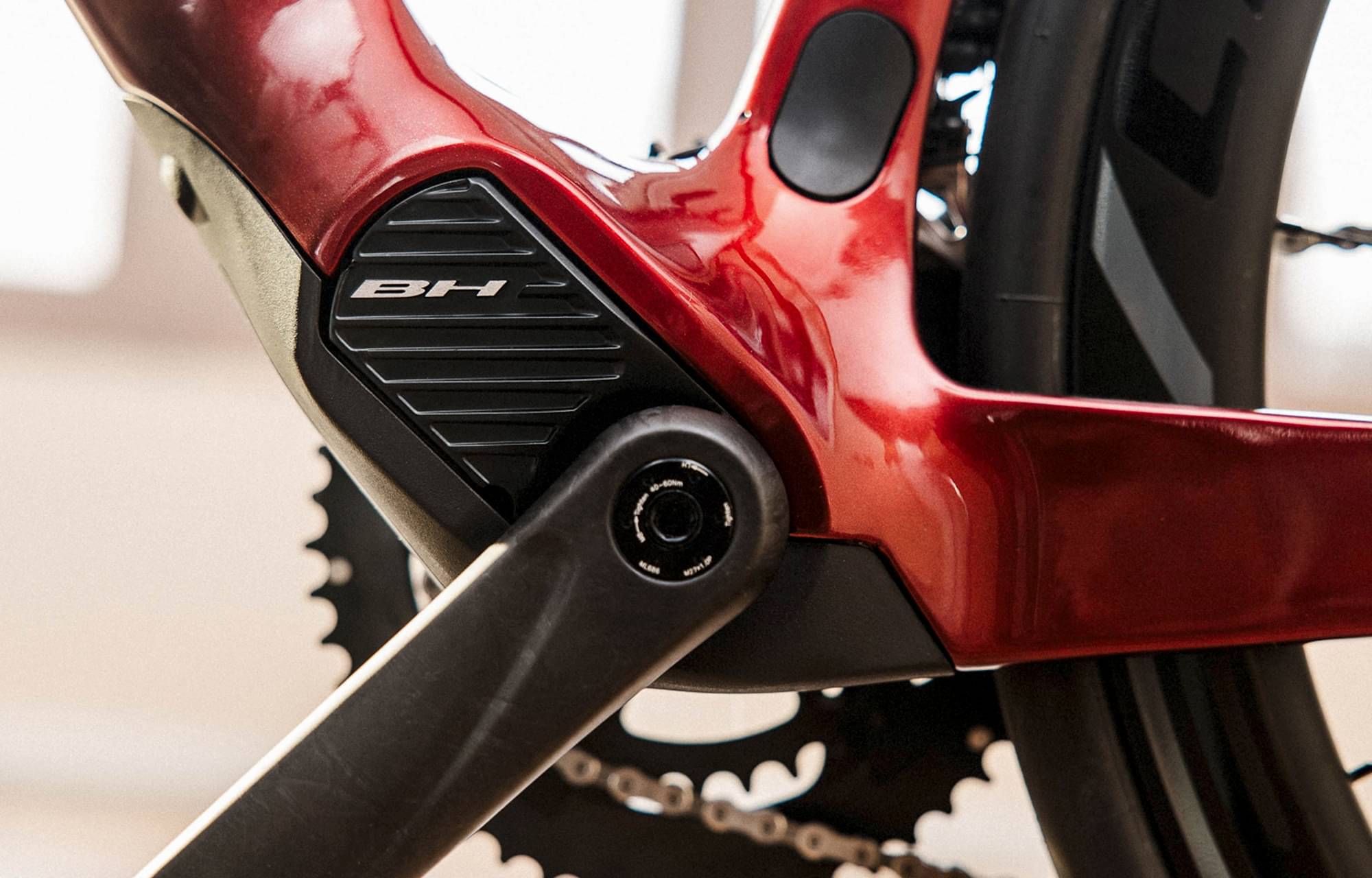

Motor
NR System
Battery
410Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 267 mm | 269 mm | 269 mm |
| Top Tube Length | 525 mm | 542 mm | 559 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 570 mm | 585 mm | 604 mm |
| Head Tube Angle | 72.25 ° | 72.75 ° | 73 ° |
| Head Tube Length | 97 mm | 107 mm | 122 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm |
| Wheelbase | 576 mm | 579 mm | 589 mm |
| Bottom Bracket Drop | 69 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
