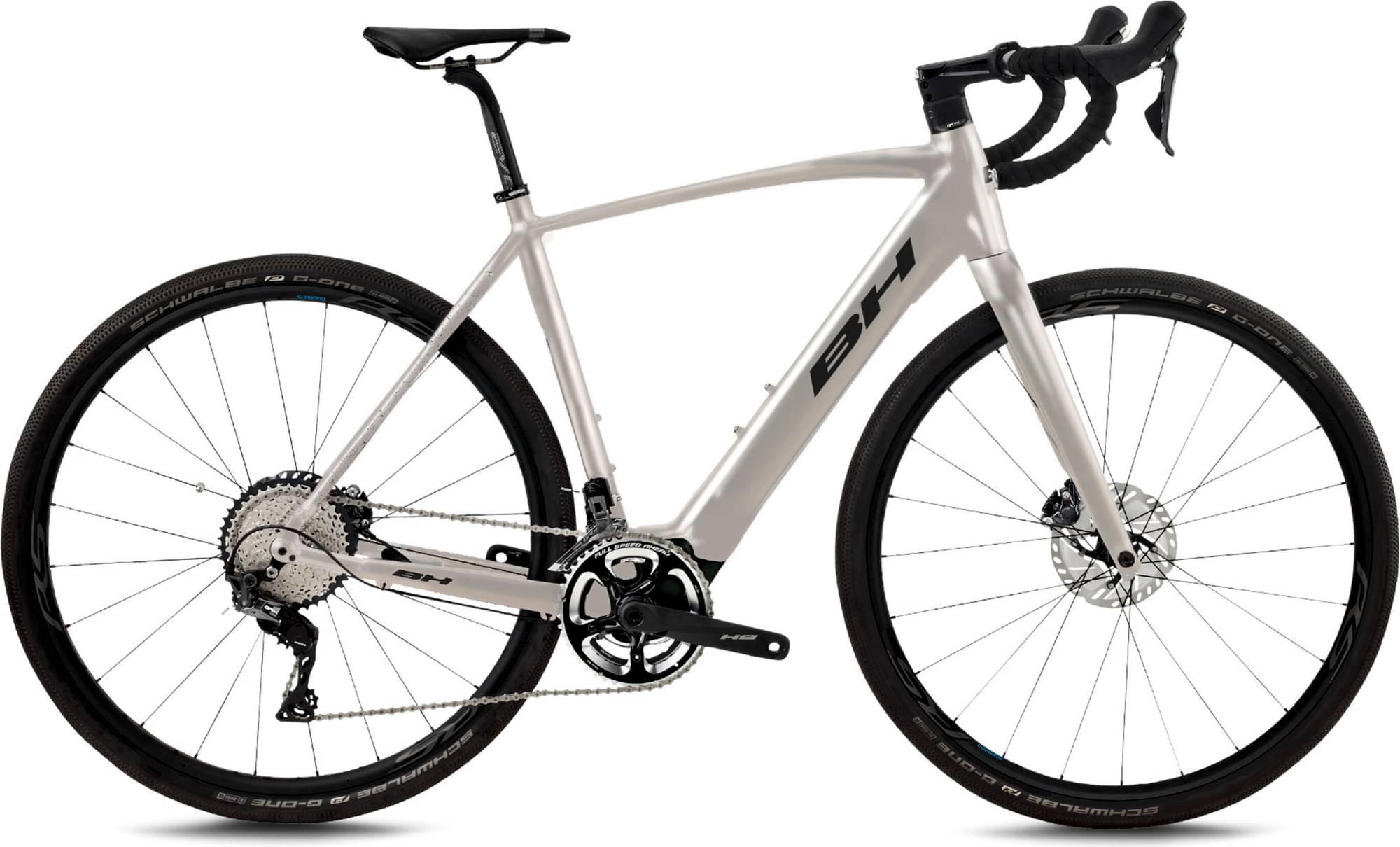

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 800 -
Suspension Rigid -
Motor mid-drive -
Battery 630Wh -
Drivetrain 2 × 12 -
Brakes Shimano GRX 800 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gravel Alloy 28" internal cable routing
Suspension Fork
BH Gravel Carbon ACR
Drivetrain
Rear Derailleur
Shimano GRX 12sp
Front Derailleur
Shimano GRX
Shift Levers
Shimano GRX
Cassette
Shimano CSM7101 12sp (11-34T)
Crank
FSA 50/34T, X, Crank set, FSA 50/34T, LA 175mm, MD 172mm, SM 170mm
Chain
Shimano CNM6100
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Shimano RS370 TR
Spokes
Stainless Steel
Tires
Schwalbe G-One 700X38
Brakes
Brakes
Front: Shimano GRX 160mm, Rear: Shimano GRX 160mm
Cockpit
Stem
FSA 90 Ahead, X, Stem, FSA 90 Ahead, LA 100mm, MD 90mm, SM 80mm
Handlebar
FSA A-Wing Pro, X, Handlebar, FSA A-Wing Pro, LA 440mm, MD 420mm, SM 400mm
Grips
Bar Tape
Headset
FSA ACR
Seat
Saddle
Prologo Nago RS
Seatpost
FSA Energy 27,2
Motor & Battery
Motor
NR System
Battery
630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.469 mm | 1.41 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Front Center | 608 mm | 610 mm | 628 mm |
| Rake | 50 mm | 51 mm | 33 mm |
| Trail | 67 mm | 60 mm | 79 mm |
| Stack | 550 mm | 573 mm | 592 mm |
| Reach | 386 mm | 390 mm | 420 mm |
| Top Tube Length | 552 mm | 566 mm | 586 mm |
| Seat Tube Angle | 73.25 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1024 mm | 1027 mm | 1044 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
