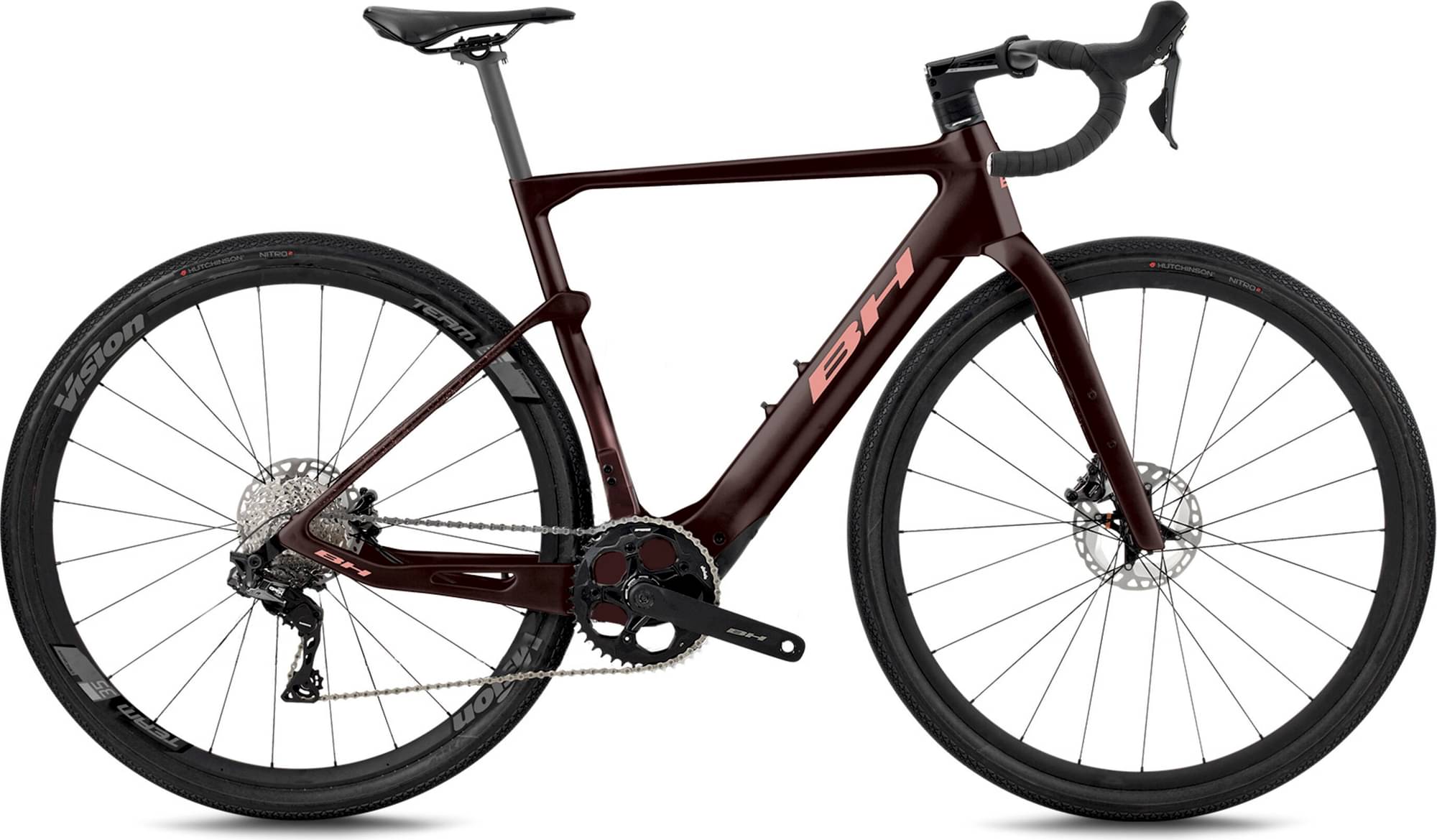

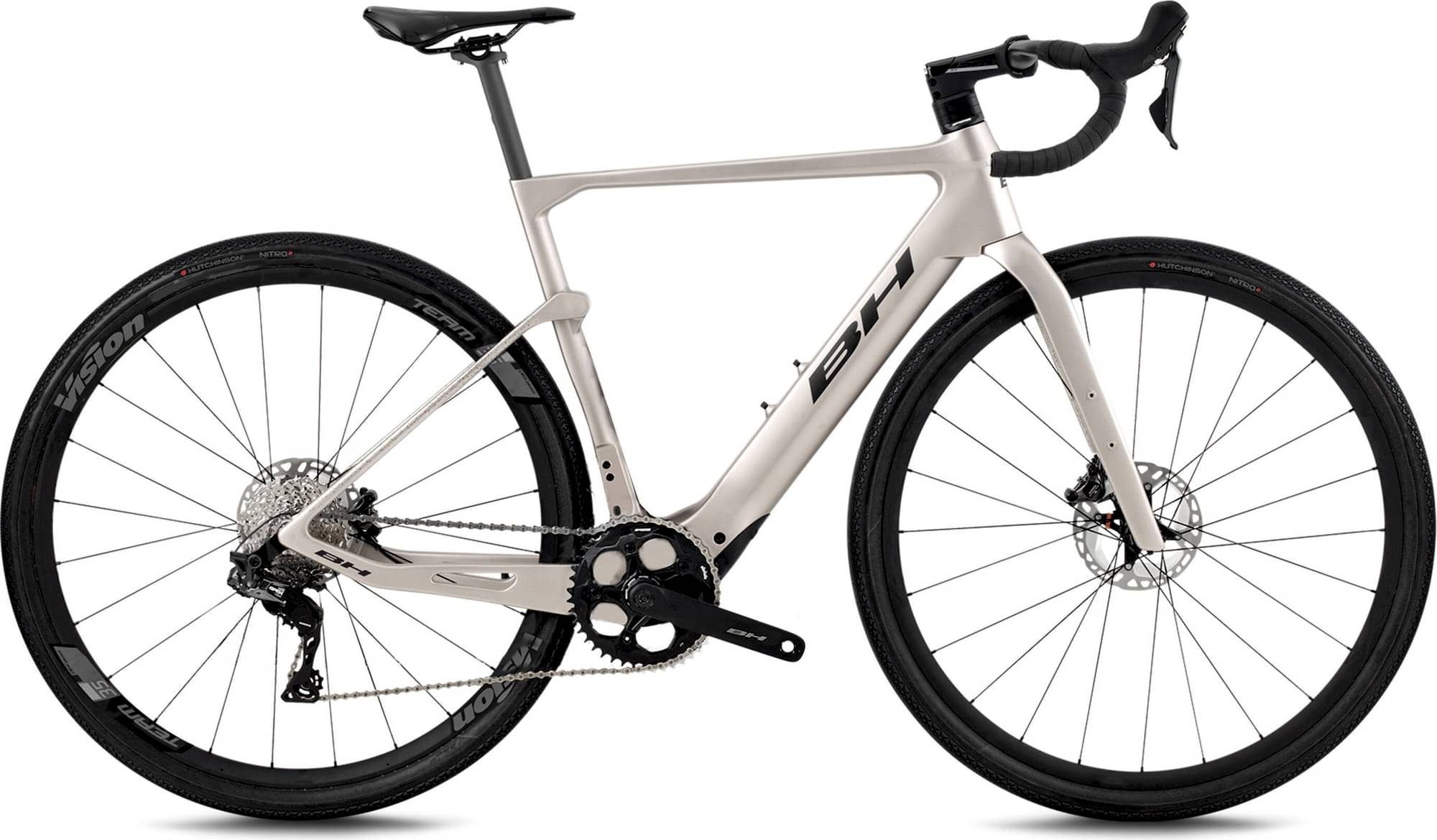

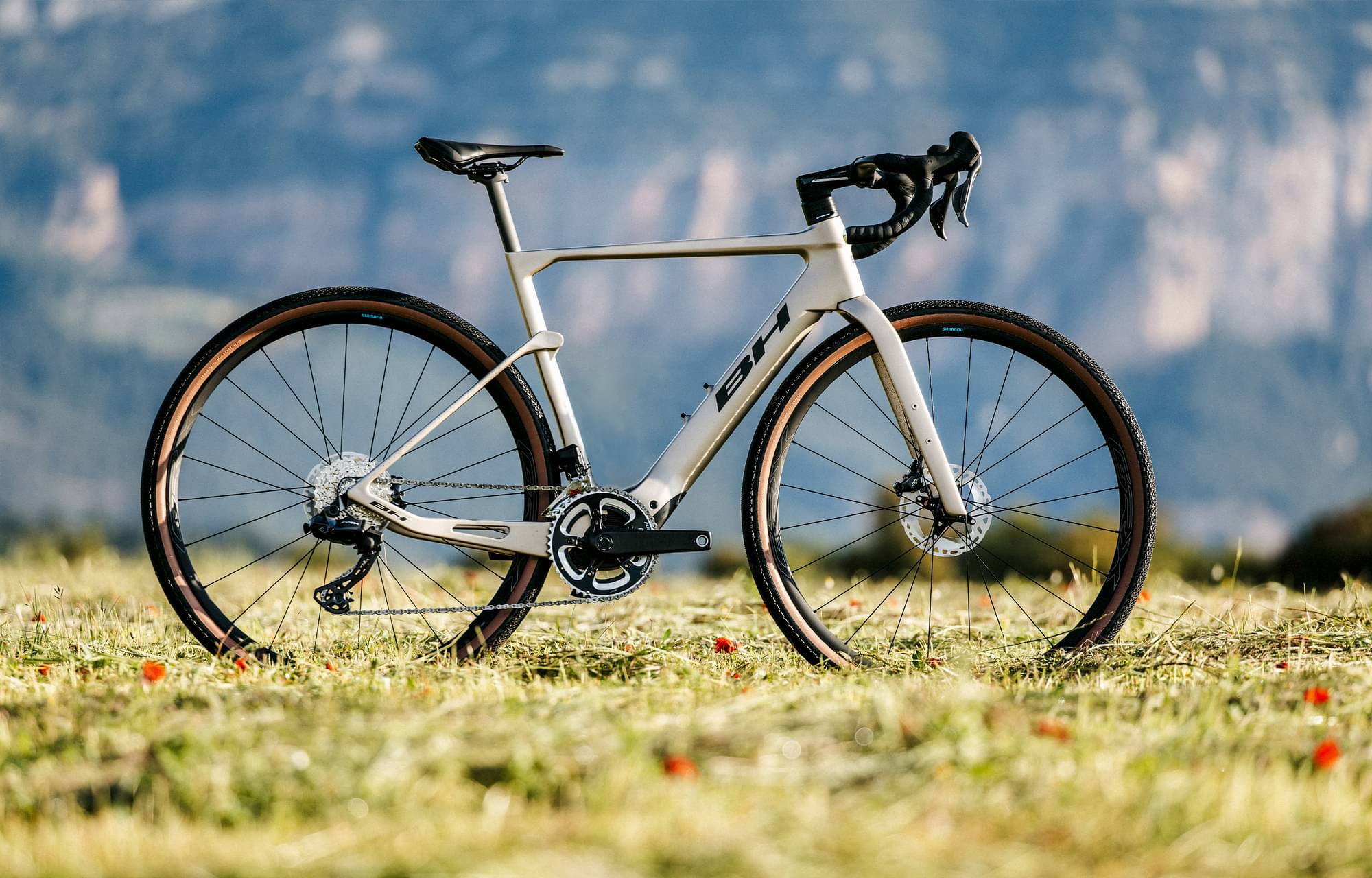

BH iGRAVELX CARBON 2.7 2025
2025 E-bike
Estimate price |
6,976$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800 -
Suspension Rigid -
Motor mid-drive -
Battery 420Wh -
Drivetrain 1 × 12 -
Brakes Shimano GRX 800 Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

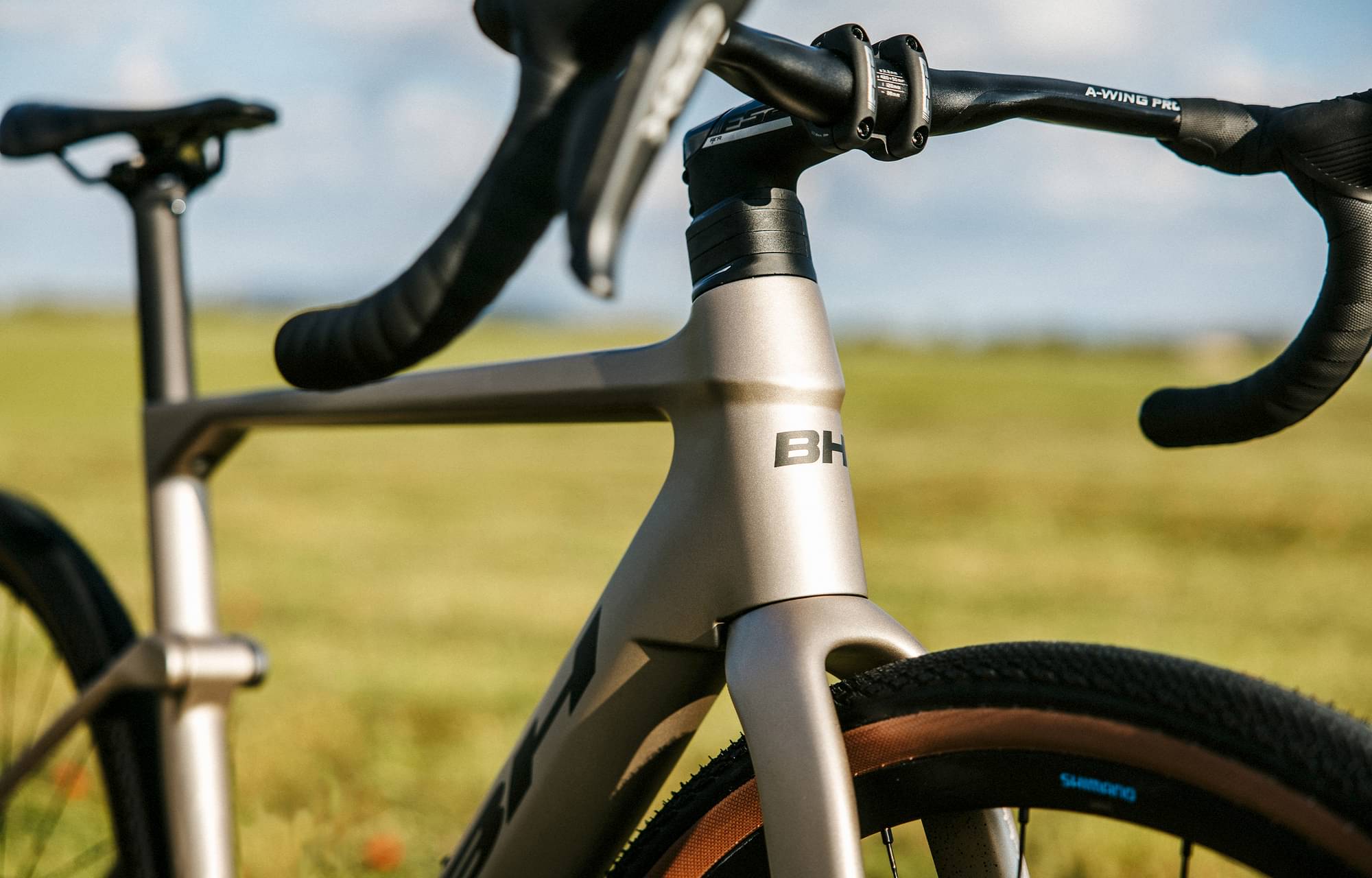

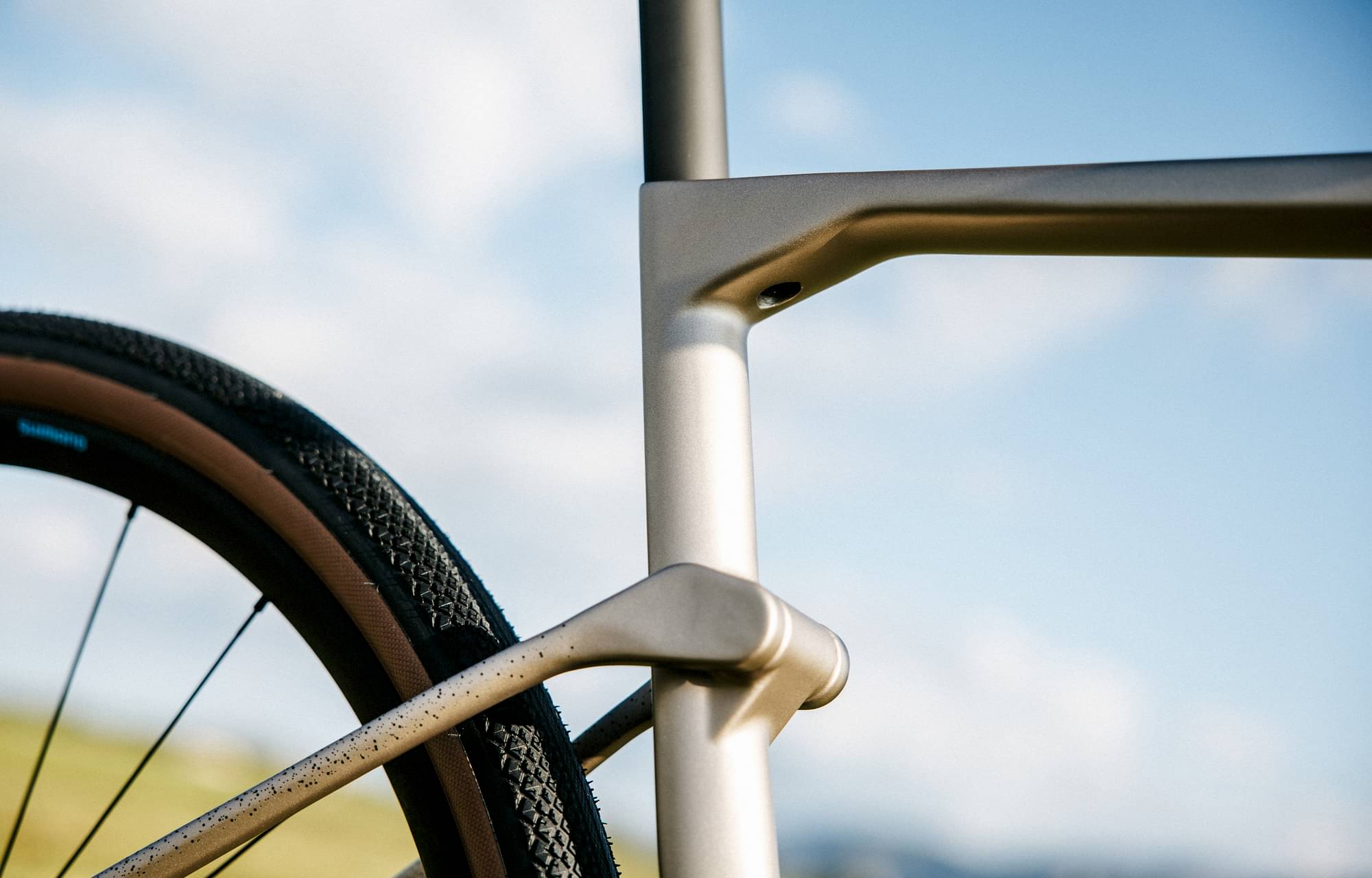

Frame
Gravel Carbon 28" internal cable routing
Suspension Fork
BH iGravelx Carbon ACR
Drivetrain

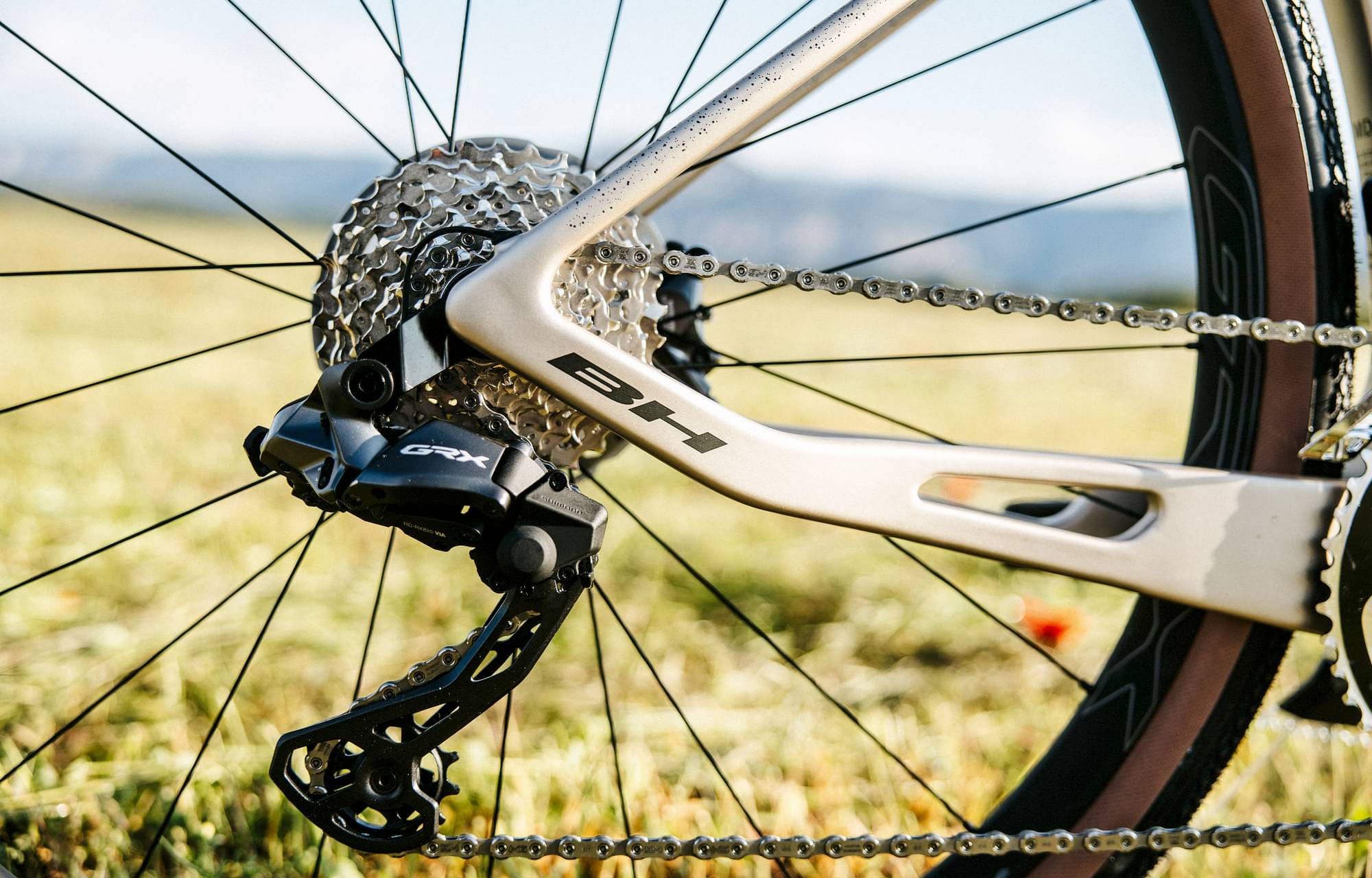

Rear Derailleur
Shimano GRX 12sp
Shift Levers
Shimano GRX
Cassette
Shimano CSR7100 12sp (10-45T)
Crank
FSA 42T, X, Crank set, FSA 42T, LA 175mm, MD 172mm, SM 170mm
Chain
Shimano CNM7100
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
FSA Team TC30 TR
Spokes
Stainless Steel
Tires
Hutchinson Overide 700X45
Brakes
Brakes
Front: Shimano GRX 160mm, Rear: Shimano GRX 160mm
Cockpit

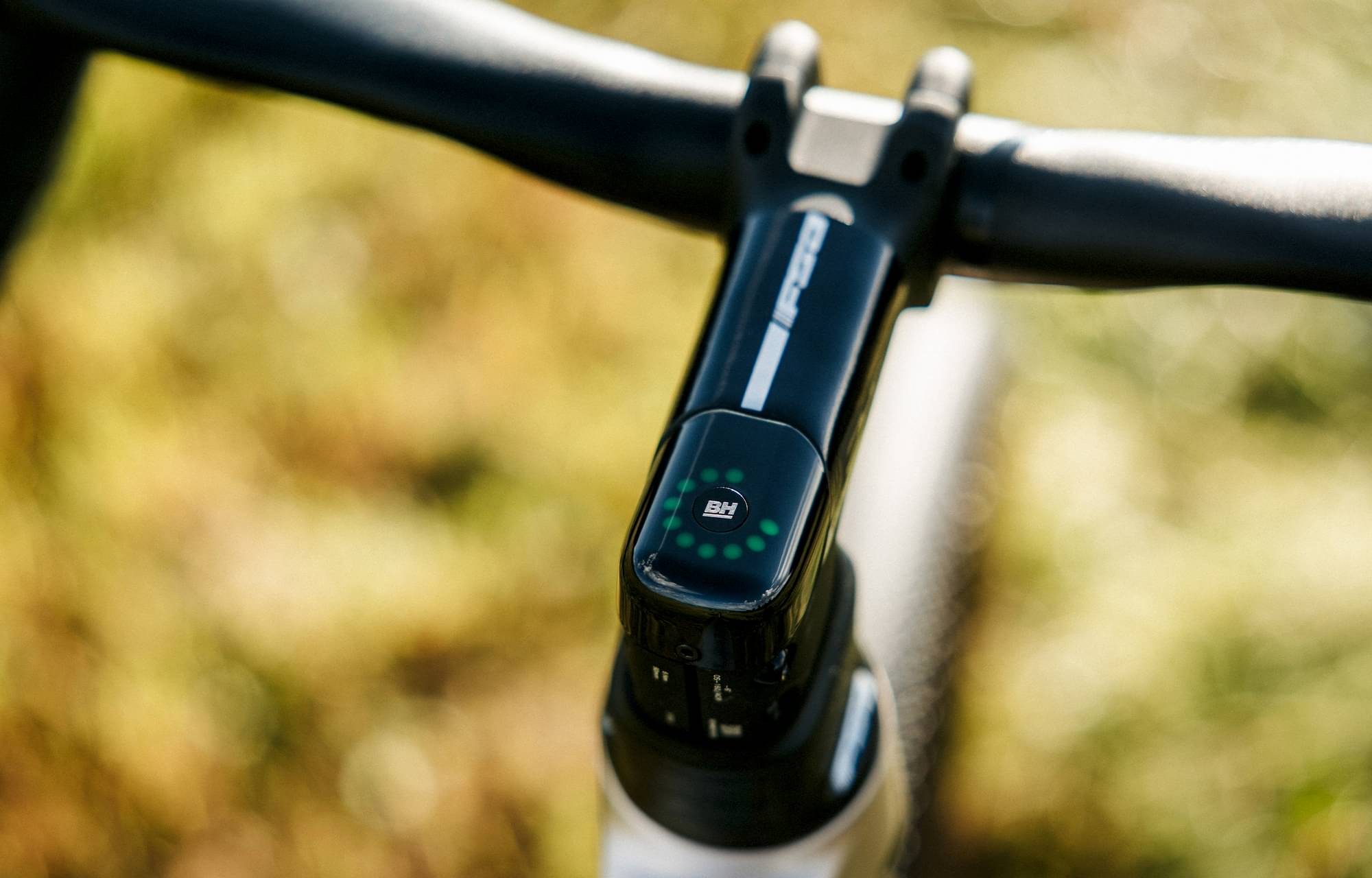

Stem
FSA 90 Ahead, X, Stem, FSA 90 Ahead, LA 100mm, MD 90mm, SM 80mm
Handlebar
FSA K-Wing AGX Carbon, X, Handlebar, FSA K-Wing AGX Carbon, LA 440mm, MD 420mm, SM 400mm
Grips
Bar Tape
Headset
FSA ACR
Seat
Saddle
Prologo Dimension Agx
Seatpost
BH iGravelX
Motor & Battery
Motor
NR System
Battery
420Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.459 mm | 1.477 mm | 1.496 mm | 1.51 mm |
| Bottom Bracket Height | 274 mm | 277 mm | 276 mm | 276 mm |
| Front Center | 592 mm | 601 mm | 614 mm | 630 mm |
| Rake | 50 mm | 50 mm | 50 mm | 49 mm |
| Trail | 71 mm | 67 mm | 64 mm | 65 mm |
| Stack | 540 mm | 557 mm | 579 mm | 601 mm |
| Reach | 370 mm | 377 mm | 387 mm | 398 mm |
| Top Tube Length | 528 mm | 548 mm | 566 mm | 585 mm |
| Seat Tube Angle | 73.75 ° | 73 ° | 72.75 ° | 72.75 ° |
| Seat Tube Length | 498 mm | 515 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1009 mm | 1019 mm | 1031 mm | 1048 mm |
| Bottom Bracket Drop | 75 mm | 72 mm | 73 mm | 73 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
