Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
140 mm Full Suspension Alloy, internal cable routing
Suspension Fork
Rock Shox Recon RL 140mm 15QR
Rear Shock
Rock Shox Deluxe Debonair
Drivetrain
Rear Derailleur
Shimano Deore 11sp
Shift Levers
Shimano Deore
Cassette
Shimano CSM5100 11sp (11-51T)
Crank
FSA 34T -165mm
Chain
Shimano HG60
Wheels
Front Hub
BH
Rear Hub
BH
Rims
Race Face Ar 30 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR 29X2,5/2,4
Brakes
Brakes
Front: Shimano MT420 4 Piston 203mm, Rear: Shimano MT420 4 Piston 203mm
Cockpit
Stem
BH Evo 35 Fit
Handlebar
Race Face Aeffect Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AZX-581 BL
Seat
Saddle
Prologo Proxim W350 Stn
Seatpost
Race Face DP Aeffect 31,6, X, Seatpost, Race Face DP Aeffect 31,6, SM 100mm, MD 150mm, LA 150mm, XL 170mm
Motor & Battery

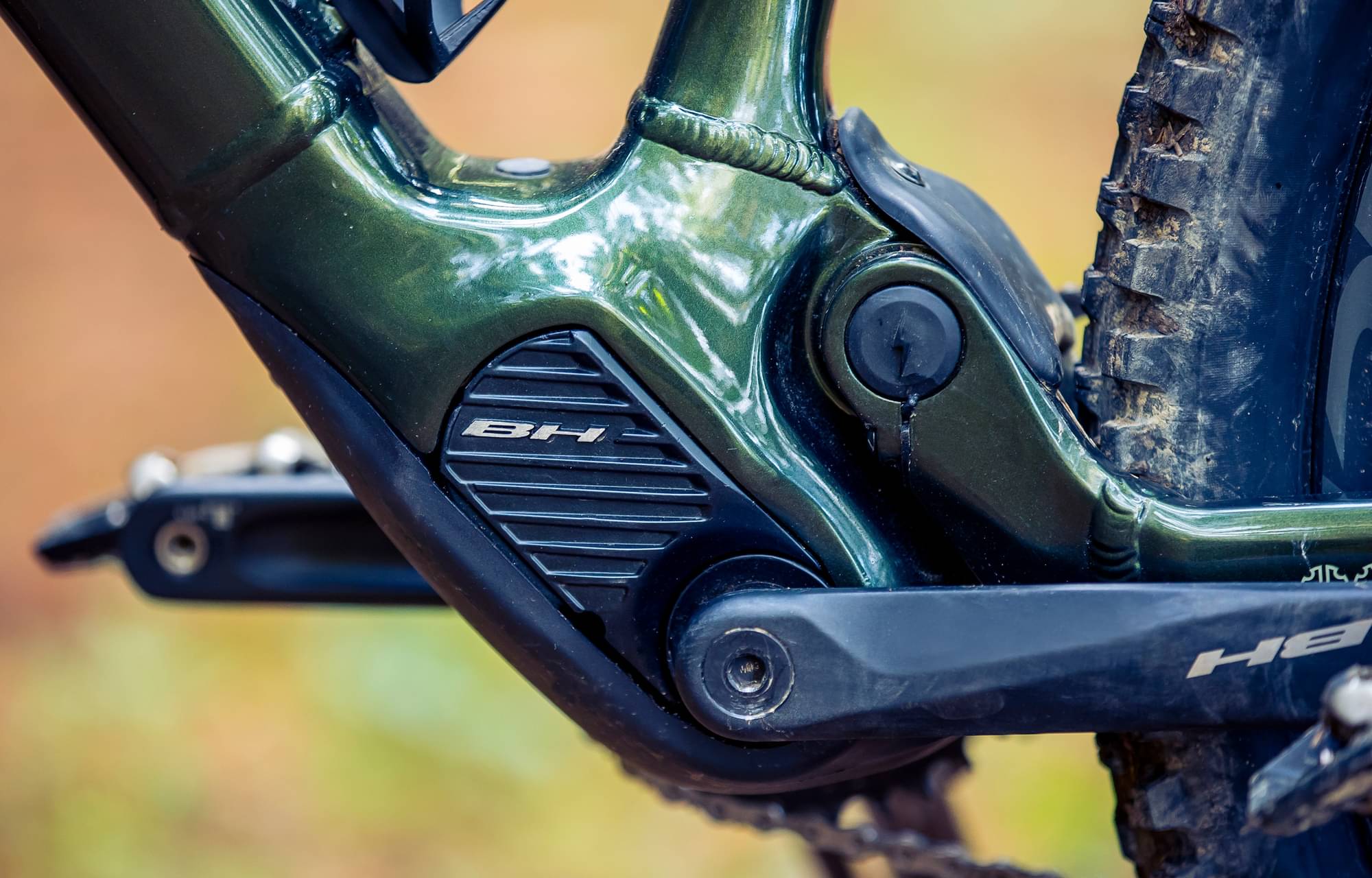

Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Top Tube Length | 570 mm | 570 mm | 596 mm | 596 mm | 619 mm | 619 mm | 639 mm | 639 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 420 mm | 420 mm | 430 mm | 430 mm | 440 mm | 440 mm | 490 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm | 451 mm | 451 mm | 451 mm | 451 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
