Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset SLX, Deore -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lynx Race Carbon, PC Layup Front, Alloy7005 Rear Triangle
Suspension Fork
Rock Shox Recon RL Remote 100mm
Rear Shock
Rock Shox Deluxe,190x40,CM,DRM,40x8Aircan NO bushing
Drivetrain
Rear Derailleur
Shimano SLX 7100 12SP
Shift Levers
Shimano Deore 6100 12sp
Cassette
Shimano Deore 6100 10/51
Crank
Shimano MT510, 175mm
Bottom Bracket
Shimano
Chain
Shimano Deore
Wheels
Front Hub
Shimano MT400/412
Rear Hub
Shimano MT400/412
Rims
Race Face Aeffect TLR, 27mm, 32H
Spokes
Inox 2.2
Tires
Maxxis Ardent EXO 2.25 Front/ Maxxis Ikon EXO 2.25 rear
Brakes
Brakes
Front: Shimano MT410 180mm, Rear: Shimano MT410 160mm
Cockpit

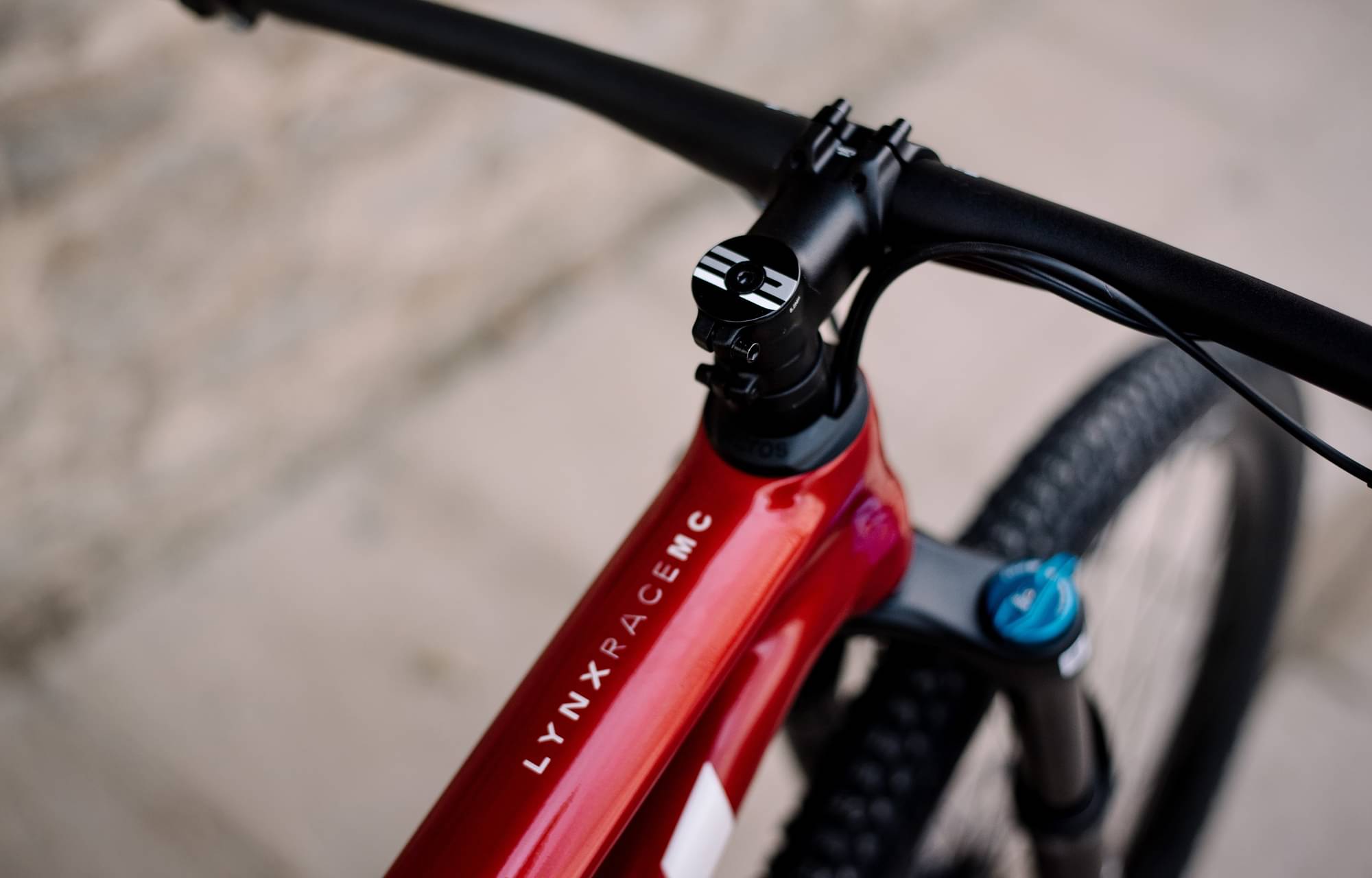

Stem
BH SL 80mm, 31,8mm, +/-6
Handlebar
BH LITE Flat 780mm
Grips
BH SL Lock On

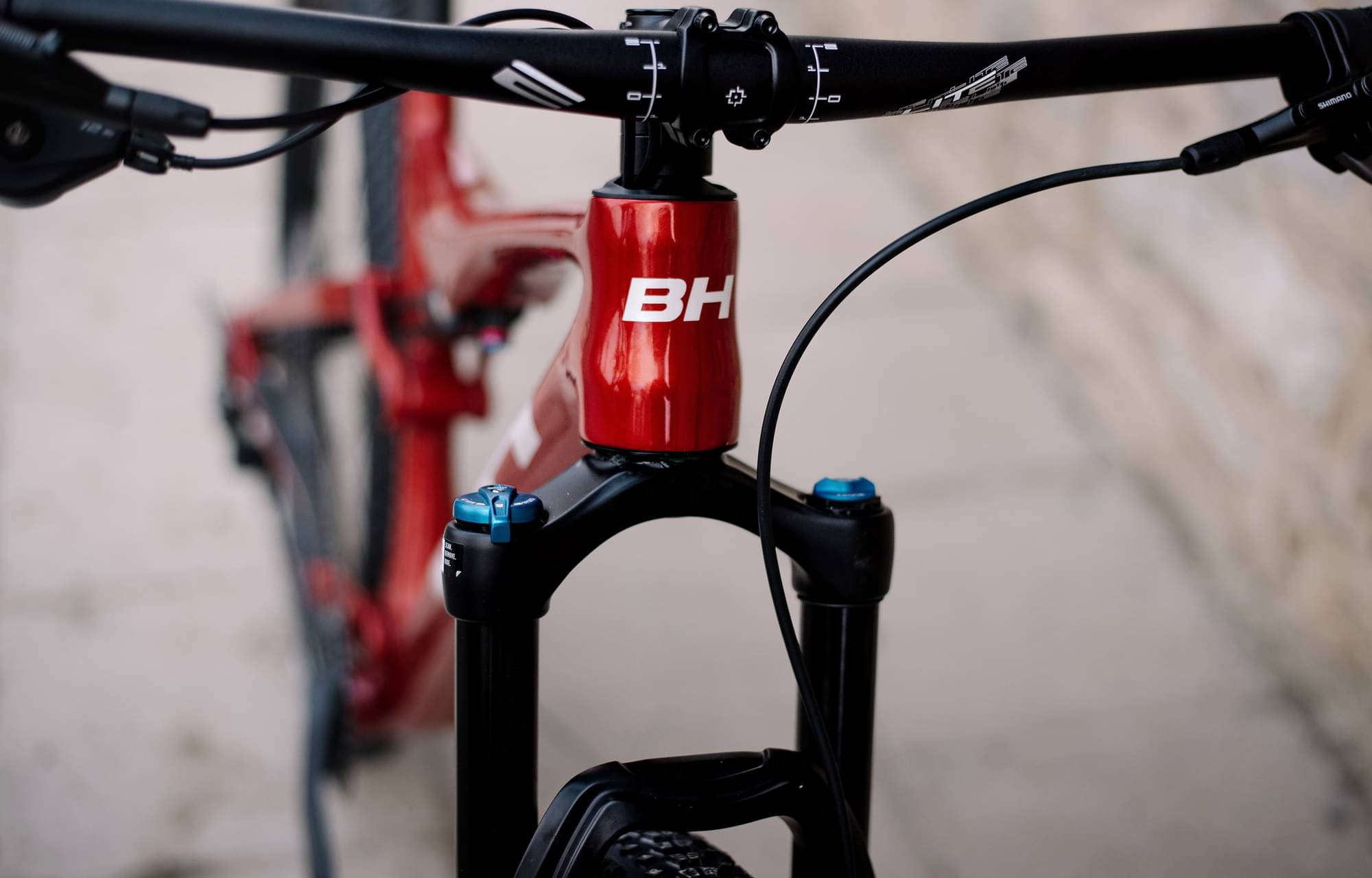

Headset
Acros ICR 36/45, Block Lock 160
Seat
Saddle
Prologo Nago RS
Seatpost
BH LITE 31,6mm 420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 669 mm | 704 mm | 724 mm | 741 mm |
| Top Tube Length | 571 mm | 580 mm | 605 mm | 625 mm |
| Seat Tube Angle | 76 ° | 75.8 ° | 75.8 ° | 75 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1096 mm | 1131 mm | 1151 mm | 1168 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
