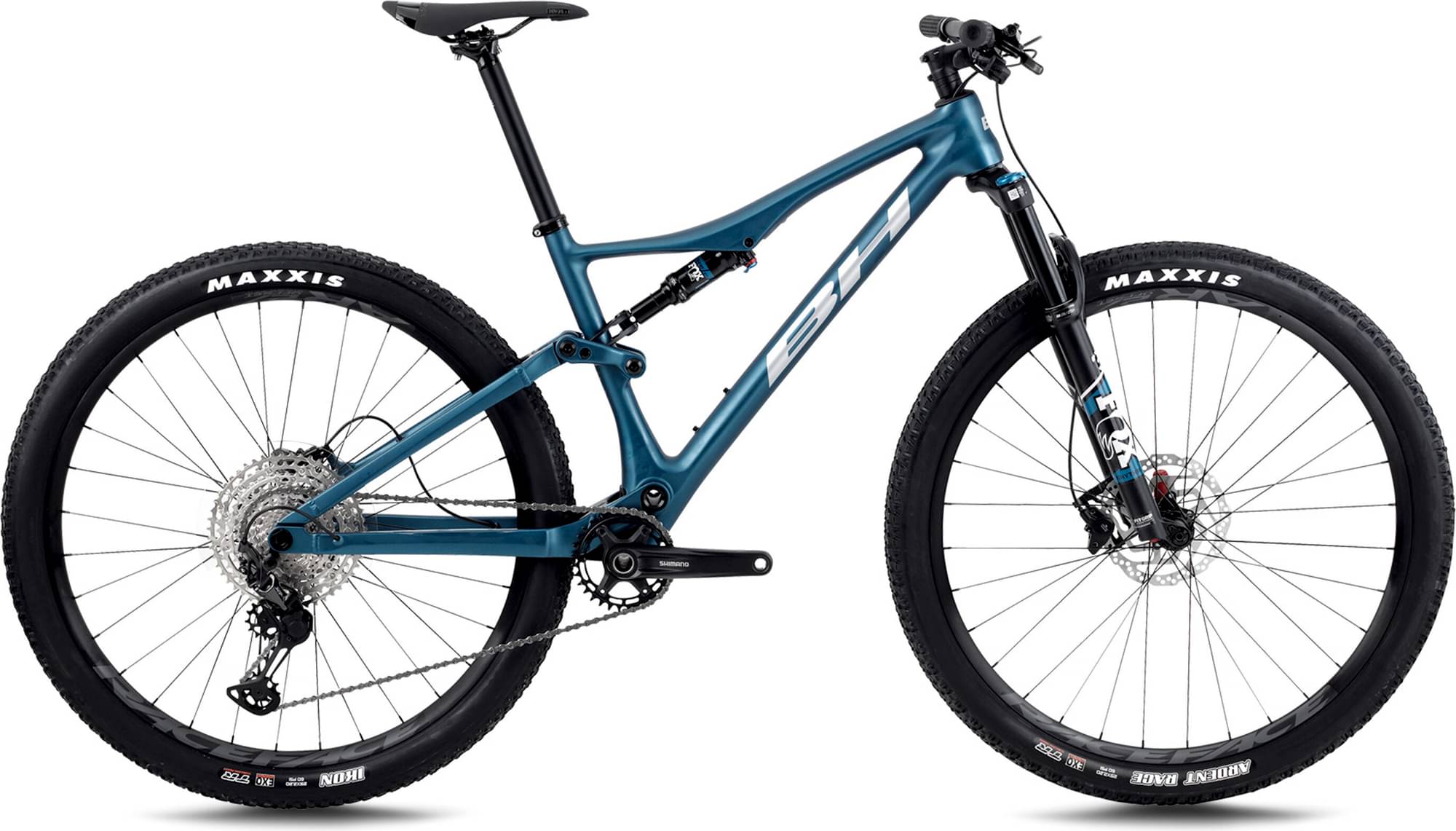

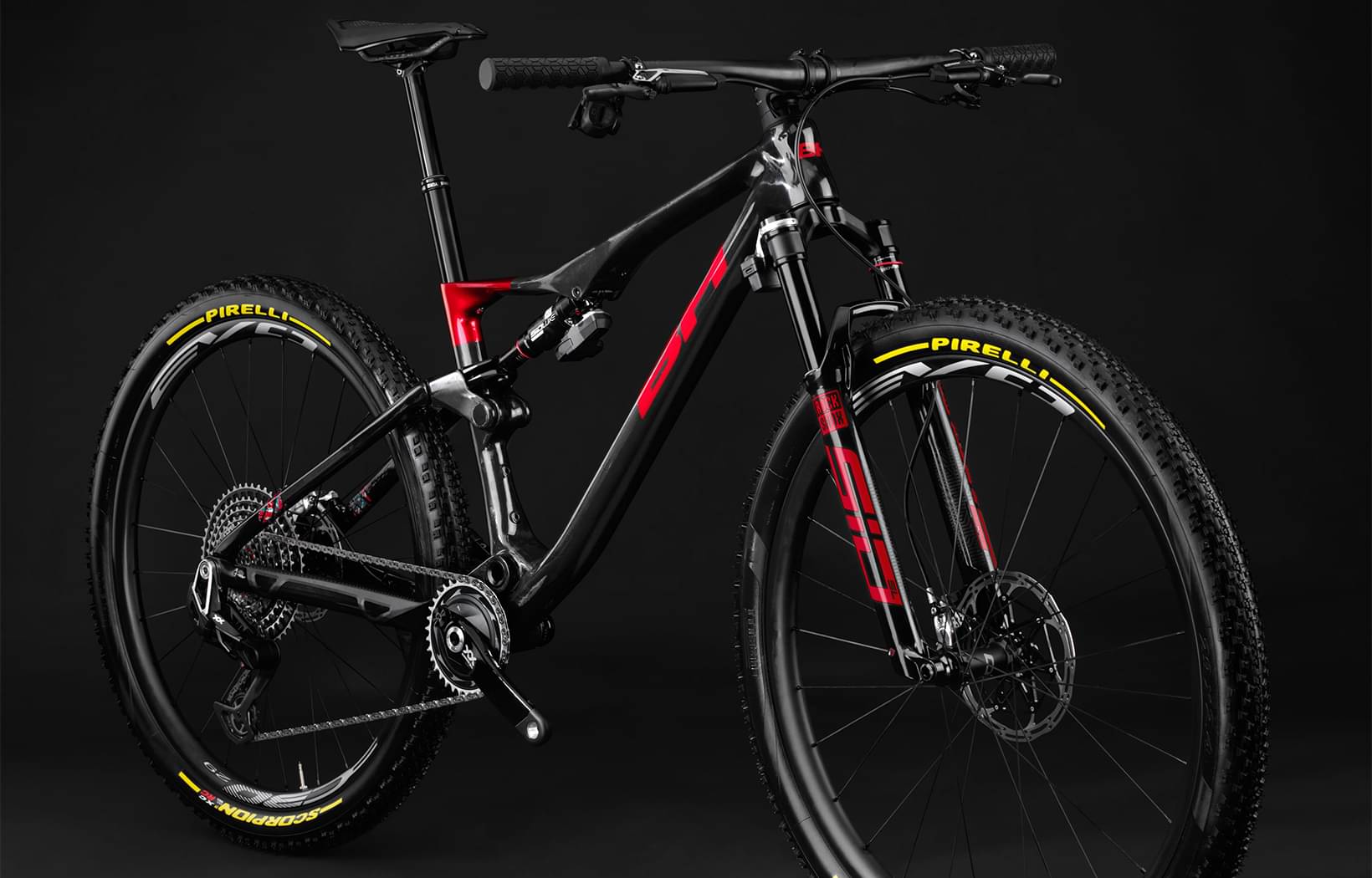

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork Fox Rhythm Float 32
-
Groupset XT -
Suspension Full -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

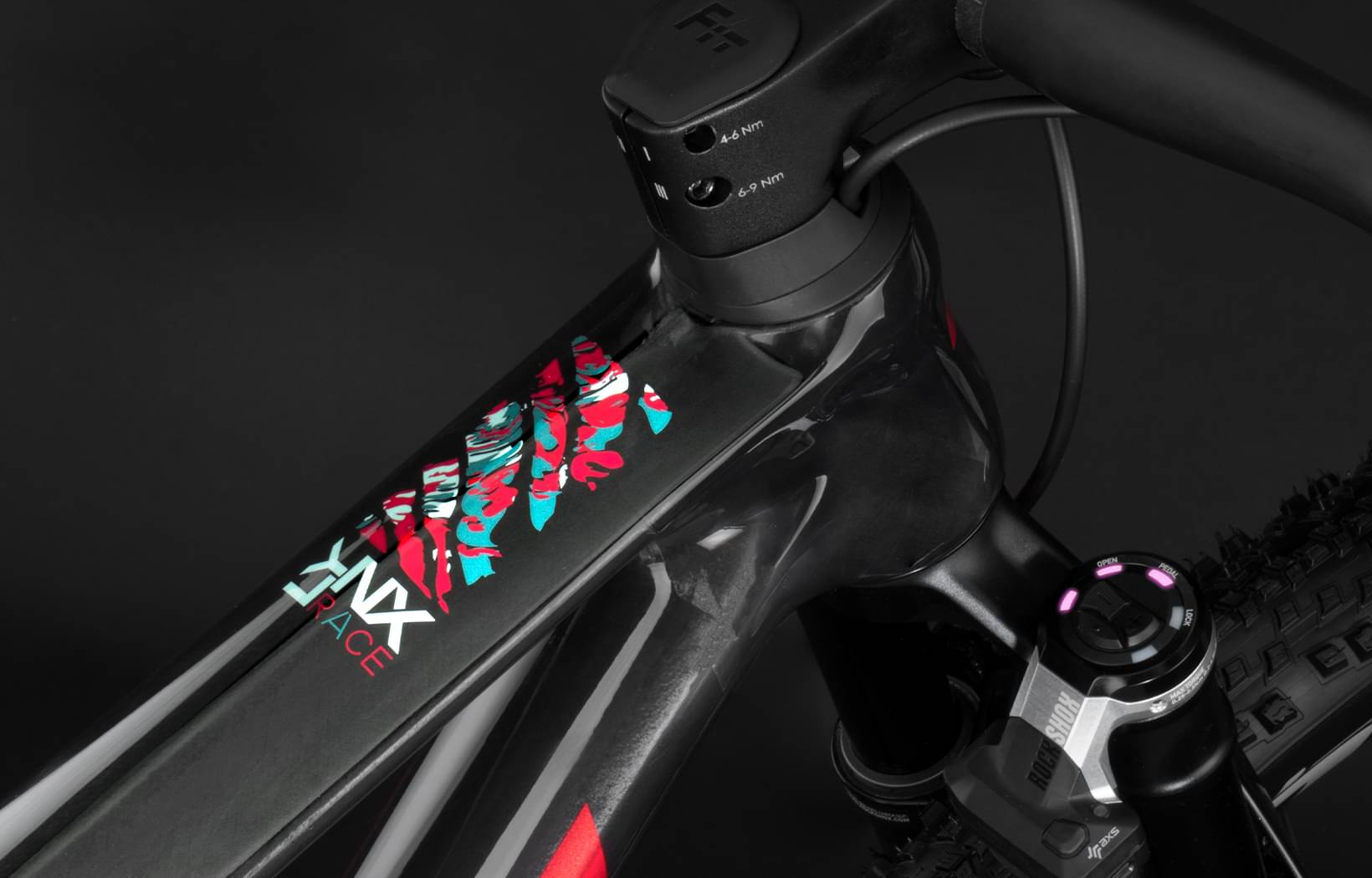

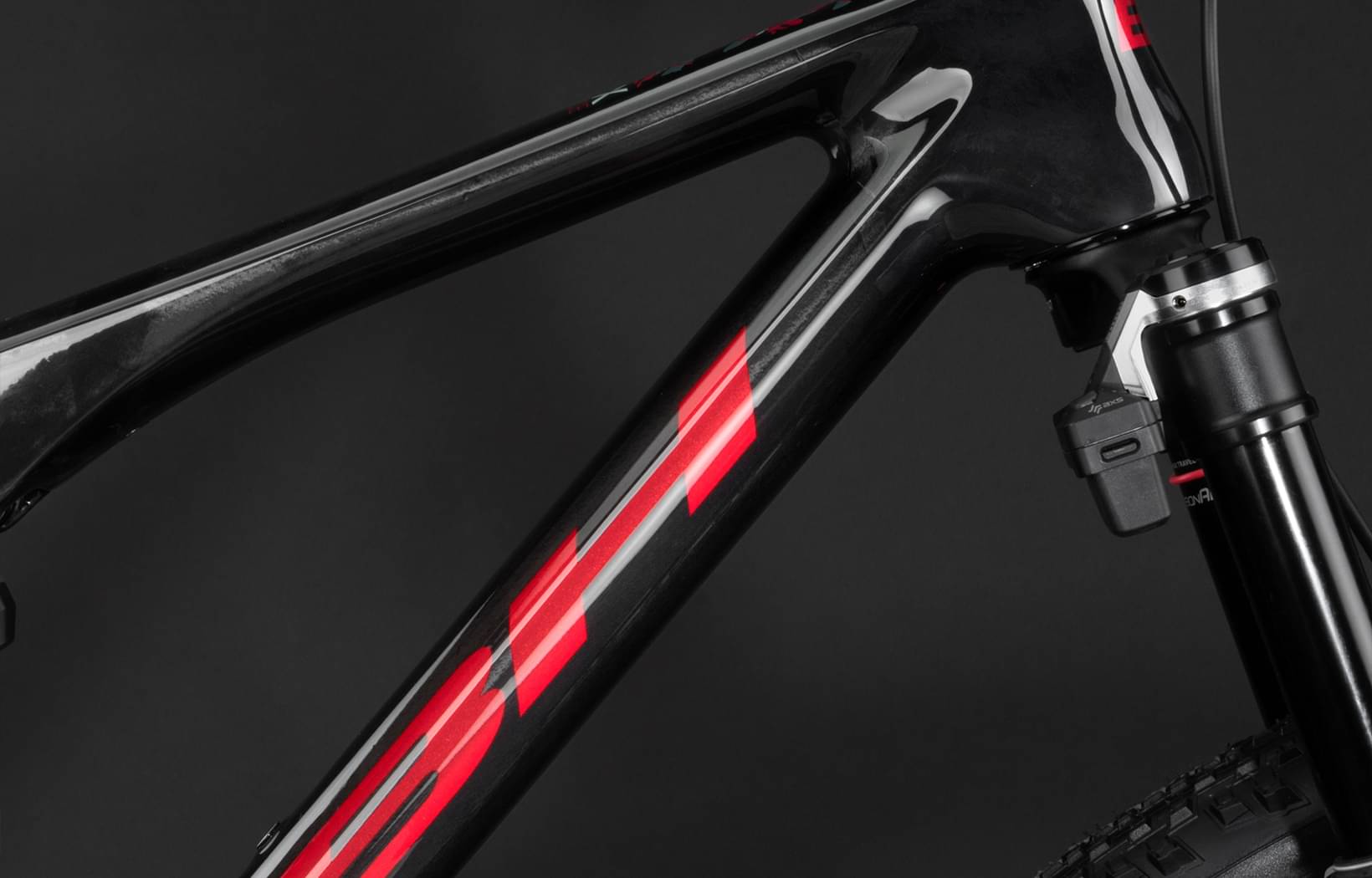

Lynx Race Carbon, PC Layup Front- Alloy7005, Acros ICR,PF92
Suspension Fork
Fox 32 Rhythm 120mm
Rear Shock

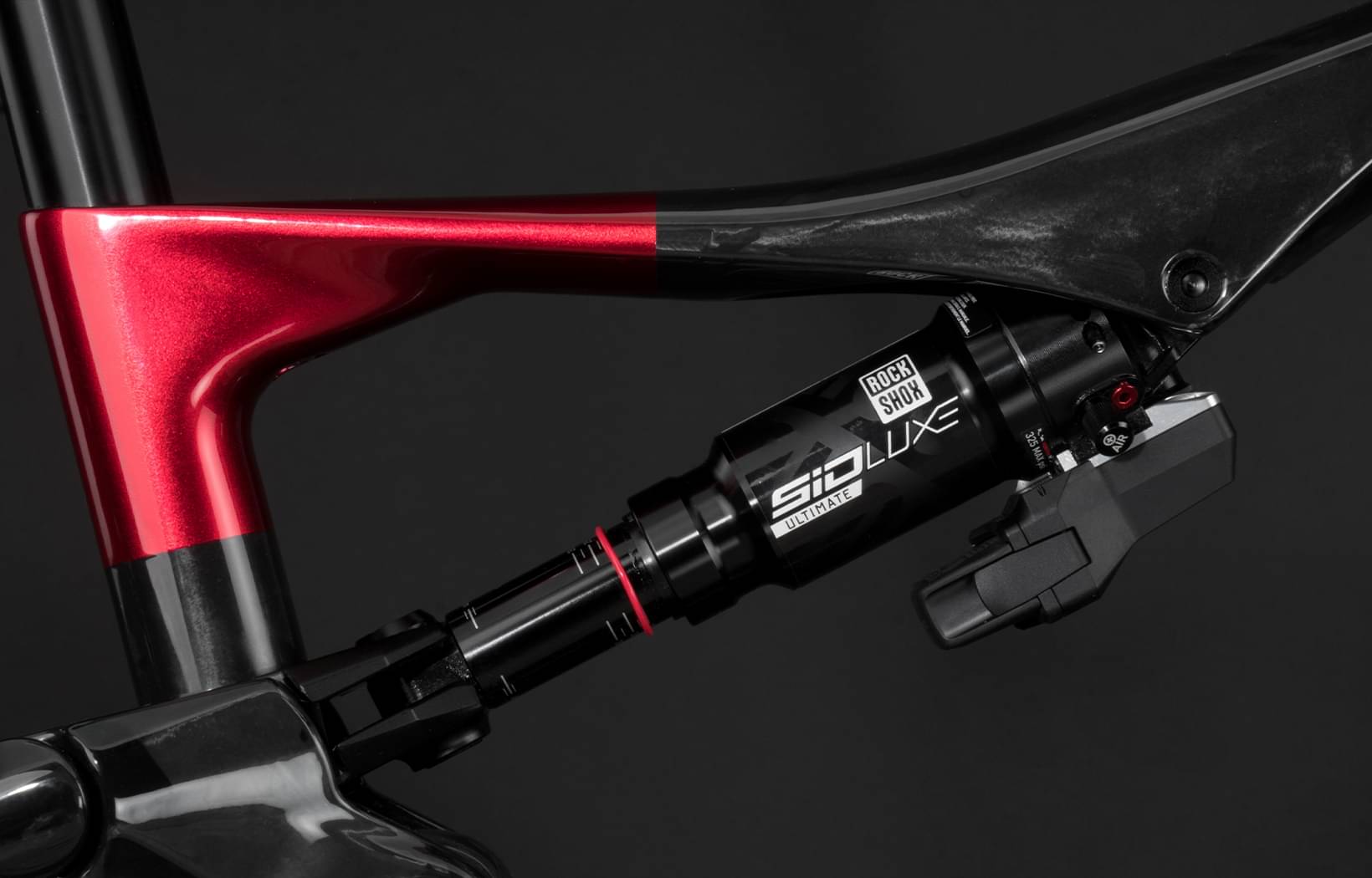

Fox DPS Evol Performance, 190x45mm, DCL, DRM, CMF
Drivetrain
Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano XT 8100 12sp
Cassette
Shimano Deore 6100 10/51
Crank
Shimano MT510, 175mm
Bottom Bracket
Shimano
Chain
Shimano XT 8100 12sp
Wheels
Front Hub
Shimano MT400/411
Rear Hub
Shimano MT400/411
Rims
Race Face Aeffect TLR, 27mm, 32H
Spokes
Inox 2.1
Tires
Maxxis Ardent EXO 2.25 Front/ Maxxis Ikon EXO 2.25 rear
Brakes
Brakes
Front: Shimano MT410 180mm, Rear: Shimano MT410 160mm
Cockpit
Stem
BH SL 80mm, 31,8mm, +/-6º
Handlebar
BH LITE Flat 780mm
Grips
BH Control Grip
Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Prologo R4
Seatpost
Race Face Aeffect 31,6mm, 150mm Drop (size MD, LA, XL)100mm Drop (size SM)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.331 mm | 1.305 mm | 1.293 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 691 mm | 715.9 mm | 744.8 mm | 772.5 mm |
| Rake | 39 mm | 45 mm | mm | 35 mm |
| Trail | 109 mm | 103 mm | mm | 114 mm |
| Stack | 575 mm | 580.1 mm | 595.2 mm | 610.2 mm |
| Reach | 410 mm | 436 mm | 456 mm | 472 mm |
| Top Tube Length | 571 mm | 580 mm | 605 mm | 625 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 75 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1096 mm | 1131 mm | 1172 mm | 1168 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
