Bike details
Overview
Key information split into simple groups.

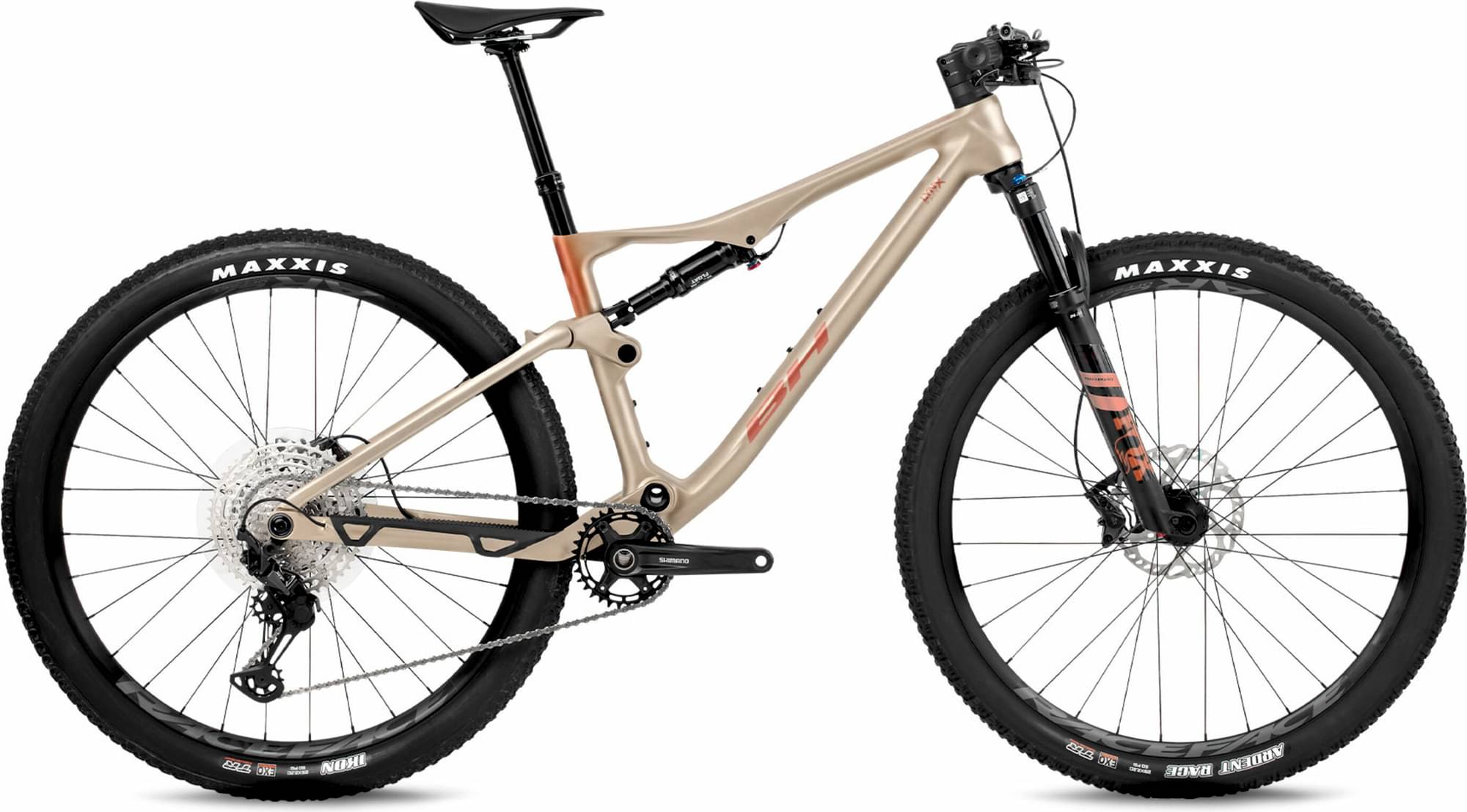

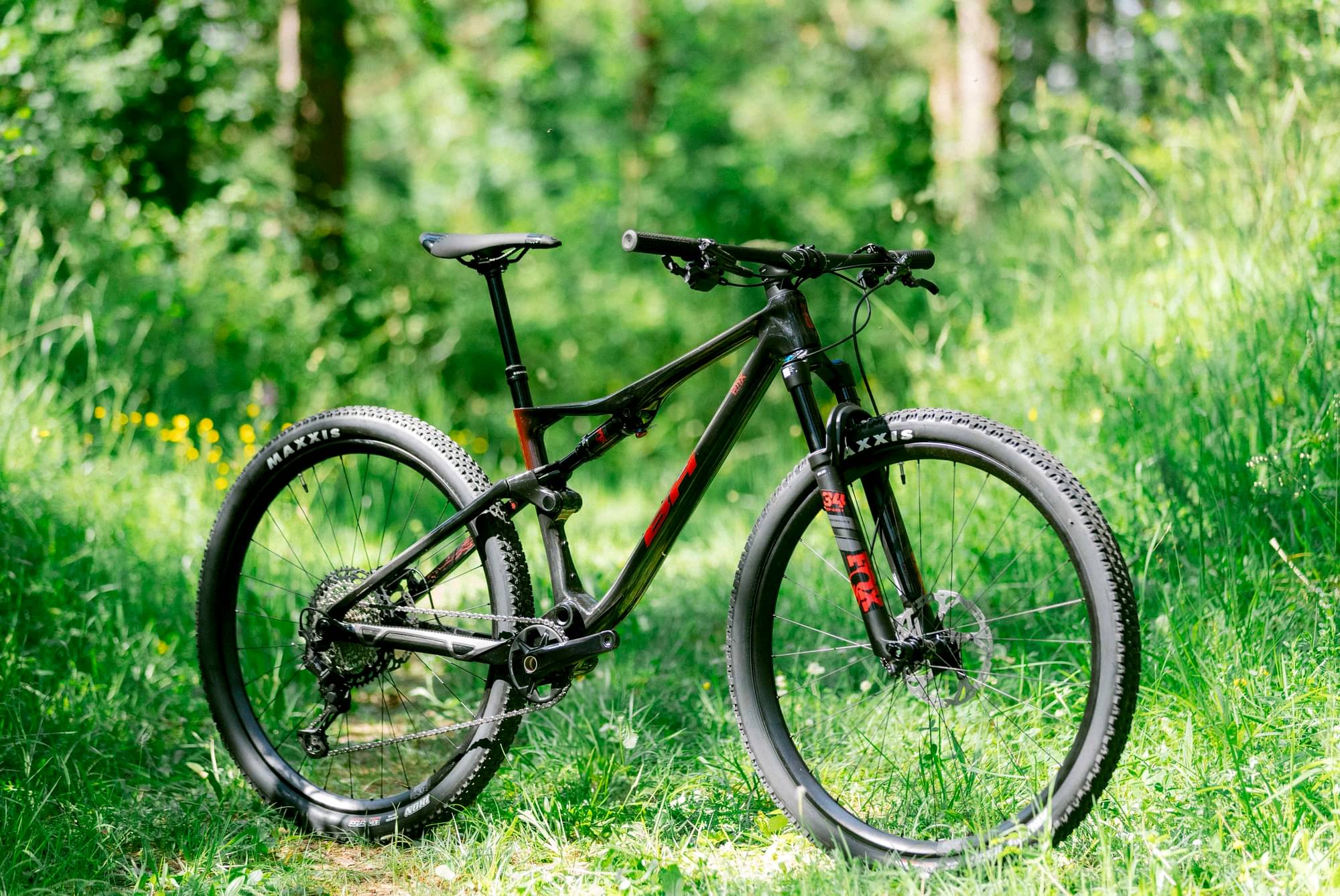

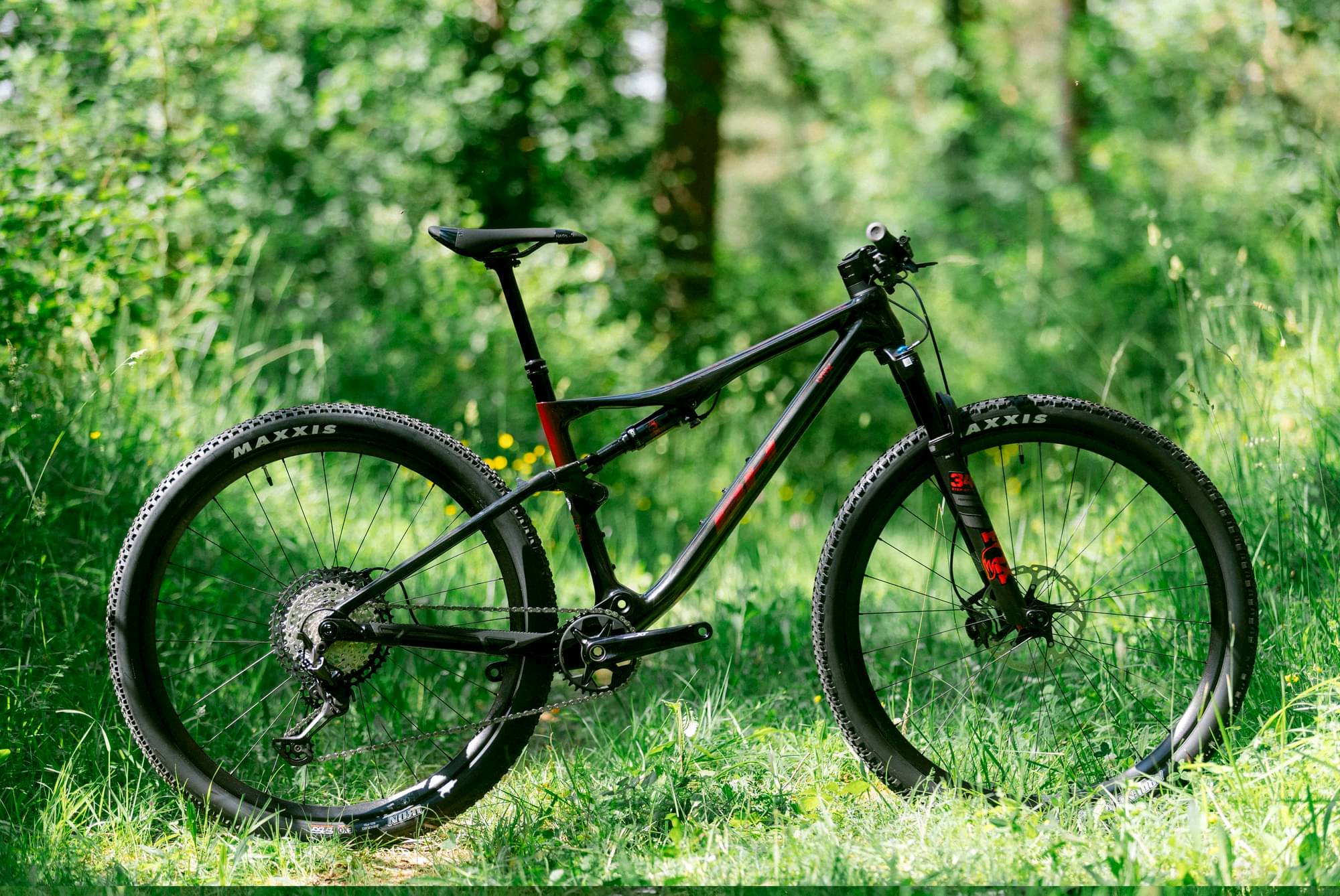

Bike summary
-
-
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

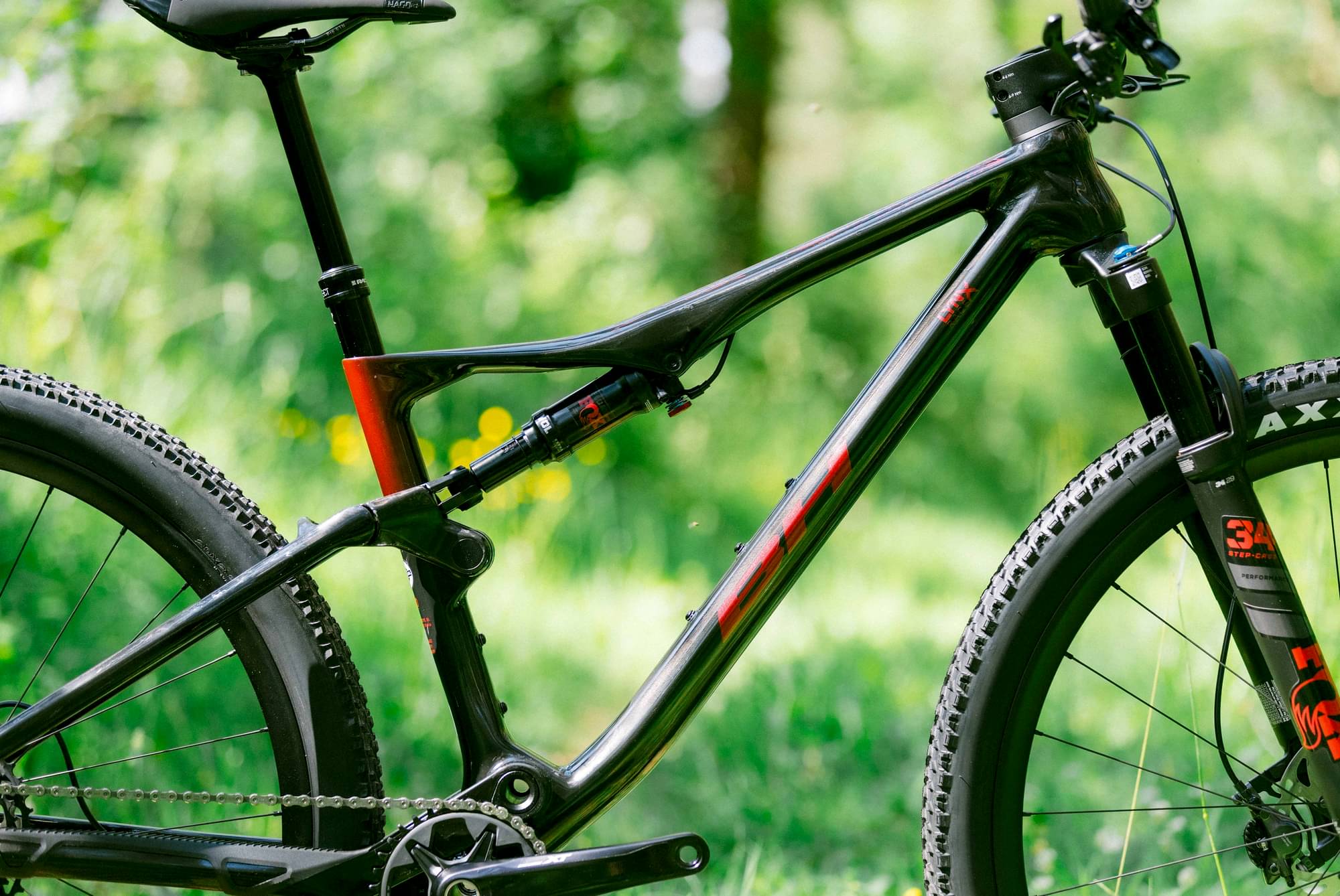

Lynx Race, PC Layup, Acros ICR, PF92, 148x12, UDH
Suspension Fork

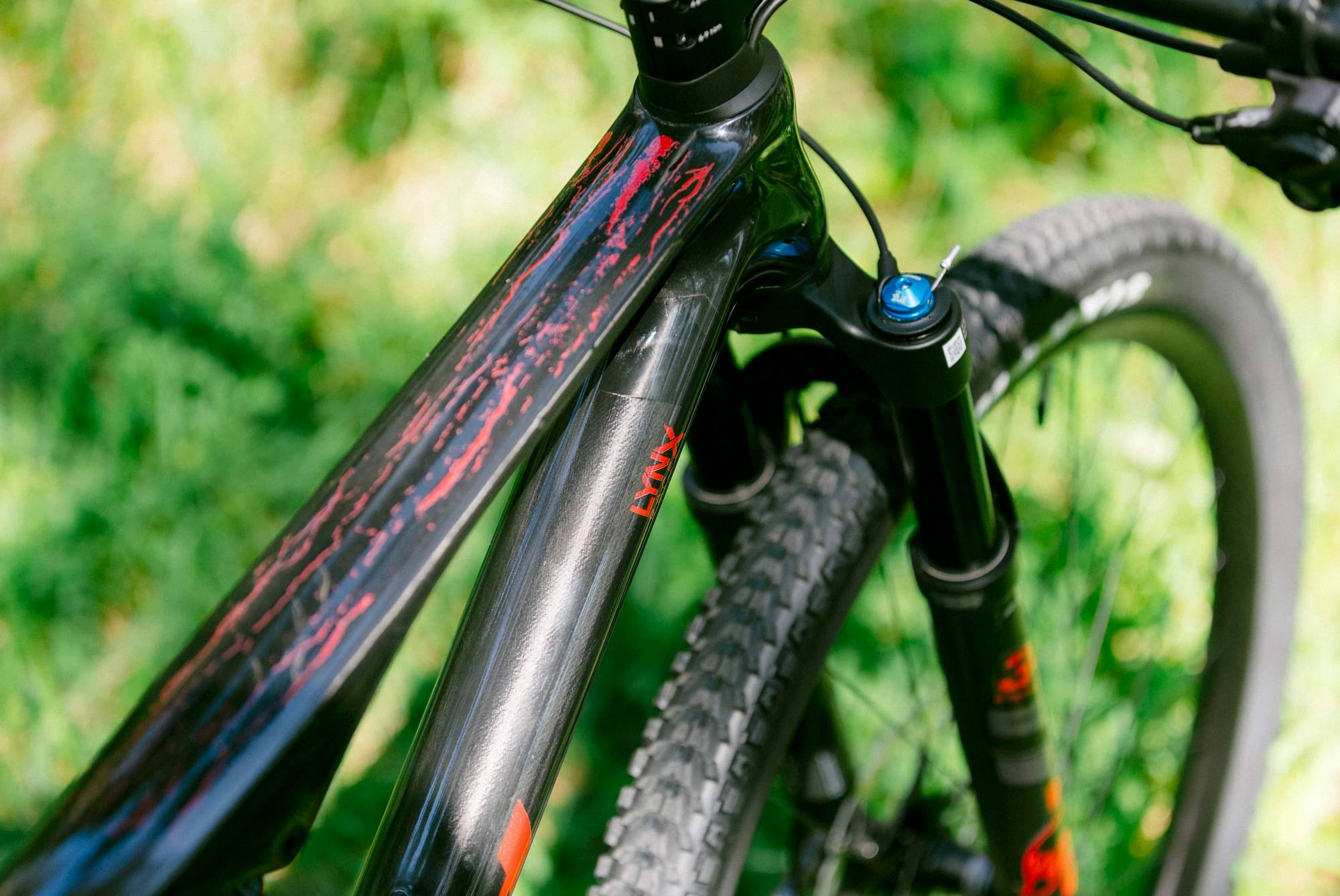

Fox 34SC Performance Push to Lock 120mm

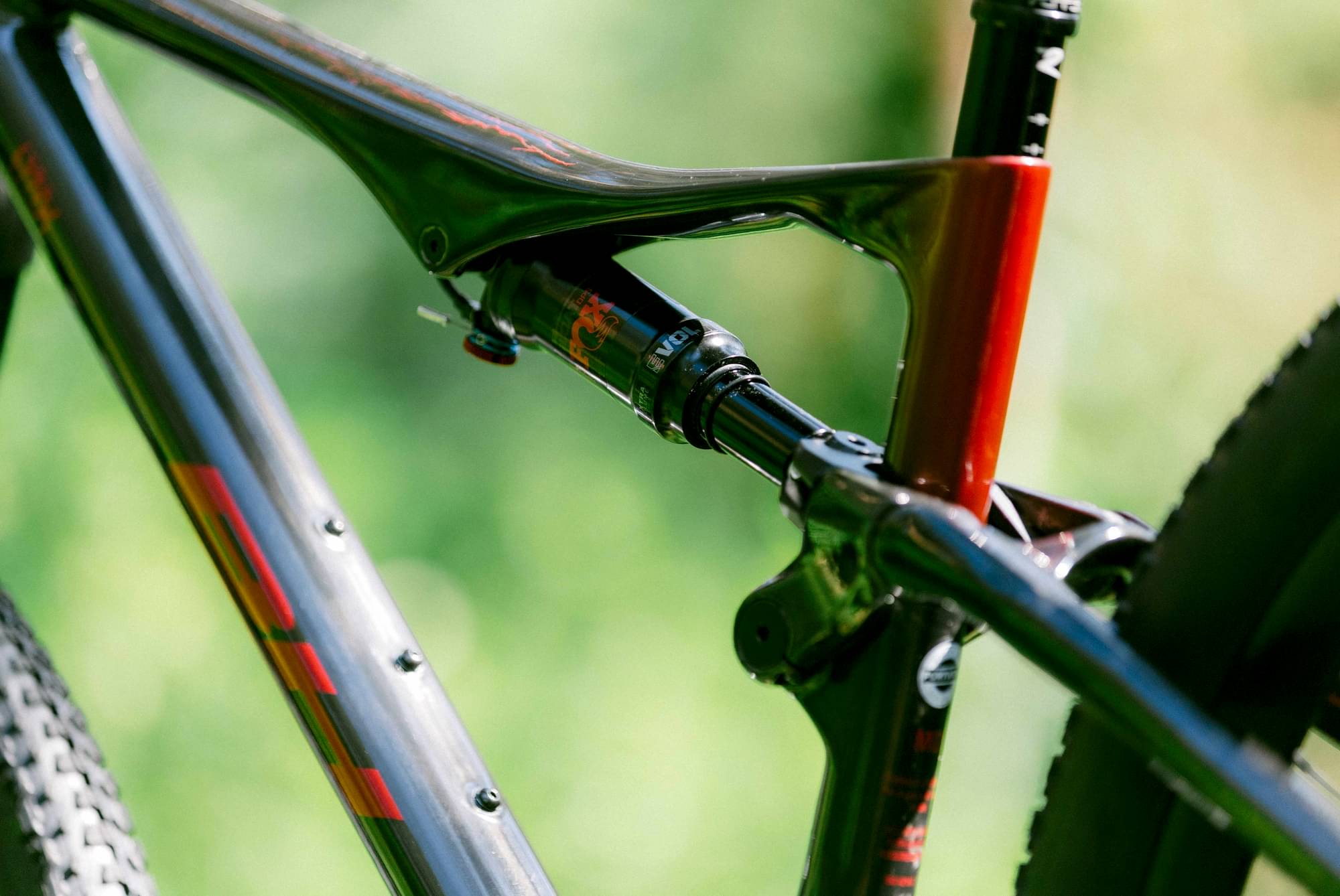

Rear Shock
Fox Float Evol Performance, 190x45mm, DCL, DRM, CMF
Drivetrain
Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano Deore 6100 12sp

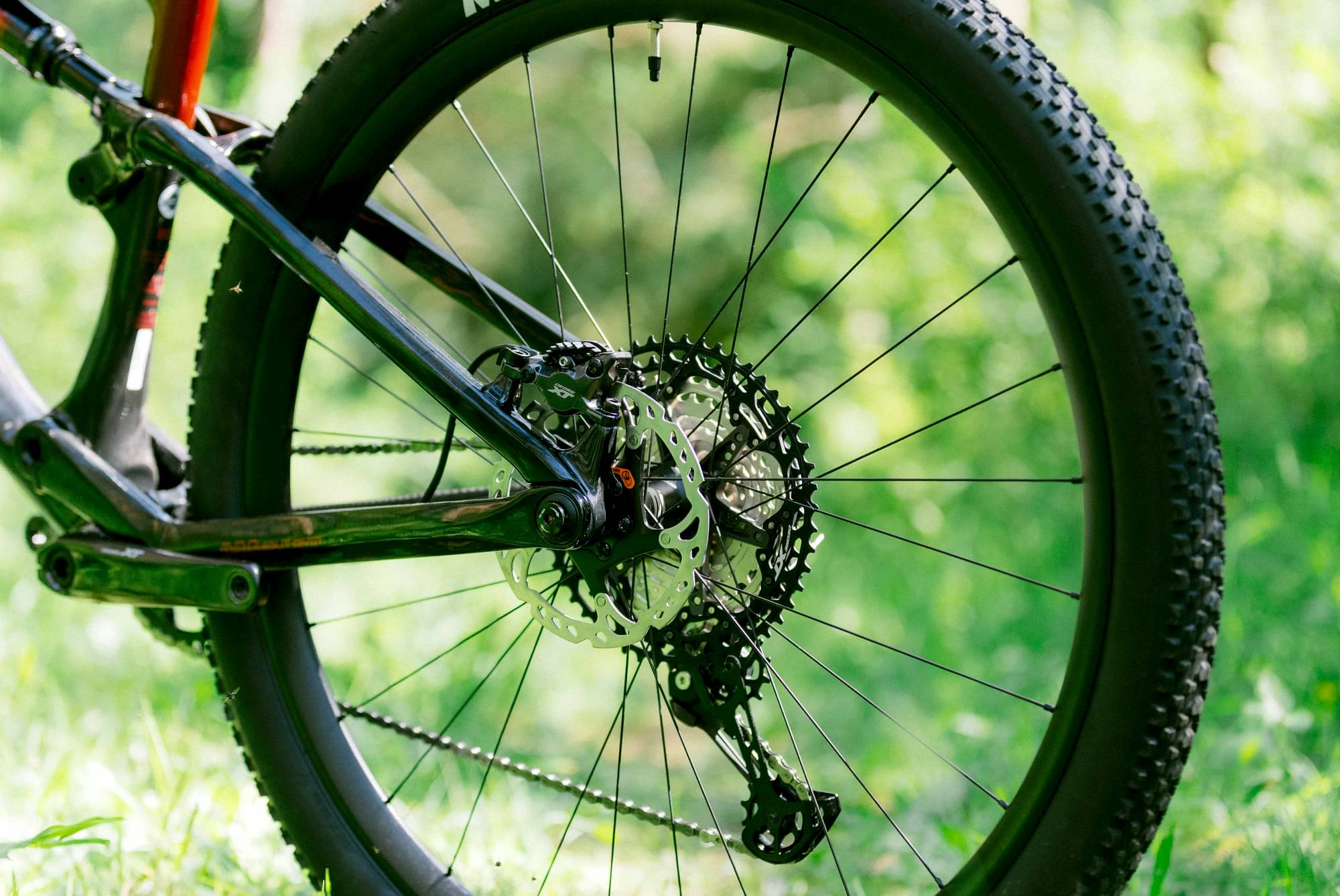

Cassette
Shimano Deore 6100 10/51
Crank
Shimano MT510-1 175mm 32T 55mm
Bottom Bracket
Shimano PF92
Chain
Shimano Deore 12s 118L
Wheels
Front Hub
Shimano MT400/410 32H
Rear Hub
Shimano MT400/410 32H
Rims
Race Face Aeffect 32H 27mm internal
Spokes
Black Inox 2.0
Tires
Maxxis Rekon 29x2.25 FR/ Maxxis Ikon 29x2.25 R
Brakes
Brakes
Front: Shimano M6100 180mm, Rear: Shimano M6100 160mm

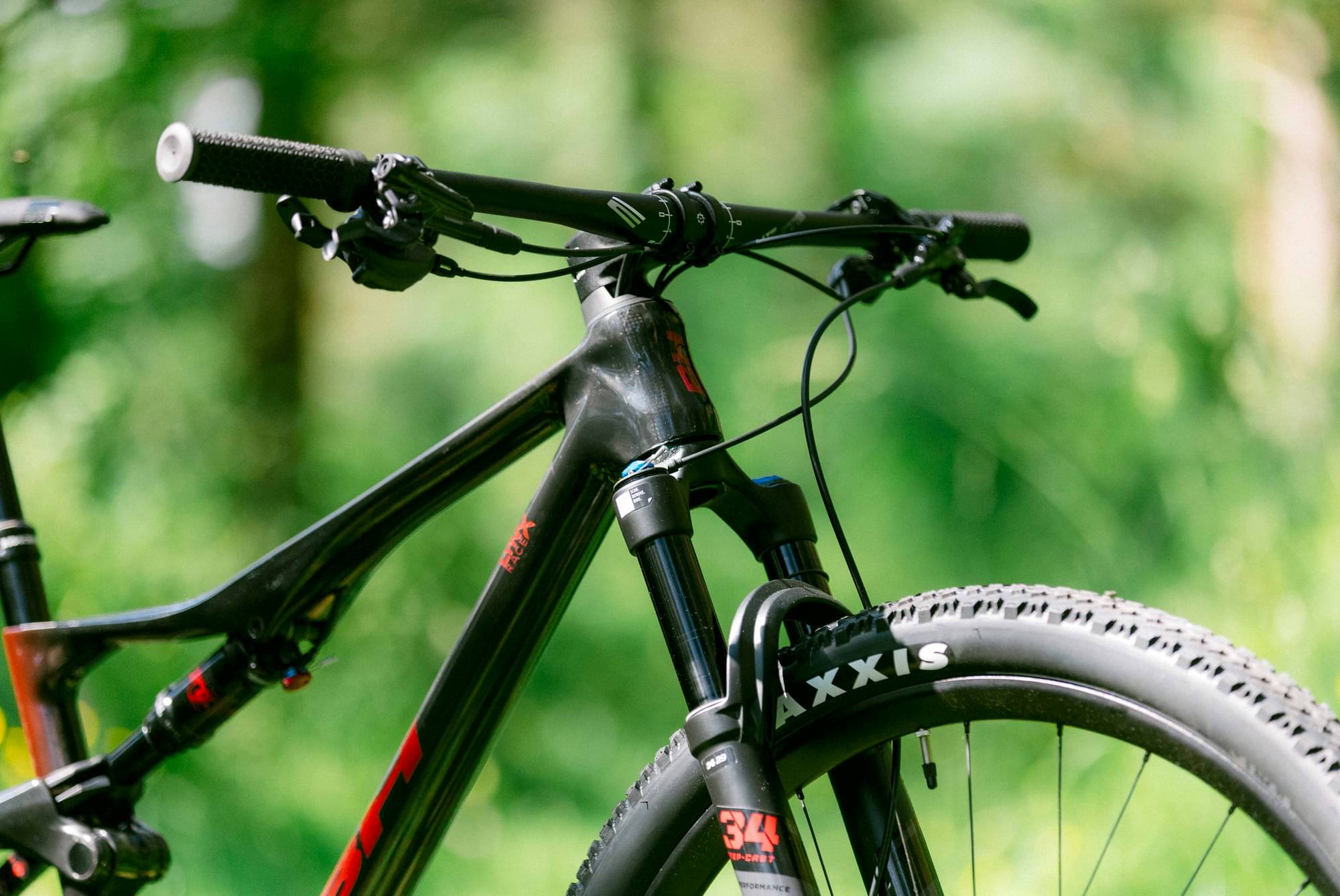

Cockpit
Stem
FIT Race EVO 60mm 31,8mm -6º
Handlebar
BH LITE Flat 780mm
Grips
BH Control Grip
Headset
Acros ICR 36/45º, Block Lock 160º
Seat
Saddle
Prologo Nago RS
Seatpost

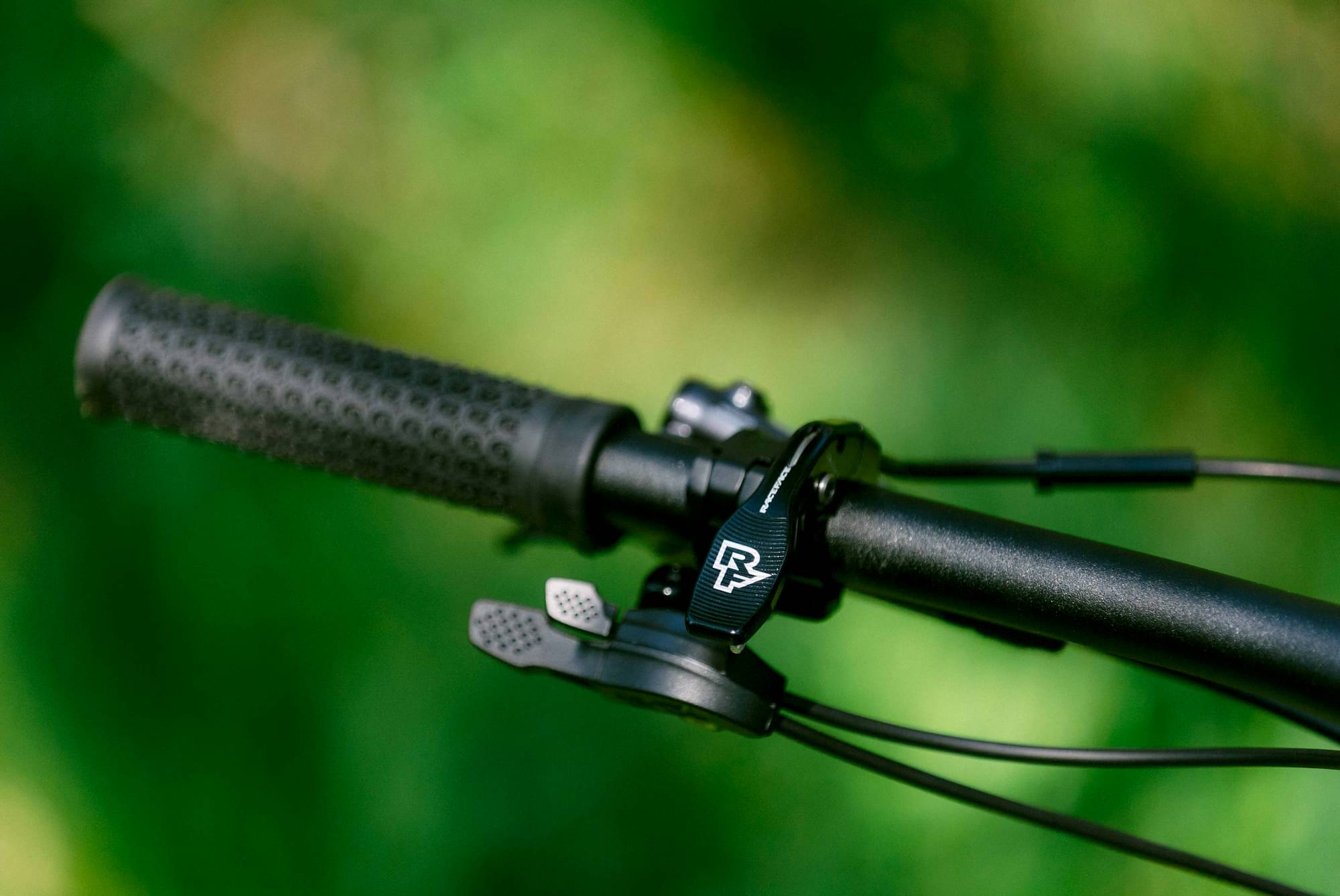

Race Face Aeffect 31,6mm, 125mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.402 mm | 1.323 mm | 1.323 mm | 1.273 mm | 1.273 mm | 1.258 mm | 1.258 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 702 mm | 702 mm | 726.9 mm | 726.9 mm | 755.8 mm | 755.8 mm | 783.5 mm | 783.5 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 588.9 mm | 588.9 mm | 588.9 mm | 588.9 mm | 598.1 mm | 598.1 mm | 616.5 mm | 616.5 mm |
| Reach | 420 mm | 420 mm | 445 mm | 445 mm | 470 mm | 470 mm | 490 mm | 490 mm |
| Top Tube Length | 566.8 mm | 566.8 mm | 591.8 mm | 591.8 mm | 619.1 mm | 619.1 mm | 643.7 mm | 643.7 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 400 mm | 420 mm | 420 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1135 mm | 1135 mm | 1160 mm | 1160 mm | 1189 mm | 1189 mm | 1217 mm | 1217 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
