Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 120mm -
Fork RockShox SID
-
Groupset XX SL Eagle Transmission -
Suspension Full, Electronic -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Level Ultimate Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lynx Race, EC Layup, Acros ICR, PF92, 148x12, UDH
Suspension Fork
Rock Shox SID Flight Attendant 120mm

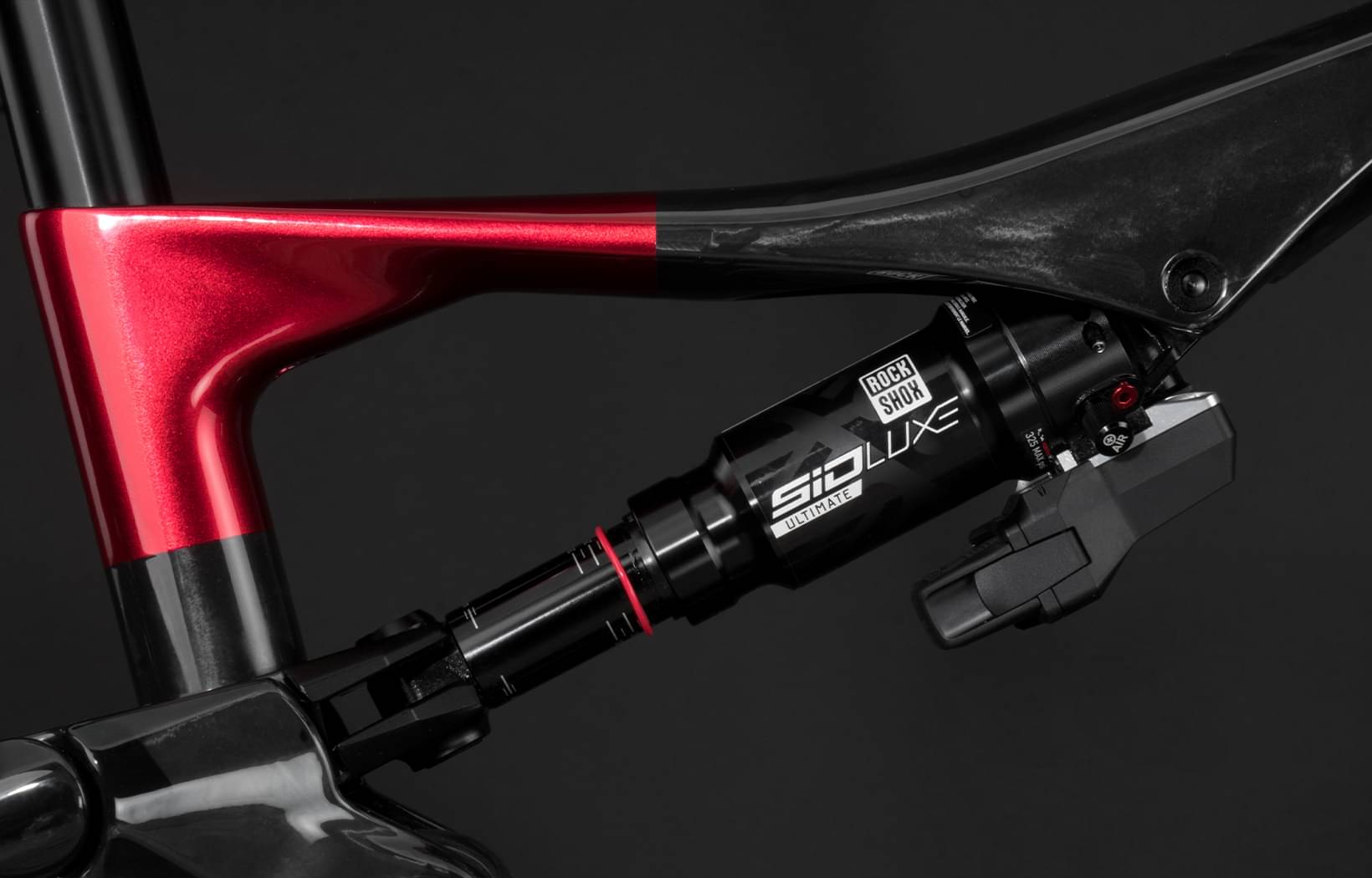

Rear Shock
Rock Shox SID Flight Attendant 190x45mm
Drivetrain
Rear Derailleur
SRAM XX SL AXS T-TYPE 12sp
Shift Levers
SRAM XX SL AXS T-TYPE 12sp
Cassette
SRAM XX SL AXS T-TYPE 10/52
Crank
SRAM XX SL AXS T-TYPE 12sp, 34, 175mm
Bottom Bracket
SRAM
Chain
SRAM XX SL AXS T-TYPE 12sp
Wheels
Rims
BH Evo Carbon Tubeless, 30mm, 28H
Tires
Pirelli Scorpion XC RC 2.4 Front/ Rear Classic
Brakes
Brakes
Front: SRAM Level Ultimate Stealth 180mm, Rear: SRAM Level Ultimate Stealth 160mm
Cockpit
Stem
BH FIT 60mm, 31,8mm, -6º
Handlebar
BH Evo Carbon Top Flat 760mm, 10mm Rise
Grips
BH Control Grip

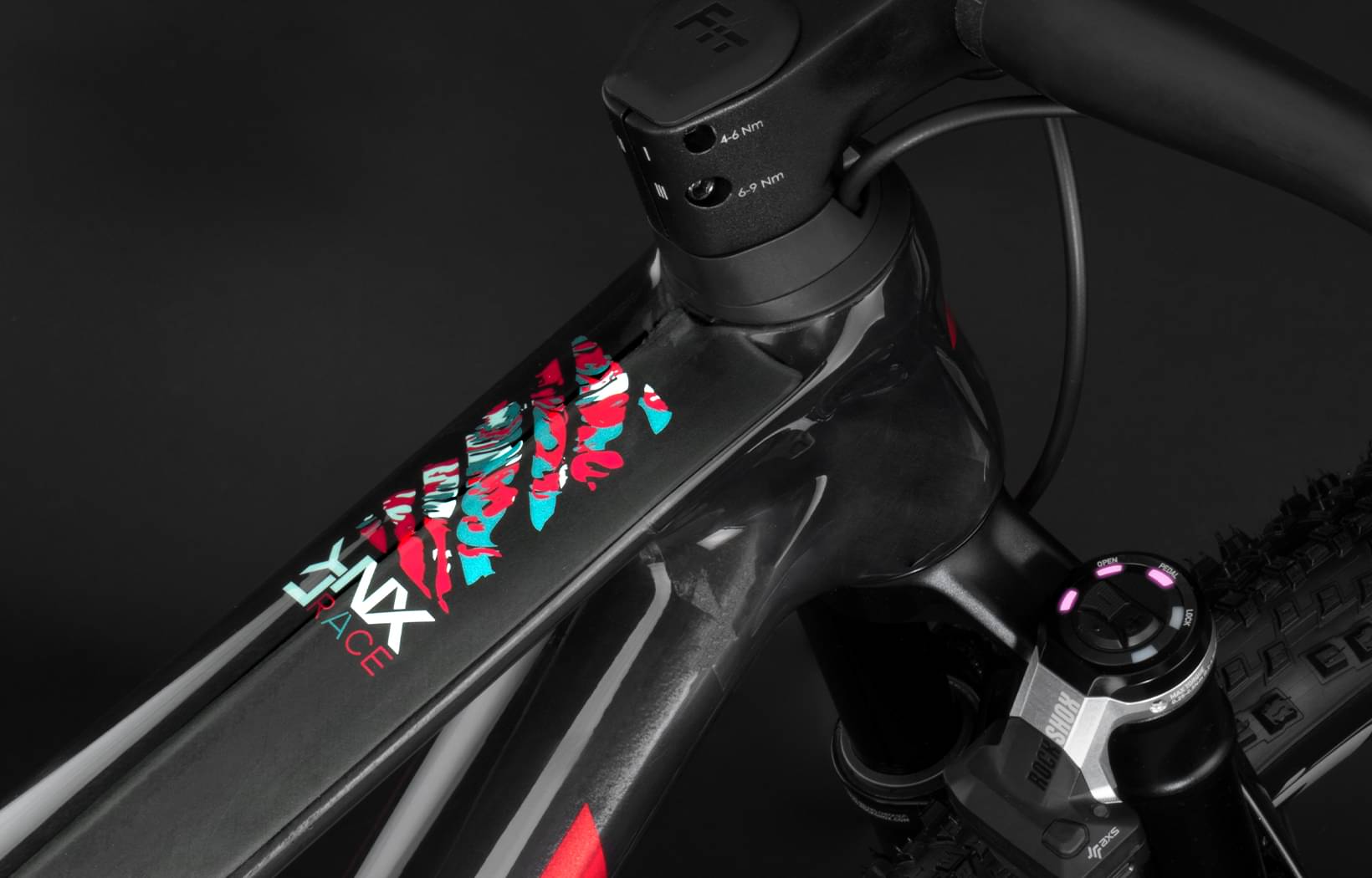

Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Prologo Scratch M5 Nack
Seatpost
Bike Yoke Divine SL 31,6mm, 125mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.323 mm | 1.273 mm | 1.258 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 702 mm | 726.9 mm | 755.8 mm | 783.5 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 588.9 mm | 588.9 mm | 598.1 mm | 616.5 mm |
| Reach | 420 mm | 445 mm | 470 mm | 490 mm |
| Top Tube Length | 566.8 mm | 591.8 mm | 619.1 mm | 643.7 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1135 mm | 1160 mm | 1189 mm | 1217 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
