Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lynx Race Carbon, PC Layup, Acros ICR, PF92, 148x12, UDH
Suspension Fork
Fox 34SC Performance Push to Lock kabolt 120mm

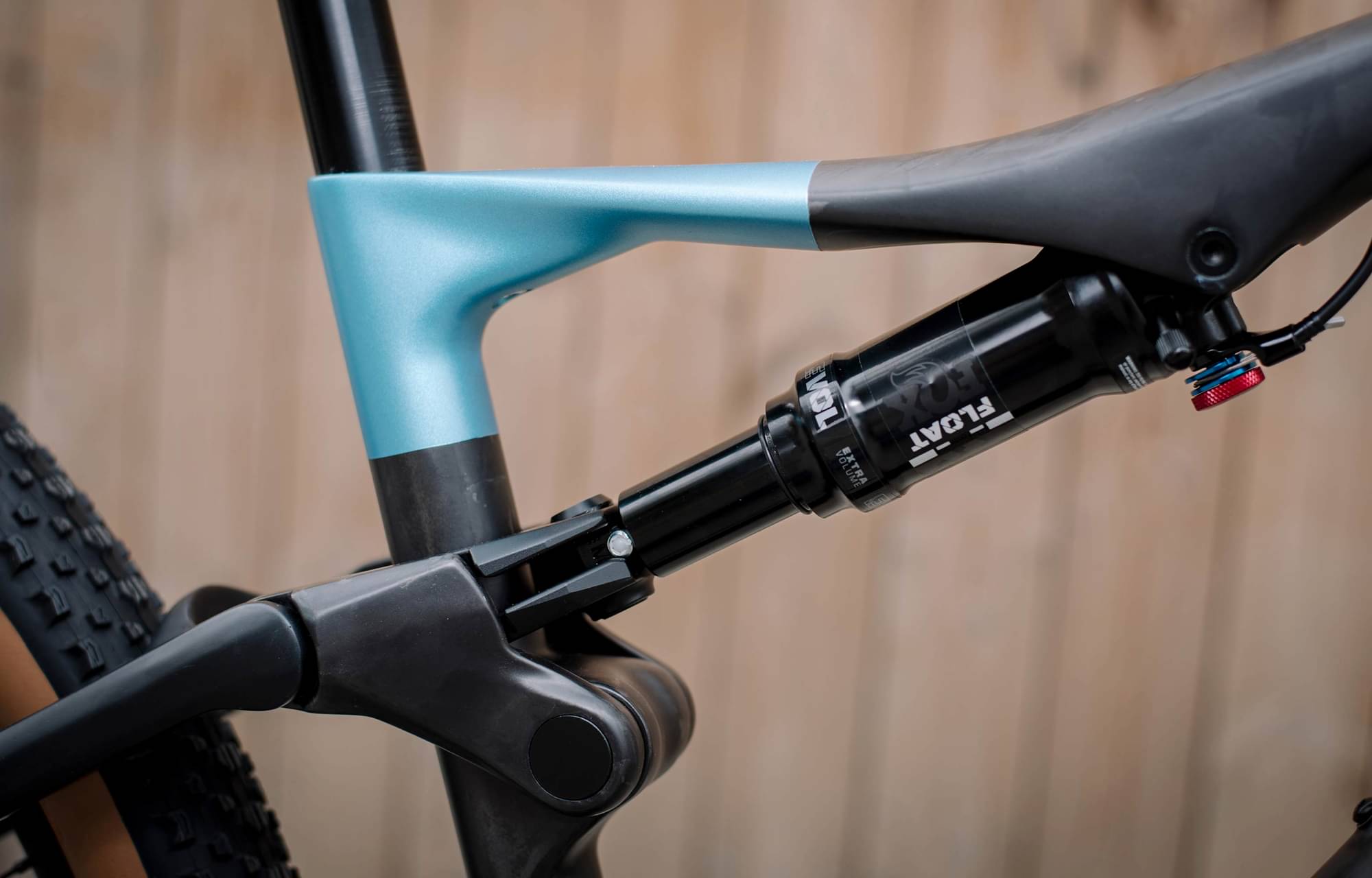

Rear Shock
Fox DPS Evol Performance Push to Lock, 190x45mm,DCM,DRM,CMF

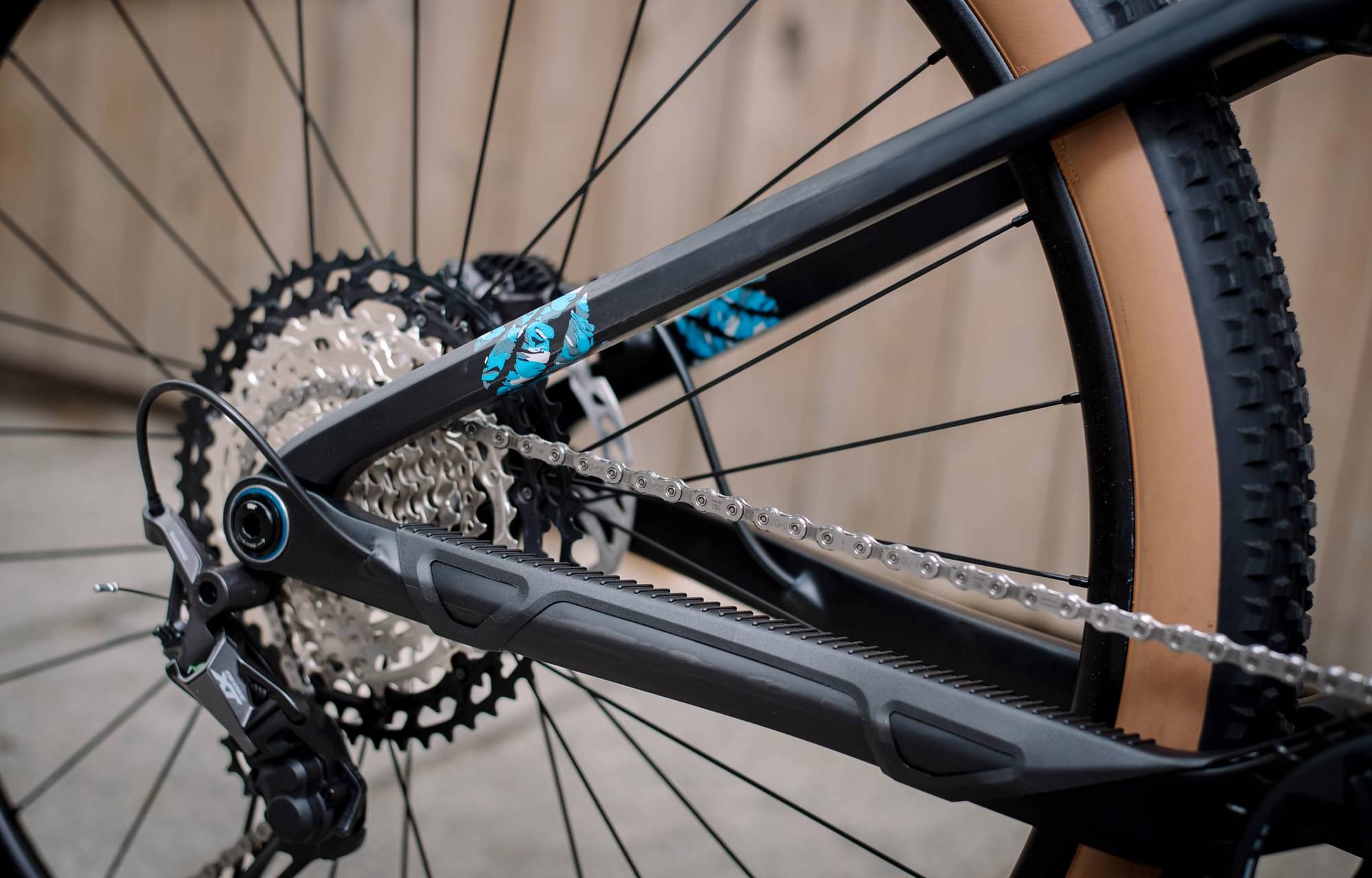

Drivetrain
Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano XT 8100 12sp
Cassette
Shimano XT 8100 10/51
Crank
Shimano XT 8100 34, 175mm
Bottom Bracket
Shimano
Chain
Shimano XT
Wheels
Rims
BH Evo Alloy Tubeless, 25mm, 28H
Tires
Maxxis Ardent EXO 2.25
Brakes
Brakes
Front: Shimano XT 180mm, Rear: Shimano XT 160mm
Cockpit
Stem
BH FIT 60mm, 31,8mm, -6º
Handlebar
BH SL Top Flat 780mm, 10mm Rise
Grips
BH SL Lock On
Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Prologo Scratch M5
Seatpost
Bike Yoke Divine SL 31,6mm, 400mm, 80mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 706 mm | 732 mm | 743 mm | 785 mm |
| Top Tube Length | 567 mm | 592 mm | 598 mm | 643 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1133 mm | 1159 mm | 1170 mm | 1212 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
