Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lynx Race Carbon, PC Layup, Acros ICR, PF92, 148x12, UDH
Suspension Fork
Fox 34SC Performance Push to Lock kabolt 120mm

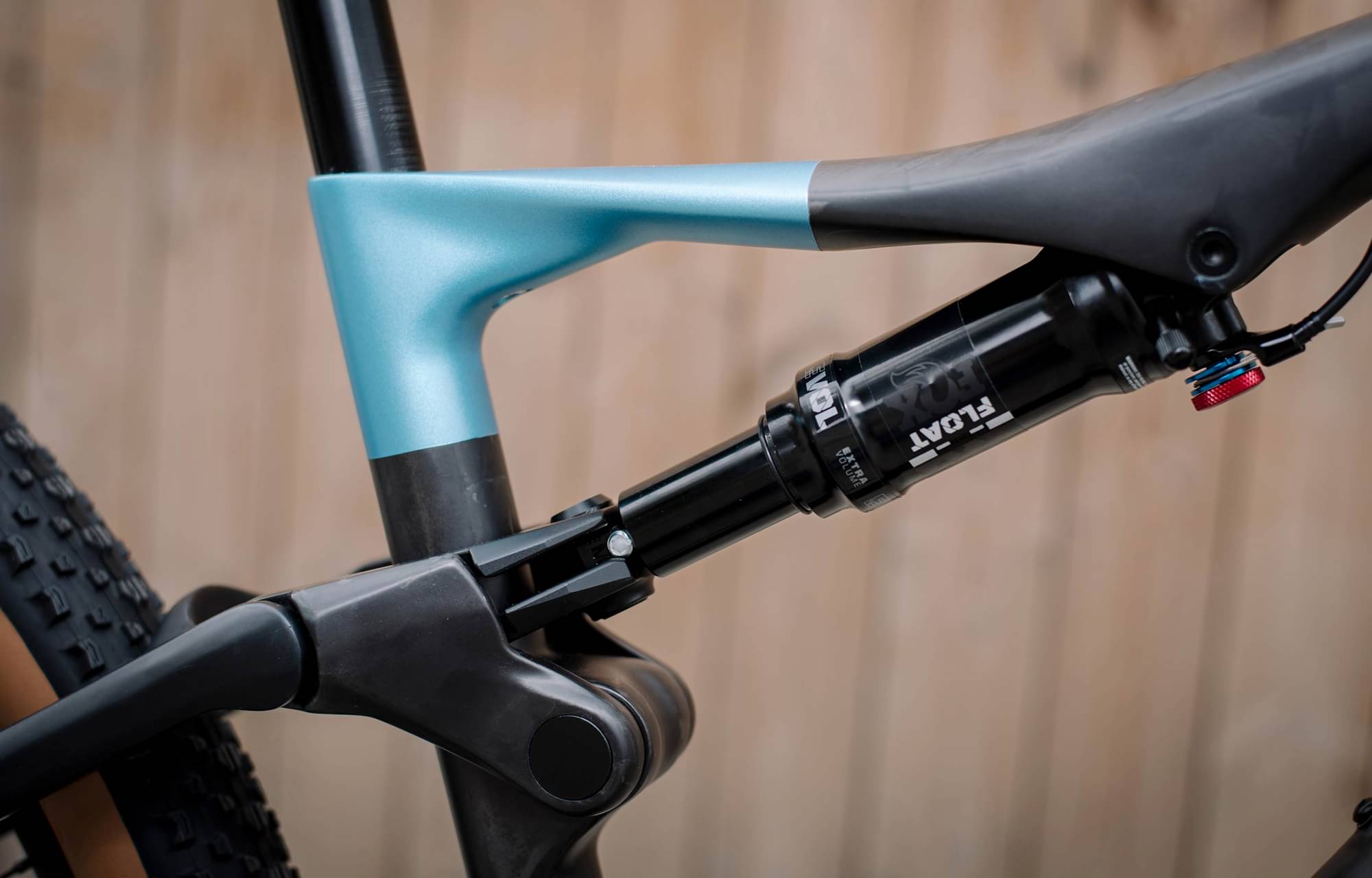

Rear Shock
Fox DPS Evol Performance Push to Lock, 190x45mm,DCM,DRM,CMF

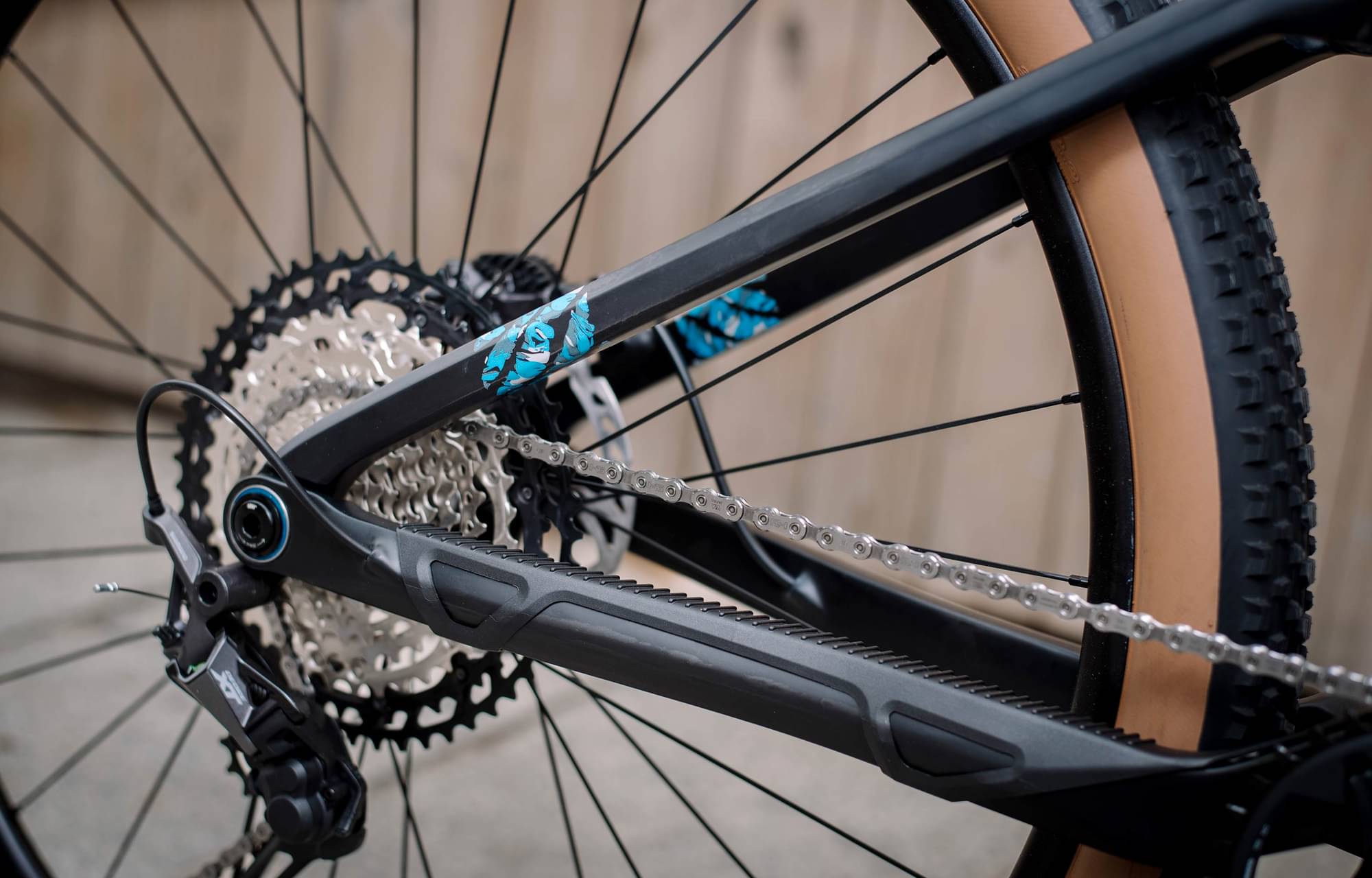

Drivetrain
Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano XT 8100 12sp
Cassette
Shimano XT 8100 10/51
Crank
Shimano XT 8100 34, 175mm
Bottom Bracket
Shimano
Chain
Shimano XT
Wheels
Rims
BH Evo Alloy Tubeless, 25mm, 28H
Tires
Maxxis Ardent EXO 2.25
Brakes
Brakes
Front: Shimano XT 180mm, Rear: Shimano XT 160mm
Cockpit
Stem
BH FIT 60mm, 31,8mm, -6º
Handlebar
BH SL Top Flat 780mm, 10mm Rise
Grips
BH SL Lock On
Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Prologo Scratch M5
Seatpost
Bike Yoke Divine SL 31,6mm, 400mm, 80mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.323 mm | 1.273 mm | 1.258 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 702 mm | 726.9 mm | 755.8 mm | 783.5 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 588.9 mm | 588.9 mm | 598.1 mm | 616.5 mm |
| Reach | 420 mm | 445 mm | 470 mm | 490 mm |
| Top Tube Length | 566.8 mm | 591.8 mm | 619.1 mm | 643.7 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1135 mm | 1160 mm | 1189 mm | 1217 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
