Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Travel Front 110mm -
Fork RockShox SID
-
Groupset Eagle 90 Transmission -
Suspension Full -
Brakes SRAM Level Bronze Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lynx SLS, EC Layup, Acros ICR, PF92BB, 148x12, UDH
Suspension Fork
Rock Shox SID Base 2P Rush RL 110mm

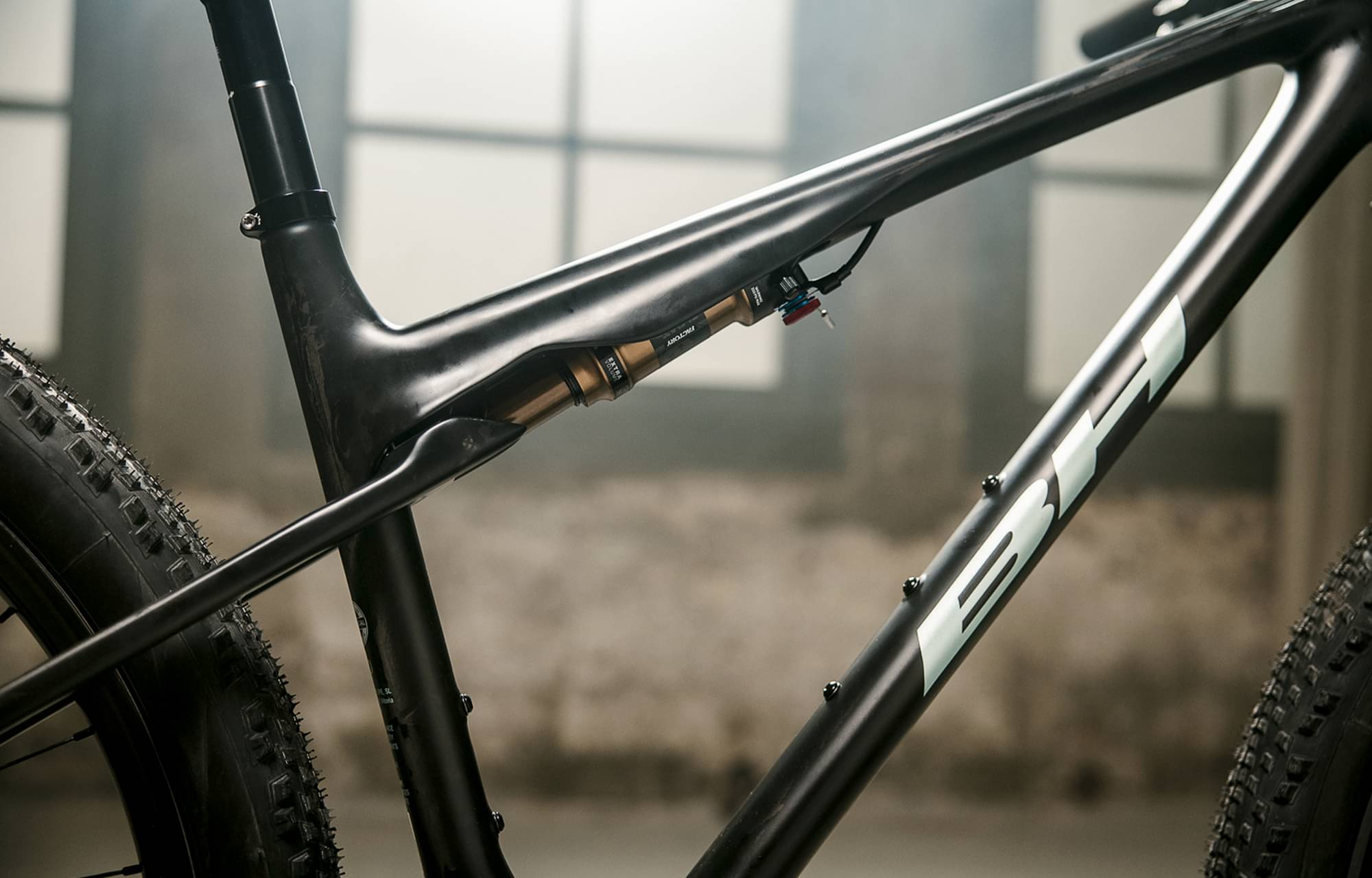

Rear Shock
Rock Shox SID Base 2P 190x40mm
Drivetrain

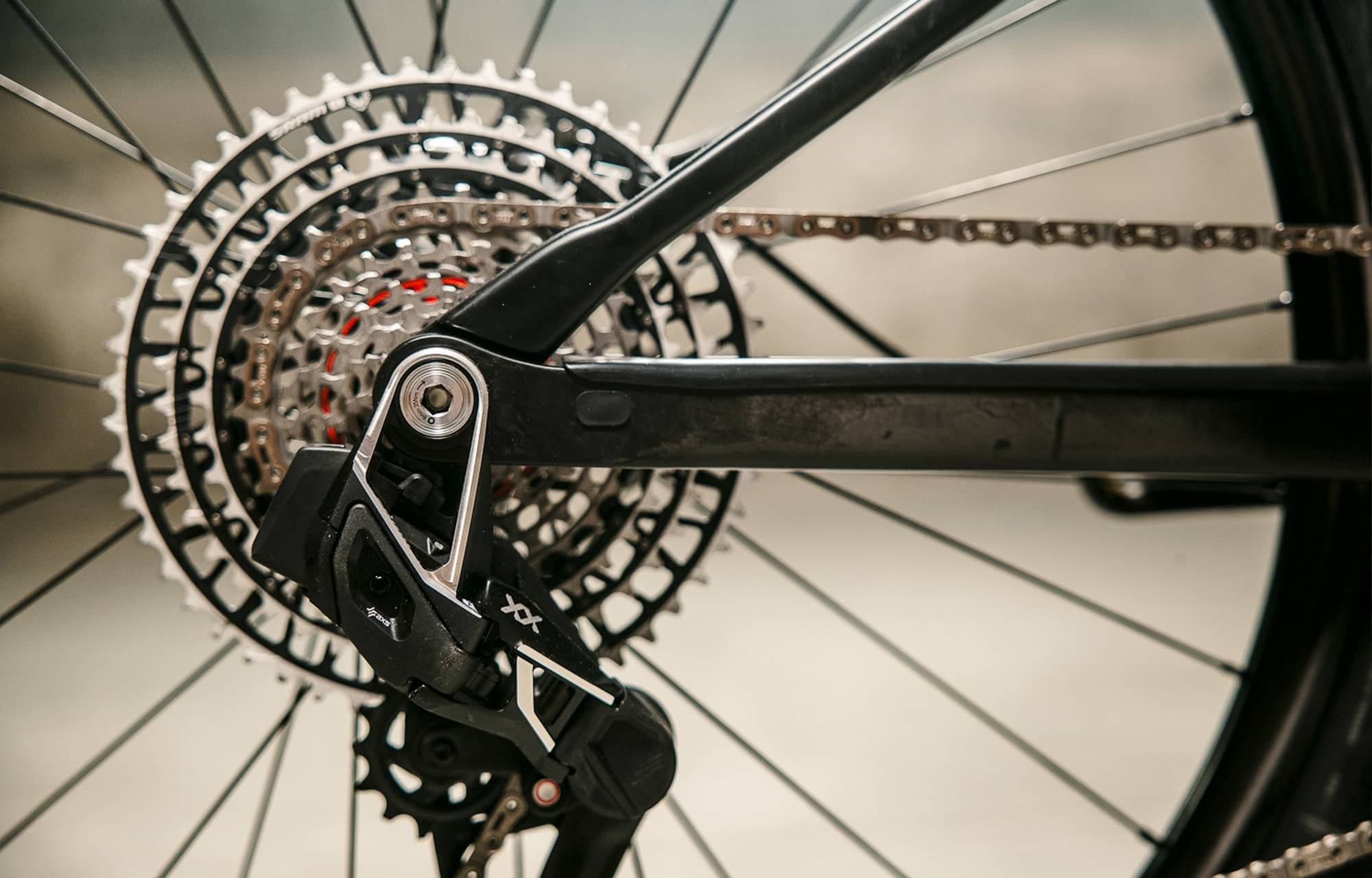

Rear Derailleur
SRAM Eagle 90 T-Type
Shift Levers
SRAM Eagle 90 T-type
Cassette
SRAM Eagle 90 T-Type 10/52

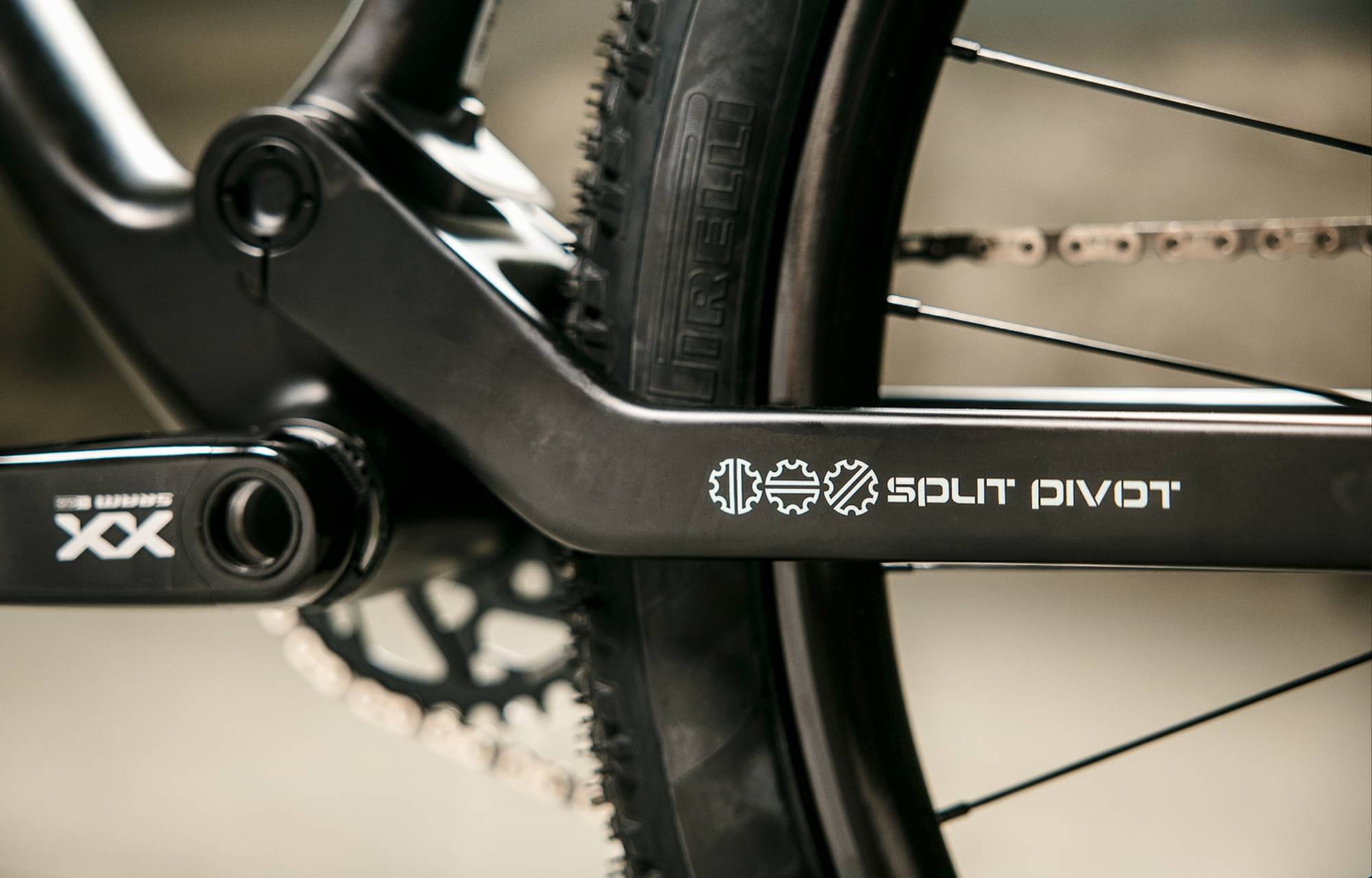

Crank
SRAM Eagle 90 T-Type, 34, 175mm
Bottom Bracket
SRAM
Chain
SRAM Eagle 90 T-Type
Wheels
Rims
BH Evo Alloy Tubeless, 25mm, 28H
Tires
Maxxis Rekon Race EXO 2.4 Front/ Maxxis Aspen EXO 2.4 rear
Brakes
Brakes
Front: SRAM Level Bronze Stealth 180mm, Rear: SRAM Level Bronze Stealth 160mm
Cockpit

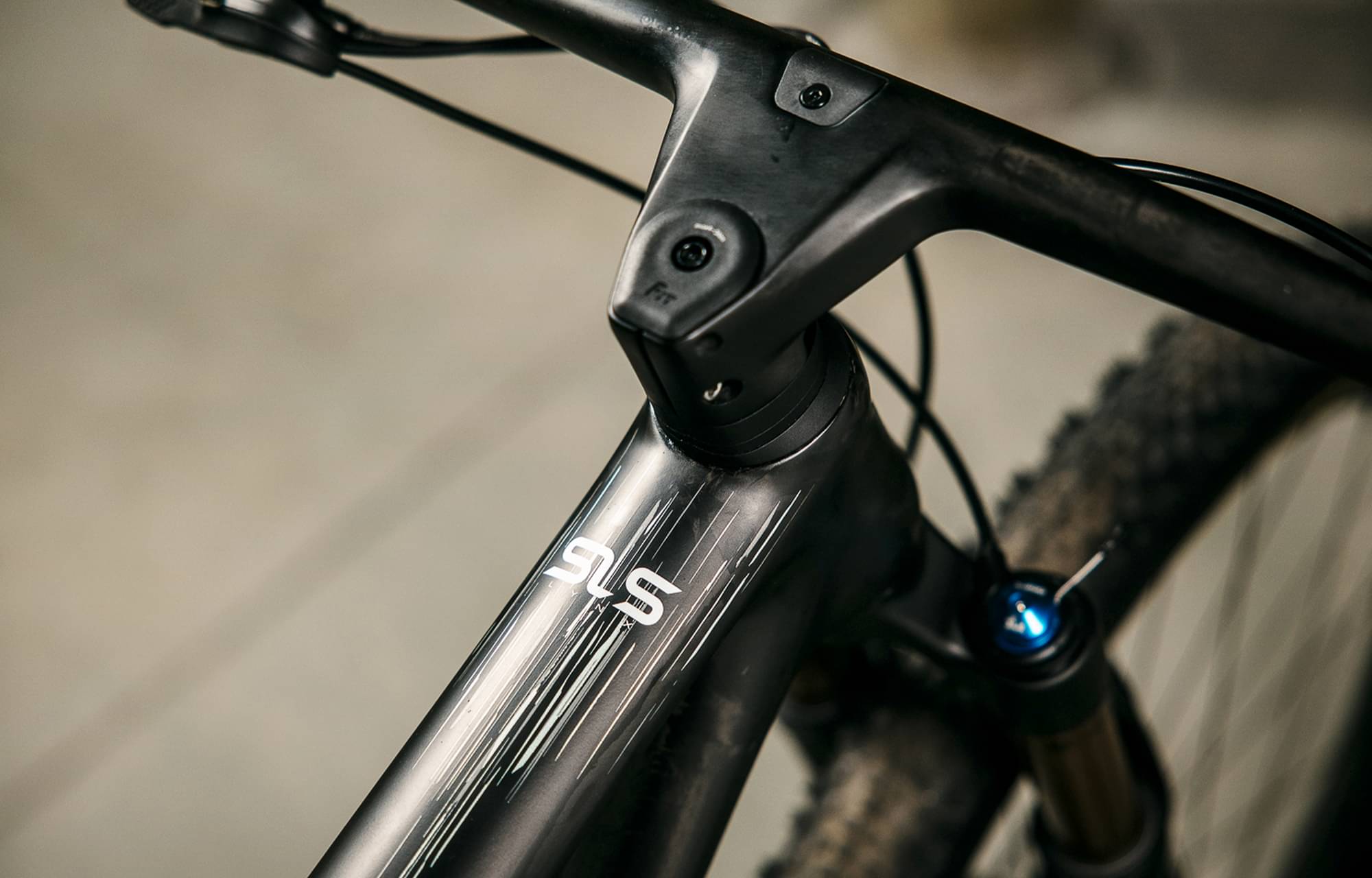

Stem
BH FIT 60mm, 31,8mm, -6º
Handlebar
BH SL Top Flat 780mm, 10mm Rise
Grips
BH Control Grip

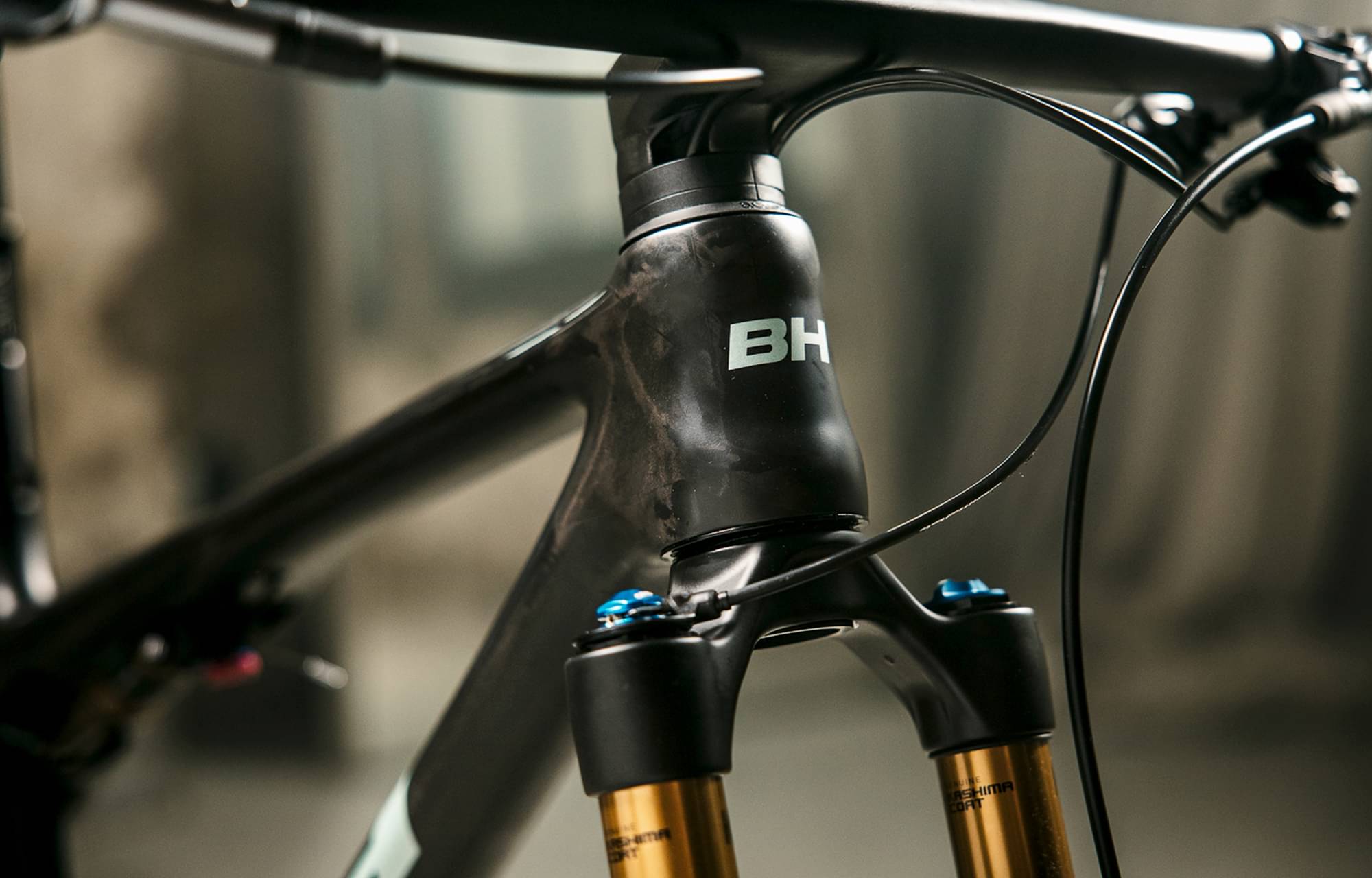

Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Prologo R4
Seatpost
Race Face Aeffect 31,6mm, 125mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm | 324 mm |
| Front Center | 703 mm | 728 mm | 756 mm | 780 mm |
| Top Tube Length | 567 mm | 592 mm | 617 mm | 640 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 110 mm | 120 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1124 mm | 1149 mm | 1177 mm | 1201 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
