Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 110mm -
Travel Rear 80mm -
Fork Fox Factory Float 34
-
Groupset Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

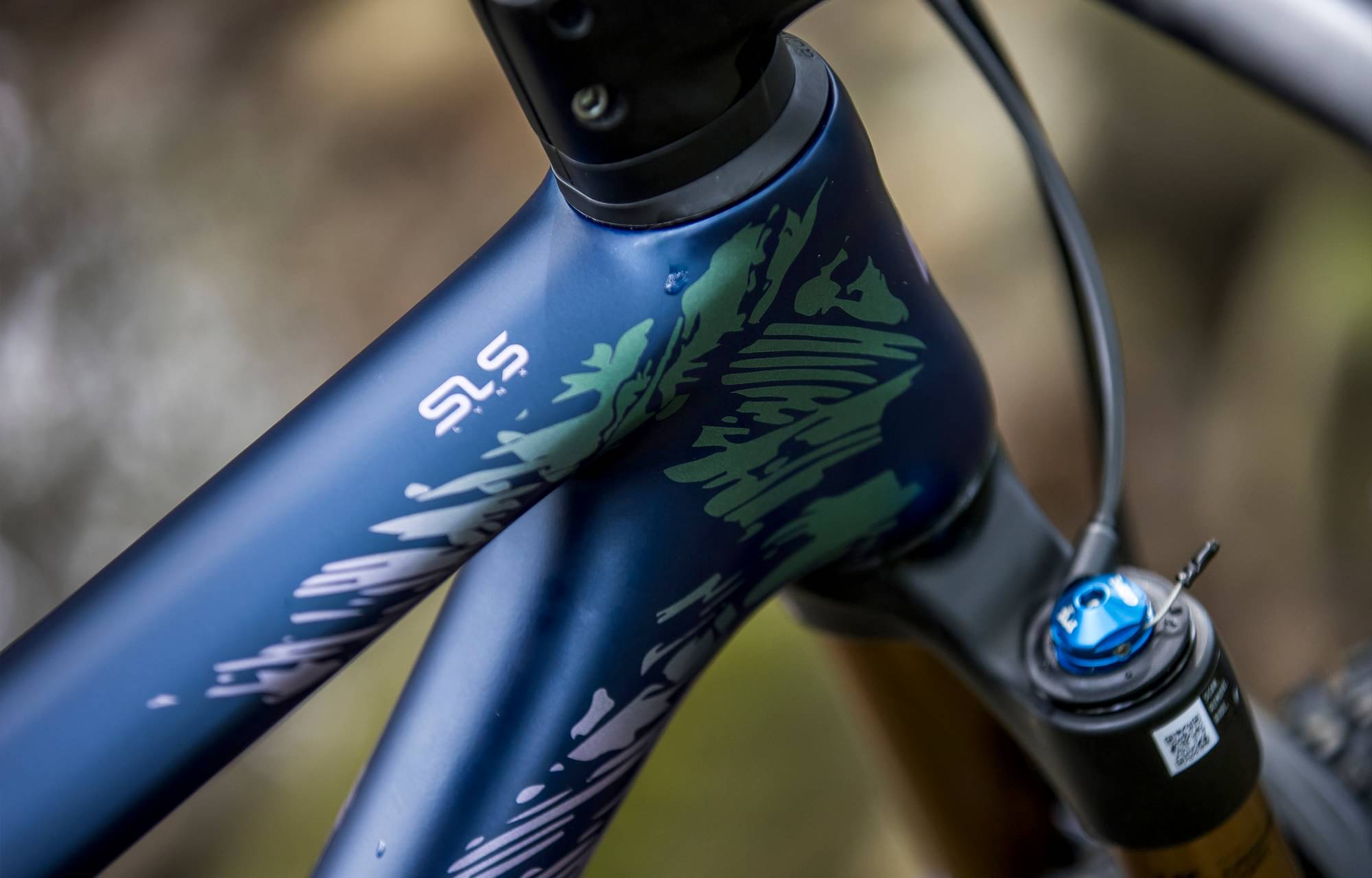

Frame
SLS PCL Carbon 29" 80mm PF92 Boost

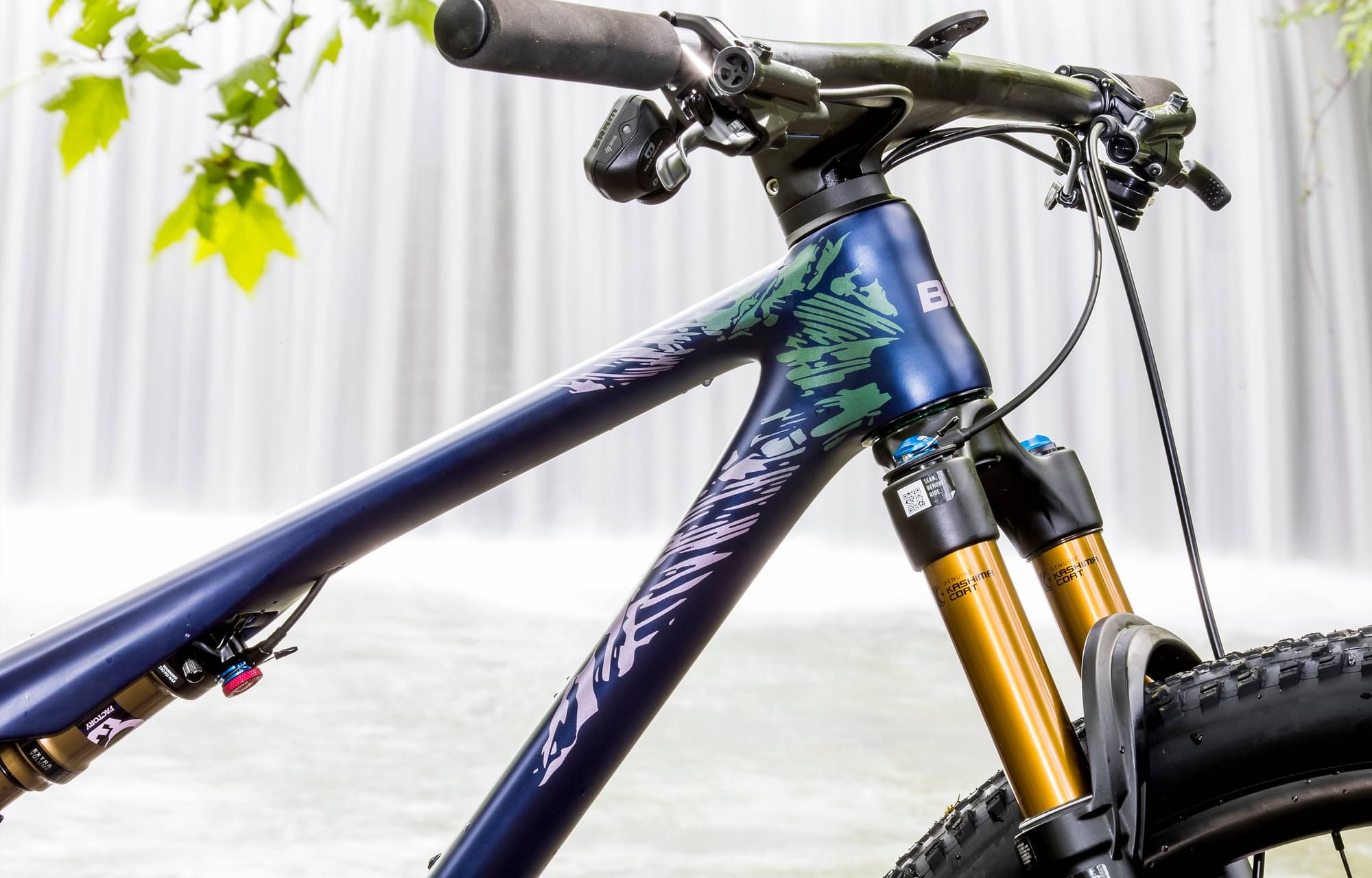

Suspension Fork
FOX 34SC Factory PTL 2P 110mm
Rear Shock
FOX Float SL Factory PTL 2P 190x40
Drivetrain

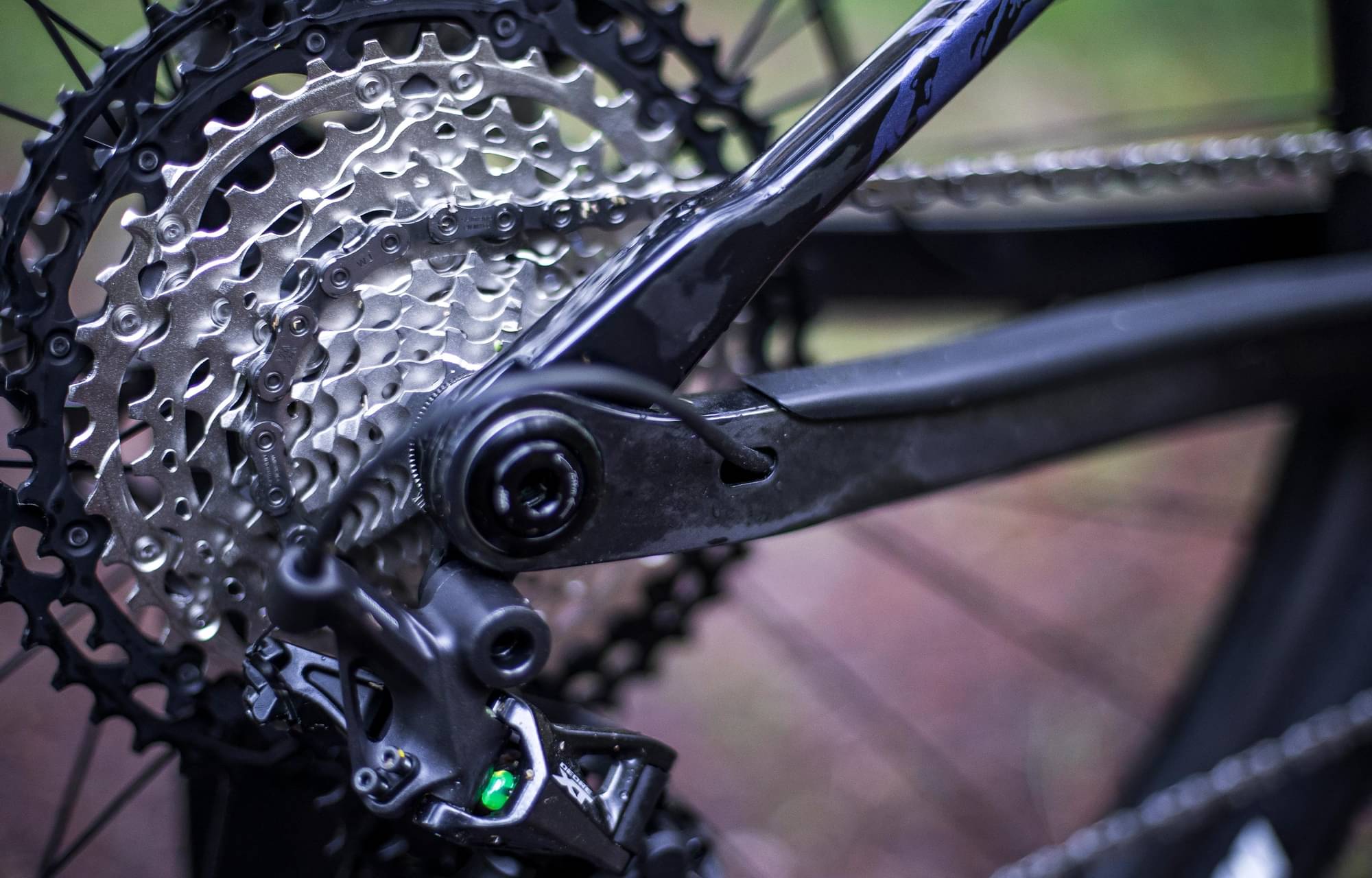

Rear Derailleur
SRAM GX AXS T-Type 12s
Shift Levers
SRAM GX AXS POD
Cassette
SRAM GX 10-52 T-Type
Crank
SRAM GX DUB 34T 175mm 55mm
Bottom Bracket
SRAM DUB Wide PF92
Chain
SRAM GX T-Type 116L
Wheels
Rims
EVO Carbon SL 28H 30mm internal 6H Ratchet 40T
Tires
Maxxis Rekon WT 2.4 DR/ Maxxis Aspen WT 2.4 R
Brakes
Brakes
Front: Shimano XT 180mm, Rear: Shimano XT 160mm
Cockpit
Handlebar
Stealth integrated 760mm 60mm 9º
Grips
Grip SL Silicon

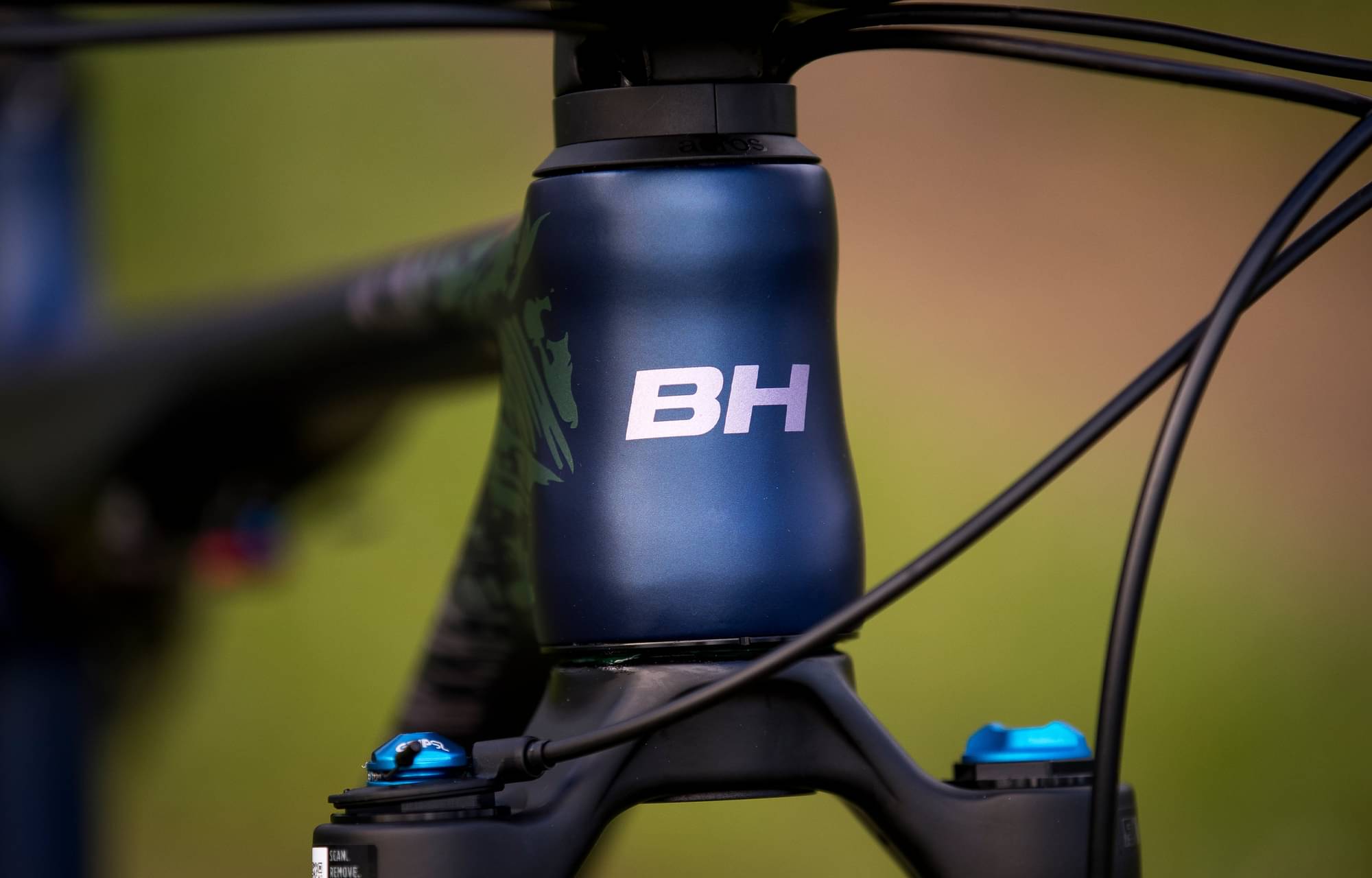

Headset
Acros ICR 36/45º, Block Lock 160º
Seat
Saddle
Prologo Nago R4 PAS STN

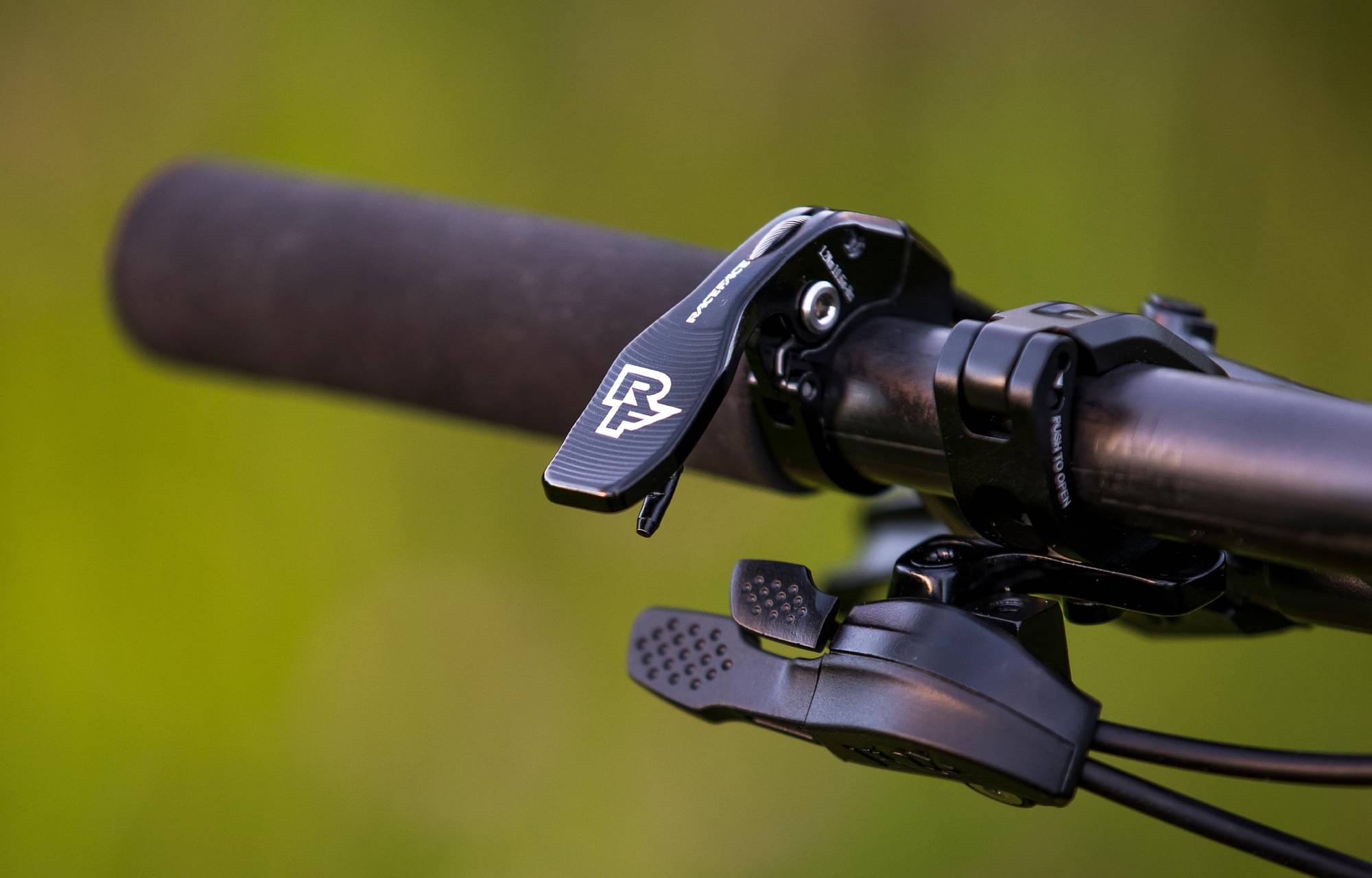

Seatpost
Bike Yoke Divine SL 125mm 31,6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.406 mm | 1.327 mm | 1.296 mm | 1.262 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm | 324 mm |
| Front Center | 699 mm | 724 mm | 751 mm | 775.6 mm |
| Rake | 48 mm | 48 mm | 43 mm | 43 mm |
| Trail | 107 mm | 107 mm | 112 mm | 112 mm |
| Stack | 590.6 mm | 590.6 mm | 609 mm | 618.2 mm |
| Reach | 420 mm | 445 mm | 470 mm | 490 mm |
| Top Tube Length | 567.3 mm | 592.2 mm | 616.9 mm | 639 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 110 mm | 120 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1124 mm | 1149 mm | 1177 mm | 1201 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
