Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Travel Front 110mm -
Fork RockShox SID
-
Groupset XX SL Eagle Transmission -
Suspension Full, Electronic -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lynx SLS, EC Layup, Acros ICR, PF92BB, 148x12, UDH
Suspension Fork
Rock Shox SID Flight Attendant 110mm

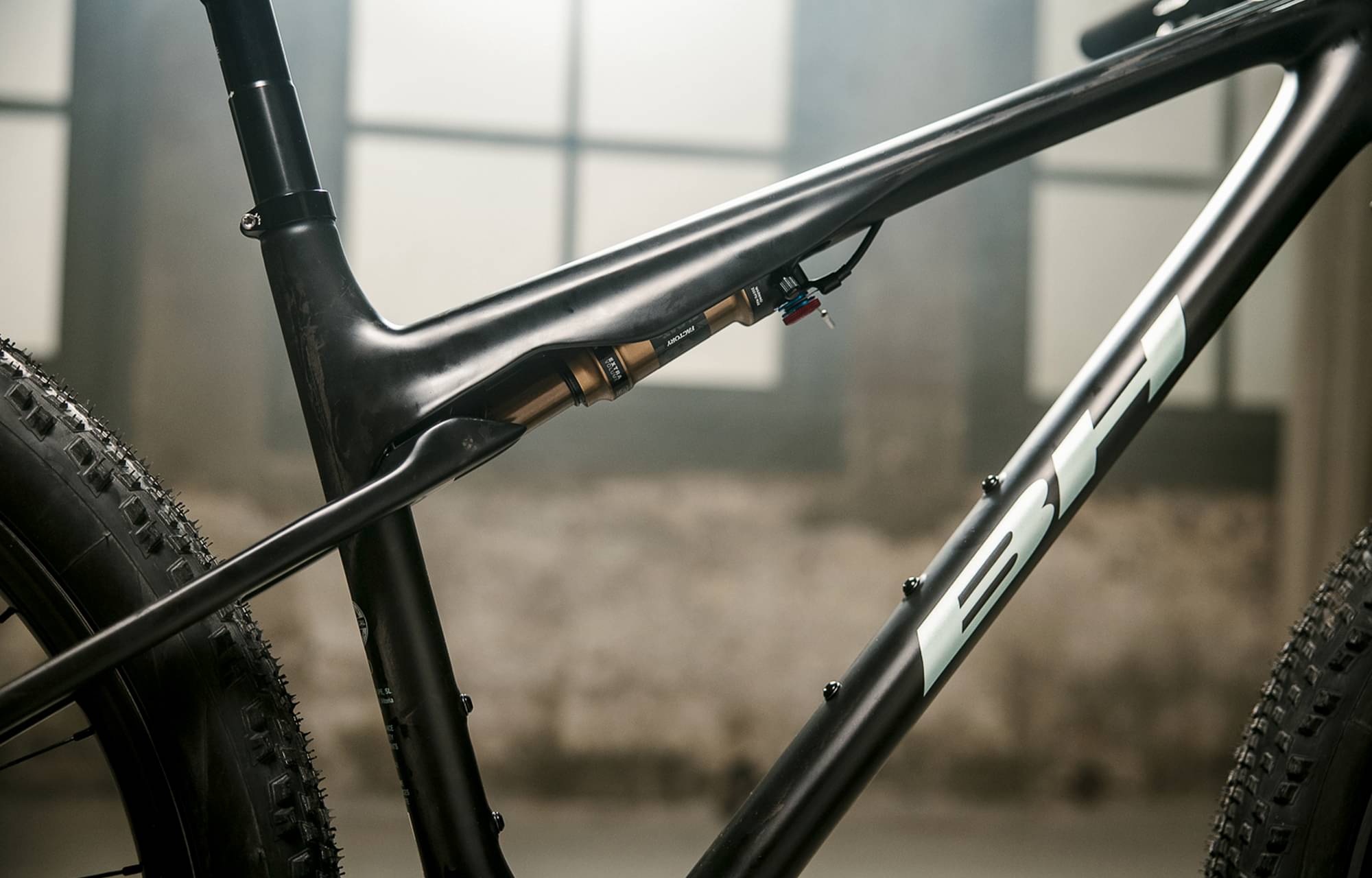

Rear Shock
Rock Shox SID Flight Attendant 190x40mm
Drivetrain

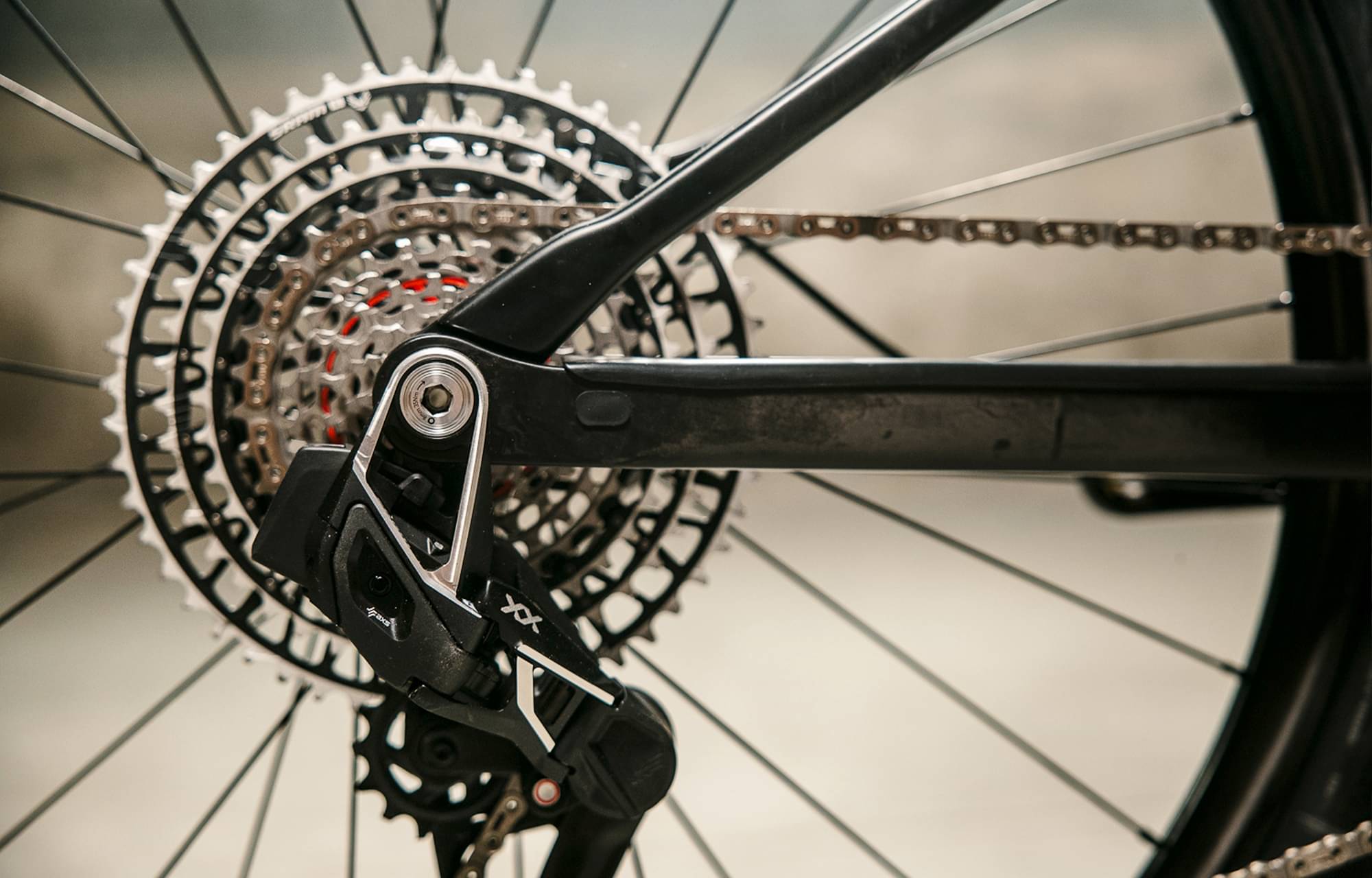

Rear Derailleur
SRAM XX SL AXS T-TYPE 12sp
Shift Levers
SRAM XX SL AXS T-TYPE 12sp
Cassette
SRAM XX SL AXS T-TYPE 10/52

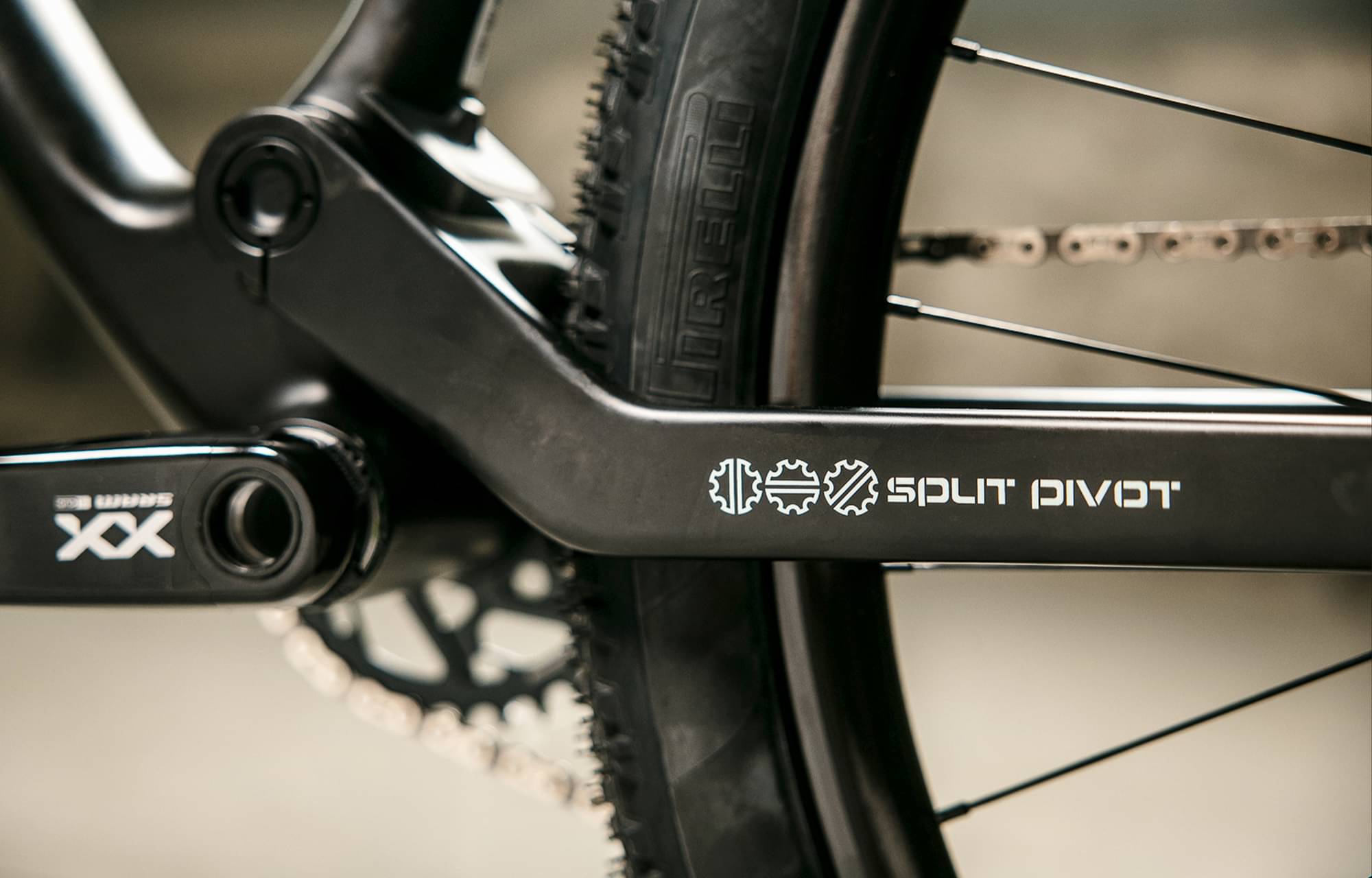

Crank
SRAM XX SL AXS T-TYPE 12sp, 34, 175mm
Bottom Bracket
SRAM
Chain
SRAM XX SL AXS T-TYPE 12sp
Wheels
Rims
BH Evo Carbon SL Tubeless, 30mm, 28H
Tires
Pirelli Scorpion XC RC 2.4 Front/ Rear Classic
Brakes
Brakes
Front: SRAM Level Ultimate Stealth 180mm, Rear: SRAM Level Ultimate Stealth 160mm
Cockpit

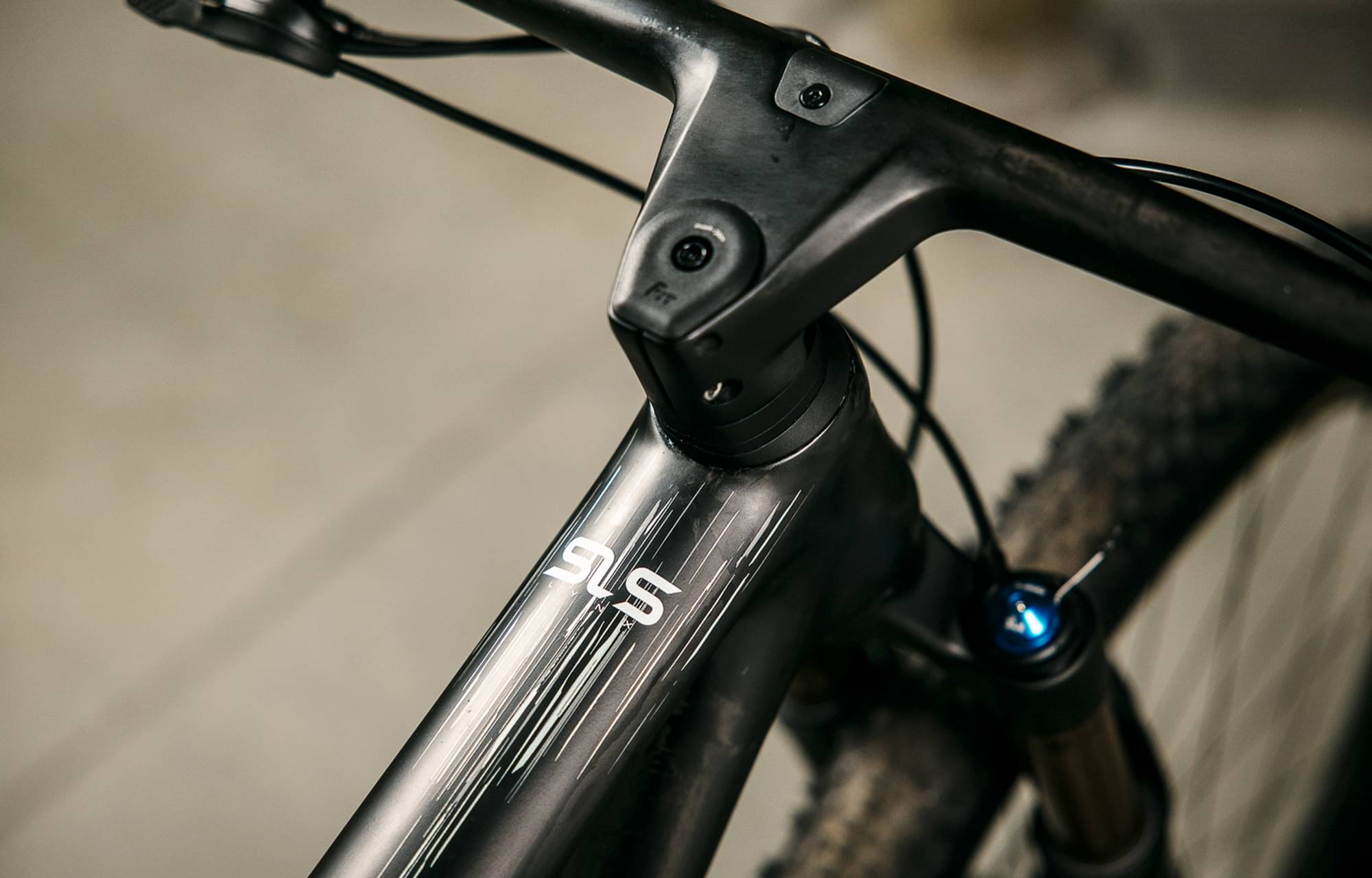

Handlebar
BH Stealth Top Flat, 60mm, 760mm, 10mm Rise integrated
Grips
BH Control Grip

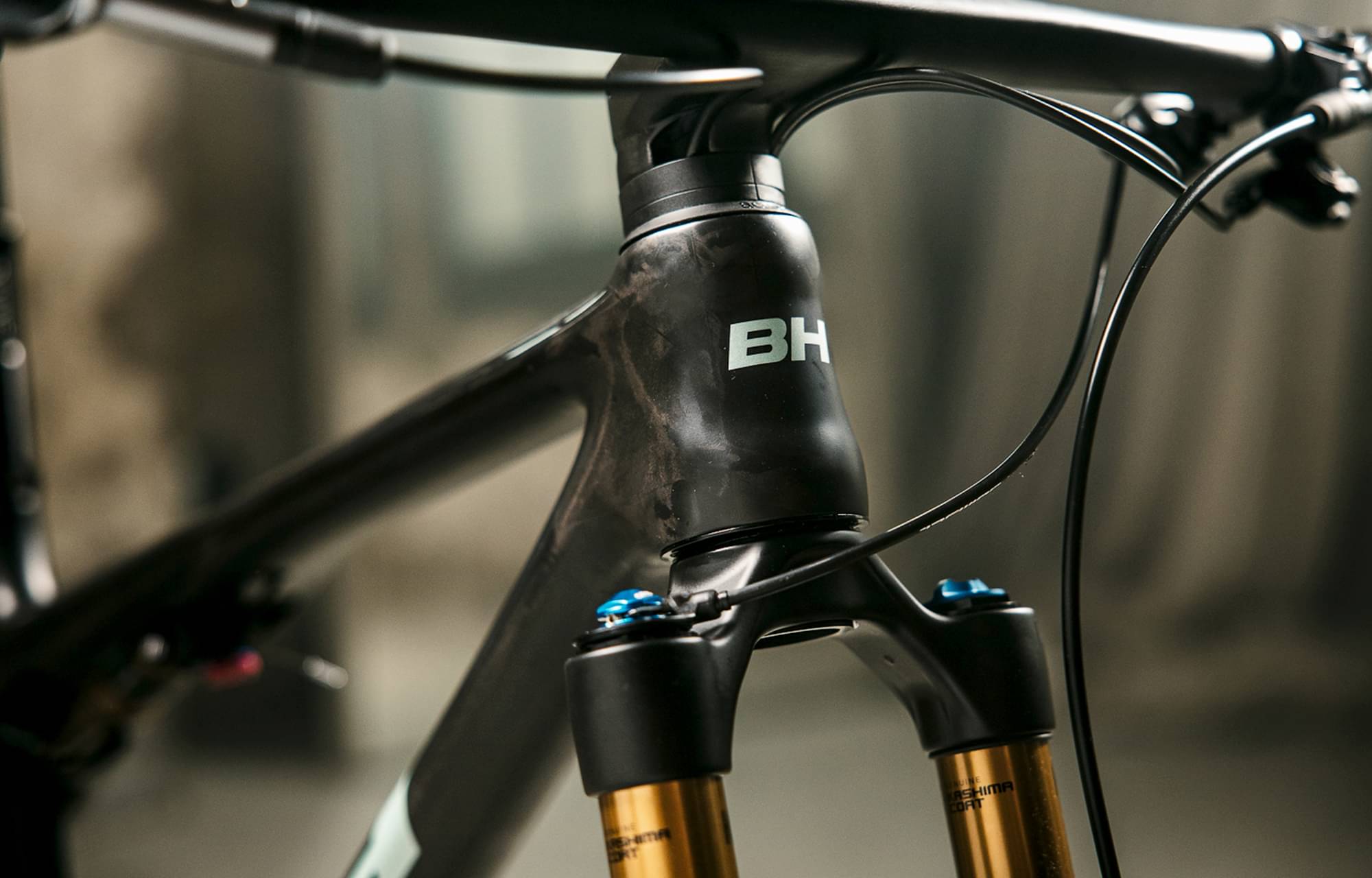

Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Prologo R4 Nack
Seatpost
Bike Yoke Divine SL 31,6mm, 125mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm | 324 mm |
| Front Center | 703 mm | 728 mm | 756 mm | 780 mm |
| Top Tube Length | 567 mm | 592 mm | 617 mm | 640 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 110 mm | 120 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1124 mm | 1149 mm | 1177 mm | 1201 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
