Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lynx Trail Carbon 150mm, BC Layup, ISCG 0.5Lite, UDH
Suspension Fork
Fox 36 Factory Grip 2 HSC, LSC, HSR, LSR Kabolt 150mm
Rear Shock
Fox X2 Evol LV, Factory, 190x40mm, CM,RM,LM 40x8mm Aircan
Drivetrain
Rear Derailleur
Shimano XTR 9100 12sp
Shift Levers
Shimano XTR 9100 12sp
Cassette
Shimano XTR 9100 10/51
Crank
Race Face Next R SupeBoost, 30, 170mm
Bottom Bracket
Shimano
Chain
Shimano XTR
Wheels
Rims
Race Face Next R Carbon, 31mm, SuperBoost
Tires
Maxxis High Roller EXO, 3C, 2.35
Brakes
Brakes
Front: Shimano XTR Enduro 180mm, Rear: Shimano XTR Enduro 180mm
Cockpit
Stem
BH TRAIL 45mm, 35mm, 0º

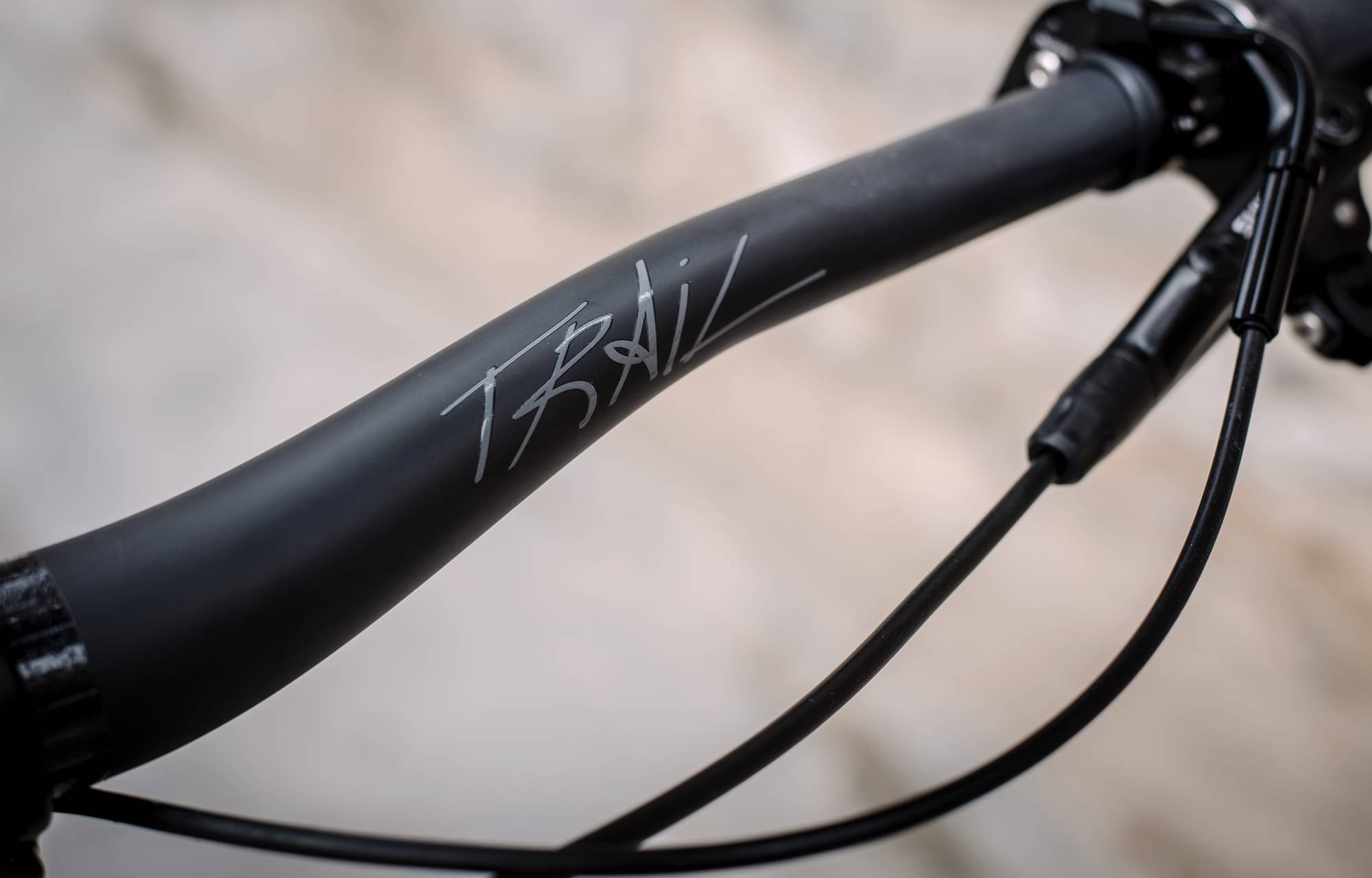

Handlebar
BH Trail Carbon, 800mm, 10mm Rise, 9º Back Sweep
Grips
BH Control Grip
Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Scratch X8
Seatpost
Bike Yoke Revive 31,6mm, 400mm, 160mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.341 mm | 1.305 mm | 1.293 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 715.57 mm | 738.57 mm | 763.45 mm | 784.45 mm |
| Rake | 11 mm | 8 mm | 9 mm | 8 mm |
| Trail | 162 mm | 166 mm | 165 mm | 166 mm |
| Stack | 608.2 mm | 610.1 mm | 619.8 mm | 633.8 mm |
| Reach | 430 mm | 455 mm | 475 mm | 490 mm |
| Top Tube Length | 555.52 mm | 582.1 mm | 605.22 mm | 624.93 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1145 mm | 1168 mm | 1193 mm | 1214 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
