Bike details
Overview
Key information split into simple groups.

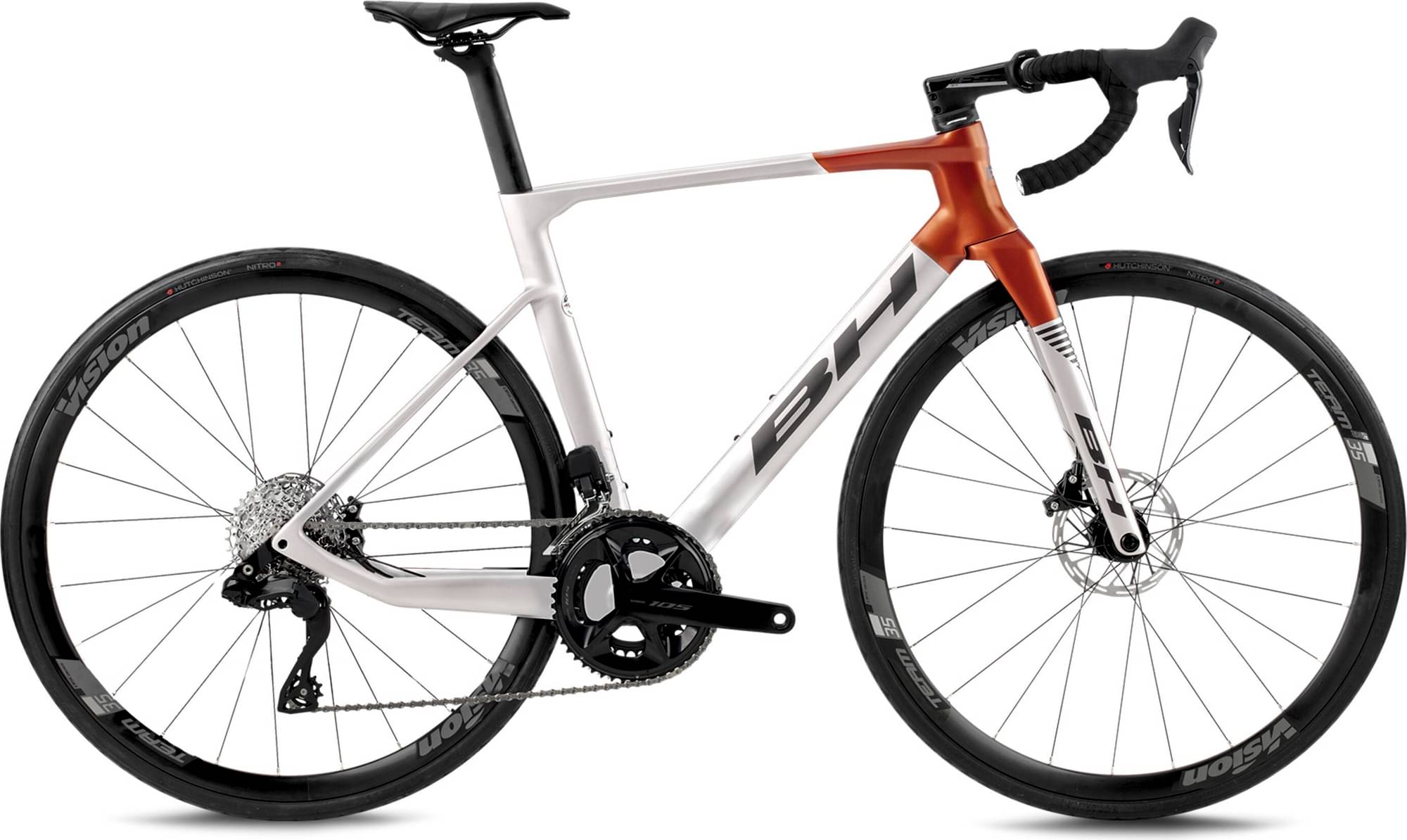

Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano 105 Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

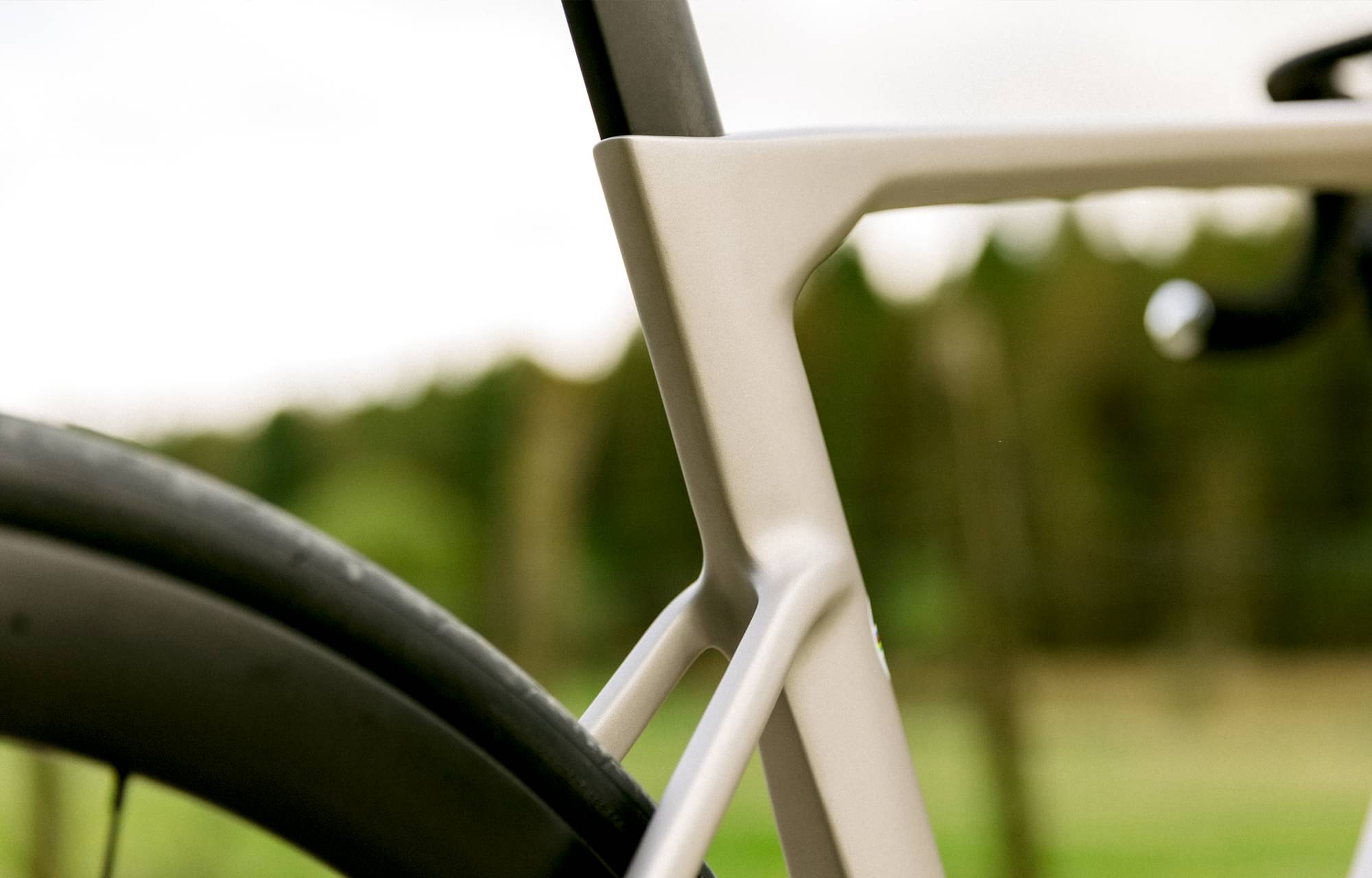

Frame
Frame
RS1 Disc ACR Monocoque
Suspension Fork
RS1 Disc Full Integrated Tapeder, Full Carbon 1.5
Drivetrain

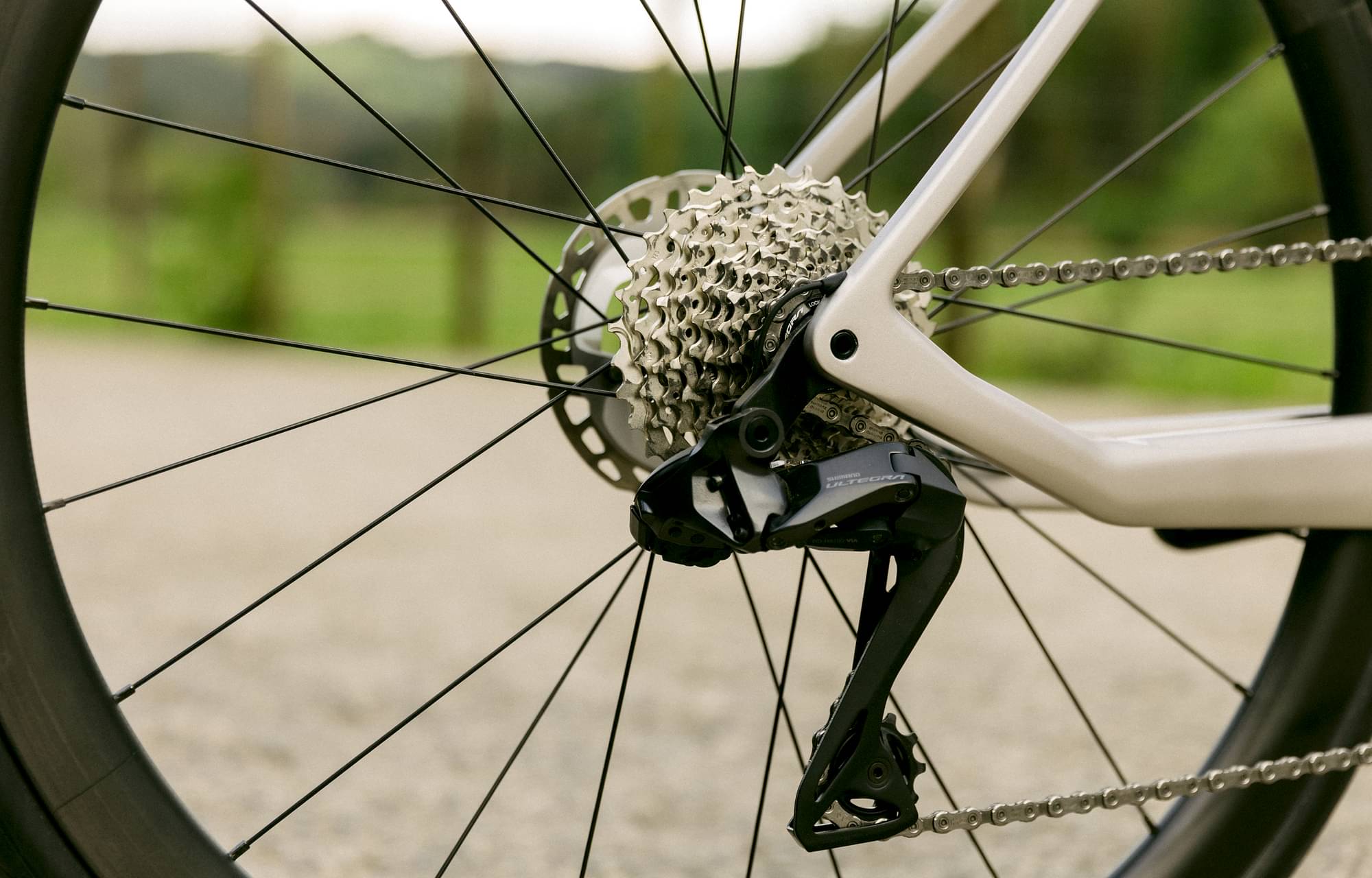

Rear Derailleur
Shimano 105 DI2 7150 12sp
Front Derailleur
Shimano 105 DI2 7150
Shift Levers
Shimano 105 DI2 Hydra
Cassette
Shimano 105 11/34
Crank
Shimano 105 FCR7100 52/36, X, Crank set, Shimano 105 FCR7100 52/36, XS 170mm, SM 170mm, MD 172,5mm, LA 175mm, XL 175mm
Chain
Shimano 105
Wheels
Rims
Vision Team35
Tires
Hutchinson Nitro 700x 28
Brakes
Brakes
Front: Shimano 105 Hydraulic, Rear: Shimano 105 Hydraulic
Cockpit
Stem
FSA NS SMR, X, Stem, FSA NS SMR, XS 90mm, SM 100mm, MD 100mm, LA 110mm, XL 110mm
Handlebar
FSA Gossamer Compact, X, Handlebar, FSA Gossamer Compact, XS 400mm, SM 420mm, MD 420mm, LA 440mm, XL 440mm
Headset
FSA SMR
Seat
Saddle
Prologo Nago RS
Seatpost
RS1 Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.422 mm | 1.451 mm | 1.466 mm | 1.503 mm | 1.519 mm |
| Bottom Bracket Height | 265 mm | 265 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 569 mm | 580 mm | 583 mm | 596 mm | 606 mm |
| Rake | 31 mm | 43 mm | 39 mm | 53 mm | 44 mm |
| Trail | 83 mm | 64 mm | 65 mm | 47 mm | 57 mm |
| Stack | 526 mm | 544 mm | 557 mm | 583 mm | 597 mm |
| Reach | 370 mm | 375 mm | 380 mm | 388 mm | 393 mm |
| Top Tube Length | 516 mm | 531 mm | 545 mm | 560 mm | 576 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 160 mm | 190 mm |
| Chainstay Length | 412 mm | 412 mm | 415 mm | 415 mm | 418 mm |
| Wheelbase | 965 mm | 980 mm | 984 mm | 1009 mm | 1012 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
