Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RS1 Disc ACR Monocoque
Suspension Fork
RS1 Disc Full Integrated Tapeder, Full Carbon 1.5
Drivetrain

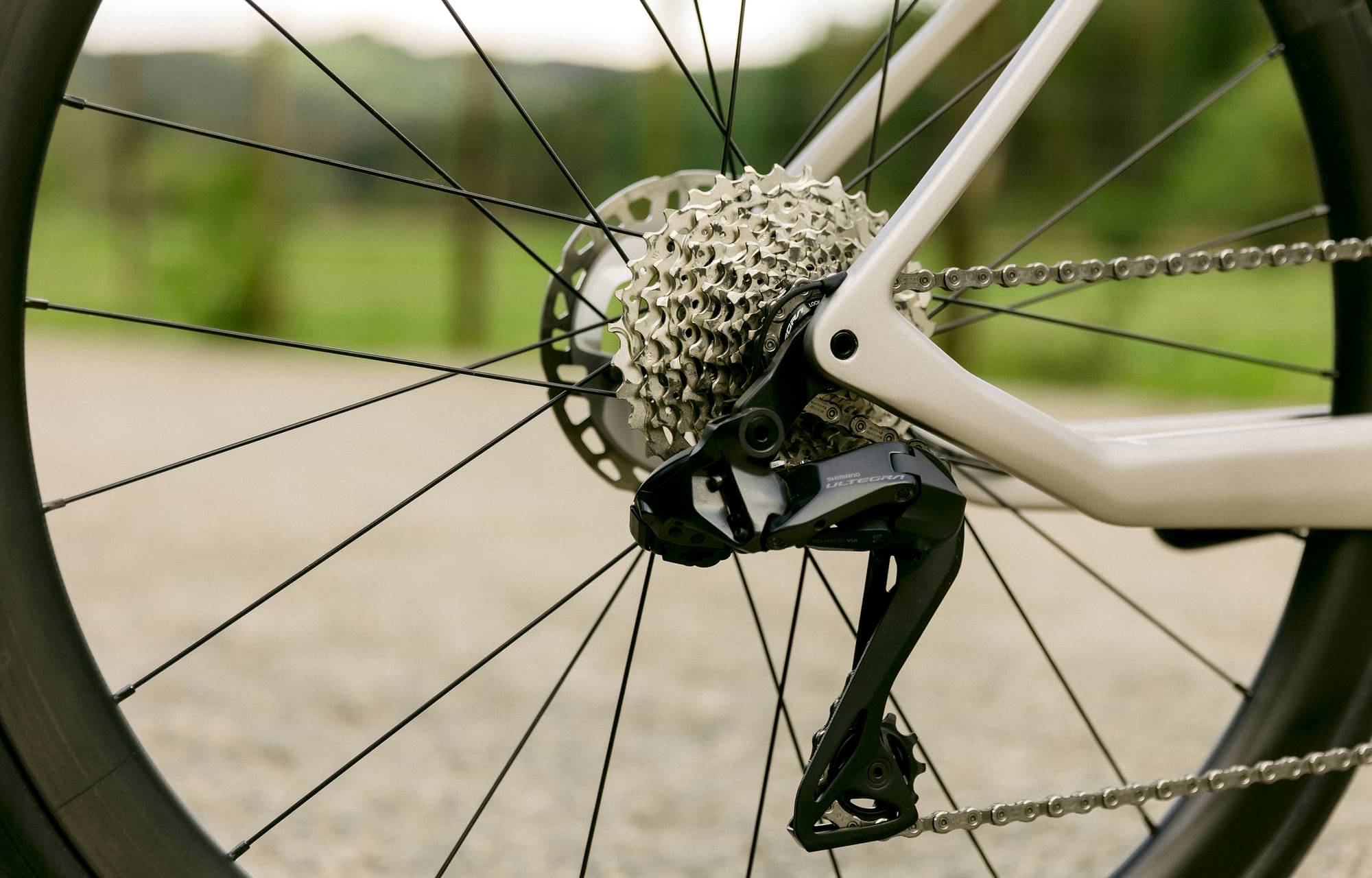

Rear Derailleur
SRAM Rival Etap 12sp
Front Derailleur
SRAM Rival Etap 12sp
Shift Levers
SRAM Rival Etap
Cassette
SRAM Rival 10/36
Crank
SRAM Rival 48/35
Chain
SRAM 12sp
Wheels
Rims
Vision TeamTC30 XDR
Tires
Hutchinson Nitro 700x 28
Brakes
Brakes
Front: SRAM Rival Hydraulic, Rear: SRAM Rival Hydraulic
Cockpit
Stem
FSA NS SMR
Handlebar
FSA Gossamer Compact
Headset
FSA SMR
Seat
Saddle
BH Ergo G
Seatpost
RS1 Aero
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Top Tube Length | 516 mm | 531 mm | 545 mm | 561 mm | 576 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 175 mm | 190 mm | 215 mm |
| Chainstay Length | 412 mm | 412 mm | 415 mm | 415 mm | 418 mm | 418 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
