Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RX Team Evo 2 Carbon Monocoque
Suspension Fork
Rx Team Evo 2, Integrated Tapered,Full Carbon 1.5
Drivetrain
Rear Derailleur
Shimano 105 RD7100 12sp
Front Derailleur
Shimano 105 7100
Shift Levers
Shimano 105 Hydra
Cassette
Shimano 105 11/34
Crank
Shimano 105 FCR7100 52/36
Chain
FSA TH-CN1102
Wheels
Rims
Shimano RS171 Disc

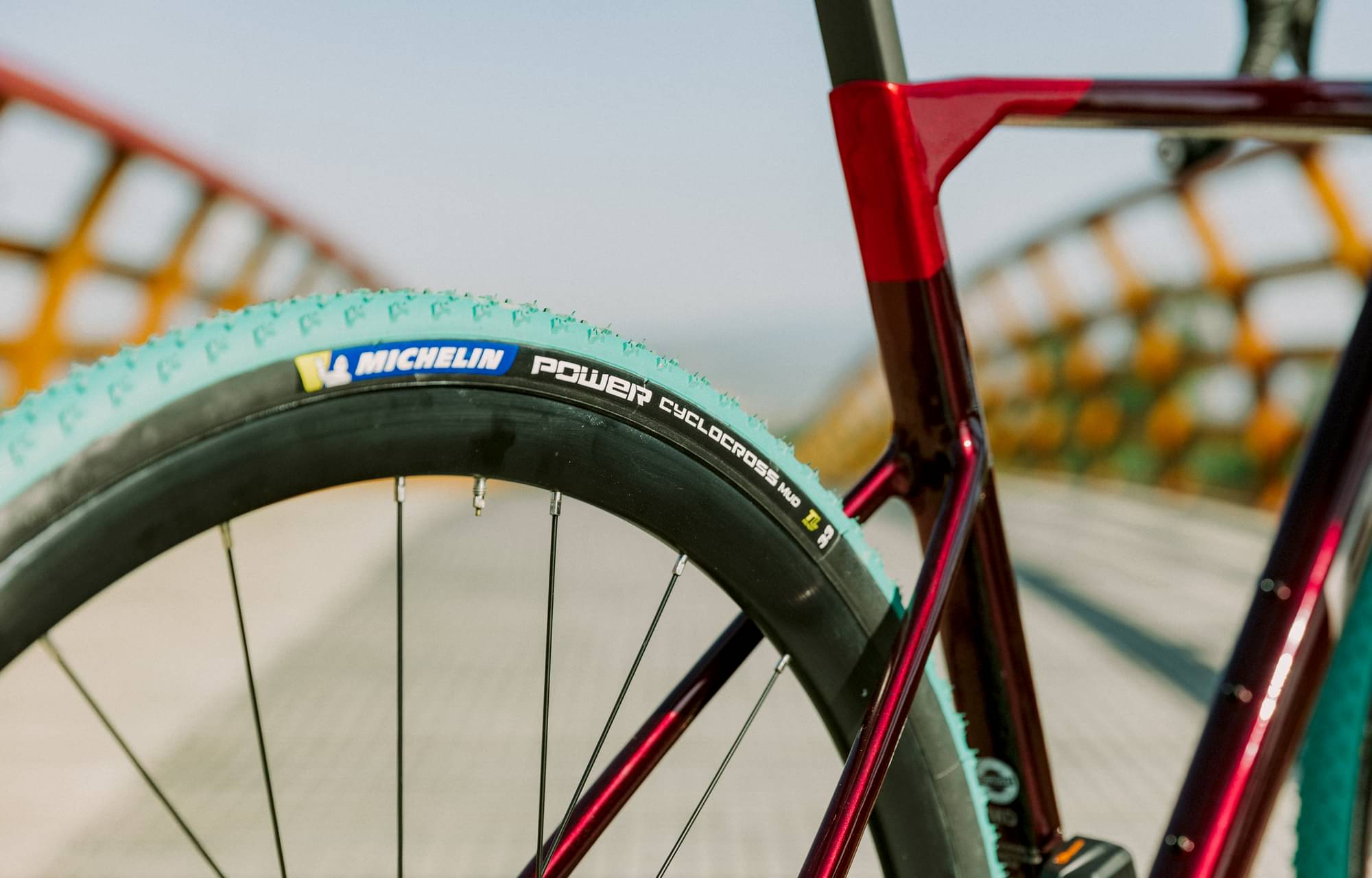

Tires
Michelin Mud2 700 x30
Brakes
Brakes
Front: Shimano 105 hydra, Rear: Shimano 105 hydra
Cockpit
Stem
BH SL
Handlebar
BH Lite Compact
Headset
FSA SMR 1.5"
Seat
Saddle
San Marco Monza Start
Seatpost
BH RX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 525 mm | 545 mm | 565 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
