Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Shimano 105 Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

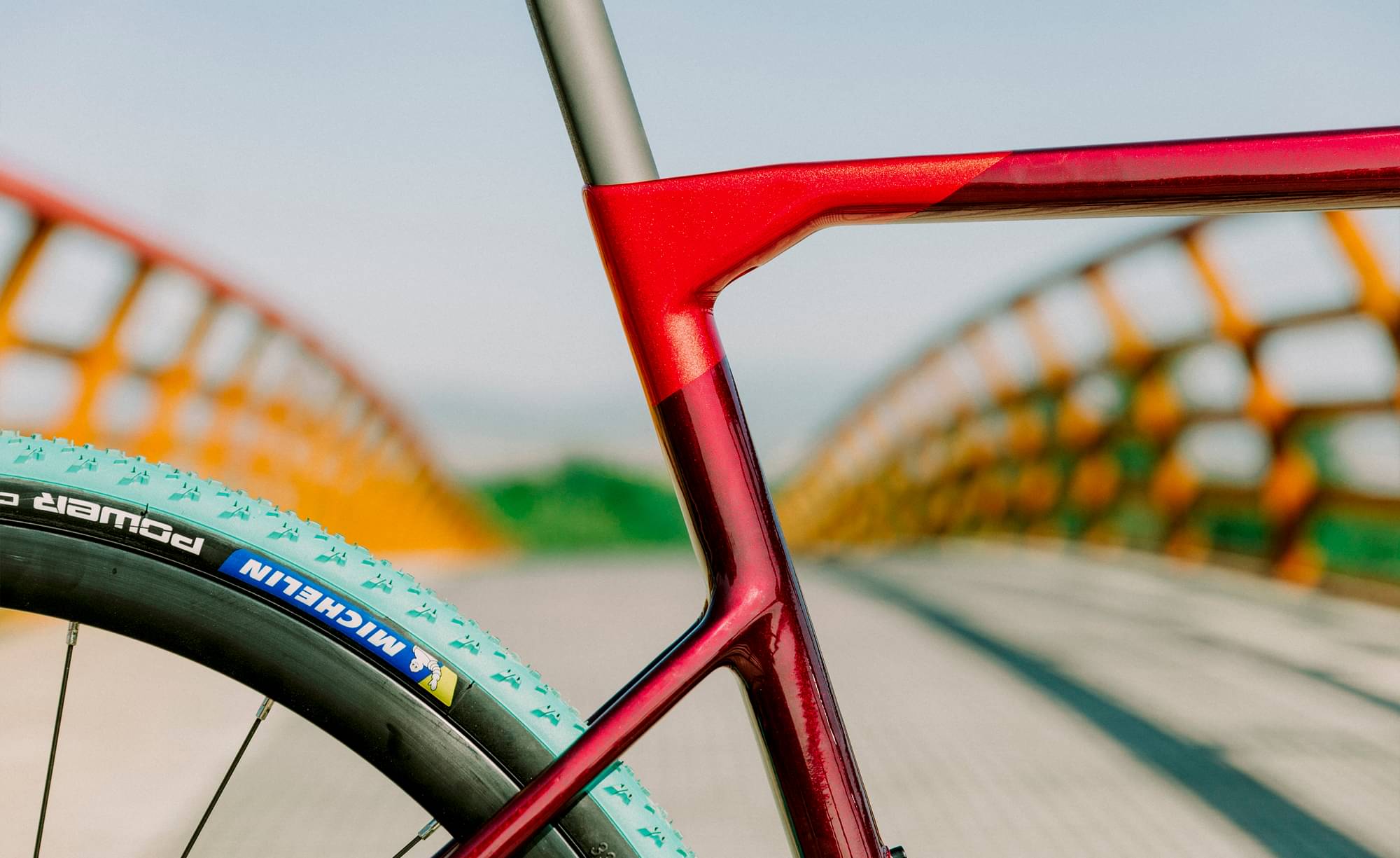

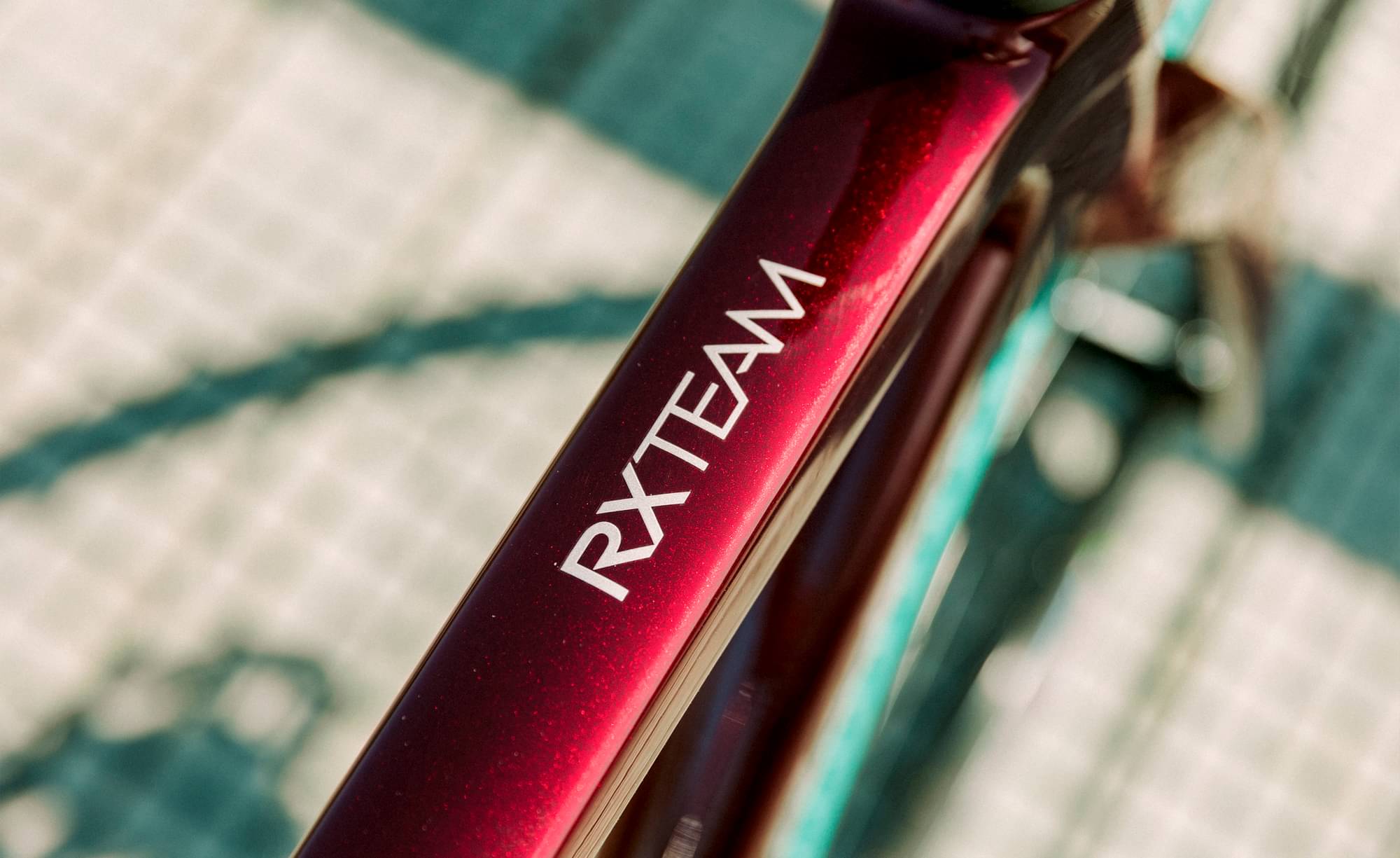

RX Team Evo 2 Carbon Monocoque
Suspension Fork

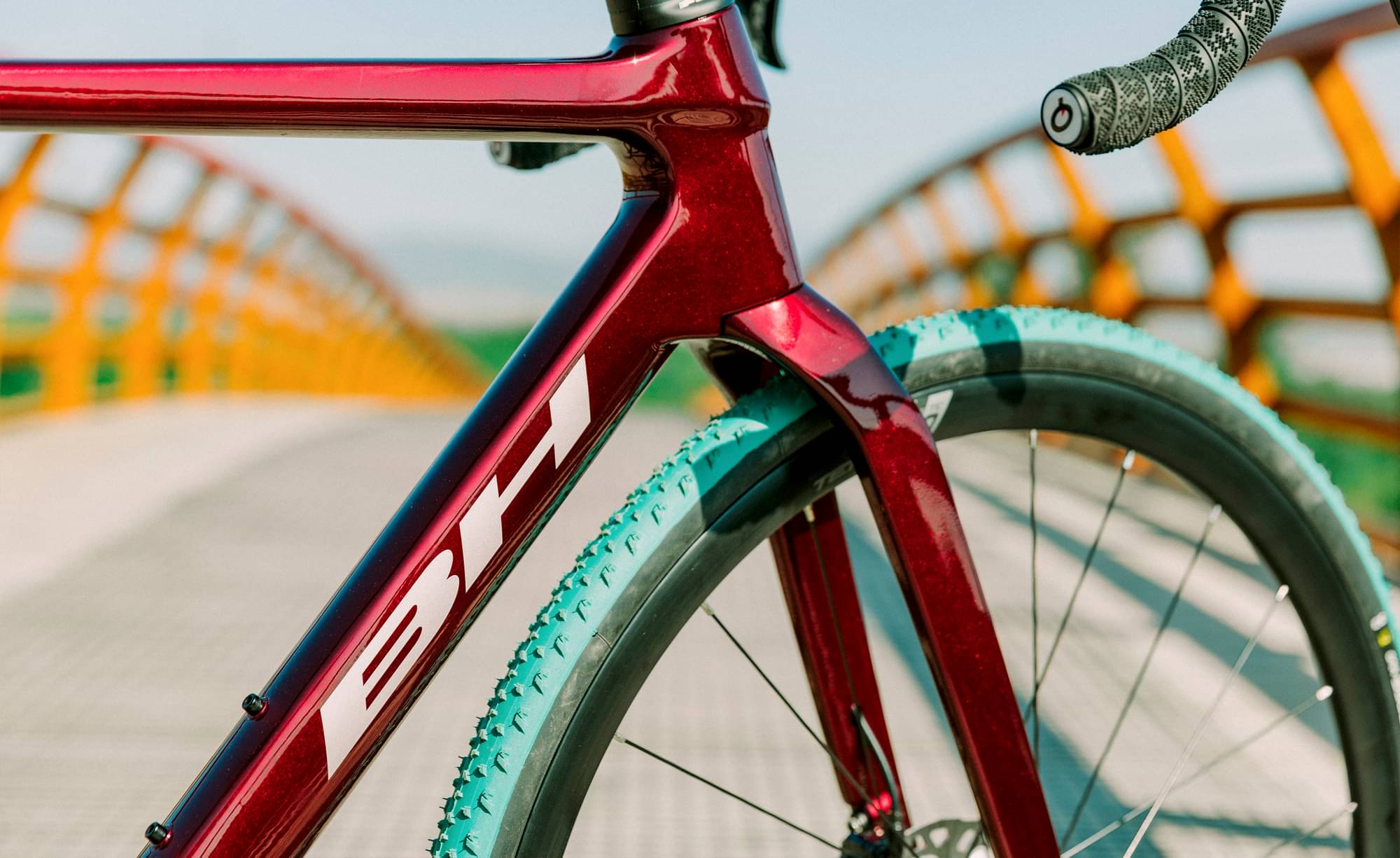

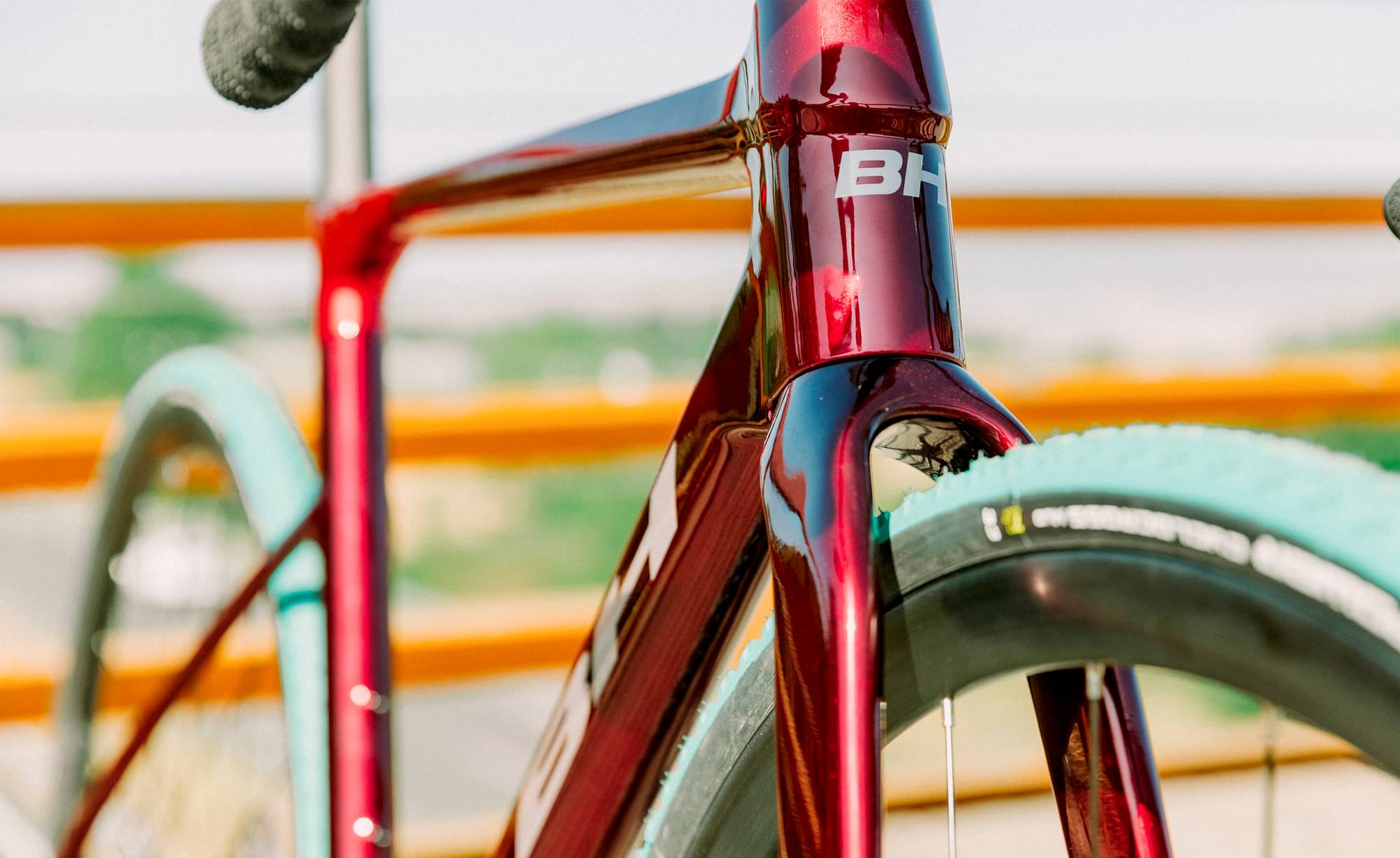

Rx Team Evo 2, Integrated Tapered,Full Carbon 1.5
Drivetrain
Rear Derailleur
Shimano 105 RD7100 12sp
Front Derailleur
Shimano 105 7100
Shift Levers
Shimano 105 Hydra
Cassette
Shimano 105 11/34
Crank
Shimano 105 FCR7100 52/36
Chain
FSA TH-CN1102
Wheels
Rims
Shimano RS171 Disc
Tires

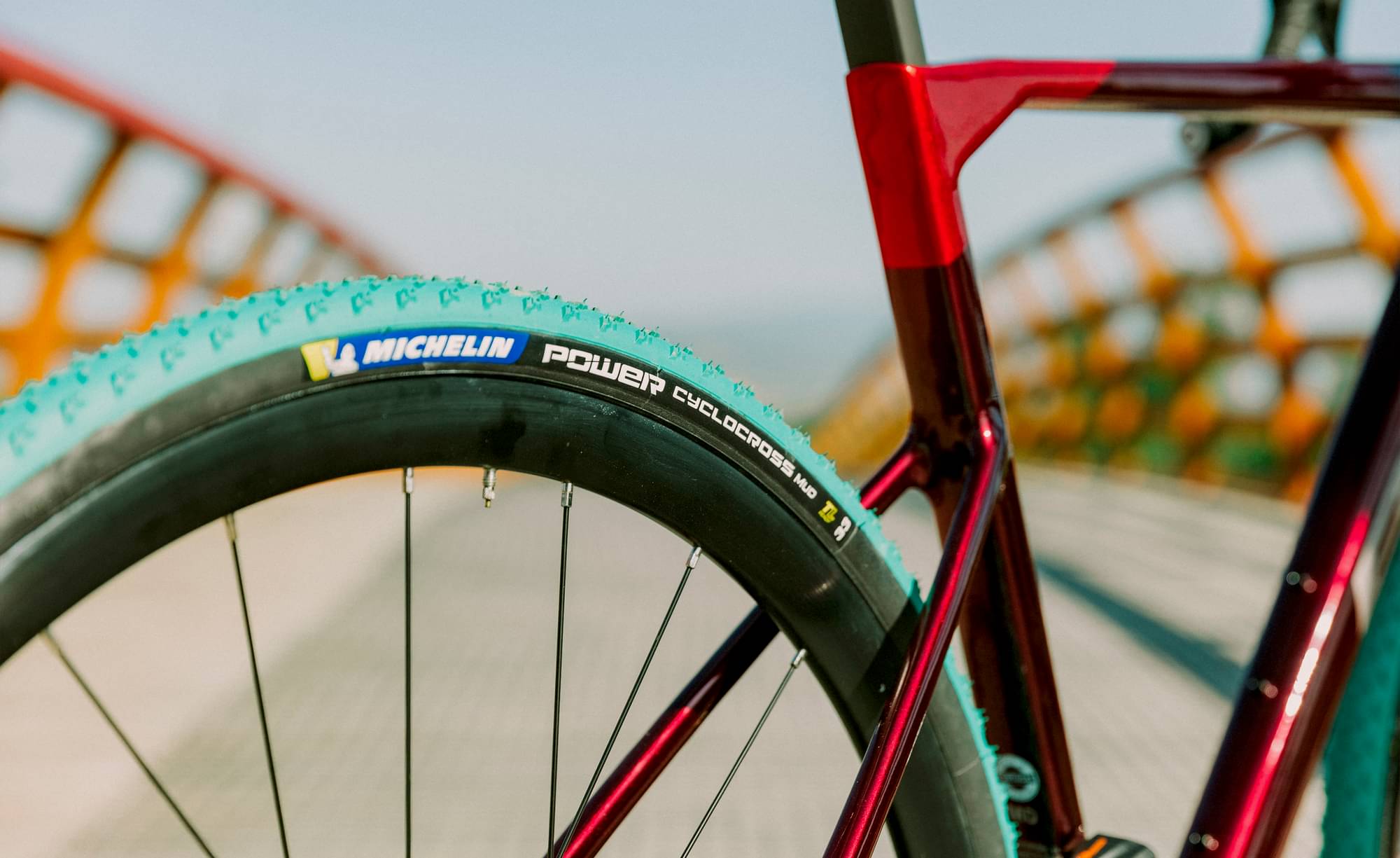

Michelin Mud2 700 x30
Brakes
Brakes
Front: Shimano 105 hydra, Rear: Shimano 105 hydra
Cockpit
Stem
BH SL
Handlebar
BH Lite Compact
Headset
FSA SMR 1.5"
Seat
Saddle
San Marco Monza Start
Seatpost
BH RX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.393 mm | 1.459 mm | 1.475 mm | 1.491 mm | 1.503 mm |
| Bottom Bracket Height | 277 mm | 269 mm | 271 mm | 271 mm | 273 mm |
| Front Center | 584 mm | 591 mm | 602 mm | 614 mm | 626 mm |
| Rake | 45 mm | 42 mm | 43 mm | 42 mm | 36 mm |
| Trail | 80 mm | 80 mm | 76 mm | 74 mm | 80 mm |
| Stack | 510 mm | 540 mm | 556 mm | 577 mm | 598 mm |
| Reach | 366 mm | 370 mm | 377 mm | 387 mm | 398 mm |
| Top Tube Length | 503 mm | 527 mm | 548 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75 ° | 73.75 ° | 73 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 478 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1000 mm | 1003 mm | 1013 mm | 1025 mm | 1038 mm |
| Bottom Bracket Drop | 67 mm | 75 mm | 73 mm | 73 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
