Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 90mm -
Groupset Deore -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

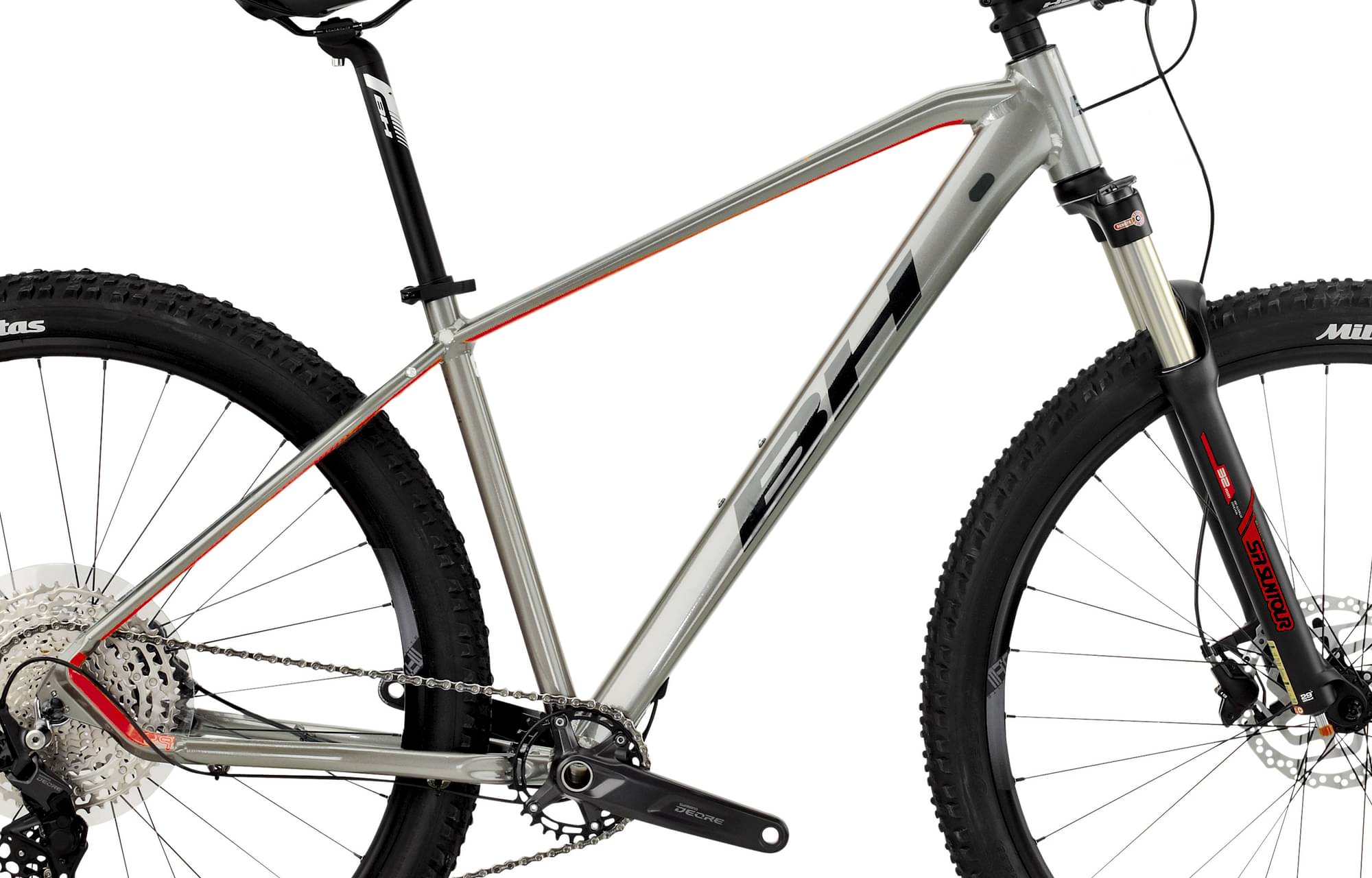

Frame
Frame
Spike Alu 29", 135x9mm, integrated headset 42ACB

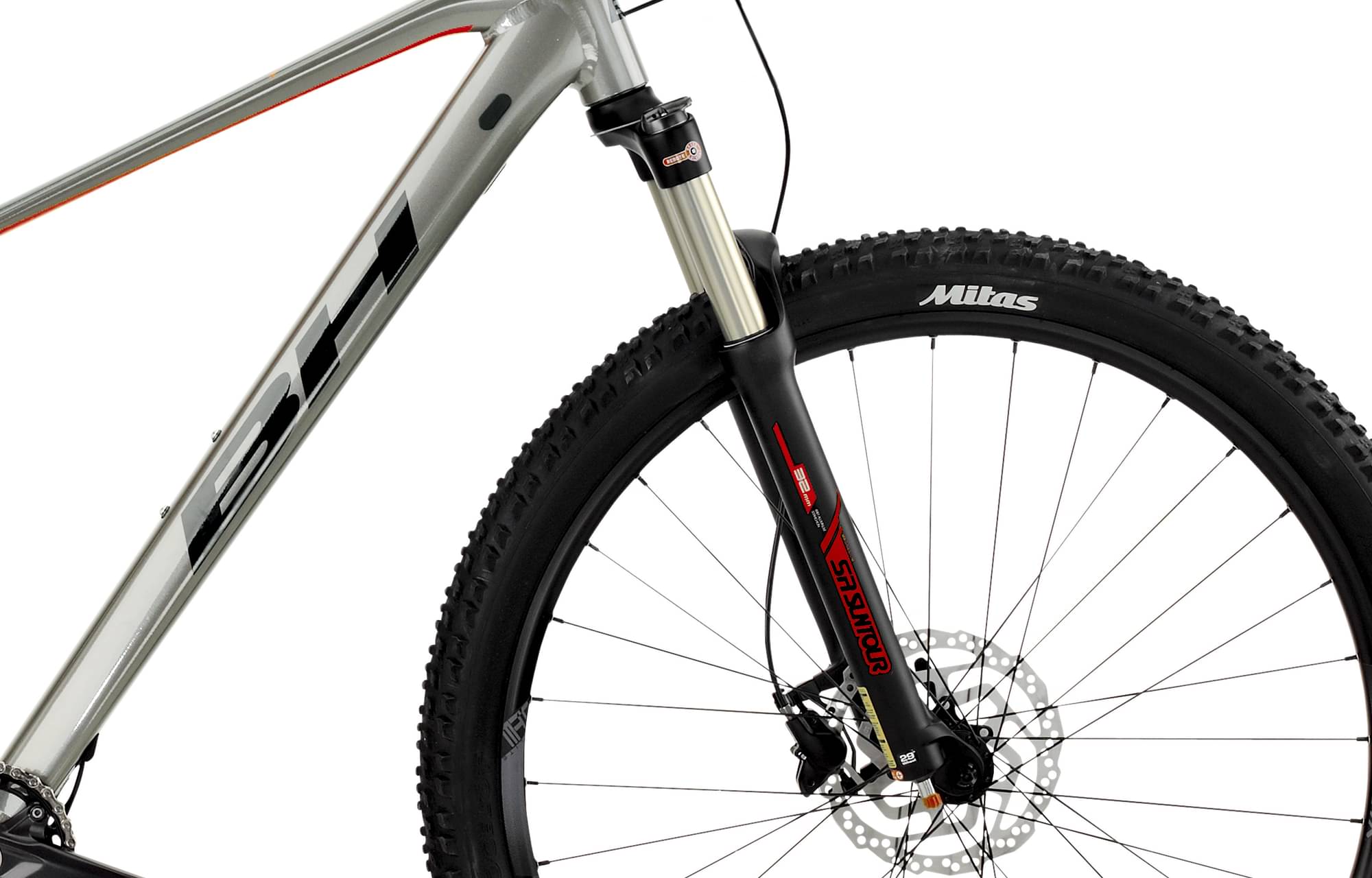

Suspension Fork
BH 90mm

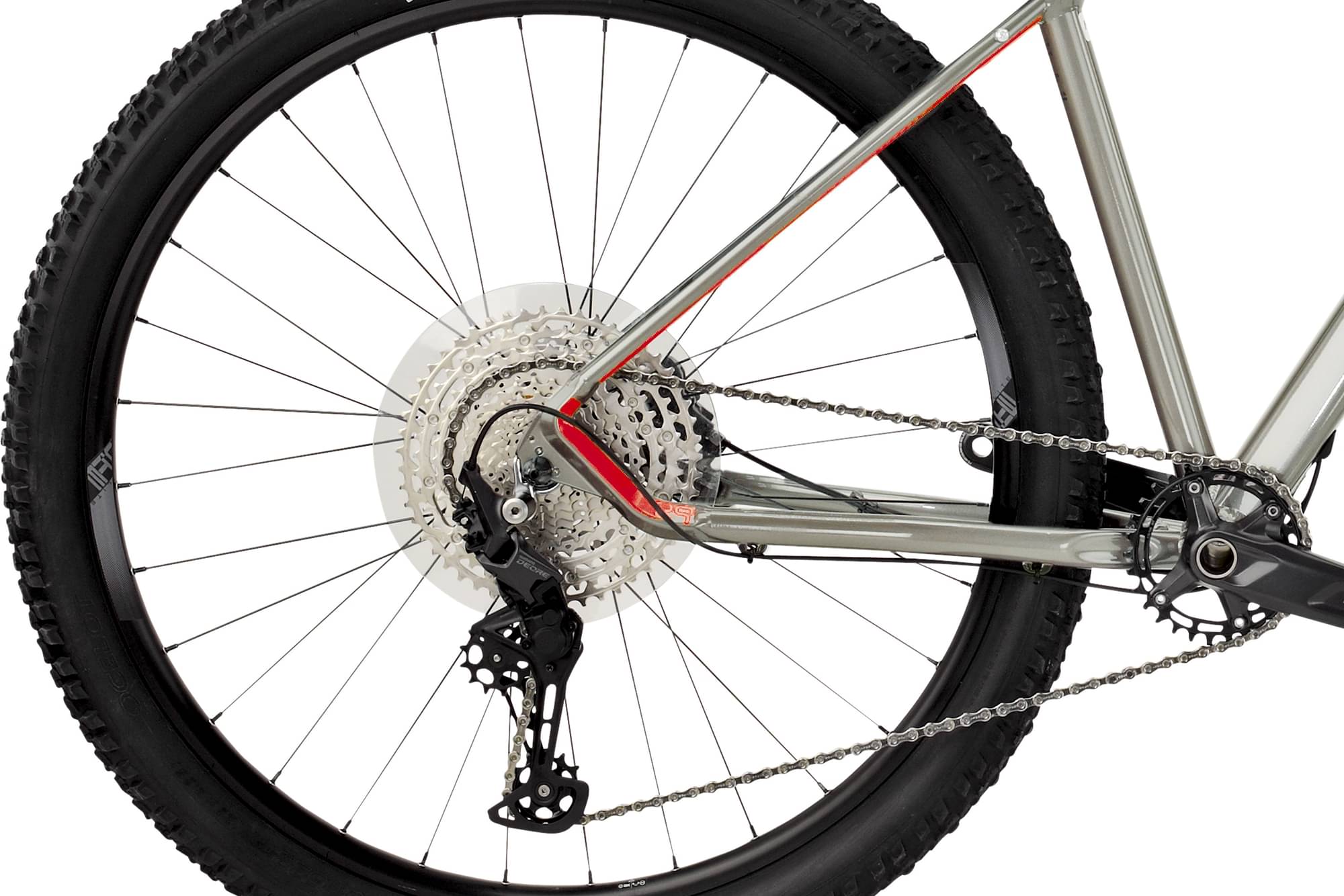

Drivetrain
Front Derailleur
Shimano M5100 30, 175mm
Shift Levers
Shimano Deore 5120 10sp
Cassette
FSA Team Issue 10sp
Crank
Shimano
Bottom Bracket
Shimano Deore M4100 11/46
Chain
Shimano MT200 180mm
Pedals
WELLGO
Wheels
Rims
Mitas Ocelot 2.35
Brakes
Brakes
Front: Shimano MT200 160mm, Rear: BH, Shimano TX505 32H
Cockpit
Stem
BH sealed bearing
Handlebar
BH
Grips
BH Lock On
Headset
Shimano Deore 4100 10sp
Seat
Saddle
BH
Seatpost
BH
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 649 mm | 662 mm | 676 mm | 696 mm |
| Top Tube Length | 575 mm | 587 mm | 600 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1097 mm | 1110 mm | 1124 mm | 1144 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
