Bike details
Overview
Key information split into simple groups.

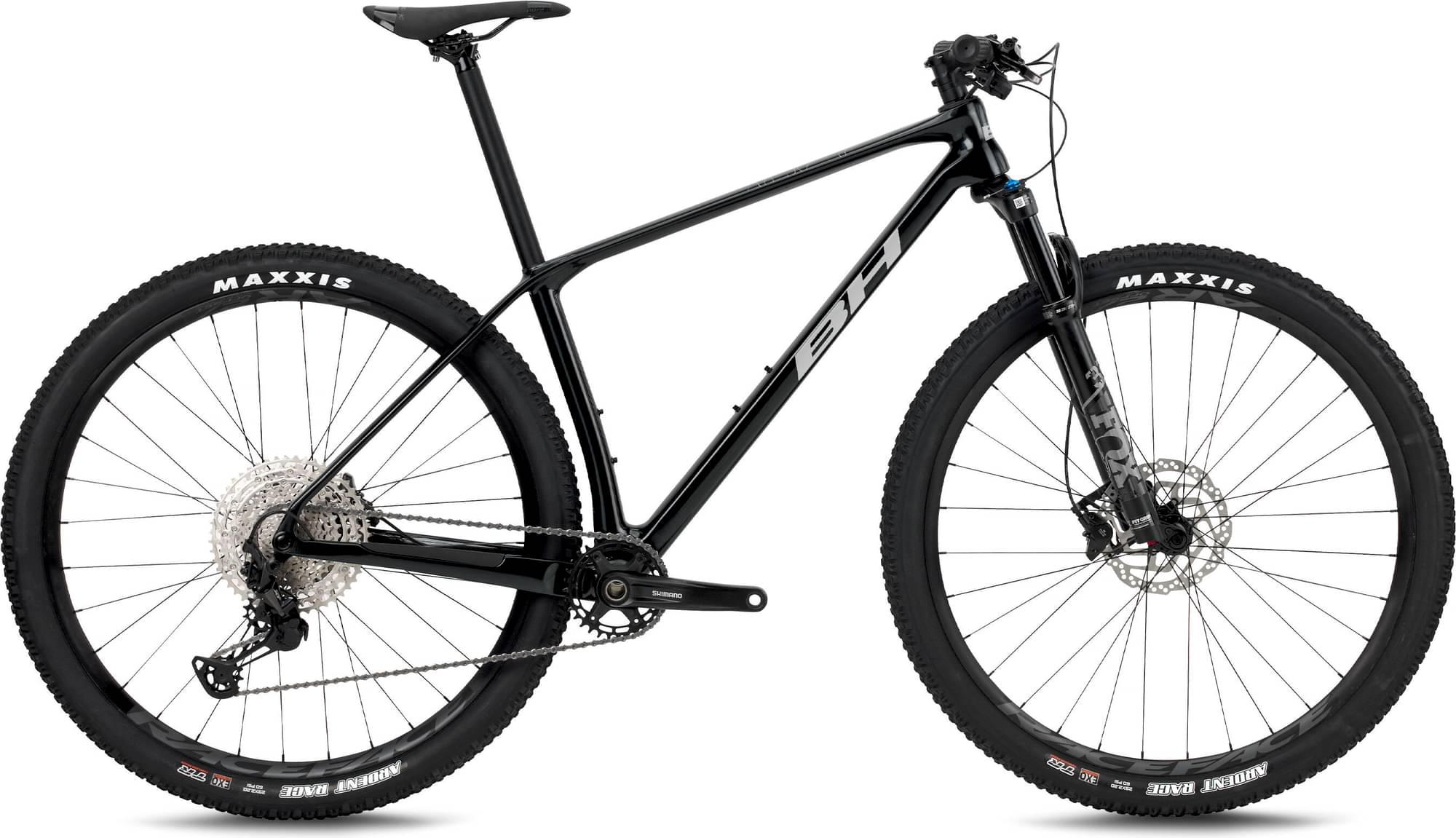

Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XT, Deore -
Suspension Hardtail -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

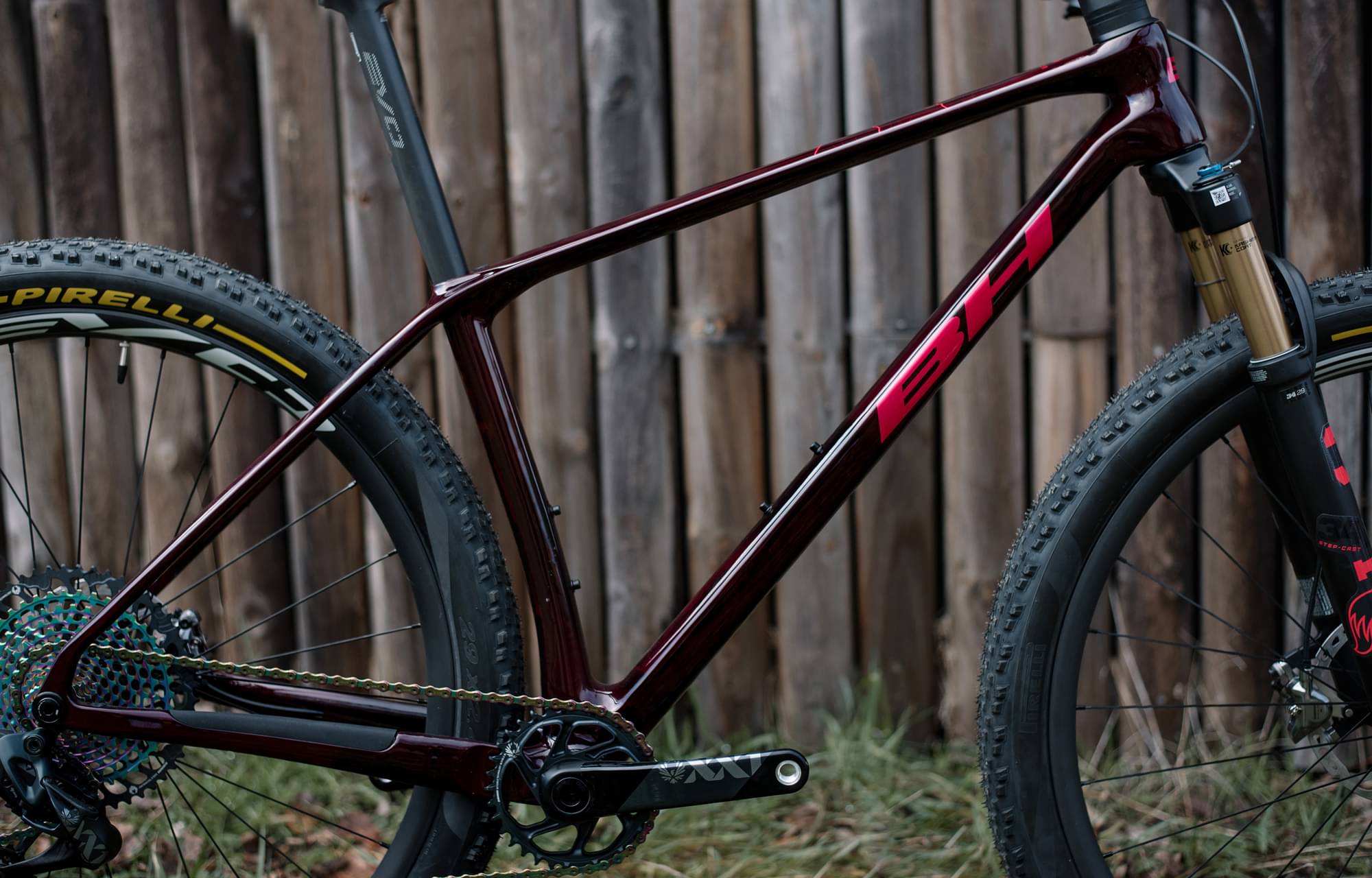

Frame
Ultimate Carbon, PC Layup, Acros ICR, PF92BB, 148x12,UDH

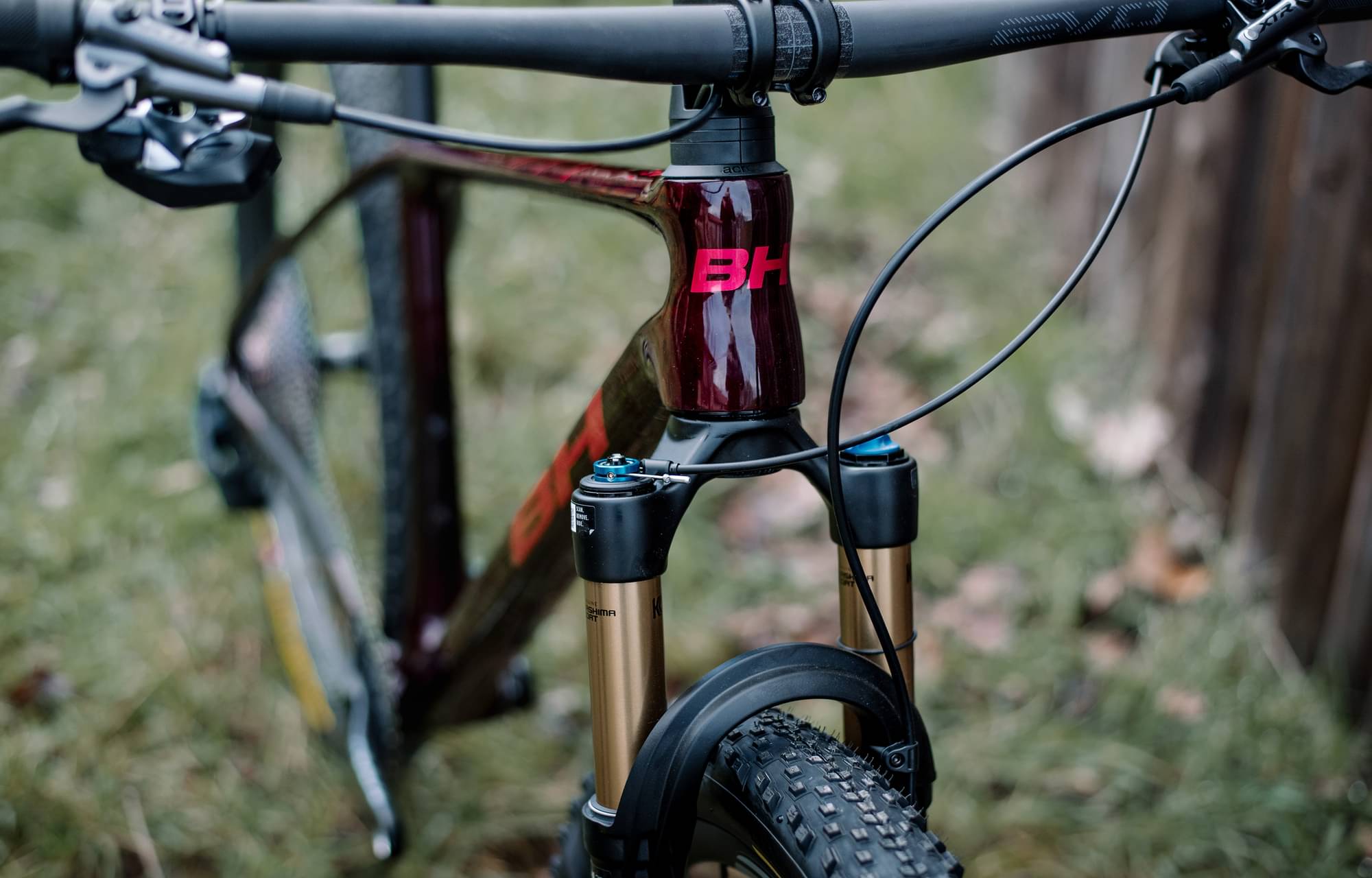

Suspension Fork
Fox 32 Rythm Grip Lock 100mm
Drivetrain
Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano Deore 6100 12sp
Cassette
Shimano Deore 6100 10/51
Crank
Shimano MT510, 175mm
Bottom Bracket
Shimano
Chain
Shimano Deore
Wheels
Rims
BH SL Tubeless 25mm, 32H Shimano
Tires
Cont Race King2.20/Maxxis Ardent RaceIkon EXO2.20
Brakes
Brakes
Front: Shimano MT400 180mm, Rear: Shimano MT400 160mm
Cockpit

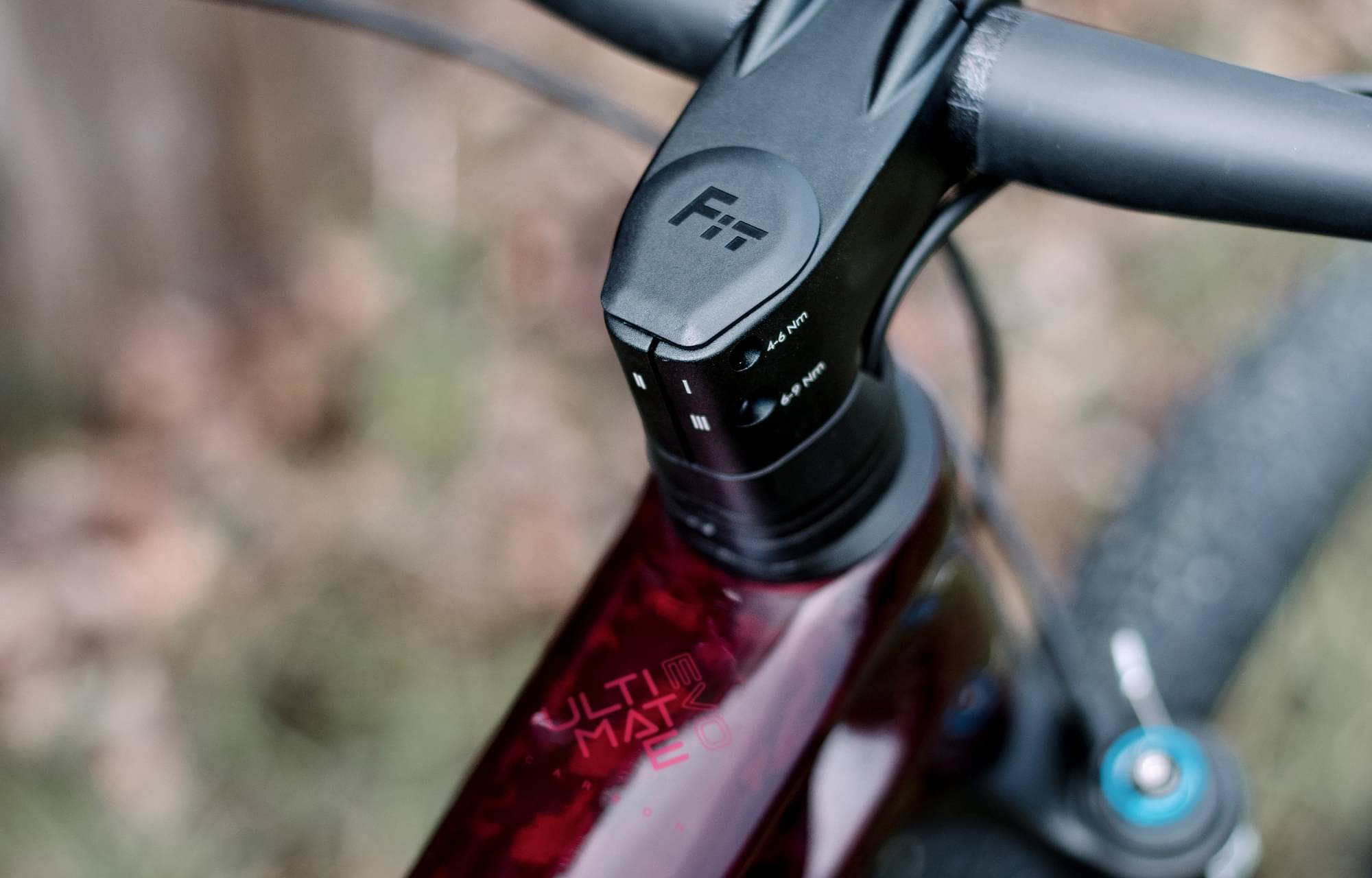

Stem
BH SL 80mm, 31,8mm, +/-6º
Handlebar
BH Lite flat 780mm
Grips
BH Lock On
Headset
Acros ICR 36/45º, Block Lock 160º
Seat
Saddle
Prologo Nago RS
Seatpost
BH Lite 31,6mm, 420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.402 mm | 1.371 mm | 1.357 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 680.8 mm | 707.5 mm | 732.9 mm | 753.4 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 605 mm | 610 mm | 624 mm | 638 mm |
| Reach | 410 mm | 435 mm | 455 mm | 470 mm |
| Top Tube Length | 583.2 mm | 608.4 mm | 631.1 mm | 650 |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1092 mm | 1119 mm | 1145 mm | 1165 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
