Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

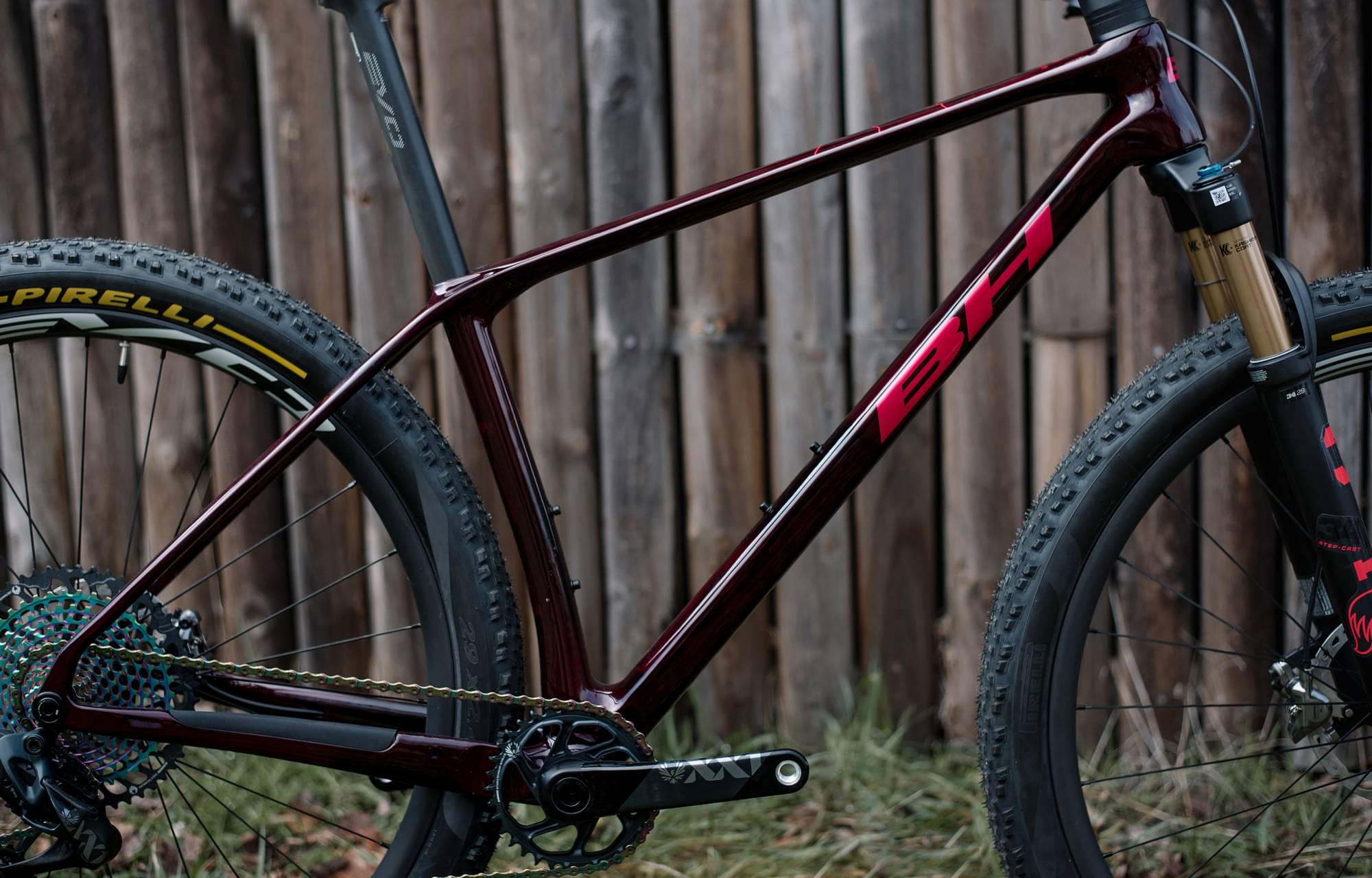

Frame
Frame
Ultimate Carbon, EC Layup, Acros ICR, PF92BB, 148x12,UDH

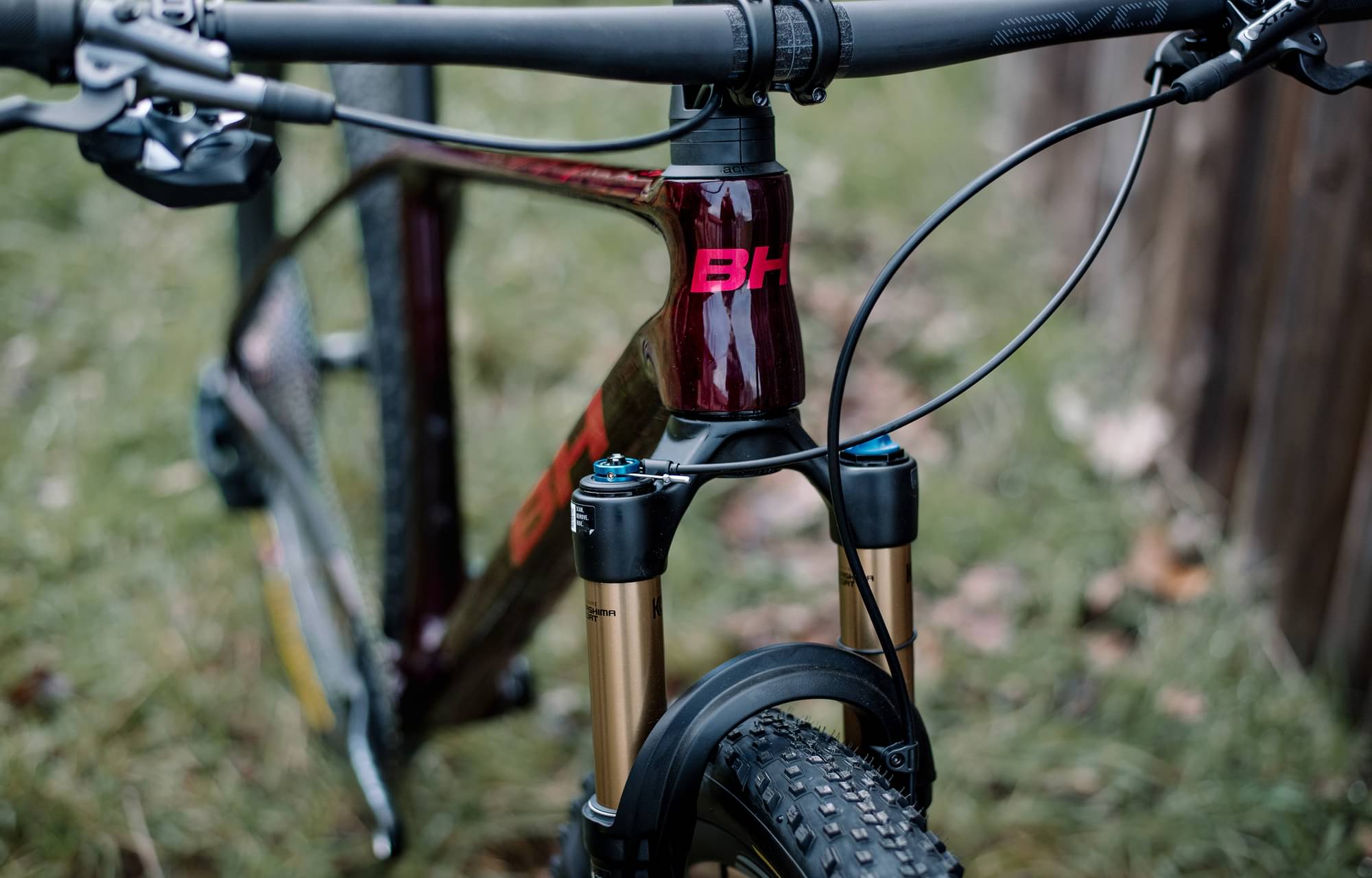

Suspension Fork
Fox 34SC Factory Push to Lock Kabolt 100mm
Drivetrain

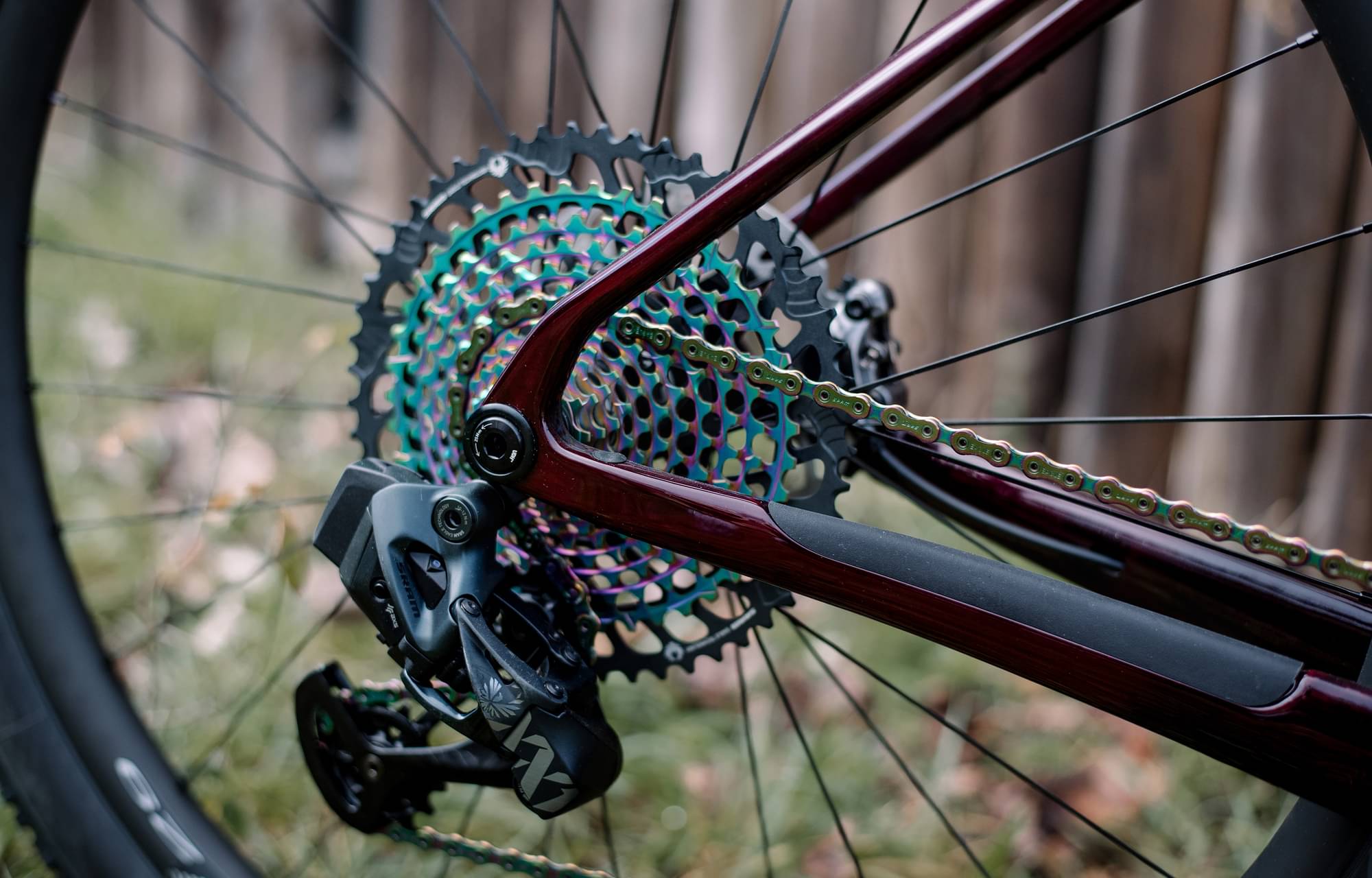

Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano XT 8100 12sp
Cassette
Shimano XT 8100 10/51
Crank
Shimano XT 8100 34, 175mm
Bottom Bracket
Shimano
Chain
Shimano XT
Wheels
Front Hub
Shimano MT400/410
Rear Hub
Shimano MT400/410
Rims
Race Face Aeffect TLR, 27mm, 32H
Spokes
Inox 2.0
Tires
Maxxis Ardent EXO 2.25 F/ Maxxis Ikon EXO 2.25 R

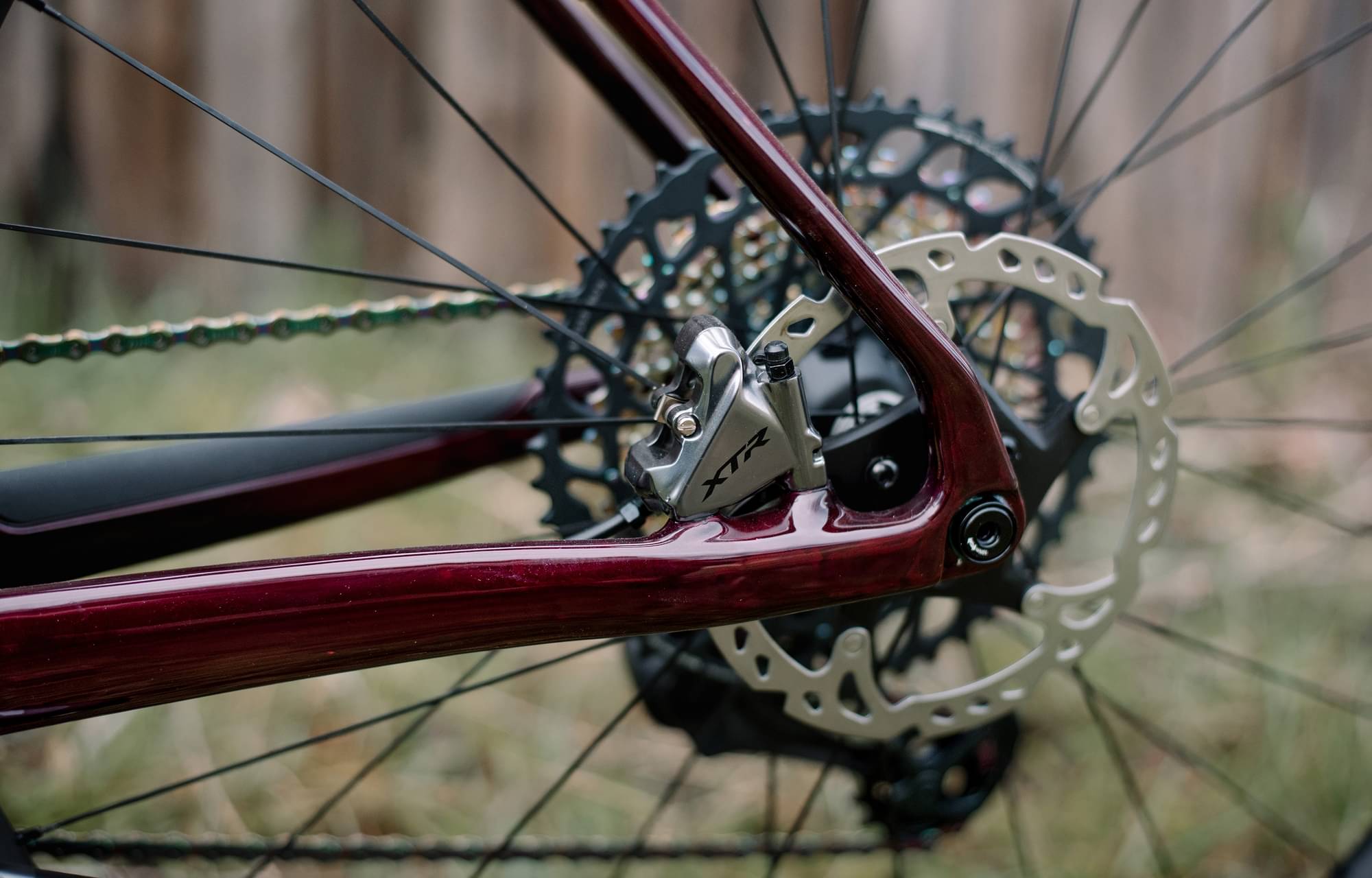

Brakes
Brakes
Front: Shimano XT 180mm, Rear: Shimano XT 160mm
Cockpit

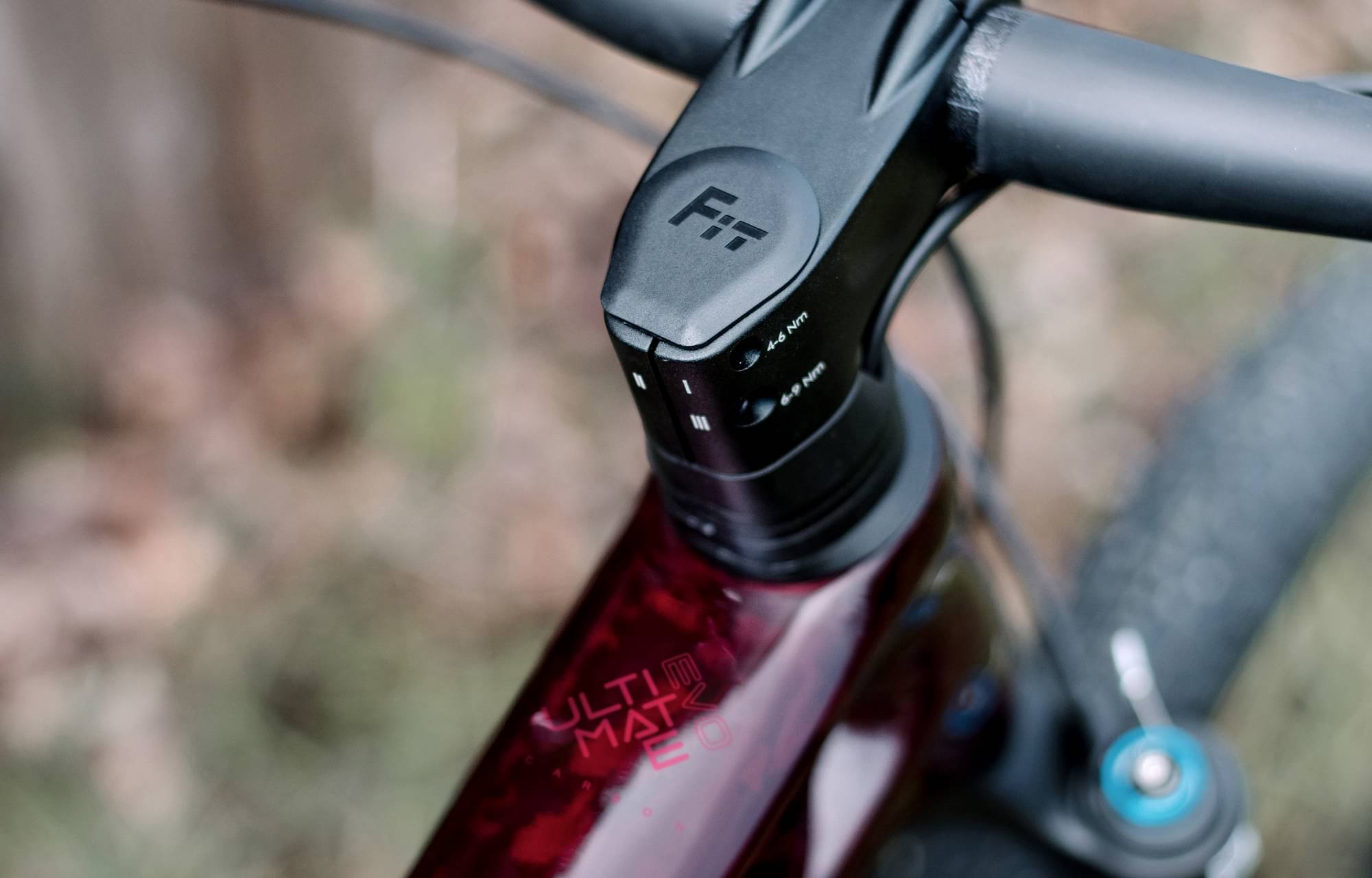

Stem
BH FIT 60mm, 31,8mm, -6º
Handlebar
BH SL Top Flat 780mm, 10mm Rise
Grips
BH Control Grip
Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Prologo Scratch M5
Seatpost
BH SL 31,6mm 420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.402 mm | 1.371 mm | 1.357 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 680.8 mm | 707.5 mm | 732.9 mm | 753.4 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 605 mm | 610 mm | 624 mm | 638 mm |
| Reach | 410 mm | 435 mm | 455 mm | 470 mm |
| Top Tube Length | 583.2 mm | 608.4 mm | 631.1 mm | 650 |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1092 mm | 1119 mm | 1145 mm | 1165 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
