Bike details
Overview
Key information split into simple groups.

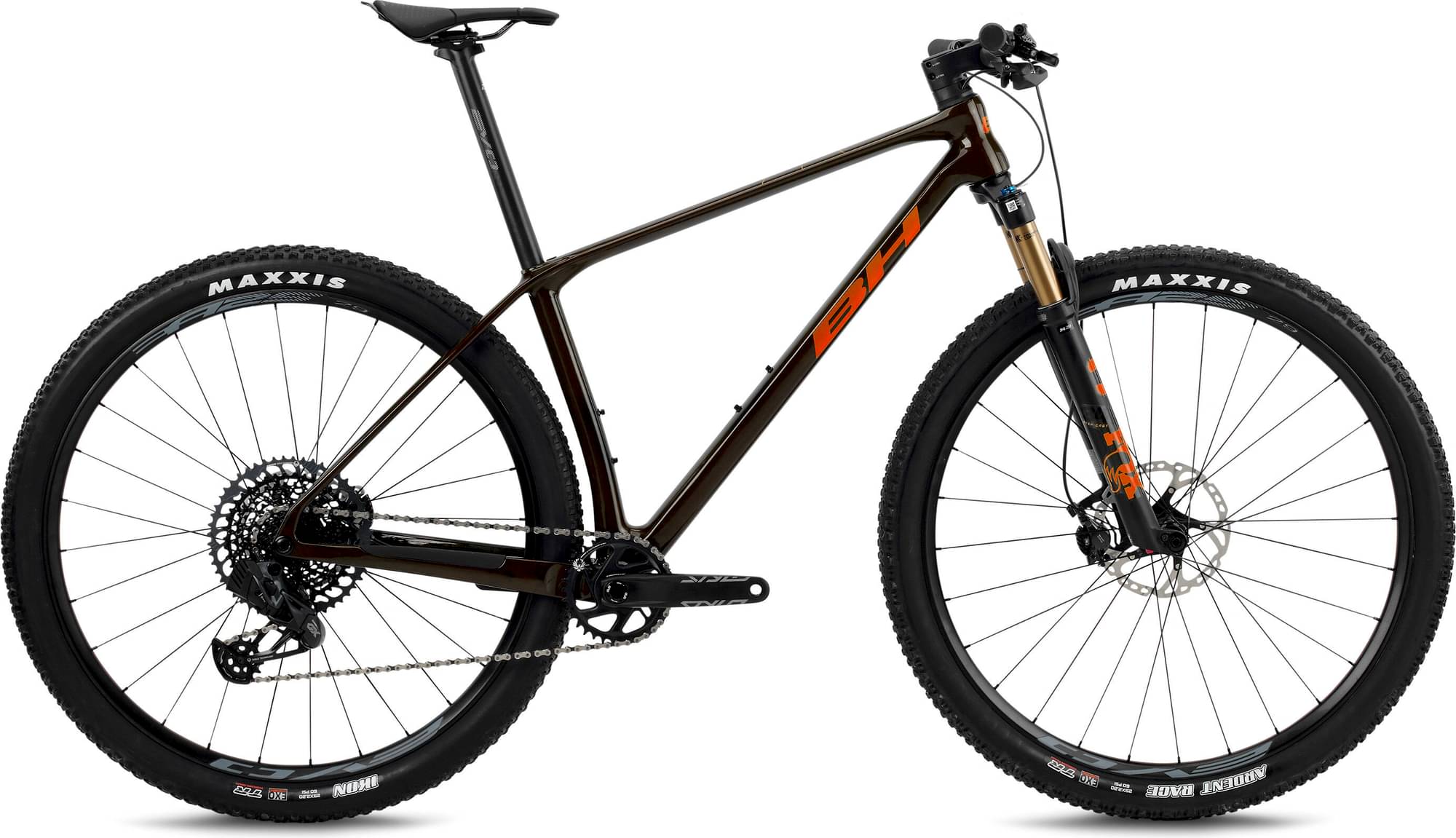

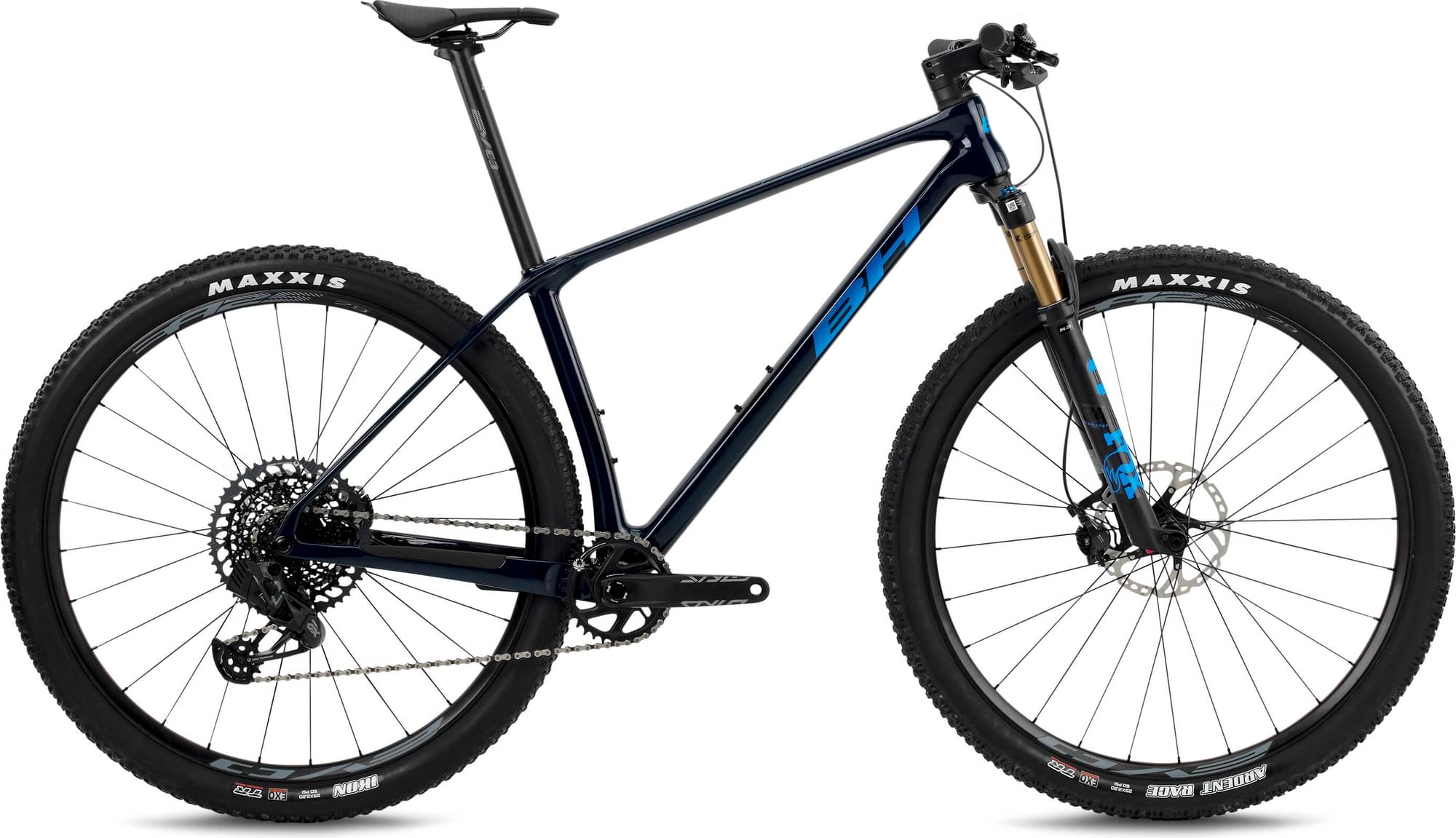

Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Factory Float 34
-
Groupset Eagle AXS, GX Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

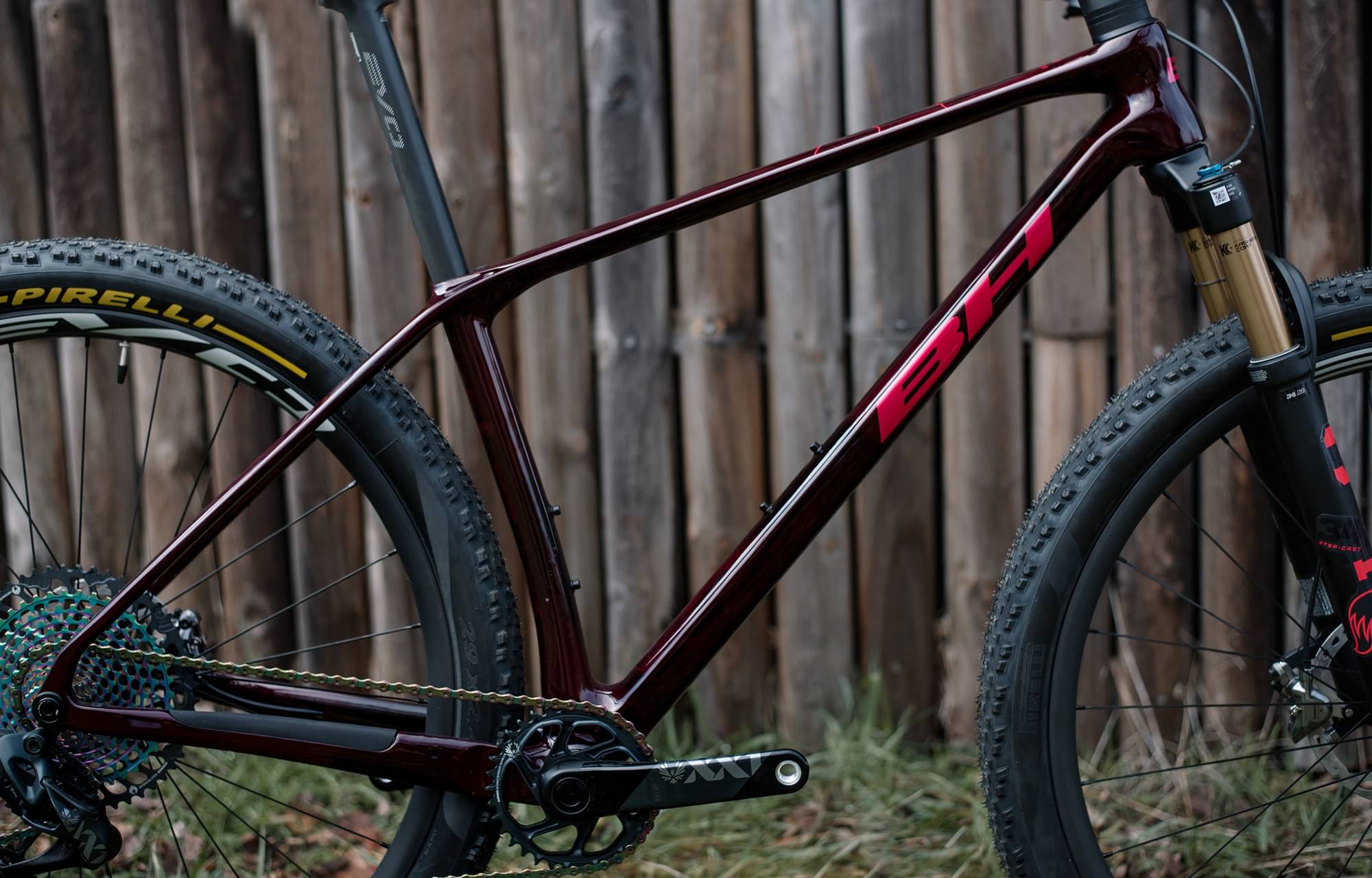

Frame
Ultimate Carbon, EC Layup, Acros ICR, PF92BB, 148x12,UDH

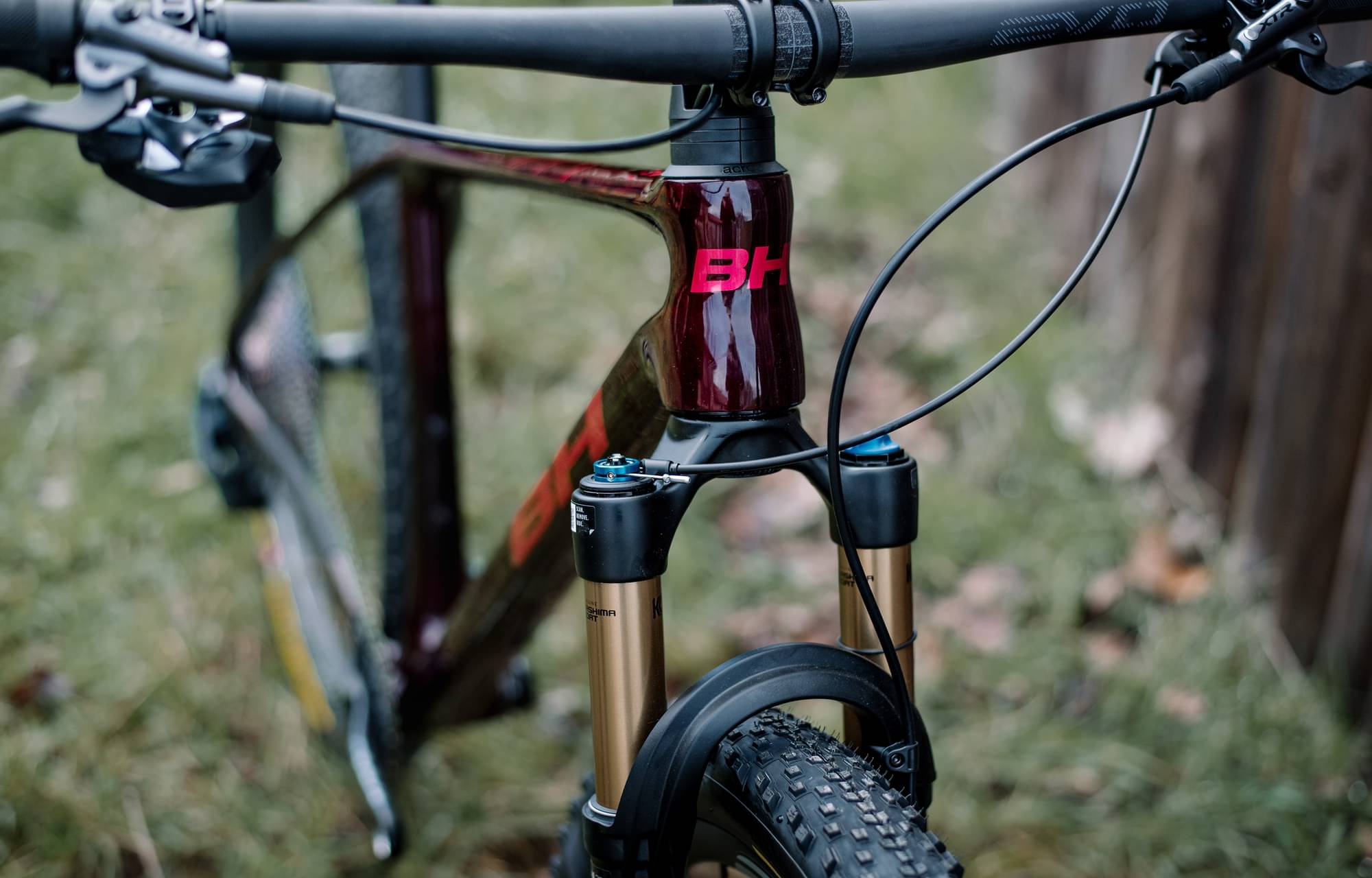

Suspension Fork
Fox 34SC Factory Push to Lock Kabolt 100mm
Drivetrain

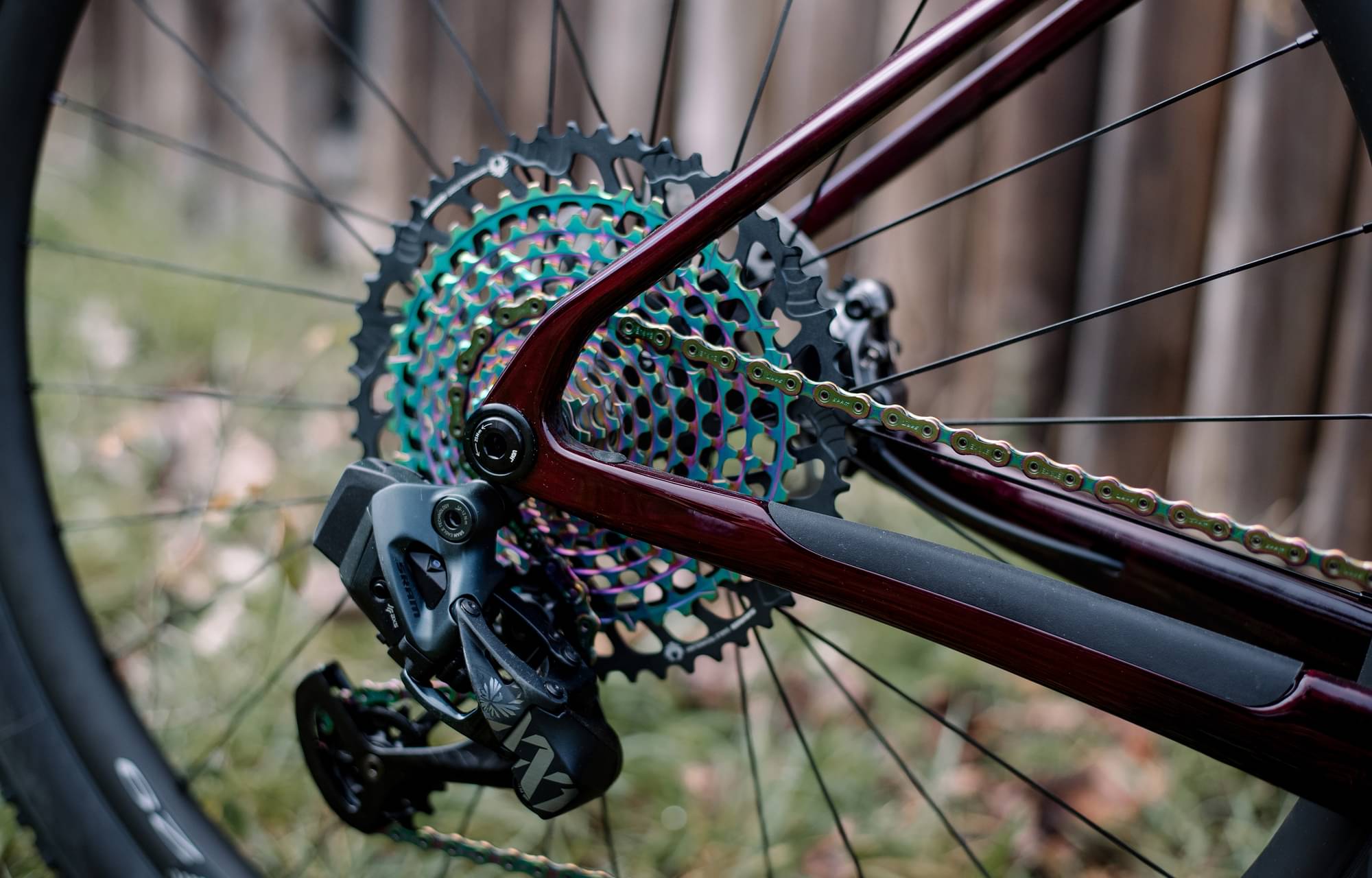

Rear Derailleur
SRAM GX AXS Eagle 12sp
Shift Levers
SRAM GX AXS Eagle 12sp
Cassette
SRAM GX Eagle 10/ 52
Crank
Stylo 34, 175mm
Bottom Bracket
SRAM
Chain
SRAM GX Eagle
Wheels
Rims
BH Evo Alloy Tubeless, 25mm, 28H
Tires
Maxxis Ardent EXO 2.25 Front/ Maxxis Ikon EXO 2.25 R
Brakes

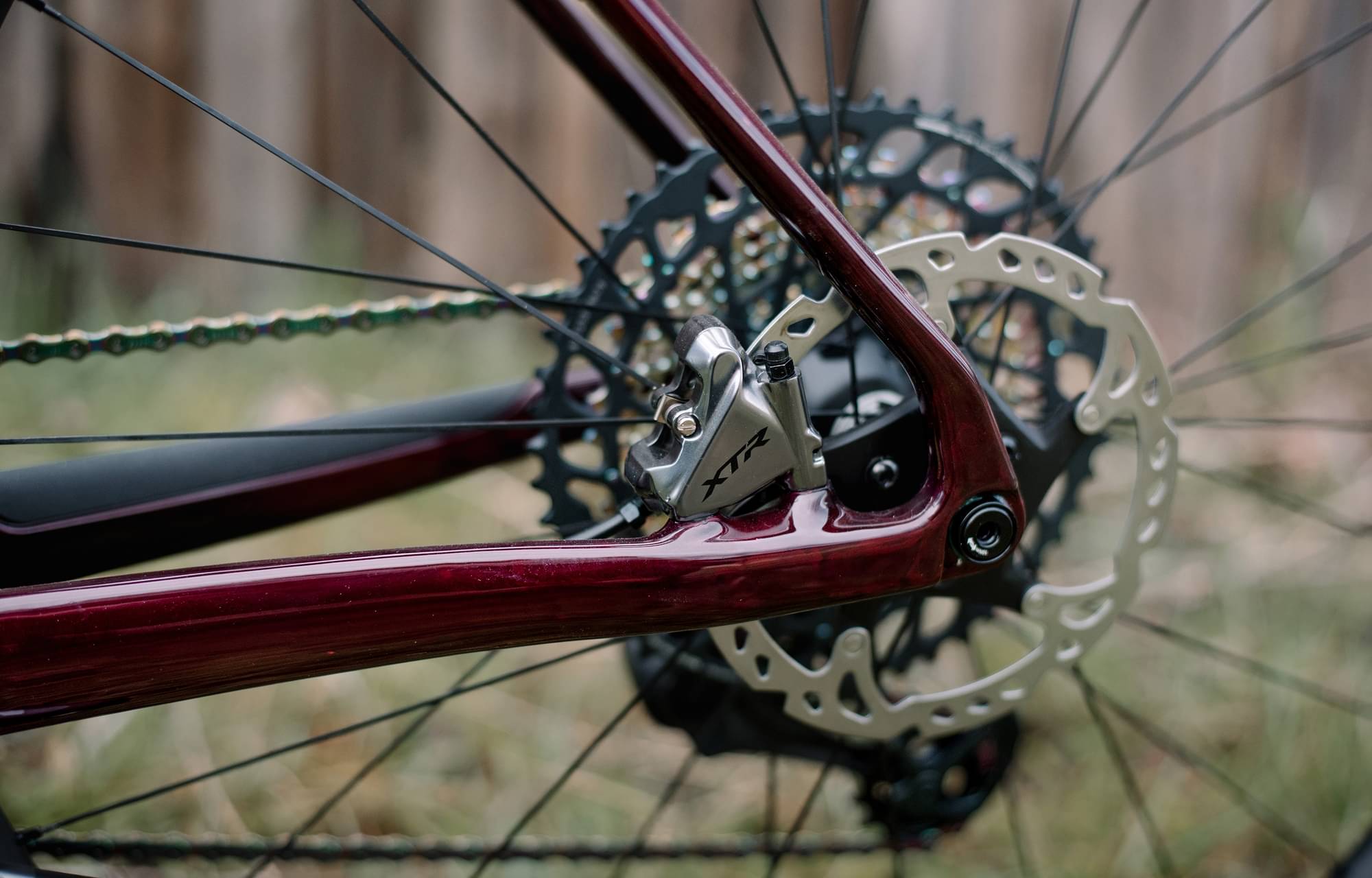

Brakes
Front: Shimano XT 180mm, Rear: Shimano XT 160mm
Cockpit

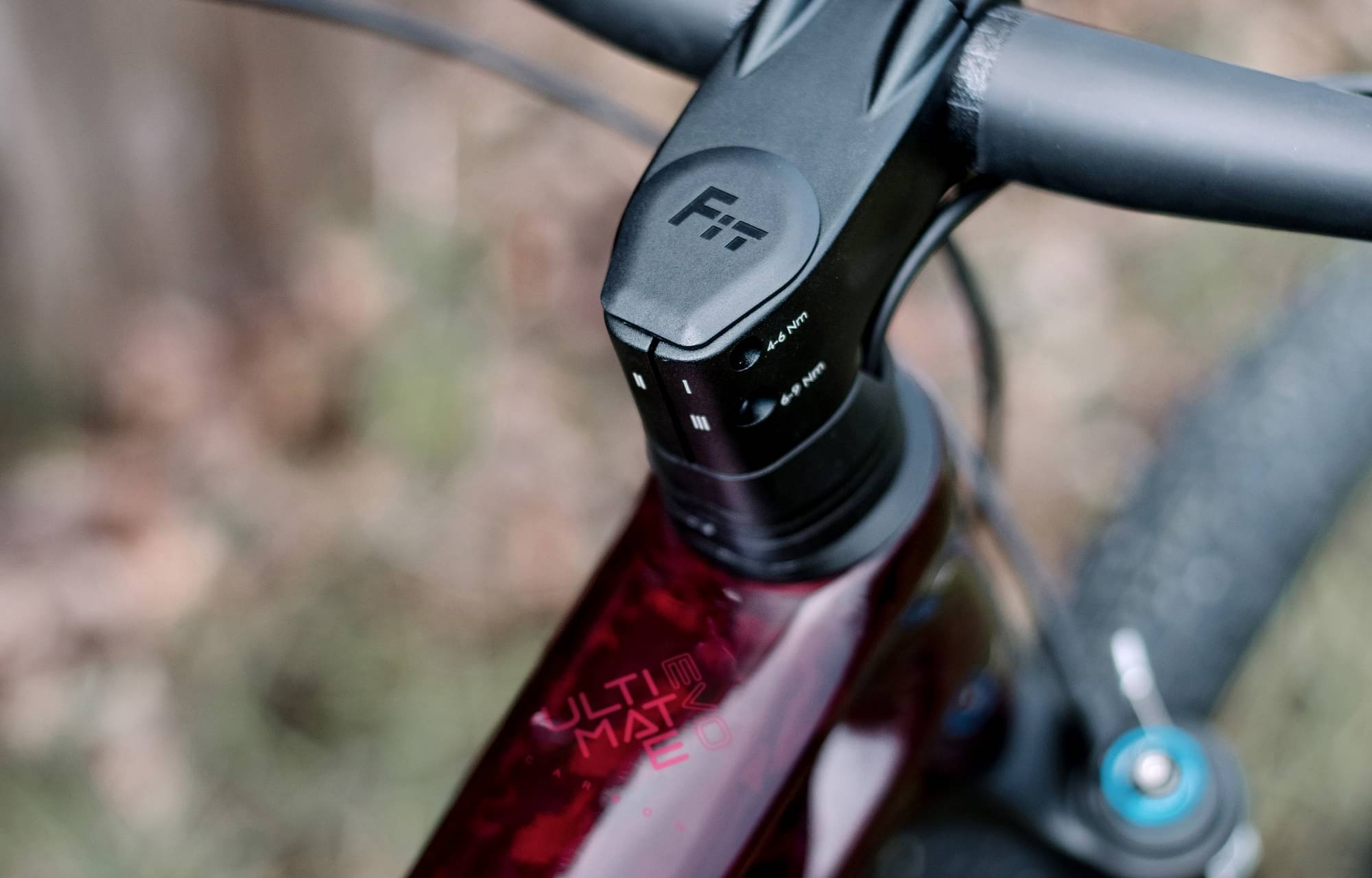

Stem
BH FIT 60mm, 31,8mm, -6º
Handlebar
BH EVO Carbon Top Flat 760mm, 10mm Rise
Grips
BH Control Grip
Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Prologo Scratch M5
Seatpost
BH EVO Carbon 31,6mm 420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.402 mm | 1.371 mm | 1.357 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 680.8 mm | 707.5 mm | 732.9 mm | 753.4 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 605 mm | 610 mm | 624 mm | 638 mm |
| Reach | 410 mm | 435 mm | 455 mm | 470 mm |
| Top Tube Length | 583.2 mm | 608.4 mm | 631.1 mm | 650 |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1092 mm | 1119 mm | 1145 mm | 1165 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
