Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ultegra, Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Ultegra Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultralight Evo Disc ACR Carbon Monocoque
Suspension Fork

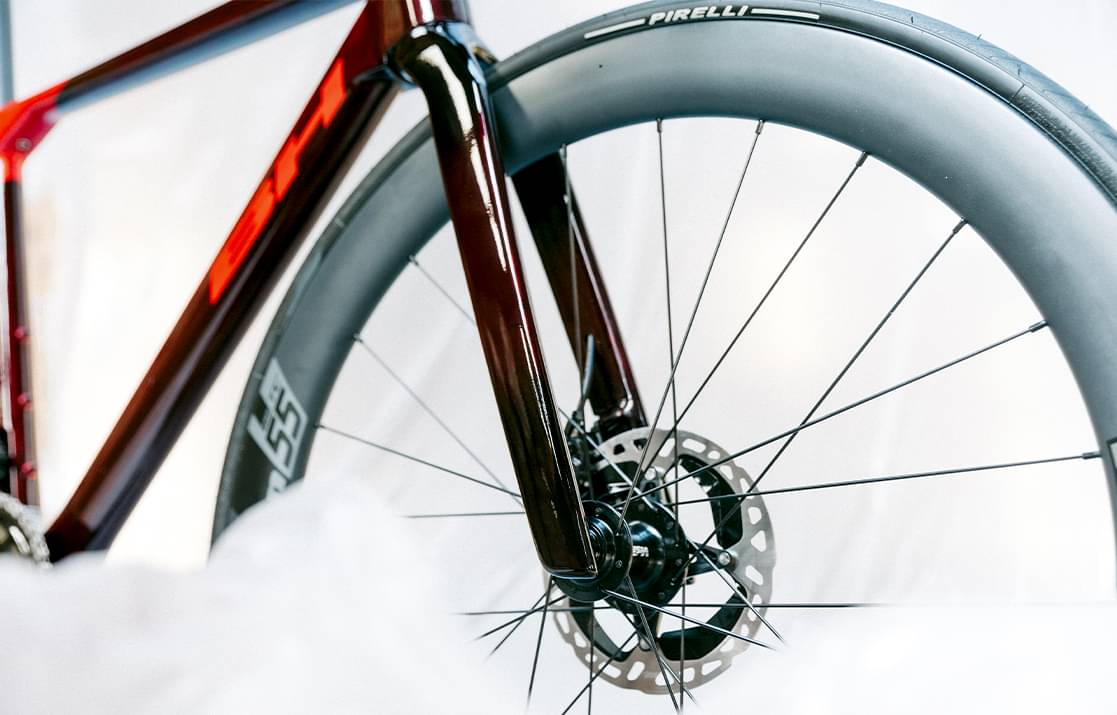

Ultralight Evo Disc, Integrated Tapered Full Carbon 1.5
Drivetrain
Rear Derailleur
Shimano Ultegra DI2 8150 12sp
Front Derailleur
Shimano Ultegra DI2 8150
Shift Levers
Shimano Ultegra DI2 Hydra
Cassette
Shimano Ultegra 11/34
Crank
Shimano Ultegra FCR8100 52/36, X, Crank set, Shimano Ultegra FCR8100 52/36, XS 170mm, SM 170mm, MD 172,5mm, LA 175mm, XL 175mm
Chain
Shimano Ultegra 12sp
Wheels
Rims
Vision SC45
Tires
Pirelli Pzero Race 700x 28
Brakes
Brakes
Front: Shimano Ultegra Hydraulic, Rear: Shimano Ultegra Hydraulic
Cockpit
Stem
EVO Monocoque ACR, X, Stem, EVO Monocoque ACR, XS 90mm, SM 100mm, MD 100mm, LA 110mm, XL 110mm
Handlebar
EVO Monocoque ACR, X, Handlebar, EVO Monocoque ACR, XS 400mm, SM 420mm, MD 420mm, LA 440mm, XL 440mm

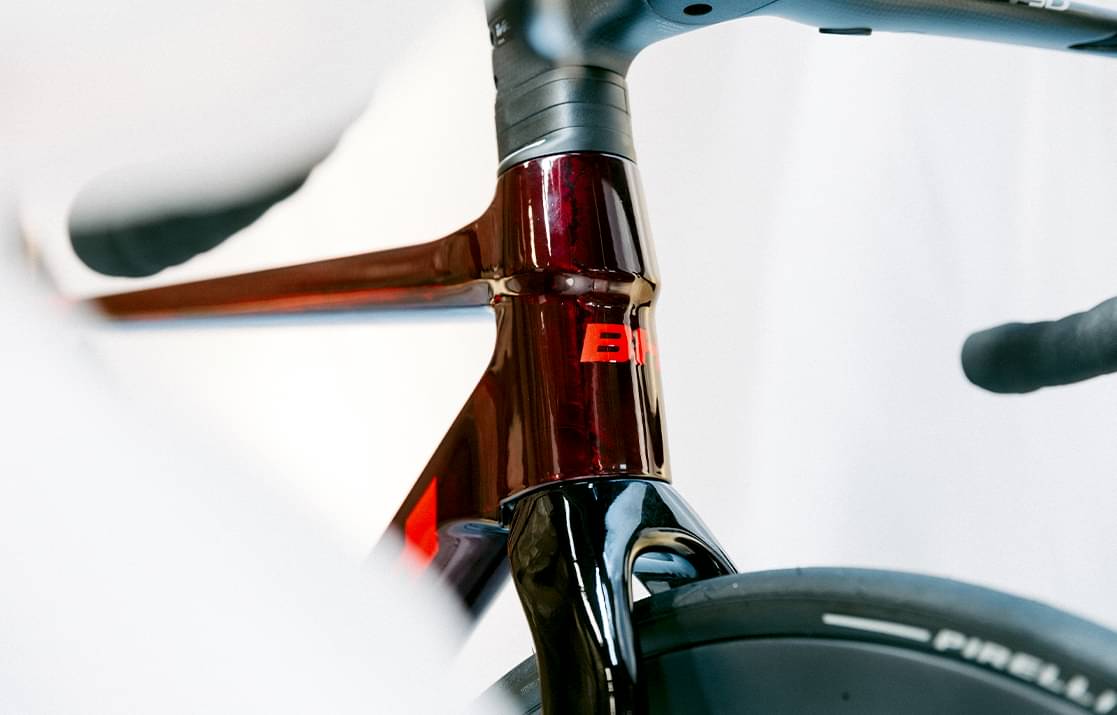

Headset
FSA ACR
Seat
Saddle
Prologo Nago R4 PAS

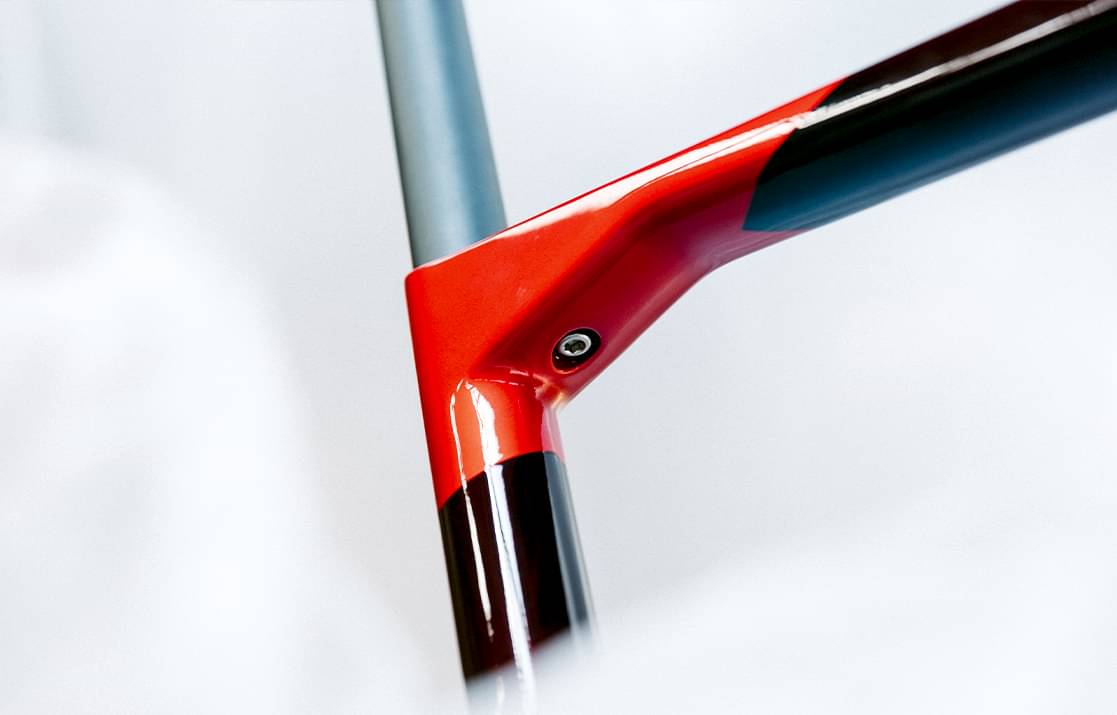

Seatpost
BH Ultralight
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.398 mm | 1.406 mm | 1.423 mm | 1.432 mm | 1.463 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 574 mm | 576 mm | 579 mm | 588 mm | 604 mm |
| Rake | 50 mm | 50 mm | 45 mm | 44 mm | 45 mm |
| Trail | 62 mm | 55 mm | 57 mm | 57 mm | 56 mm |
| Stack | 513 mm | 526 mm | 542 mm | 557 mm | 581 mm |
| Reach | 367 mm | 374 mm | 381 mm | 389 mm | 397 mm |
| Top Tube Length | 510 mm | 525 mm | 541 mm | 559 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 463 mm | 483 mm | 502 mm | 517 mm | 538 mm |
| Head Tube Angle | 71.2 ° | 72.3 ° | 72.75 ° | 73 ° | 73 ° |
| Head Tube Length | 100 mm | 110 mm | 126 mm | 140 mm | 165 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 973 mm | 975 mm | 979 mm | 988 mm | 1004 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
