Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

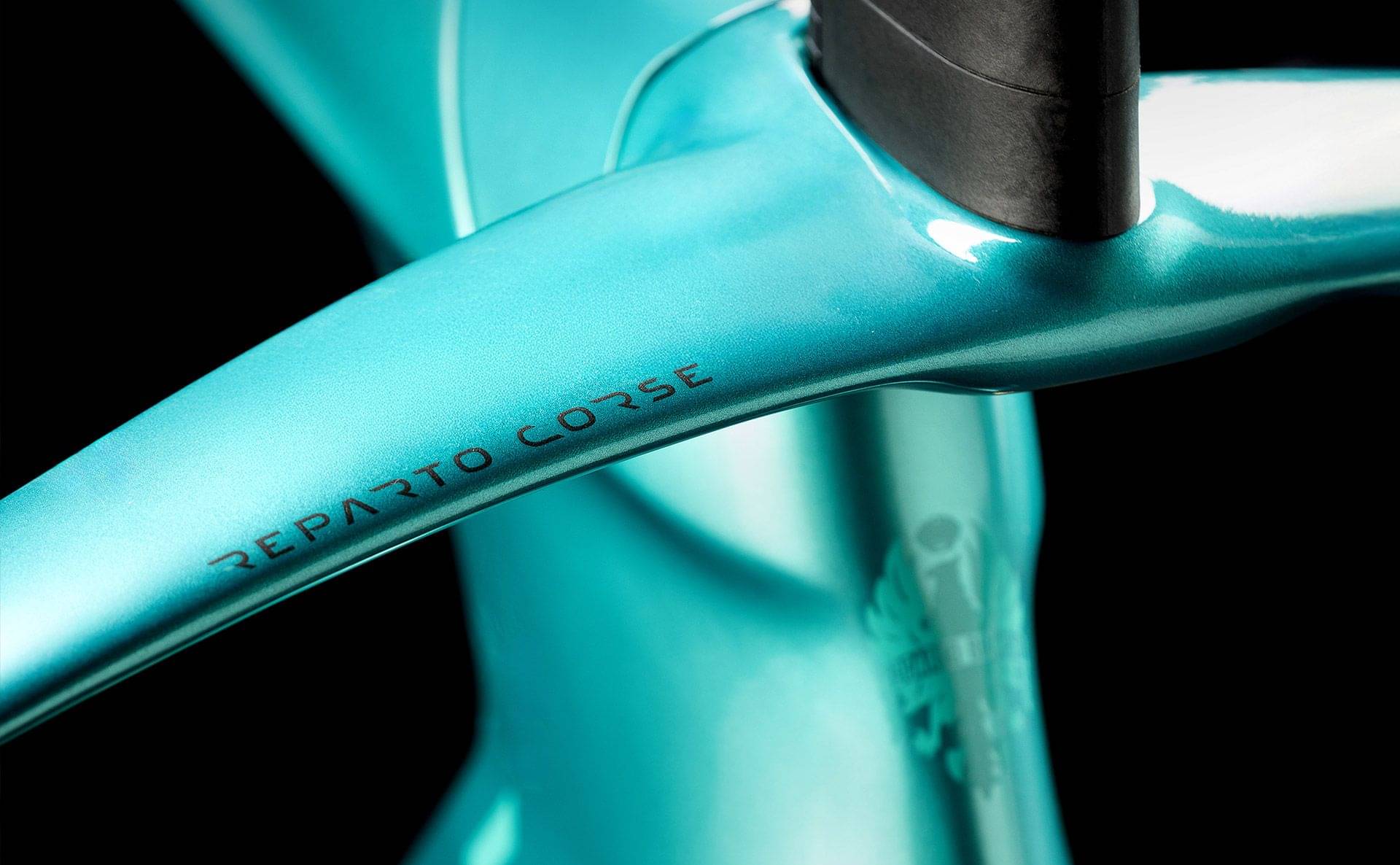

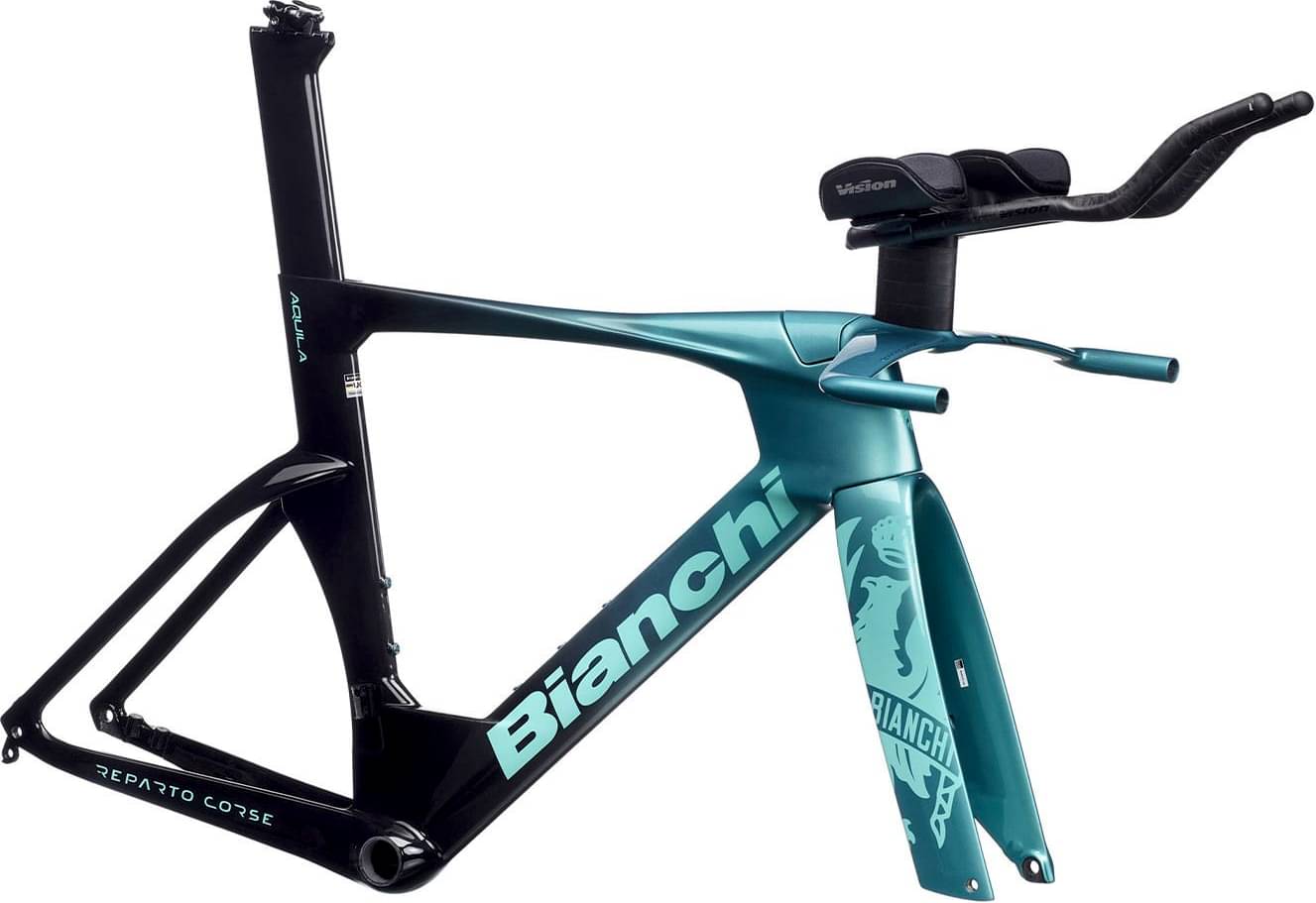

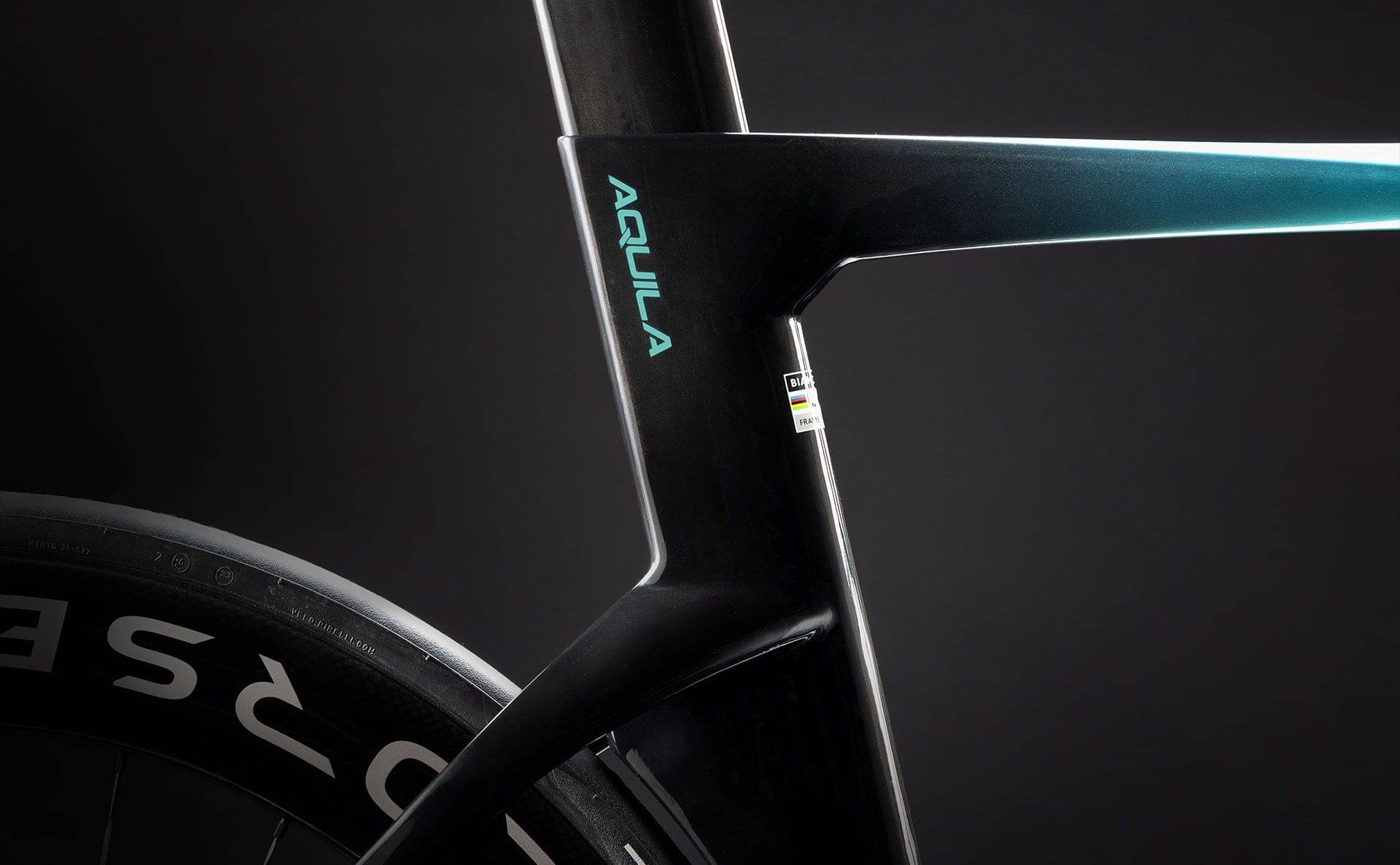

AQUILA RC DISC Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur: Brazed-on Type Max Chainring Compatibility:58T (2x) - 62T(1X) Tire Clearance:
Suspension Fork

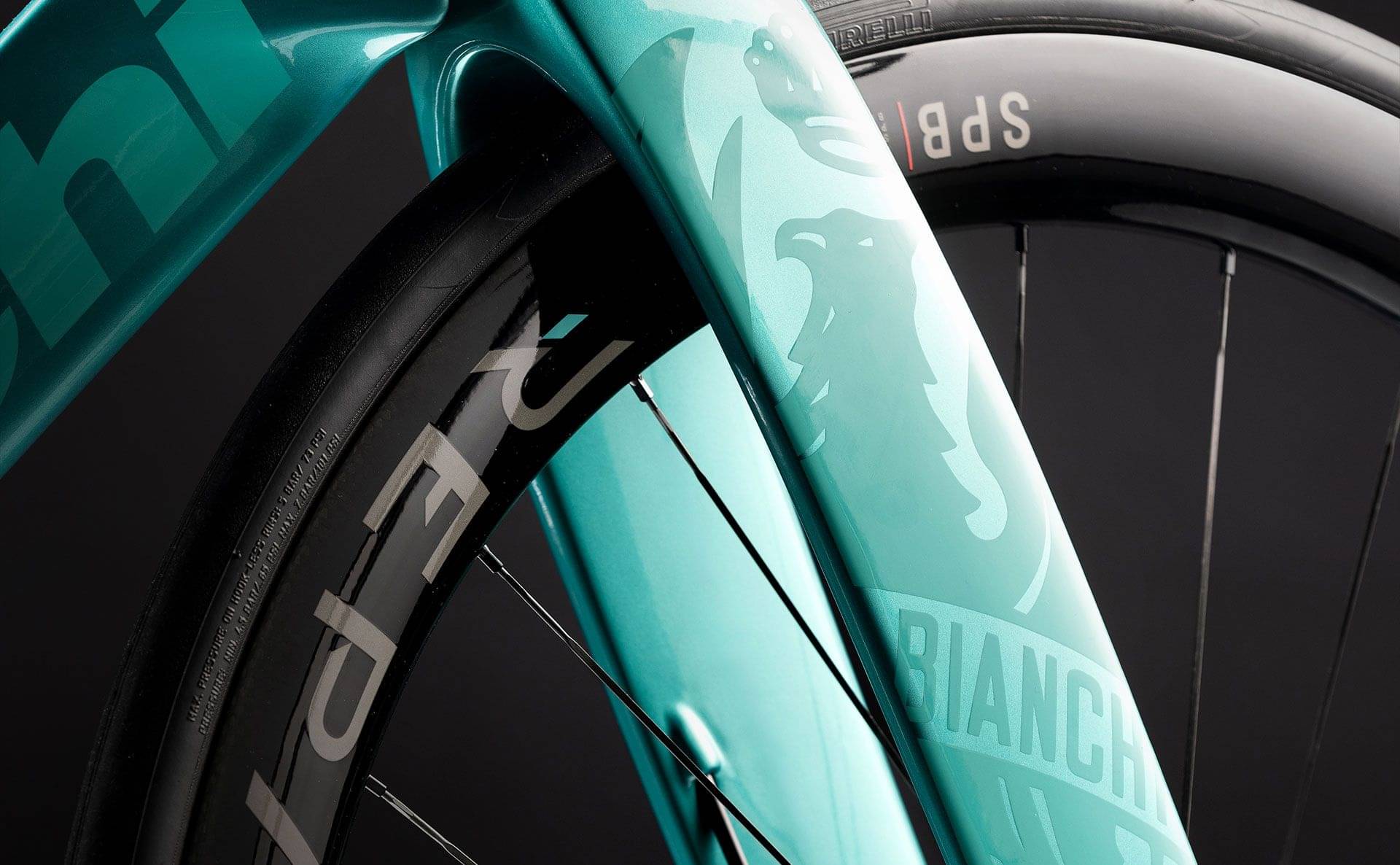

Bianchi Aquila Integrated Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-28mm Steer tube Diameter: 1 1/8""
Drivetrain
Bottom Bracket
BB86/BB92, 86.5mm, press-fit
Cockpit
Handlebar

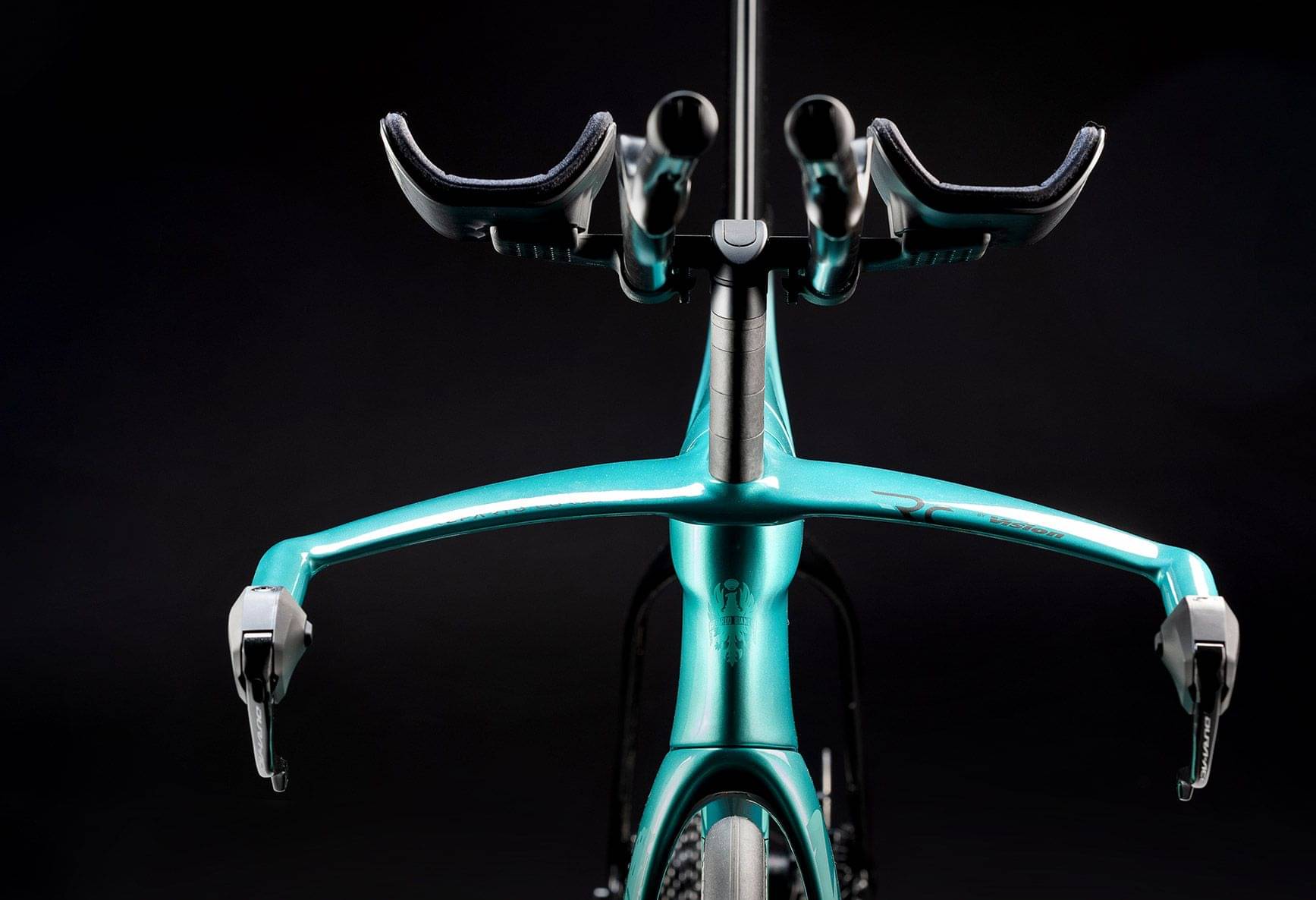

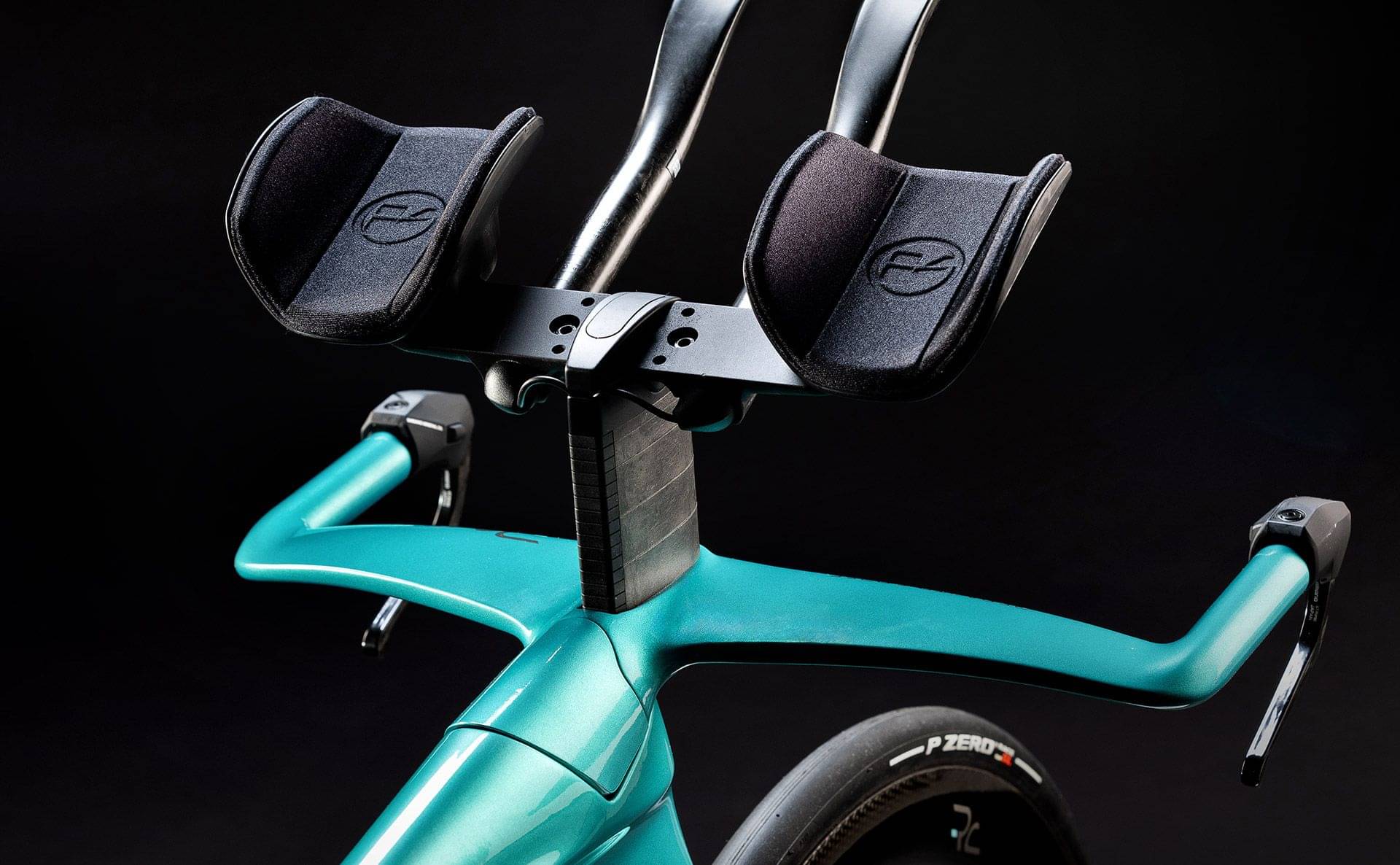

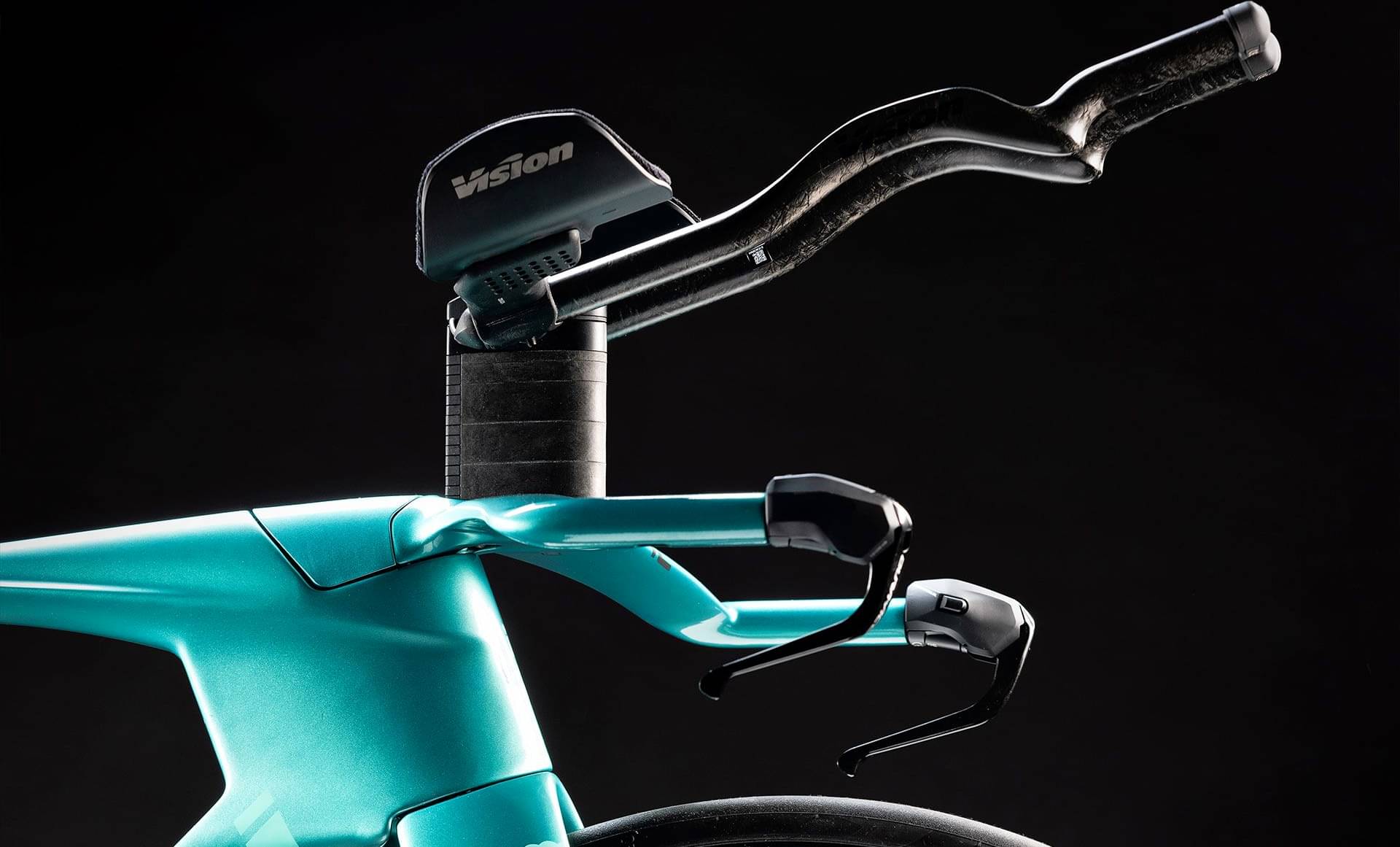

Reparto Corse by Vision Steerer Interface Diameter: 1 1/8"" HandleBar Size: 110/400 (S-M-L)
Headset
FSA ACR Compresion Ring: 1.125 Inch silver alloy Top Bearing: Angular contact Bearing MR127 1.5"" 36°x45° Bottom Bearing: Angular contact Bearing MR127 1.5"" 36°x45°
Seat
Seatpost
Bianchi Custom Airfoil Shape Offset: Ritchey Rail Seatpost lengths: 280mm-S, 300mm- M, 350mm-L
