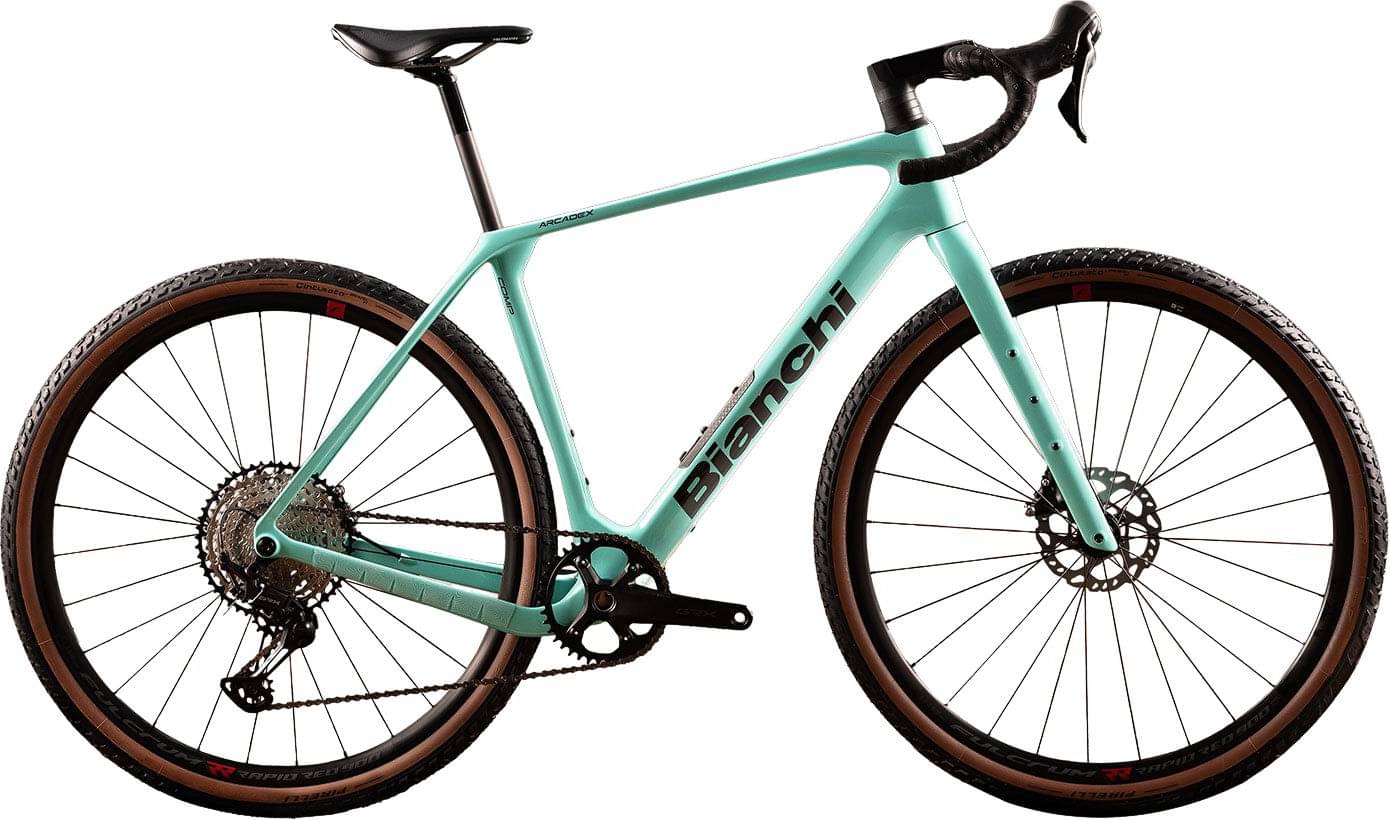

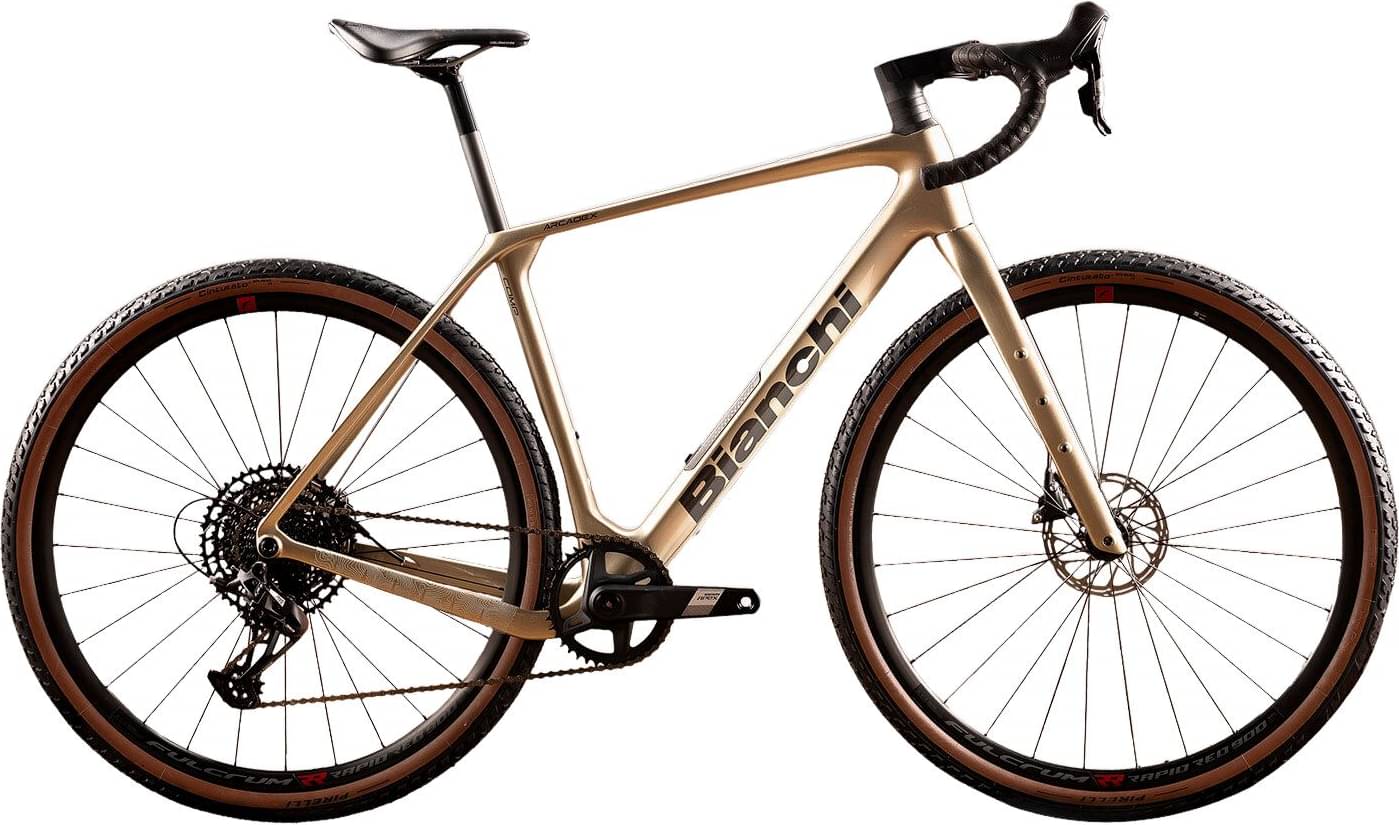

Bianchi Arcadex Comp APEX disc 2025
2025 Road
Estimate price |
3,431$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes SRAM Apex Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:
Suspension Fork
Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite
Drivetrain
Rear Derailleur
SRAM Apex Eagle Maximum Cassette Sprocket 52T
Shift Levers
SRAM Apex D1
Cassette
SRAM SX Eagle, PG-1210 11-50T Driver Body Interface: HG11
Crank
SRAM Apex 1 WIDE 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
Bottom Bracket
SRAM DUB PressFit Road Wide 86.5 X Ø41
Chain
SRAM SX Eagle
Wheels
Rims
Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm
Tires
Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
Brakes
Brakes
SRAM APEX Pad Type: Steel-Backed Organic
Cockpit
Stem
Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
Handlebar
Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
Headset
Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal
Seat
Saddle
Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm
Seatpost
Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61)

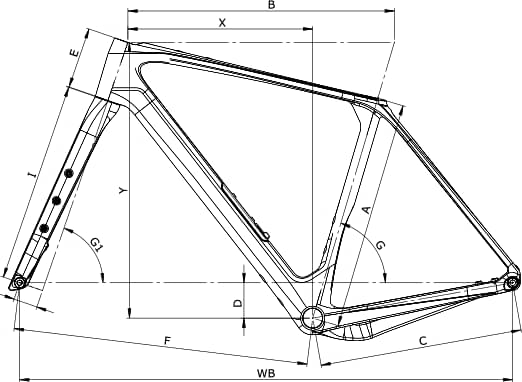

Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.47 mm | 1.494 mm | 1.517 mm | 1.556 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 601 mm | 615 mm | 625 mm | 639 mm | 656 mm |
| Rake | 51 mm | 52 mm | 51 mm | 52 mm | mm |
| Trail | 69 mm | 68 mm | 66 mm | 62 mm | mm |
| Stack | 544 mm | 563 mm | 584 mm | 610 mm | 638 mm |
| Reach | 376 mm | 383 mm | 391 mm | 402 mm | 410 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 410 mm | 448 mm | 485 mm | 515 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 90 mm | 110 mm | 130 mm | 155 mm | 185 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | mm |
| Wheelbase | 1020 mm | 1034 mm | 1044 mm | 1059 mm | 1077 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
