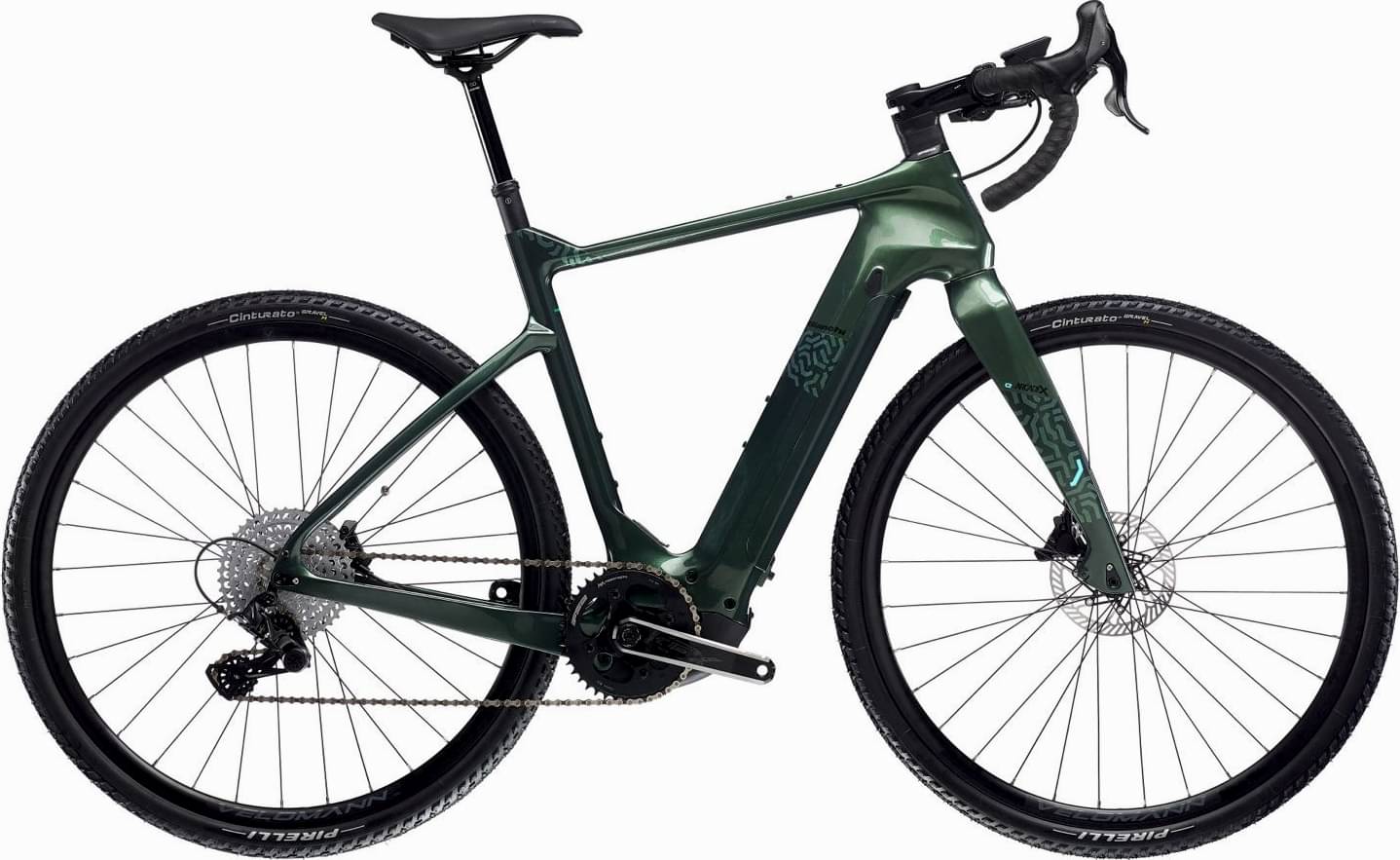

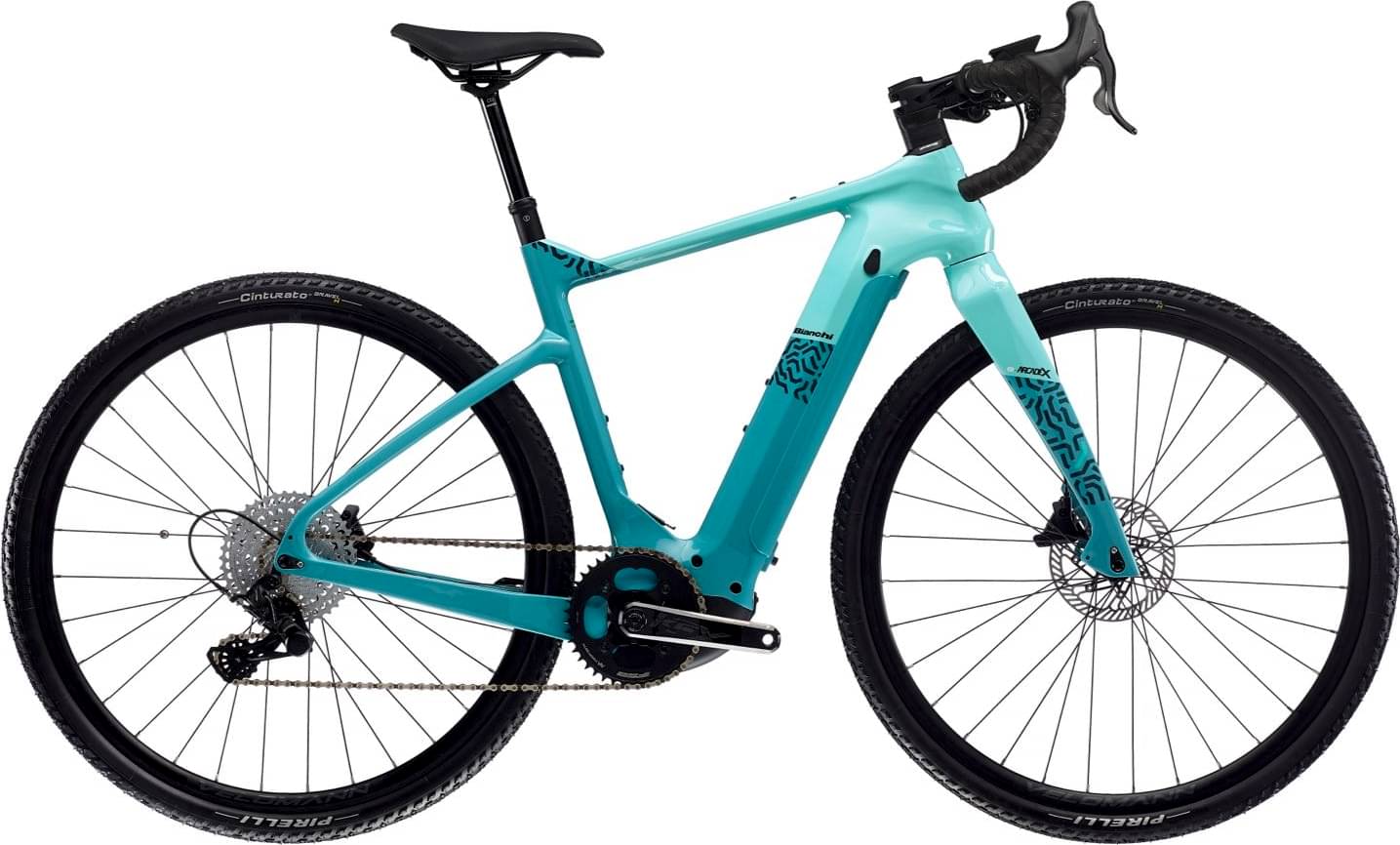

Bianchi E-Arcadex Ekar 2025
2025 E-bike
Estimate price |
6,165$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset Ekar -
Suspension Rigid -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch Powertube 500Wh integrated battery -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm
Drivetrain
Rear Derailleur
Campagnolo RD EKAR 1x13
Shift Levers
Campagnolo EP EKAR 1x13 - Ant. adapter + screws - Post. adapter + screws - Fixing screws 29mm
Crank
FSA E-bike KFX Crankset - ISIS / 165mm - 170mm - 175mm / Hollow Alloy / SB black FSA Bosch Gen4 STD Alloy Spider
Bottom Bracket
Included in the Drive unit
Chain
Campagnolo EKAR 13v C-Link 117 links w/quick-link
Wheels
Front Hub
TA 12x100, center lock, J-bend
Rear Hub
TA 12x142, center lock, J-bend, N3W
Tires
Pirelli Cinturato GRAVEL Adventure M, 40-622, black, 60tpi, TLR, Foldable
Brakes
Brakes
included in the shifter
Brake Levers
included
Cockpit
Stem
Velomann, Alloy 6061, 1 1/4", raise 0°, Oversize, plastic adaptor for hose cover 1 1/4", Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL
Handlebar
Velomann Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120, Size: 400mm-XS/S, 420mm-M/L, 440mm-XL
Headset
FSA SMR HS with 1-1/8” custom top cone Bianchi, H2475 Internal Headset, Integrated Alloy custom top cup 1.1/8"", 1.5"", 36°/45° ACB
Seat
Saddle
Velomann, rail steel black, open, cover PU, lenght/wide 250x148mm color: black
Seatpost
Alpha3 Series, 40+80, 31,6 mm, Anodized black, Gravel remote, 1800 mm Barrel + screw
Motor & Battery
Motor
Bosch Performance Line CX motor unit
Battery
Bosch Powertube 500Wh integrated battery
Fit data

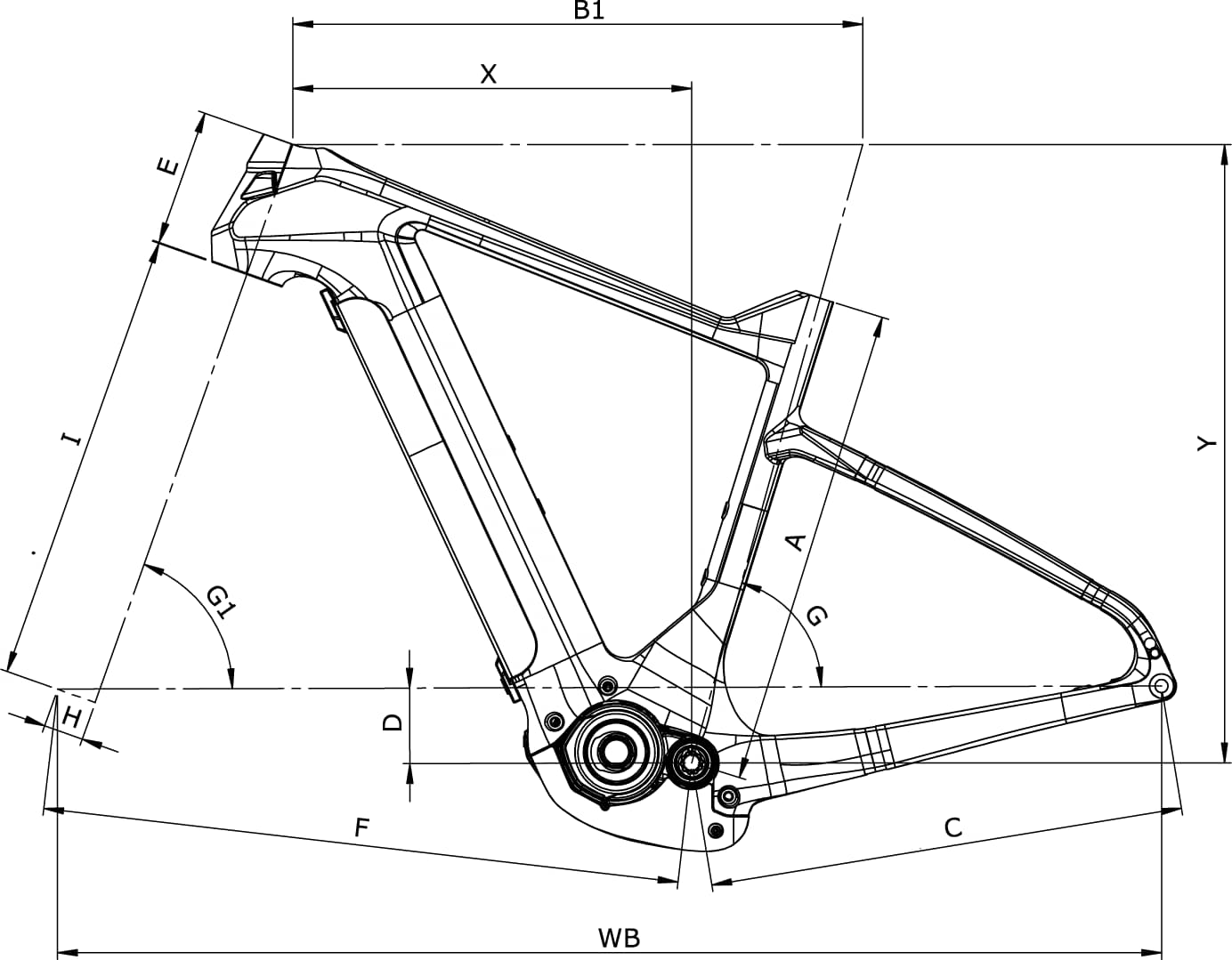

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.549 mm | 1.582 mm | 1.597 mm | 1.594 mm | 1.589 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 596 mm | 603 mm | 609 mm | 625 mm | 640 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm | 67 mm | 67 mm | 67 mm |
| Stack | 564 mm | 579 mm | 594 mm | 609 mm | 623 mm |
| Reach | 364 mm | 366 mm | 372 mm | 382 mm | 392 mm |
| Top Tube Length | 520 mm | 532 mm | 548 mm | 563 mm | 583 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1020 mm | 1028 mm | 1034 mm | 1049 mm | 1064 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
