Bianchi e-Omnia C Type DEORE 2025
2025 E-bike
Estimate price |
3,431$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH POWERTUBE 500WH -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-Omnia C Type Step Thru chain drive ALU, size: SM, MD, LG (45-50-55), QR 135mm, Ready to fix the chainguard, Post mount 160mm disc brake type, Ready to fix rearkyckstand, custom rear carrier integrated in the frame design, BatteryWall Darfon OmniaC, Set
Suspension Fork
SR SUNTOUR XCM34 BOOST NL0 DS 29" TRAVEL 100MM
Drivetrain
Rear Derailleur
SHIMANO DEORE RD-M5120 SGS 10SP, SHADOW+ DESIGN
Shift Levers
Shimano Deore SL-M4100-R, 10sp
Cassette
SHIMANO DEORE CS-M4100-10, 11-13-15-18-21-24-28-32-37-42T
Crank
FSA METROPOLIS ALLOY E-BIKE SPECIFIC, CRANK LENGTH 170MM, ISIS BB AXLE, W/FSA 38T STEEL MEGATOOTH CHAINRING
Bottom Bracket
Included w/motor unit
Chain
Kmc e10S NPBK Anti-Rust 1/2" x 11/128" EPT
Wheels
Front Hub
SHIMANO HB-MT400-B CENTER LOCK, 15X110MM TA
Rear Hub
FORMULA CL-1422 CENTER LOCK
Rims
VELOMANN EBIKE MAXX 29" - 622X25C
Tires
WTB Slick 2.2 29" 54/54 27tpi
Brakes
Brakes
SHIMANO BR-MT200, W/180MM FRONT & REAR ADAPTERS, RESIN PAD
Cockpit
Stem
VELOMANN HI-RISE STEM, EXT: 90MM-45/50CM, 110MM-55CM
Handlebar
VELOMANN AL6061, DIAM 31.8MM, WIDTH 630, RISE 34MM, BACKSWEEP 41°
Headset
Fsa NO.55R/558 1.5"
Seat
Saddle
Velomann 8214DC, steel rail, 254x183mm
Seatpost
Velomann, lenght 350mm-15/17'' and 400mm-19/21'', diam.31,6mm, 0mm seatback, AL2014 shaft
Motor & Battery
Motor
BOSCH PERFORMANCE LINE CX 250W 85NM
Battery
BOSCH POWERTUBE 500WH
Fit data

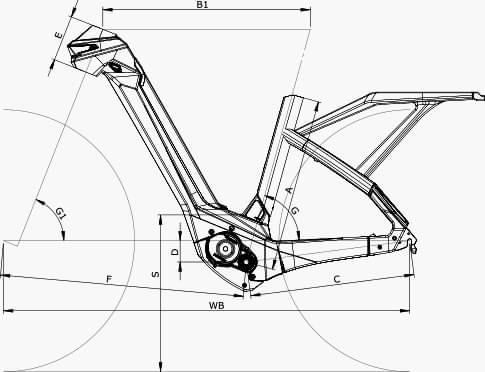

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Front Center | 689 mm | 703 mm | 718 mm |
| Top Tube Length | 600 mm | 615 mm | 630 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 130 mm | 135 mm | 135 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1147 mm | 1162 mm | 1177 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
