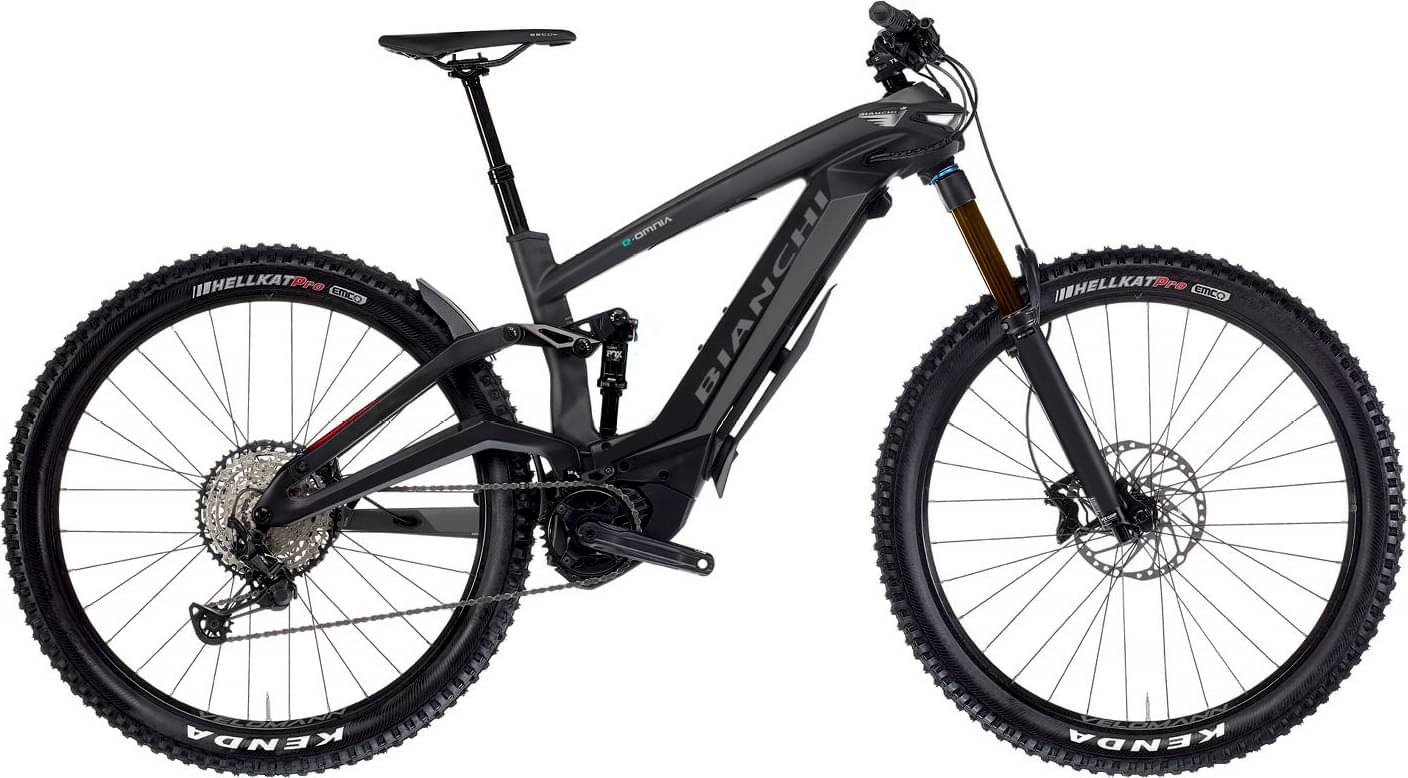

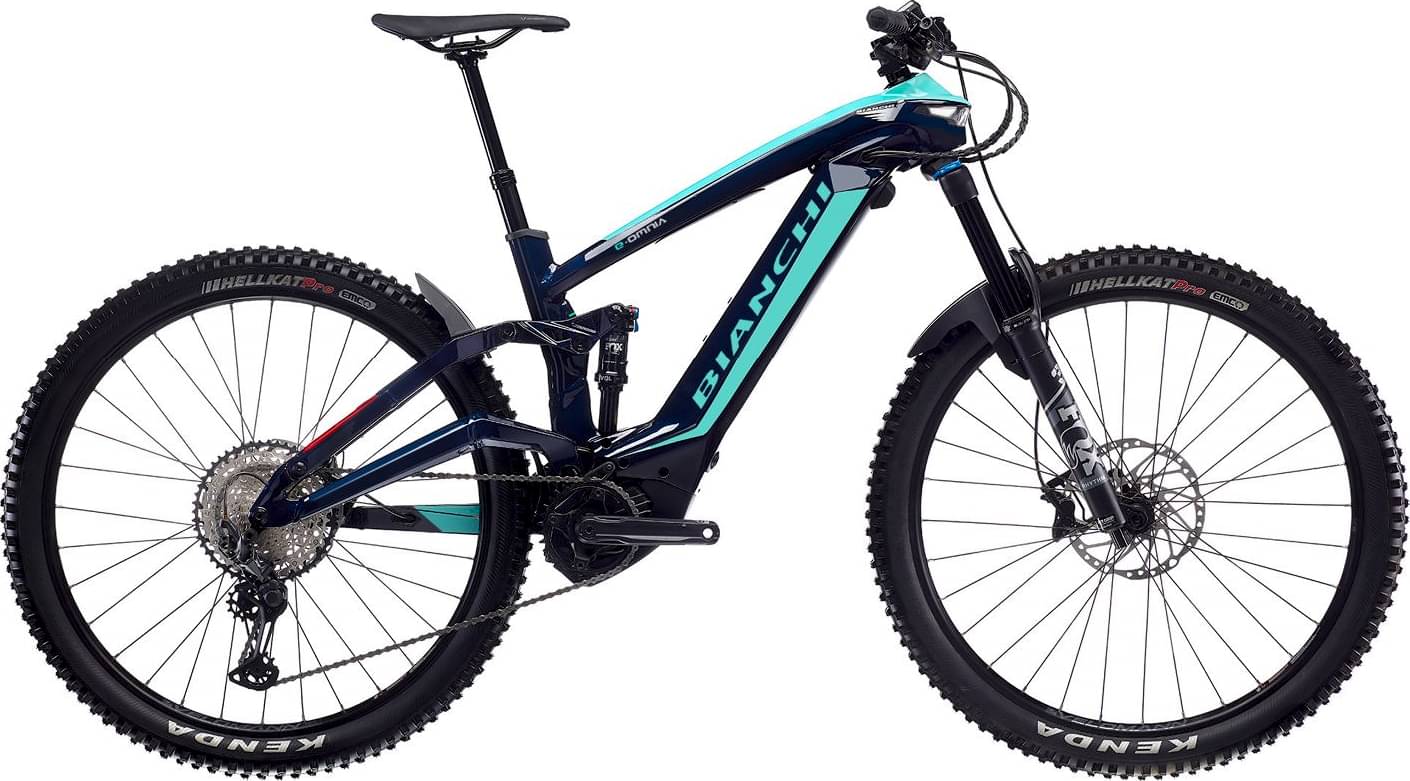

Bianchi e-Omnia FX GX 2025
2025 E-bike
Estimate price |
4,741$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 160mm -
Fork RockShox Yari RC
-
Groupset GX Eagle, SX Eagle -
Suspension Full -
Motor 250W 90Nm hub-drive -
Battery Internal battery 630Wh -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-OMNIA FX-Type ALU sizes: 43, 48, 53 - 12x148 mm thru axle dropouts - Post mount 180 disc brake type - 160mm travel front - 150mm travel rear
Suspension Fork
SRAM Rock Shox YARI RC 29B" Solo Air, 150mm, Extl rebnd, MOTION Control Damper, 1.1/5" Alu HT, 15x110 BOOST, 35mm stanchions, PM 180mm disc mount, Maxle Stealth, 42mm offset
Rear Shock
SRAM Deluxe Select+ RL, 185/55 TR, external rebound adjustment, Harware 8X25mm
Drivetrain
Rear Derailleur
SRAM GX Eagle 12s
Shift Levers
SRAM SX EAGLE 1x12
Crank
FSA CK-762/IS Forged Alu crank 165 mm ISIS
Bottom Bracket
included in the motor
Chain
SRAM SX EAGLE, 12sp
Wheels
Front Hub
Formula CL-811 for Center Lock, 32h, 15x110mm TA, 2SB
Rear Hub
Formula CL-3248 for Center Lock, 32h, 12x148mm TA, HG, 2SB
Rims
Velomann Tubeless Ready 29", 622x30, 32 hole Velomann Tubeless Ready 27.5", 584x30, 32 hole
Tires
Front: Pirelli Scorpion E-MTB M 29x2.6 TLR, 60tpi, Hyperwall, 65-622 Rear: Pirelli Scorpion E-MTB R 27.5x2.6 TLR, 60tpi, Hyperwall, 65-584
Brakes
Brakes
Shimano, BL-MT501, BR-MT520, RESIN PAD
Cockpit
Stem
Velomann, 1,1/8 x diam.35mm, 50mm for 15,17,19,21"
Handlebar
Velomann, width 780mm, diam.35mm, rise 18mm, backsweep 8°
Headset
FSA NO.55R/558 1.5"
Seat
Saddle
Velomann, carbon steel rail, 262x145
Seatpost
Velomann diam.31,6mm, internal remote cable routing, 120mm/150mm travel
Motor & Battery
Motor
OLI Edge, 90Nm, 250W Display High Vision
Battery
Internal battery 630Wh
