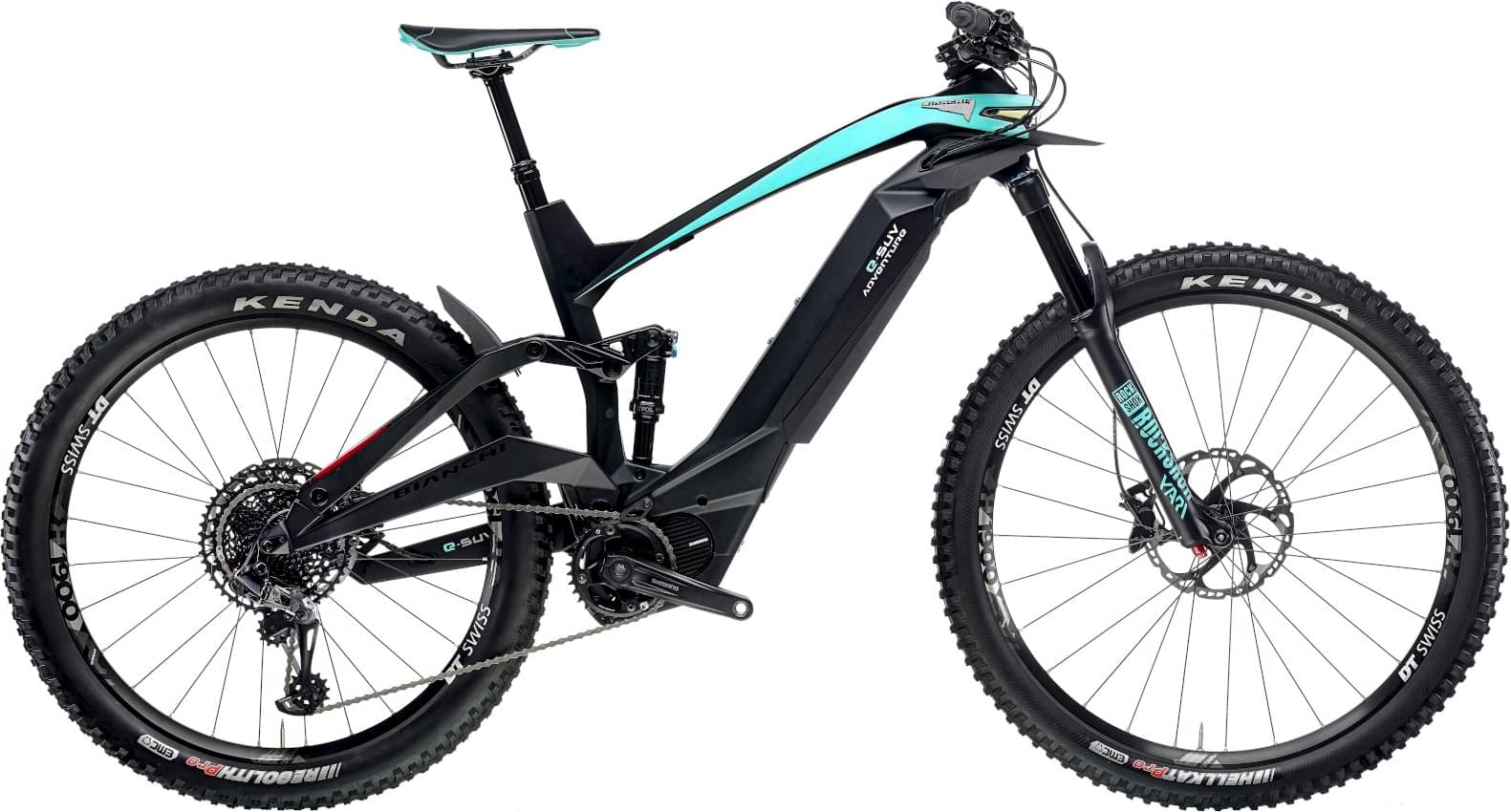

Bianchi e-SUV Adventure GX Eagle 2024
2024 E-bike
Estimate price |
6,766$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox ZEB Select
-
Groupset GX Eagle -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery 720Wh integrated battery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bianchi e-SUV Carbon sizes: 43, 48, 53 - 12x148 mm thru axle dropouts - Post mount 180 disc brake type - 1.5" tapered head tube - seatpost diam. 31,6mm - 150mm travel front & rear - compatible to 160mm travel front
Suspension Fork
RockShox ZEB Select 29", 150mm travel, 15x110 BOOST, minimum 200mm rotor, maximum 220mm rotor, 44mm rake, 63mm crown, DebonAir+, extl rebnd, 38mm stanchions
Rear Shock
RockShox Deluxe Select +, DebonAir Linear, Damer Type RL, Compression Tune M, Lockout Force 430, external rebound adjustment, Volume reducer 0 Neg 1 Pos
Drivetrain
Rear Derailleur
SRAM GX EAGLE, 12sp
Shift Levers
SRAM GX EAGLE, 1x12sp
Cassette
SRAM PG1230, 12sp, 11-13-15-17-19-22-25-28-32-36-42-50T
Crank
Shimano, FC-EM600, 165MM - SRAM chainring XSYNC2 34T
Bottom Bracket
Included w/motor unit
Chain
SRAM NX Eagle 12sp
Wheels
Rims
Dt Swiss H1900 Spline Front: 29", 30mm width, 15x110TA - Rear: 27,5", 35mm width, 12x148TA
Tires
Front: Kenda Hellkat 29x2.6 - Rear: Regolith 27,5x2.8
Brakes
Brakes
Shimano BR-M6120, 4 pistons caliper
Brake Levers
Shimano BL-M6100
Cockpit
Stem
Velomann +/-0°, diam.35mm, ext: 50mm
Handlebar
Velomann, width 780mm, diam.35mm, rise 20mm, backsweep 9°
Grips
T-One Rock T-GP34
Headset
FSA NO.55R/558 1.5"
Seat
Saddle
Fi'zi:k Alpaca Terra, S alloy rail, 249x145mm
Seatpost
Velomann, diam.31,6mm, 125mm travel for size 43, 150mm travel for size 48, 53
Motor & Battery
Motor
Shimano EP8 drive unit, 250W, 85Nm
Battery
720Wh integrated battery
