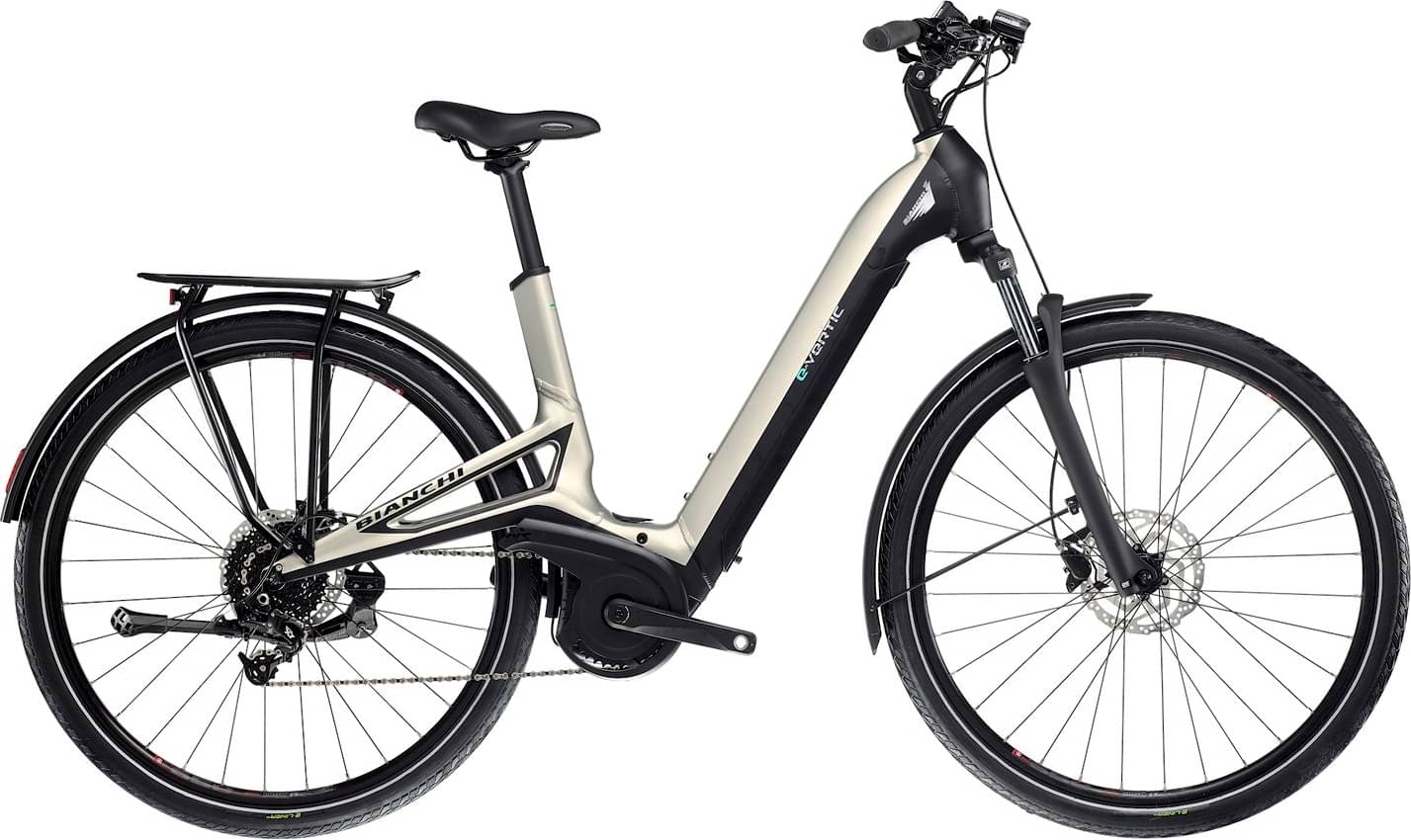

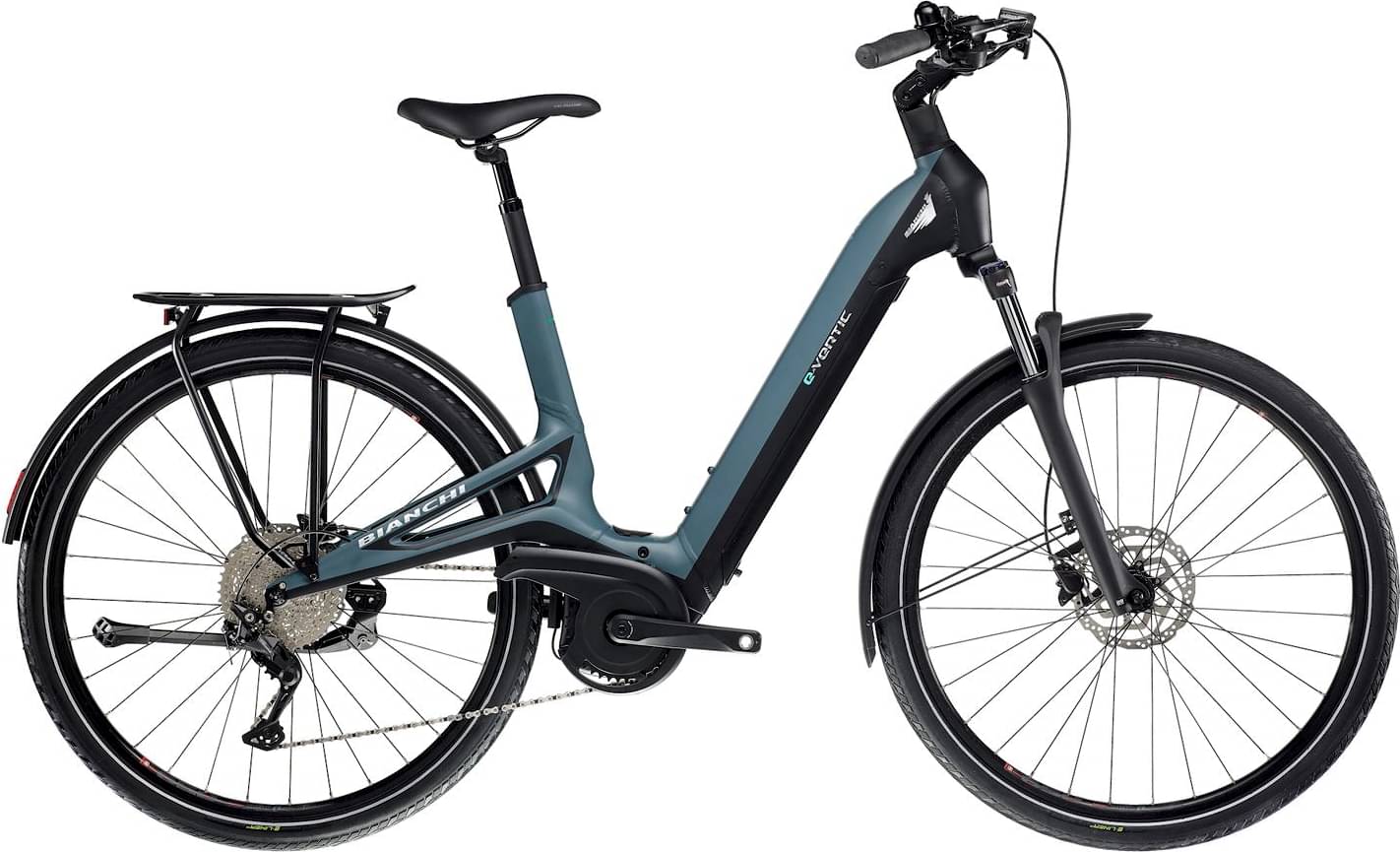

Bianchi e-Vertic C-Type DEORE 2025
2025 E-bike
Estimate price |
3,314$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour NVX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch Powertube 500Wh integrated battery -
Drivetrain 1 × 11 -
Brakes Promax Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC C-Type ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type - Internal cable routing in steerer - 625Wh compatible
Suspension Fork
Suntour NVX30 NLO DS 29", 100mm travel, 1.1/8" straight HT, w/out 9x100 QR, minimum 160mm rotor, maximum 180mm rotor, 30mm stanchions
Drivetrain
Rear Derailleur
Shimano, RD-M4120, DEORE, SGS 10/11-SPEED
Shift Levers
Shimano, SL-M4100-R, DEORE, 10-SPEED
Crank
FSA CK-200, Alloy, 170mm FSA Steel Chainring 38T
Bottom Bracket
incluso nel motore
Chain
KMC e10S NPBK
Pedals
VP, axle 7mm boron steel, EPB system, size 112x83,3mm, reflector included
Wheels
Front Hub
Shimano, HB-TX505,32H OLD:100MM AXLE:108MM, QR:133MM
Rear Hub
Shimano, FH-TX505-8, 32H 8/9/10/11-SPEED,OLD:135MM,AXLE:146MM,QR:170MM
Rims
EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm
Tires
Continental 50-622 eContact Plus
Brakes
Brakes
Promax, DSK-925
Cockpit
Stem
Velomann aluminium adjustable, integrated cable routing, Barbore 31,8 mm, Extension 90 mm
Handlebar
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
Headset
Acros Headset 1,5" top / 1,5" - integrated cable routing
Seat
Saddle
Velomann, size 270x162mm, 385gr.
Seatpost
Velomann travel 50mm, suspension seatpost 300mm for size 43 350mm for sizes 48, 53
Motor & Battery
Motor
Bosch Performance Line, 250W, 65Nm, Purion display
Battery
Bosch Powertube 500Wh integrated battery
Fit data

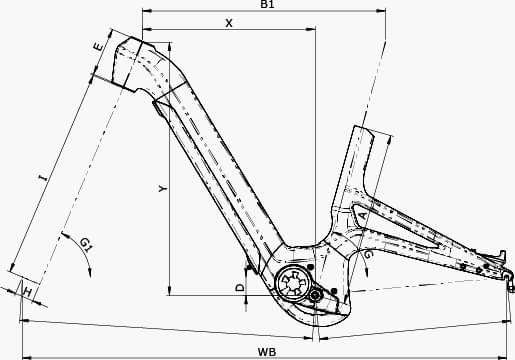

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.548 mm | 1.541 mm | 1.534 mm |
| Front Center | 697 mm | 713 mm | 730 mm |
| Rake | 46 mm | 47 mm | 46 mm |
| Trail | 85 mm | 84 mm | 85 mm |
| Stack | 644 mm | 658 mm | 672 mm |
| Reach | 416 mm | 427 mm | 438 mm |
| Top Tube Length | 595 mm | 610 mm | 625 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1168 mm | 1185 mm | 1201 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
