Bianchi e-Vertic C-Type X5 2025
2025 E-bike
Estimate price |
2,849$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour
-
Groupset X7, X5 -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch Powertube 400wh integrated battery -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC C-Type ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type
Suspension Fork
Suntour 29", travel 100mm, COIL w/Preload adjuster, CR plating, Pitch 130 mm, 1-1/8"(TS), OLD 9-100, max rotor 180, post mount 160mm direct
Drivetrain
Rear Derailleur
SRAM RD X7 SHORT CAGE ALUMINUM 9sp
Shift Levers
SRAM X5 TRIGGER REAR 9-SPD BLK 2200MM CABLE
Crank
FSA E-Bike Diecast Crankset - CK220 Gen 3 / 170mm / Die cast aluminum FSA Direct Mount Steel Chainring - 38T / w/HT Steel / ED / C.L. 50mm Bosch Gen3 Bolt - Bosch Gen3 crank bolt Black
Bottom Bracket
included in the motor
Chain
KMC e9S NPBK 1/2" x 11/128"
Wheels
Front Hub
Shimano, 32H OLD:100MM AXLE:108MM, FOR CENTER LOCK ROTOR, QR:133MM W/O ROTOR MOUNTCOVER
Rear Hub
Shimano, FOR CENTER LOCK ROTOR, 32H 8/9/10-SPEED,OLD:135MM,AXLE:146MM,QR:170MM, W/O ROTOR MOUNTCOVER
Tires
Chaoyang E-Liner City 700x45C, 60tpi, Rhino Skin / SPS
Brakes
Brakes
Shimano, BL-MT200, BR-MT200, BLACK, SM-MA-F180P/P2, RESIN PAD, 1000MM HOSE / 1700 HOSE
Cockpit
Stem
Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore
Handlebar
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
Headset
SeatpLock SET AL bk T-Tronik + Omnia Screw M5x40, CH, hex, black Seatclamp Rubber Cover Omnia
Seat
Saddle
Velomann, steel rail, black cover 8067, 254x183mm, 420gr.
Seatpost
Velomann, lenght 350mm for SM size and 400mm for MD, LG, diam.31,6mm, 0mm seatback
Motor & Battery
Motor
Bosch Active Plus motor unit
Battery
Bosch Powertube 400wh integrated battery
Fit data

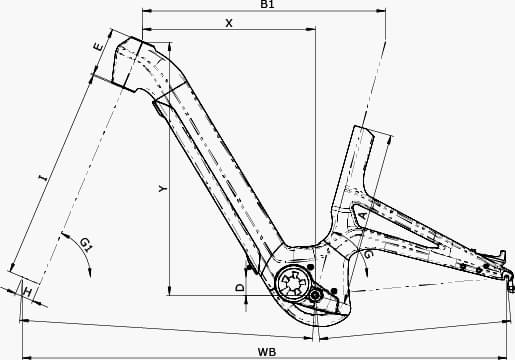

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.548 mm | 1.541 mm | 1.534 mm |
| Front Center | 697 mm | 713 mm | 730 mm |
| Rake | 46 mm | 47 mm | 46 mm |
| Trail | 85 mm | 84 mm | 85 mm |
| Stack | 644 mm | 658 mm | 672 mm |
| Reach | 416 mm | 427 mm | 438 mm |
| Top Tube Length | 595 mm | 610 mm | 625 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1168 mm | 1185 mm | 1201 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
