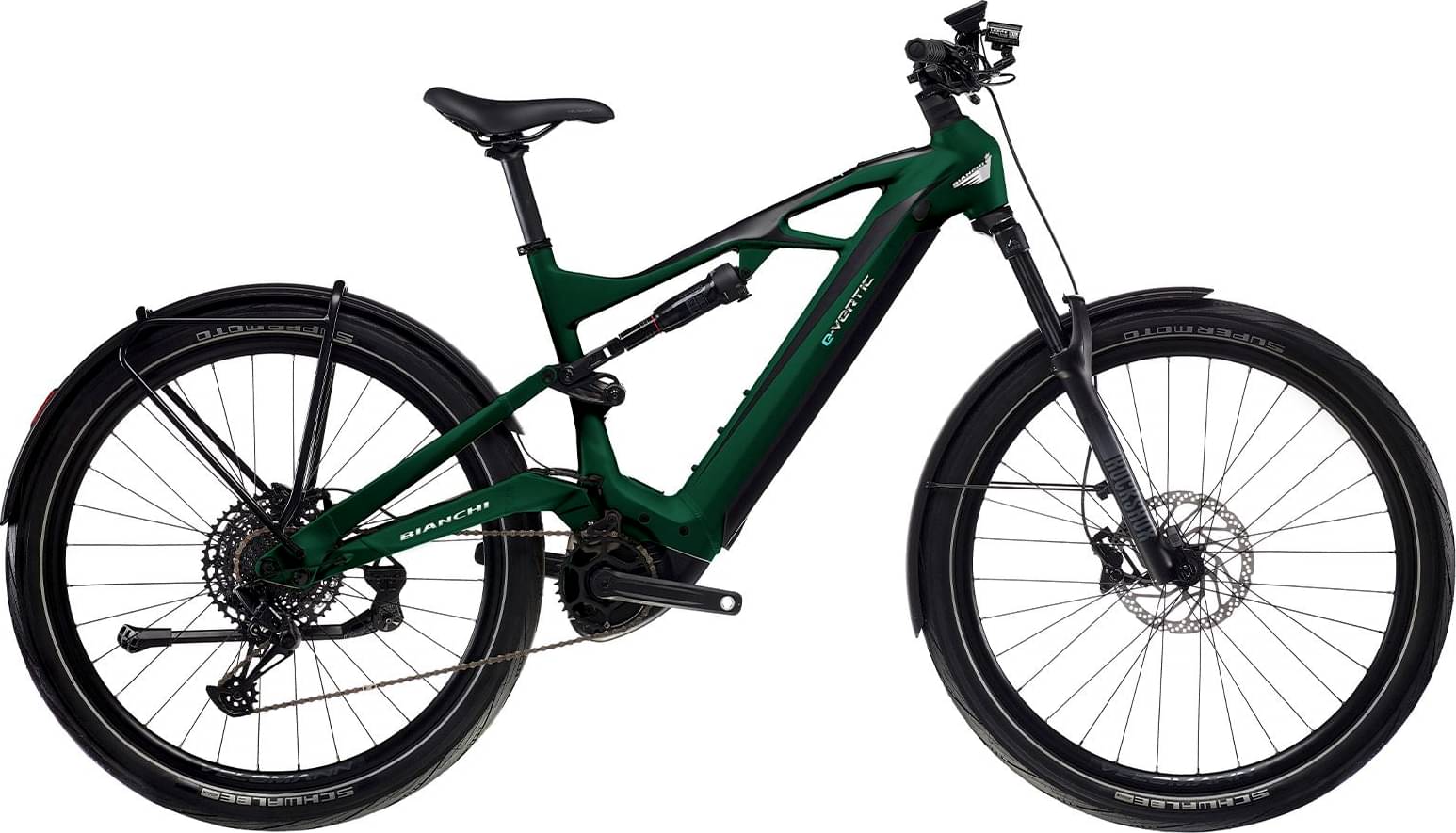

Bianchi e-Vertic FT SX 2025
2025 E-bike
Estimate price |
4,800$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Fork RockShox Recon Silver RL -
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 750Wh integrated battery -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC FT-Type ALU sizes: 43, 48, 53 - 12x148 mm thru axle dropouts - Post mount 180 disc brake type - 140mm travel front & rear - Internal cable routing in steerer
Suspension Fork
SRAM RockShox Recon Silver RL 29", 140mm travel, 1.5" tapered HT, Maxle Lite 15x110mm BOOST axle, minimum 160mm rotor, maximum 220mm rotor, 42mm rake, 61mm crown, Solo Air, extl rebnd, 32mm stanchions
Rear Shock
RockShox Deluxe Select, 210/55, DebonAir Progressive, Damper Type R, Compression tune L, Lockout Force n/a, black finish tube, external rebound adjustment, Volume reducer 0 Neg 2 Pos
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12sp
Shift Levers
SRAM SX EAGLE 1x12
Crank
FSA CK-320/IS/Gen4 FSA E-Bike Diecast Crankset ISIS / 165mm / Die cast aluminum
Bottom Bracket
included in the motor
Chain
SRAM SX EAGLE, 12v
Pedals
Fasten, w/ED steel cage, Boron ED black axle, BS reflector
Wheels
Front Hub
Formula CL-811 for Center Lock, 32h, 15x110mm TA
Rear Hub
Formula CL-3248 for Center Lock, 32h, 12x148mm TA, HG, 2SB
Rims
Velomann E-Sport Tubeless Ready 29", 25-622, 32 hole
Tires
Schwalbe SUPERMOTO perf DD.raceguard 62-622 (29x2.4)
Brakes
Brakes
Shimano, BL-M4100, BR-MT420, 4 pistons
Cockpit
Stem
Velomann, 50mm, 35mm, 1"1/8
Handlebar
Velomann, width 780mm, diam.35mm, rise 18mm, backsweep 8°
Headset
Acros AZX-670 1.8" top / 1.5" - internal cable routing
Seat
Saddle
Velomann 260x160mm, 365gr.
Seatpost
Velomann, lunghezza 350 mm per la taglia SM e 400 mm per la MD, diametro 31,6 mm, schienale 0 mm
Motor & Battery
Motor
Bosch Performance Line CX, 250W, 85Nm, Kiox display
Battery
Bosch Powertube 750Wh integrated battery
