Bianchi E-Vertic FX 9.1 SX 2025
2025 E-bike
Estimate price |
6,688$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Lyrik
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 600W 100Nm mid-drive -
Battery Bosch Powertube 800 Wh -
Drivetrain 1 × 12 -
Brakes SRAM Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bianchi e-Vertic FX, aluminium, 12x148 mm rear thru axle, Post mount 180 disc brake type, Front travel 150 mm, Rear travel 140 mm, Internal cable routing in steerer, 800 Wh battery compatible, sizes 40-44-48-53
Suspension Fork
RockShox Lyrik 29", 150 mm travel, Steerer tube 1,5" tapered, 35 mm stanchions, Maxle Stealth 15x110 Boost axle, Rotor: minimum 180 mm, maximum 220 mm, 44 mm rake
Rear Shock
RockShox Deluxe Select, 210/52.5 mm for size SM, 210/55 mm for sizes MD, LG, XL, Debonair Progressive, Damper Type R, Rebound tune R55, Compression tune C34, External rebound adjustment
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12 sp
Shift Levers
SRAM SX Eagle, single click
Cassette
SRAM PG-1210 Eagle, for HG body, 11-13-15-17- 19-22-25-28-32-36-42-50T
Crank
FSA CK-745/IS, Aluminium forged - 165 mm Crank length: 165 mm
Chain
SRAM SX Eagle, 12 sp
Wheels
Rims
Velomann Rim: V22M, 622x28, 32 hole, Tubeless ready; Hubs: Shimano TC500 thru xale
Tires
Pirelli Scorpion 29x2.6 E-MTB R, 60TPI
Brakes
Brakes
SRAM DB4, 4 pistons calipers, mineral oil
Brake Levers
SRAM DB4, included in the brake
Cockpit
Stem
Velomann 1" 1/8, 35 mm barbore Size: 50 mm
Handlebar
Velomann Aluminum, Rise 18 mm, Barbore 35 mm, Size: 780 mm
Headset
FSA 1.5" for tapered fork steerer, Dual side internal cable routing, Head Block system
Seat
Saddle
Velomann Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm
Seatpost
Velomann Diameter 31.6 mm, Internal cable routing length: 100 mm - SM, 125 mm - MD, 150 mm - LG/XL
Motor & Battery
Motor

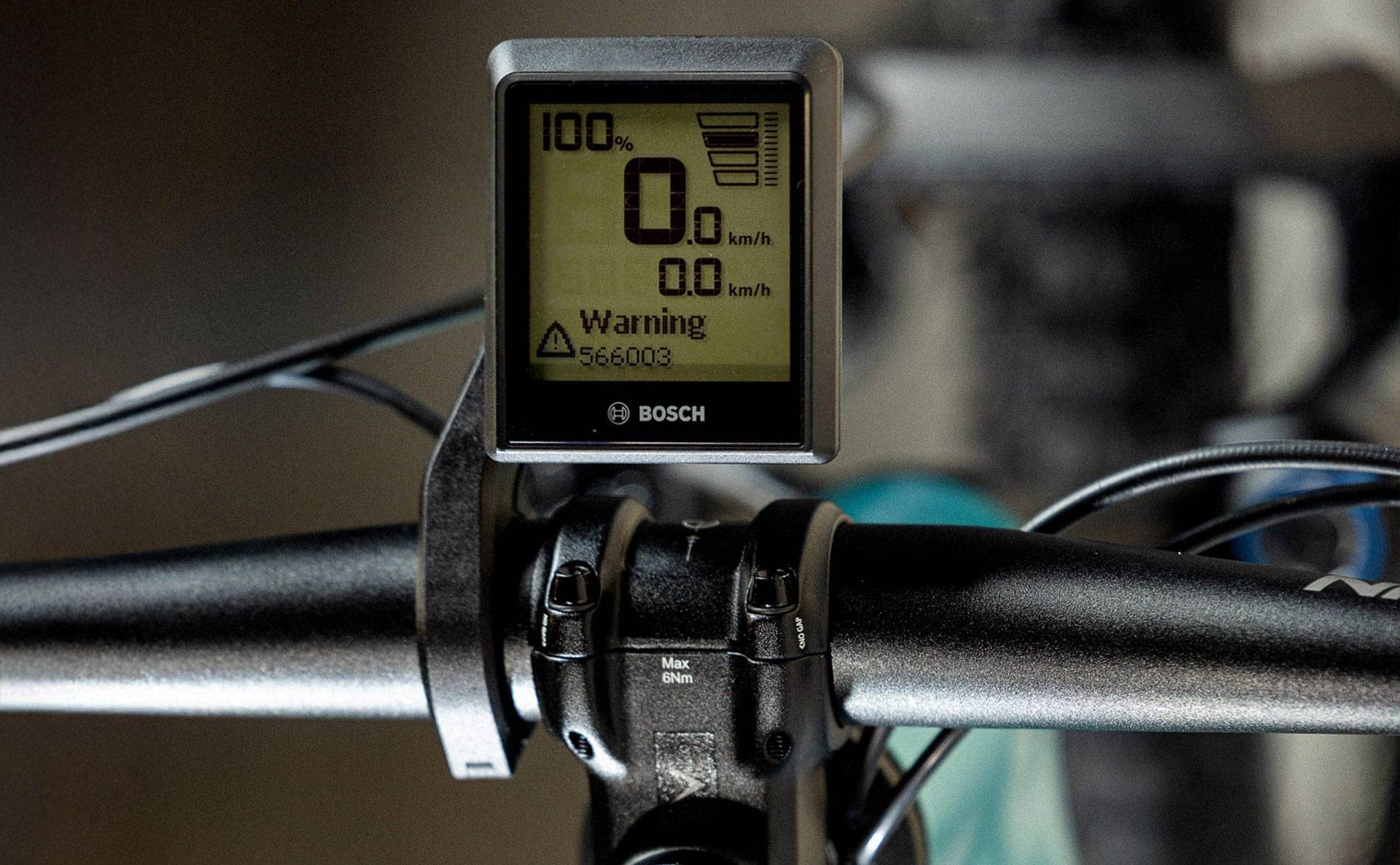

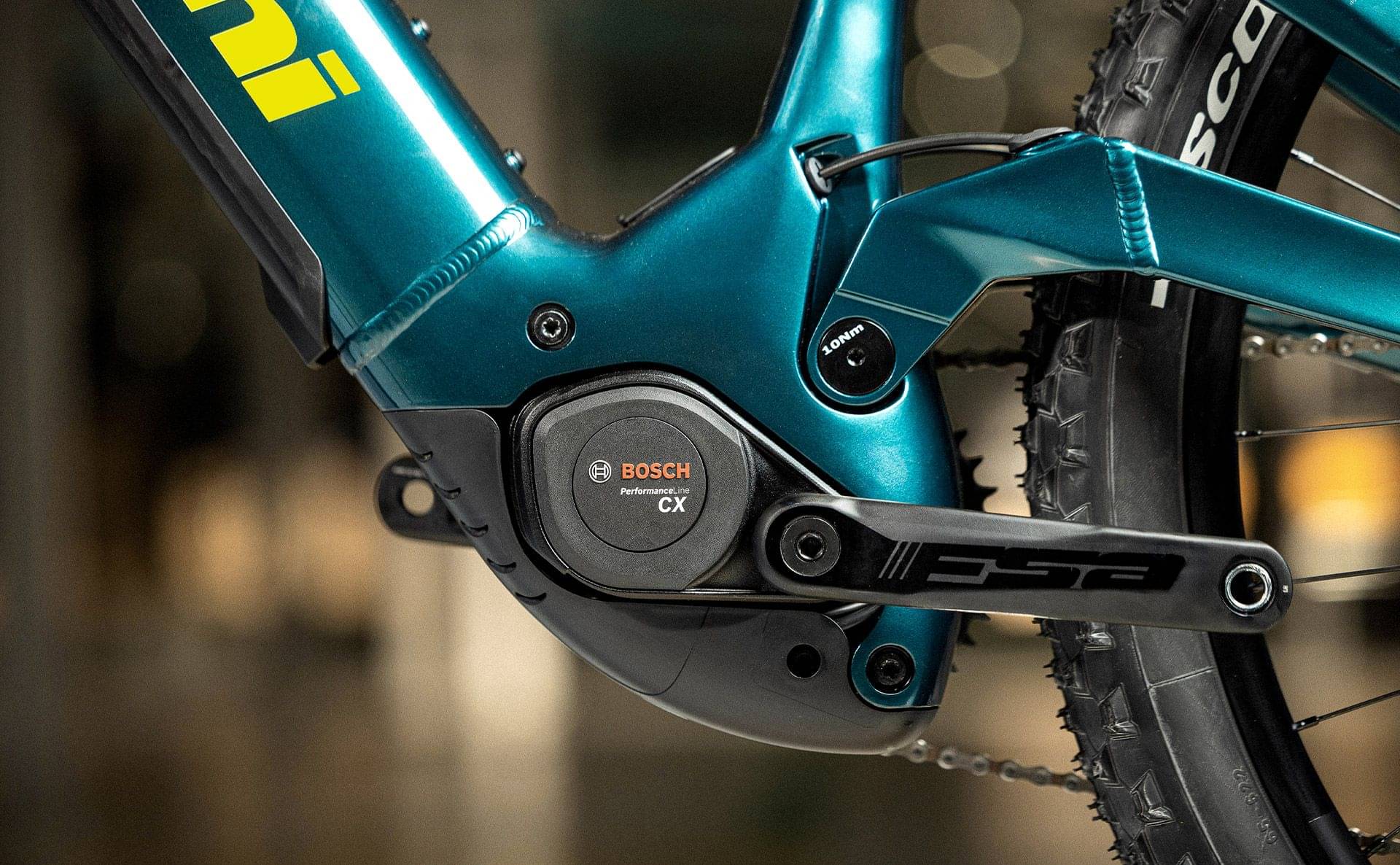

Bosch Performance Line CX BDU3840 - Kiox 300 - 100Nm torque (from July 2025)
Battery
Bosch Powertube 800 Wh
Fit data

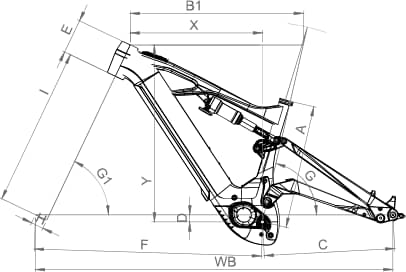

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.334 mm | 1.29 mm | 1.265 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 779 mm | 801 mm | 829 mm | 855 mm |
| Rake | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 130 mm | 130 mm | 131 mm | 130 mm |
| Stack | 623 mm | 623 mm | 632 mm | 645 mm |
| Reach | 445 mm | 467 mm | 490 mm | 510 mm |
| Top Tube Length | 589 mm | 611 mm | 636 mm | 659 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 437.5 mm | 480 mm | 530 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1239 mm | 1261 mm | 1288 mm | 1315 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
