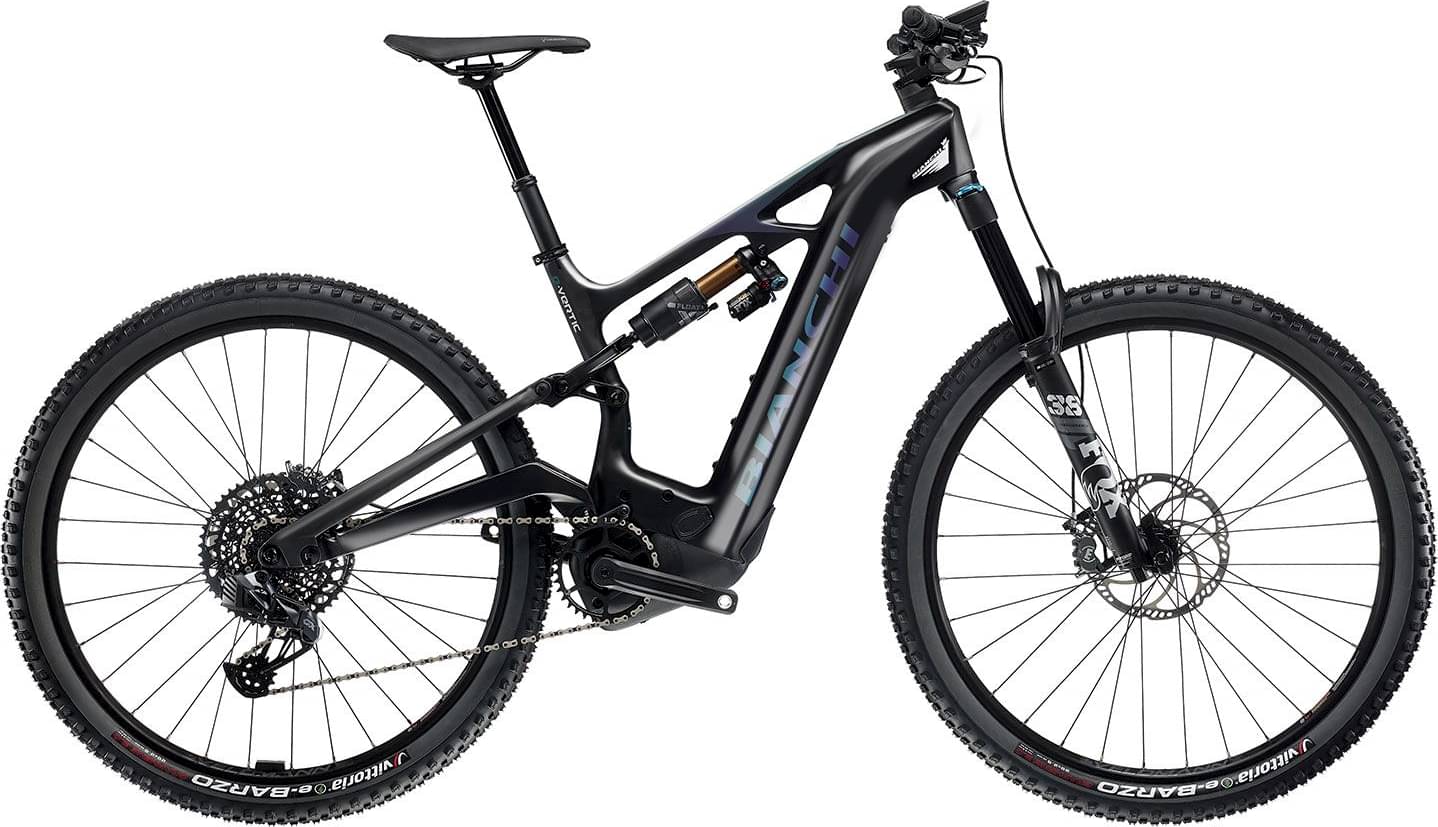

Bianchi e-Vertic FX Pro NX/GX 2025
2025 E-bike
Estimate price |
7,270$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh integrated battery -
Drivetrain 1 × 12 -
Brakes Magura MT Thirty Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC FX-Type Pro - full carbon sizes: 43, 48, 53 - 12x148 mm thru axle dropouts - Post mount 180 disc brake type - 160mm travel front & rear - Internal cable routing in steerer
Suspension Fork
RockShox ZEB 29", 160mm travel, 1.5" tapered HT, Maxle Ultimate 15x110mm BOOST axle, minimum 200mm rotor, maximum 220mm rotor, 44mm rake, 63mm crown, DebonAir
Rear Shock
RockShox Deluxe Select +, 230/65, DebonAir Progressive, Damer Type RT, Compression Tune L, Lockout Force 380, black finish tube, external rebound adjustment, Volume reducer 0 Neg 1 Pos
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12sp
Shift Levers
SRAM NX EAGLE 1x12
Crank
FSA CK-320/IS/Gen4 FSA E-Bike Diecast Crankset ISIS / 165mm / Die cast aluminum SRAM X-SYNC 2 Eagle Chainring, 34T
Bottom Bracket
included in the motor
Chain
SRAM GX EAGLE, 12sp
Wheels
Front Hub
Formula CL-811 per fissaggio centrale, 32h, 15x110mm TA
Rear Hub
Formula CL-1481, for Center Lock, 32h, 12x148mm TA
Rims
Velomann Tubeless Ready 29", 622x30, 32 hole
Tires
Vittoria e-Barzo 29x2.6 XC-Trail TNT
Brakes
Brakes
Magura MT Thirty
Cockpit
Stem
Velomann, 50mm, 35mm, 1"1/8
Handlebar
Velomann, width 780mm, diam.35mm, rise 18mm, backsweep 8°
Headset
Acros AIX-545 1.8" top / 1.5" - internal cable routing
Seat
Saddle
Velomann Gnd Full-fit Start Up, carbon steel rail, 262x145
Seatpost
Velomann, diam.31,6mm, internal remote cable routing, 120mm/150mm travel - 120mm for size 43 - 150mm for sizes 48, 53
Motor & Battery
Motor
Bosch Performance Line CX, 250W, 85Nm, Kiox display
Battery
Bosch PowerTube 750Wh integrated battery
Fit data

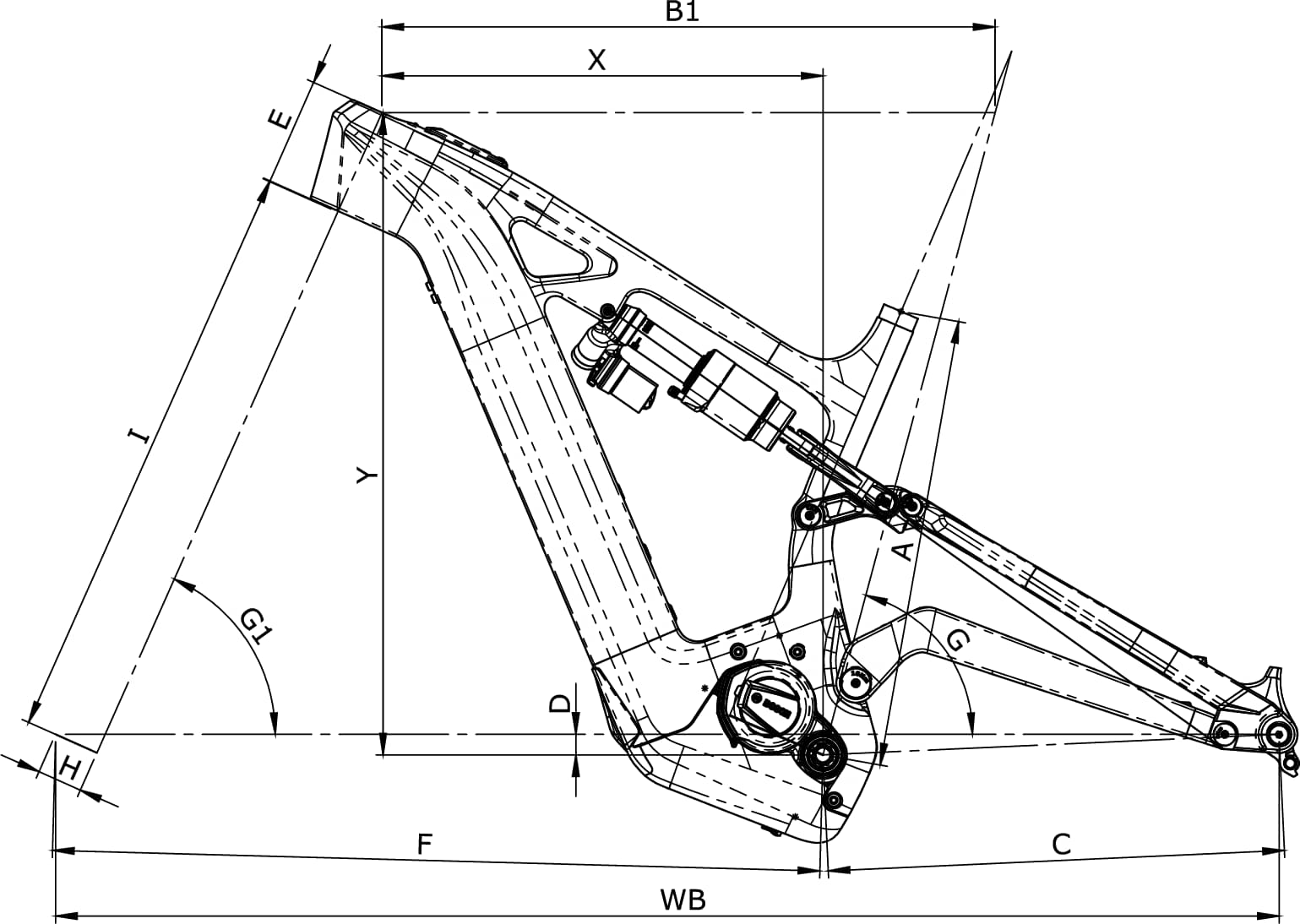

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.459 mm | 1.389 mm | mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 748 mm | 784 mm | 822 mm |
| Rake | 44 mm | 44 mm | mm |
| Trail | 119 mm | 119 mm | mm |
| Stack | 626 mm | 639 mm | mm |
| Reach | 429 mm | 460 mm | 490 mm |
| Top Tube Length | 597 mm | 624 mm | 661 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 432 mm | 477 mm | 520 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1192 mm | 1228 mm | 1266 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 20 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
