Bianchi e-Vertic T-Type X5 2025
2025 E-bike
Estimate price |
2,849$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour
-
Groupset X7, X5 -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery Powertube 400wh integrated battery -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
e-VERTIC X/T-Type ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type
Suspension Fork
Suntour 29", travel 100mm, COIL w/Preload adjuster, CR plating, Pitch 130 mm, 1-1/8"(TS), OLD 9-100, max rotor 180, post mount 160mm direct
Drivetrain
Rear Derailleur
SRAM RD X7 SHORT CAGE ALUMINUM 9sp
Shift Levers
SRAM X5 TRIGGER REAR 9sp BLK 2200MM CABLE
Crank
FSA E-Bike Diecast Crankset - CK220 Gen 3 / 170mm / Die cast aluminum FSA Direct Mount Steel Chainring - 38T / w/HT Steel / ED / C.L. 50mm Bosch Gen3 Bolt - Bosch Gen3 crank bolt Black
Bottom Bracket
included in the motor
Chain
KMC e10S NPBK 1/2" x 11/128"
Wheels
Front Hub
Shimano, 32H OLD:100MM AXLE:108MM, FOR CENTER LOCK ROTOR, QR:133MM W/O ROTOR MOUNTCOVER
Rear Hub
Shimano, FOR CENTER LOCK ROTOR, 32H 8/9/10-SPEED,OLD:135MM,AXLE:146MM,QR:170MM, W/O ROTOR MOUNTCOVER
Tires
Continental CONTACT Urban
Brakes
Brakes
Shimano, BL-MT200, BR-MT200, BLACK, SM-MA-F180P/P2, RESIN PAD, 1000MM HOSE / 1700 HOSE
Cockpit
Stem
Velomann, integrated cable routing, Barbore 31,8 mm, Extension 90 mm
Handlebar
Velomann, 31.8*630 / Rise 34mm / Back Sweep 41°
Headset
Acros 1,5"" top / 1,5"" bottom - bearings - integrated cable routing 1 1/8“ crown race for ZS56 Head tube cover
Seat
Saddle
Velomann, black cover 8067 size 270x162mm, 385gr.
Seatpost
Velomann LT2 31.6*350 travel 50mm
Motor & Battery
Motor
Bosch Active Plus motor unit
Battery
Powertube 400wh integrated battery
Fit data

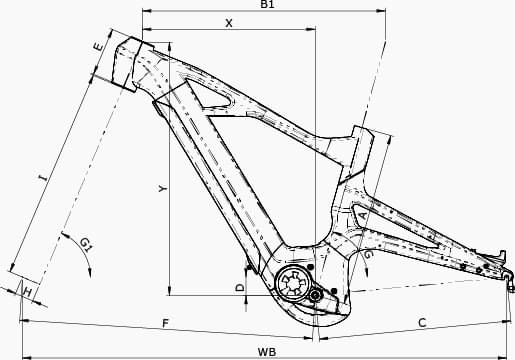

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.467 mm | 1.428 mm | 1.412 mm |
| Front Center | 723 mm | 745 mm | 766 mm |
| Rake | 46 mm | 46 mm | 45 mm |
| Trail | 98 mm | 98 mm | 99 mm |
| Stack | 625 mm | 634 mm | 648 mm |
| Reach | 426 mm | 444 mm | 459 mm |
| Top Tube Length | 599 mm | 620 mm | 638 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1195 mm | 1217 mm | 1237 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
