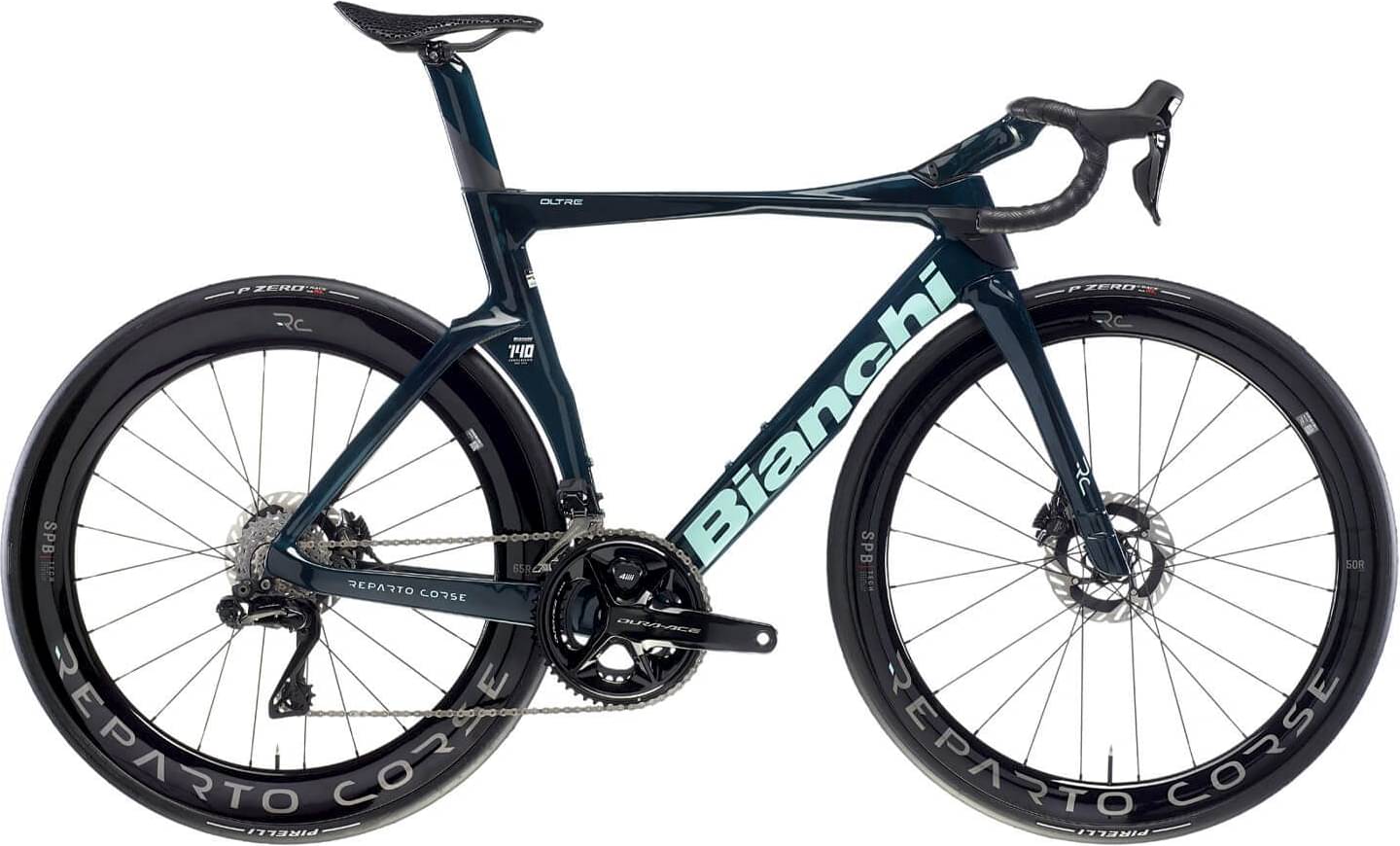

Bianchi OLTRE 140TH RC DURA-ACE DI2 2024
2024 Road
Estimate price |
15,712$
![Bianchi OLTRE 140TH RC DURA-ACE DI2 2024 - Jj - Inked Dark Celeste / Carbon Ud - Ck16 [Full Glossy]](https://biklo.life/wp-content/uploads/bike_images/bianchi-oltre-140th-rc-dura-ace-di2-2024.jpeg-100x60.webp)
![Bianchi OLTRE 140TH RC DURA-ACE DI2 2024 - Jj - Inked Dark Celeste / Carbon Ud - Ck16 [Full Glossy]](https://biklo.life/wp-content/uploads/bike_images/bianchi-oltre-140th-rc-dura-ace-di2-2024.jpeg)
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano Dura-Ace Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bianchi Oltre RC carbon High Modulus, Aero shape, only electronic groupsets, fully internal cable routing, headset 1"1/4 - 1"1/4, direct mount brakes, BB-PressFit 86.5x41 sizes 47-50- 53-55-57-59
Suspension Fork
Bianchi Oltre RC full Carbon High Modulus, Aero shape, integrated head, disc, 1"1/4 head, 12x100 mm thru axle
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2, RD-R9250, 12sp
Front Derailleur
Shimano Dura-Ace Di2, FD-R9250
Shift Levers
Shimano Dura-Ace Di2, shifter lever ST-R9270
Cassette
Shimano Dura-Ace, CS-R9200 11-30T, 11-12-13- 14-15-16-17-19-21-24-27-30T
Crank
Shimano Dura-Ace, FC-R9200, 4iiii precision 3+ dual side power meter, 52x36T Crank length: 170 mm (47-53 cm); 172.5 mm (55-59 cm)
Bottom Bracket
Shimano SM-BB92-41B, press fit type for road
Chain
Shimano Dura-Ace, CN-M9100
Wheels
Rims
Bianchi Reparto Corse RC50R/RC65R SPBTech, Carbon rim, front: profile height 50 mm, rear: profile height 65 mm, 700x21c, 24h, 3K and UD carbon, HG11 body, weight: 1520 g
Tires
Pirelli P ZERO Race TLR, 28-622, 127 TPI, SPEEDCore
Brakes
Brakes
Shimano BR-R9270 Hydraulic disc brake
Brake Levers
Included in the shifter
Cockpit

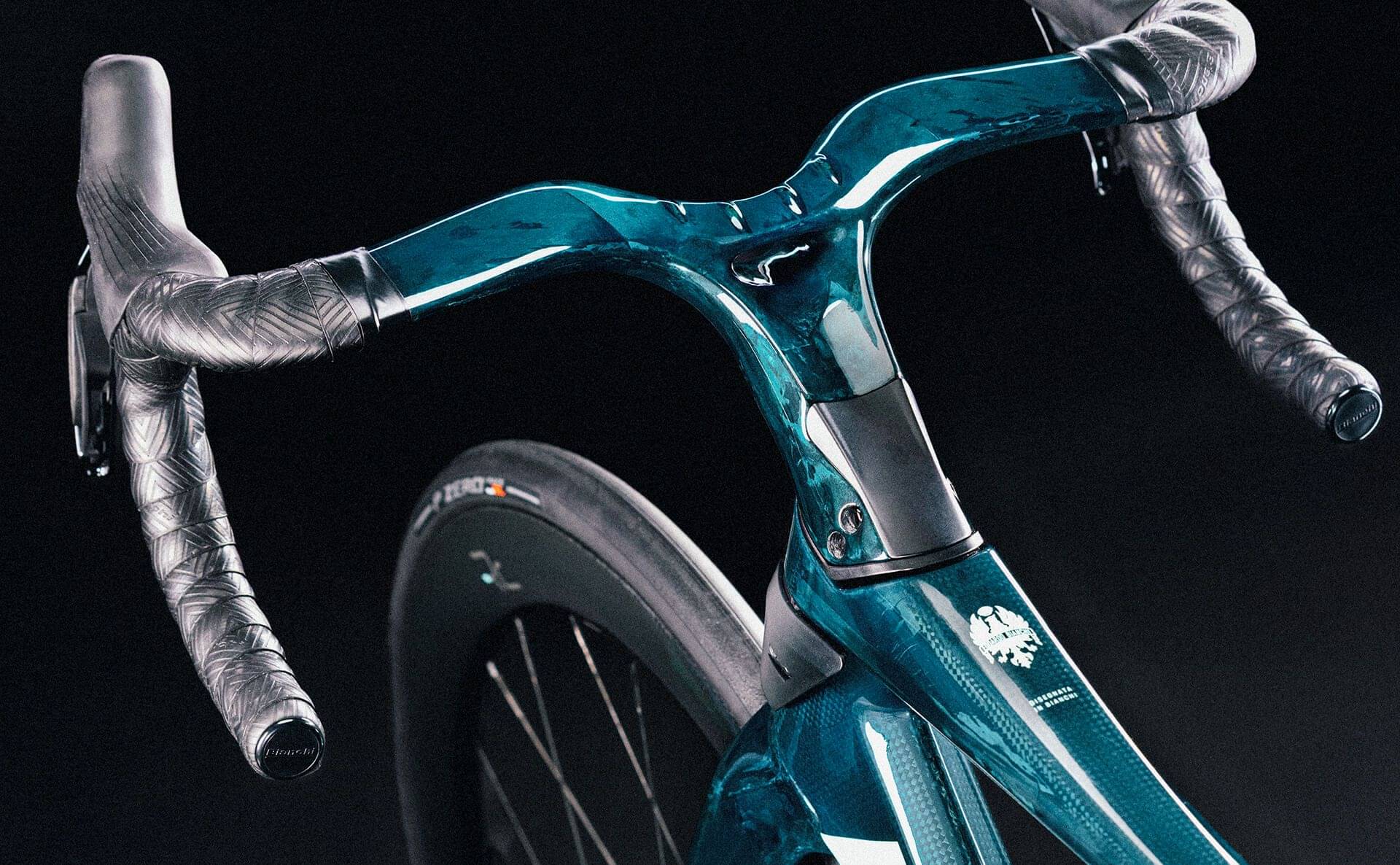

Stem
Bianchi Reparto Corse integrated handlebar, Aero bar, Carbon, for internal cable routing, drop 125 mm, reach 80 mm Size: 90/400 mm (47-50 cm) ; 100/420 mm (53 cm) ; 110/420 mm (55-57 cm); 120/440 mm (59 cm)
Handlebar
Included in the stem
Headset
FSA No. 54 - upper bearing MR137; lower bearing MR082R
Seat
Saddle
Bianchi Reparto Corse RC139 Carbon Air, 3D printed padding for adaptive stiffness, length 250 mm, width 139 mm
Seatpost
Bianchi Oltre, full carbon, aero shape, 20 mm offset length: 280 mm (47 cm); 300 mm (50-55 cm); 350 mm (57-59 cm)
Fit data

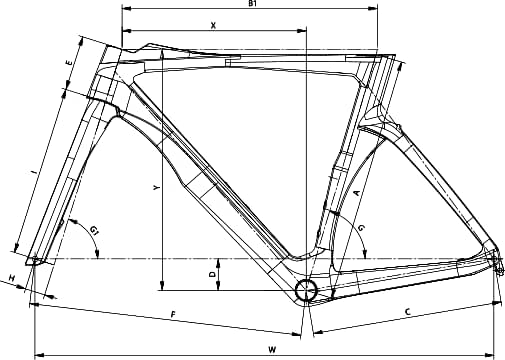

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 55cm | 57cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.221 mm | 1.219 mm | 1.282 mm | 1.31 mm | 1.333 mm | 1.367 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 581 mm | 582 mm | 588 mm | 593 mm | 603 mm |
| Rake | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm |
| Trail | 73 mm | 68 mm | 64 mm | 62 mm | 58 mm | 59 mm |
| Stack | 470 mm | 478 mm | 504 mm | 520 mm | 536 mm | 555 mm |
| Reach | 385 mm | 392 mm | 393 mm | 397 mm | 402 mm | 406 mm |
| Top Tube Length | 515 mm | 525 mm | 536 mm | 550 mm | 560 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 83 mm | 88 mm | 103 mm | 118 mm | 133 mm | 153 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 412 mm | 412 mm |
| Wheelbase | 982 mm | 983 mm | 984 mm | 988 mm | 996 mm | 1005 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
