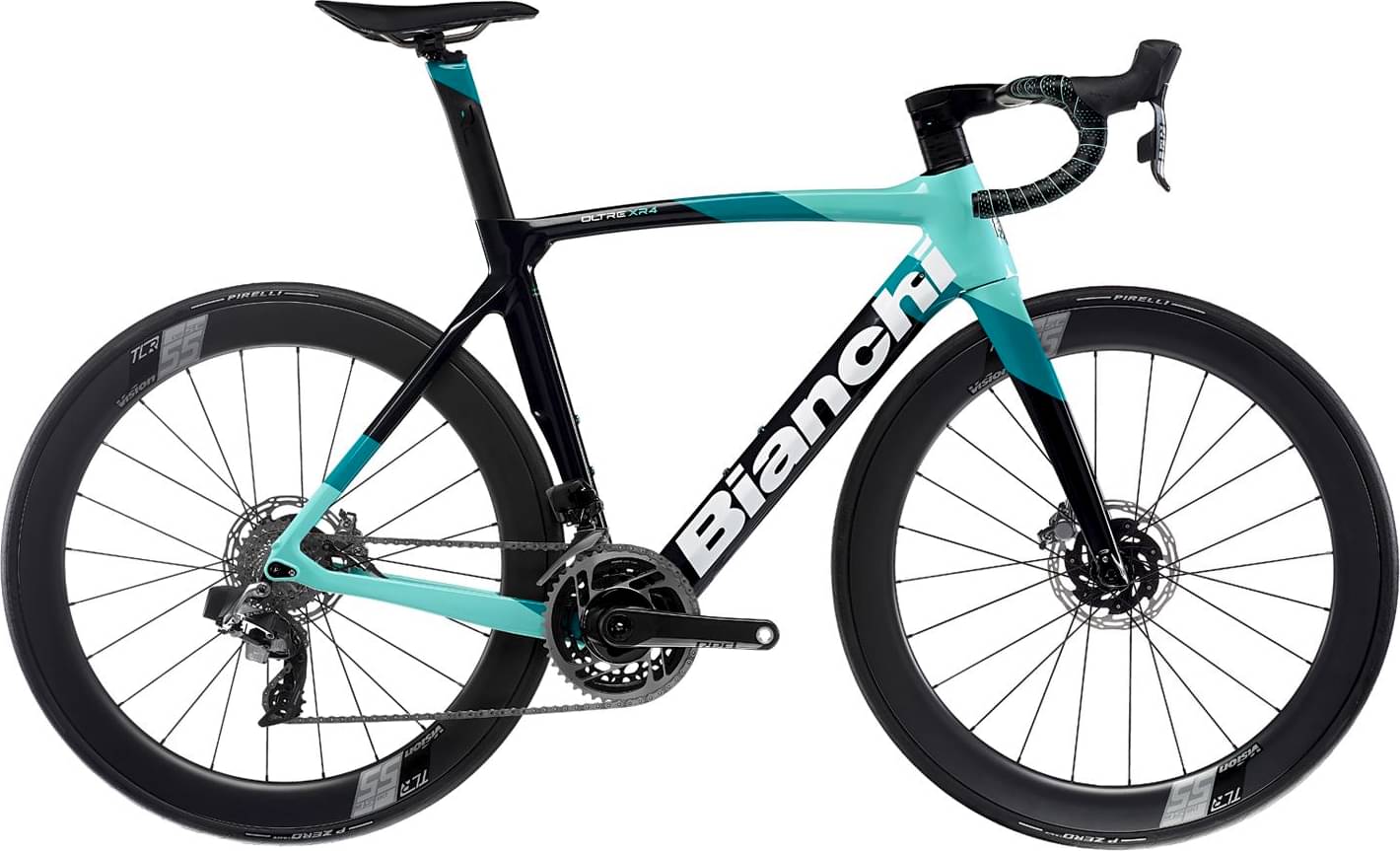

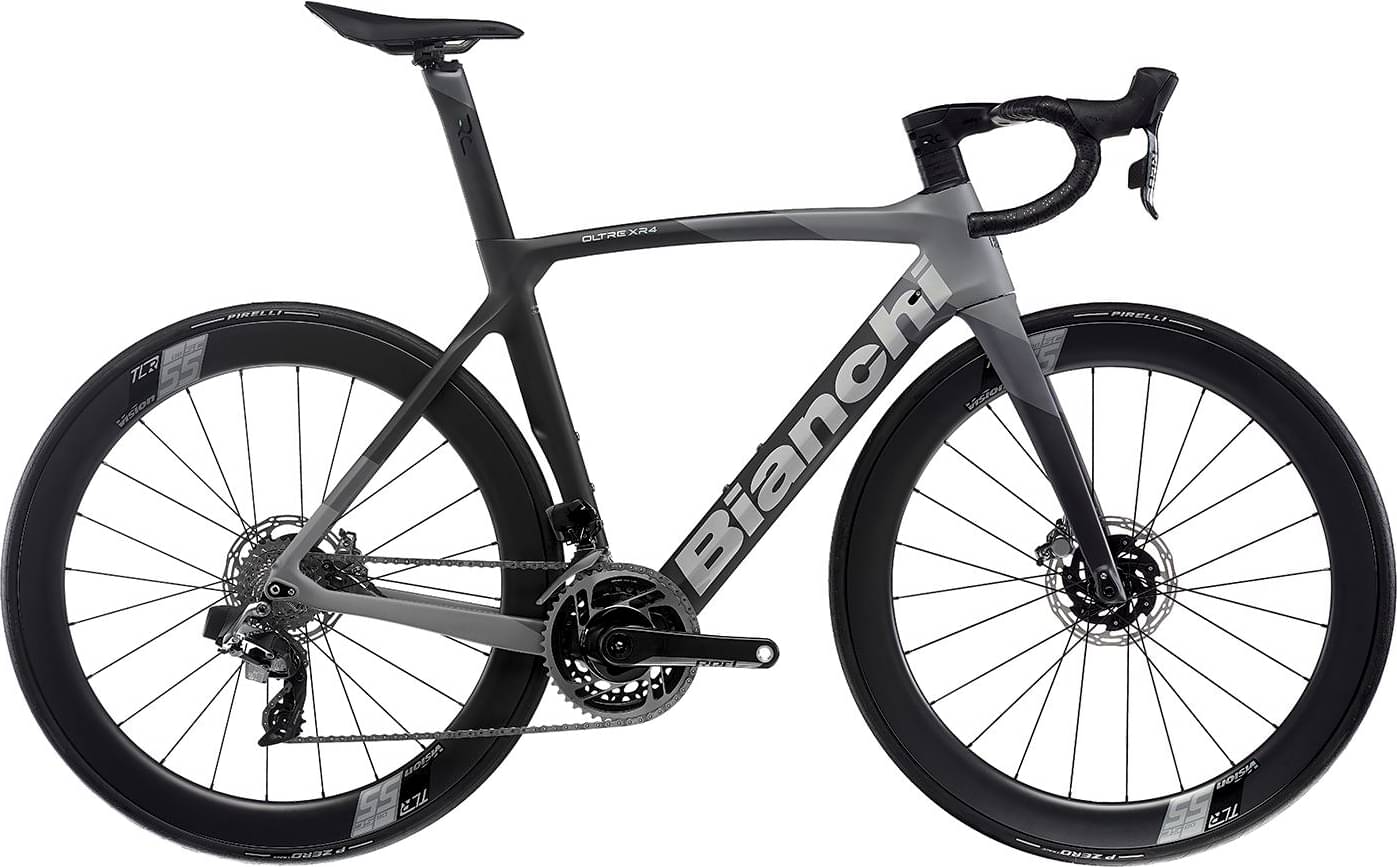

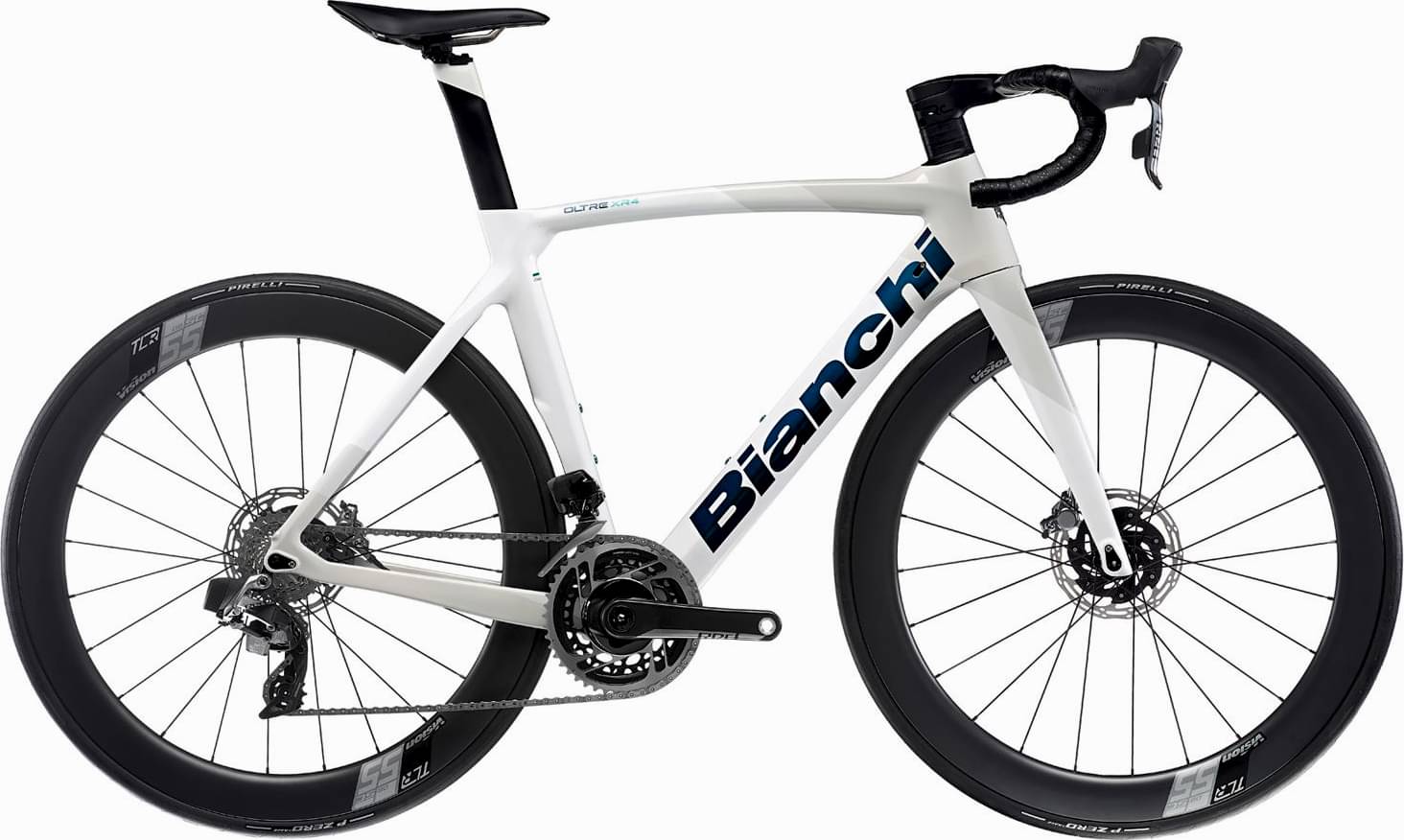

Bianchi Oltre XR4 Red eTap AXS 2024
2024 Road
Estimate price |
12,443$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Oltre XR4 carbon w/Bianchi CV, mechanical/electronic shifting compatible, headset 1.5", PressFit 86,5x41mm BB, Disc brake internal cable routing, flat mount caliper, thru axle 12x142mm, sizes 47-50-53-55-57-59-61cm
Suspension Fork
Bianchi Full Carbon w/Bianchi CV, 1.5" integrated head, Disc Brake internal cable, flat mount caliper, thru axle 12x100mm
Drivetrain
Rear Derailleur
SRAM Red eTap AXS D1 12sp
Front Derailleur
SRAM Red eTap AXS D1
Shift Levers
SRAM Red eTap AXS D1 2x12sp
Cassette
SRAM Red XG-1290 D1 12sp, 10-11-12-13-14-15-16-17-19-21-24-28T
Crank
SRAM Red D1 46x33T, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm
Bottom Bracket
SRAM PressFit Road 86,5x41mm
Chain
SRAM Red D1 12sp
Wheels
Rims
Vision 55 SC
Tires
Pirelli P ZERO™ Race, 26-622, 127TPI, Aramid breaker
Brakes
Brakes
Included in the shifter
Cockpit
Stem
Reparto Corse by Vision Metron 5D ACR Disc Integrated Aero bar, Bar/stem Integrated, material UD Weave Carbon, drop 125mm, reach 80mm, Di2 compatible, RC'21 graphics, Ext: 100x400mm-47/50cm, 110x420mm-53/55cm, 120x420mm-57/59cm, 130x440mm-61cm
Handlebar
included in the stem
Grips
Black soft Microfiber tapes w/shockproof Eva-139
Headset
Fsa Orbit custom 5D ACR top cover UD Carbon, lower 1.5"- top 1 .5", 36°- 45° ACB bearing, w/Carbon custom cone spacer specific for Metron DISC integrated handlebar, for 52mm/52mm OD head tube
Seat
Saddle
Fi'zi:k Argo Vento R1, nylon carbon reinforced shell w/WingFlex, carbon braided 7x10 rail, 260x140mm
Seatpost
Reparto Corse Full Carbon Aero special dimension; special Clamp type with alloy head adjustable and reversible +/- 35mm; lenght: 250mm-47cm, 300mm-50/53cm, 350mm-55/59cm, 380-61cm, Setback: 25mm/+10mm
Fit data

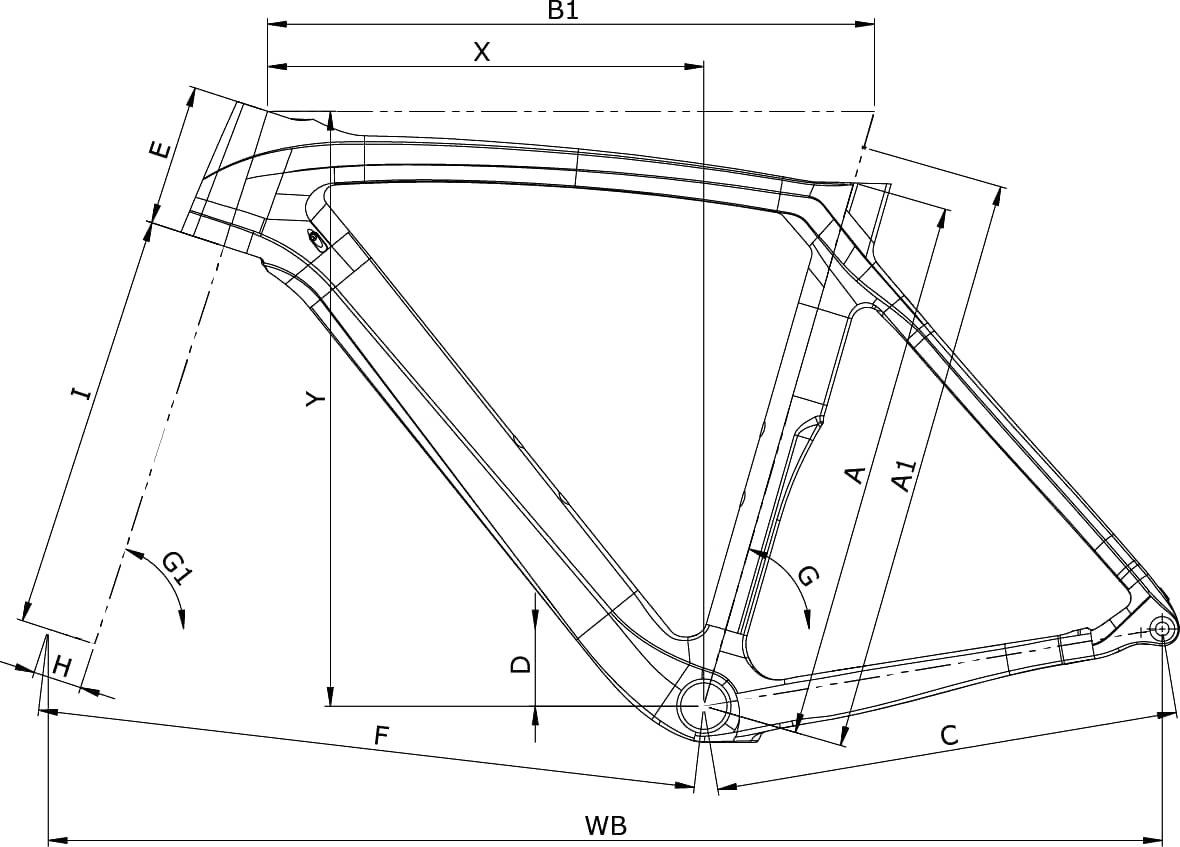

Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm | 55cm | 57cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.3 mm | 1.299 mm | 1.364 mm | 1.387 mm | 1.41 mm | 1.447 mm | 1.492 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 581 mm | 582 mm | 588 mm | 593 mm | 603 mm | 607 mm |
| Rake | 43 mm | 43 mm | 44 mm | 42 mm | 42 mm | 43 mm | 42 mm |
| Trail | 73 mm | 67 mm | 63 mm | 62 mm | 59 mm | 58 mm | 59 mm |
| Stack | 490 mm | 499 mm | 525 mm | 541 mm | 557 mm | 576 mm | 594 mm |
| Reach | 377 mm | 384 mm | 385 mm | 390 mm | 395 mm | 398 mm | 398 mm |
| Top Tube Length | 513 mm | 523 mm | 535 mm | 550 mm | 560 mm | 575 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 105 mm | 110 mm | 125 mm | 140 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 412 mm | 412 mm | 414 mm |
| Wheelbase | 982 mm | 983 mm | 984 mm | 988 mm | 995 mm | 1005 mm | 1011 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
