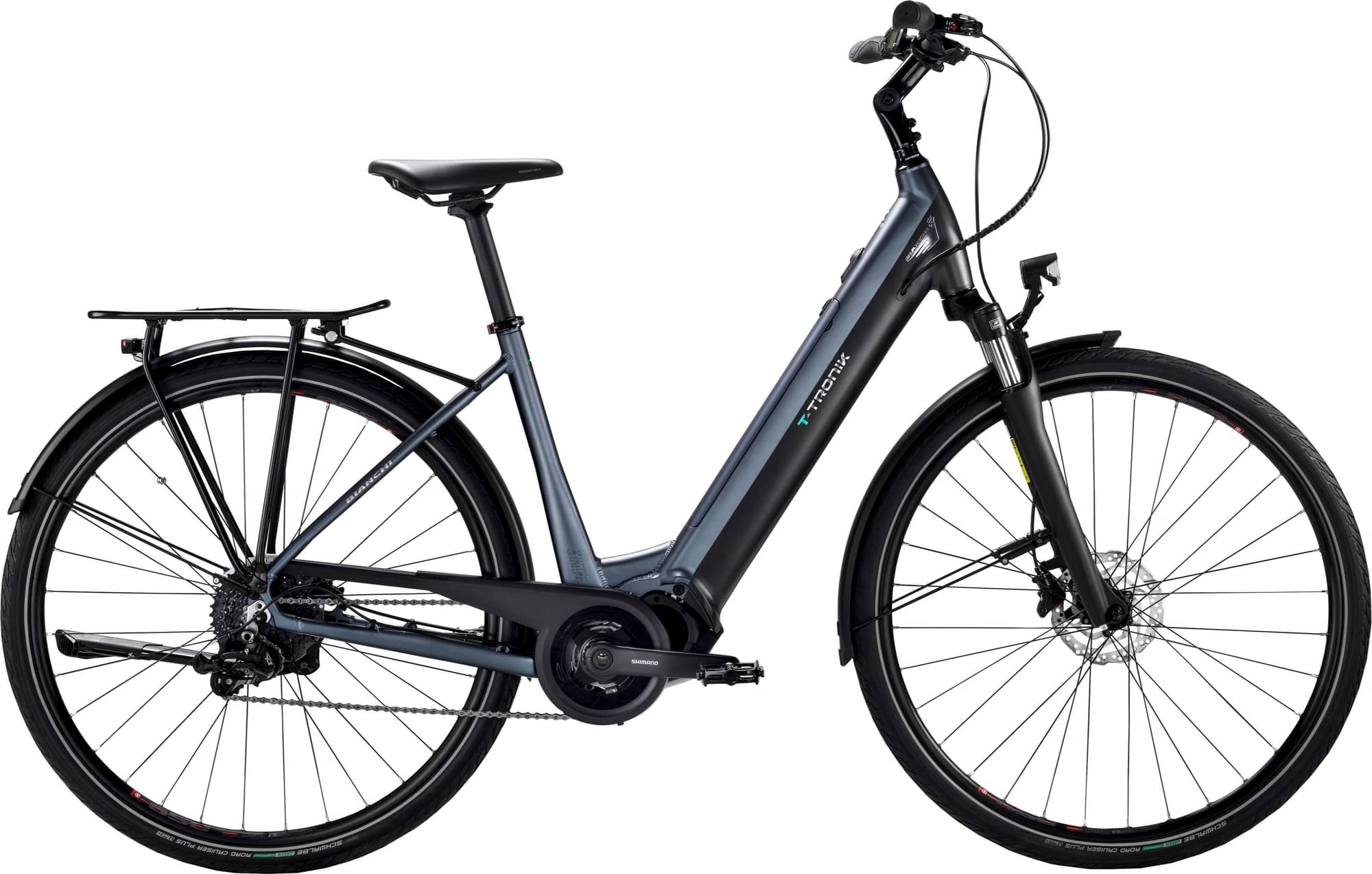

Bianchi T-Tronik C-Type Sunrace X5 2025
2025 E-bike
Estimate price |
2,326$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset SunRace, FSA -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery 417Wh Phylion integrated battery -
Drivetrain 1 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
T-Tronik C-Type Frame 28" Urban, Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size: 43/47
Suspension Fork
Suntour SF15-NEX-E25-DS-700C-63 PostMount disc brake, 1.1/8"", travel 63mm, compatible with fender, OLD 100mm, Quick relase type
Drivetrain
Rear Derailleur
Sunrace, 9sp, max 42T
Shift Levers
Sunrace DLE903N, 9sp, w/ optical gear
Crank
FSA SMN E-Bike Forged Crankset, 170mm CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM
Bottom Bracket
included in the motor
Chain
KMC E9s EPT
Pedals
VP black aluminum, w/reflector
Wheels
Rims
Velomann 29", 23-622, 32 hole black
Tires
Chaoyang E-Liner City 700x45C, 60tpi
Brakes
Brakes
Radius, BH-M960, 900mm hose length, Direct Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/ adapter
Cockpit
Stem
Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore
Handlebar
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
Headset
FSA 1.1/8" 44H-N10P
Seat
Saddle
Selle Royal, Essenza
Seatpost
Velomann, lenght 350mm, diam. 31,6mm, 0mm seatback, Al2014 shaft + alloy head
Motor & Battery
Motor
Shimano E6100 250W, torque 60Nm
Battery
417Wh Phylion integrated battery
