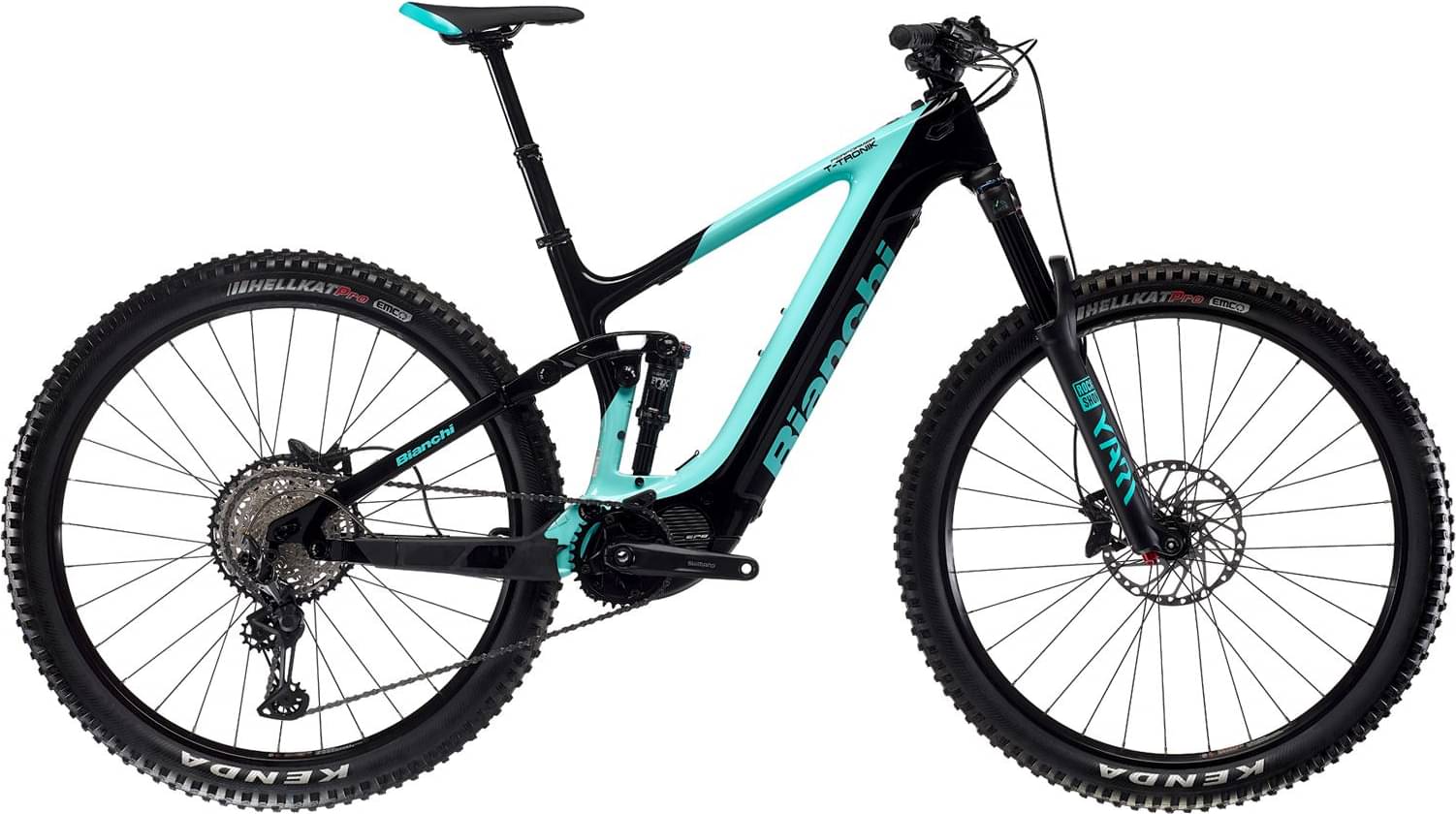

Bianchi T-Tronik FX Type-Pro XT Deore 2025
2025 E-bike
Estimate price |
5,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Yari RC
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Integrated battery 630Wh -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
T-Tronik FX-Type Pro carbon sizes: 40, 44, 48, 52 - 12x148 mm thru axle dropouts - Post mount 180 disc brake type - 150mm travel front & rear - Internal cable routing in DT
Suspension Fork
RockShox YARI RC 29", 150mm travel, 1.5 tapered HT, Maxle Stealth 15x110mm BOOST axle, minimum 180mm rotor, maximum 220mm rotor, 42mm rake, 59mm crown
Rear Shock
Fox Float DPS Performance, LV, EVOL, 3 position Lever
Drivetrain
Rear Derailleur
Shimano Deore XT RD-M8100, 12sp
Shift Levers
Shimano Deore SL-M6100, 12sp
Crank
Shimano FC-EM600, 165MM Shimano Chainring SM-CRE80-12-B, 34T
Chain
Shimano, CN-M6100
Wheels
Front Hub
Formula CL-811 for Center Lock, 32h 15x110mm TA
Rear Hub
Shimano FH-MT510-B, for Center Lock, 32h, 12x148 TA
Rims
Velomann 29", 622x30, 32 hole
Tires
Kenda Hellkat 29x2.6, 60tpi, 66-622
Brakes
Brakes
Shimano, BL-M6100, BR-M6120, 4 pistons
Cockpit
Stem
Velomann +/-0°, 1,1/8 x diam.35mm, 50mm
Handlebar
Velomann width 780mm, diam.35mm, rise 20mm, backsweep 9°
Headset
FSA NO.77R 1.5"
Seat
Saddle
Fizik Alpaca Terra, S alloy rail, 249x145
Seatpost
JD, diam.31,6mm, internal remote cable routing 100m travel --> size 40 125m travel --> size 44 150m travel --> sizes 48, 52
Motor & Battery
Motor
Shimano EP8, 250W, 85Nm, Display SC-EM800
Battery
Integrated battery 630Wh
