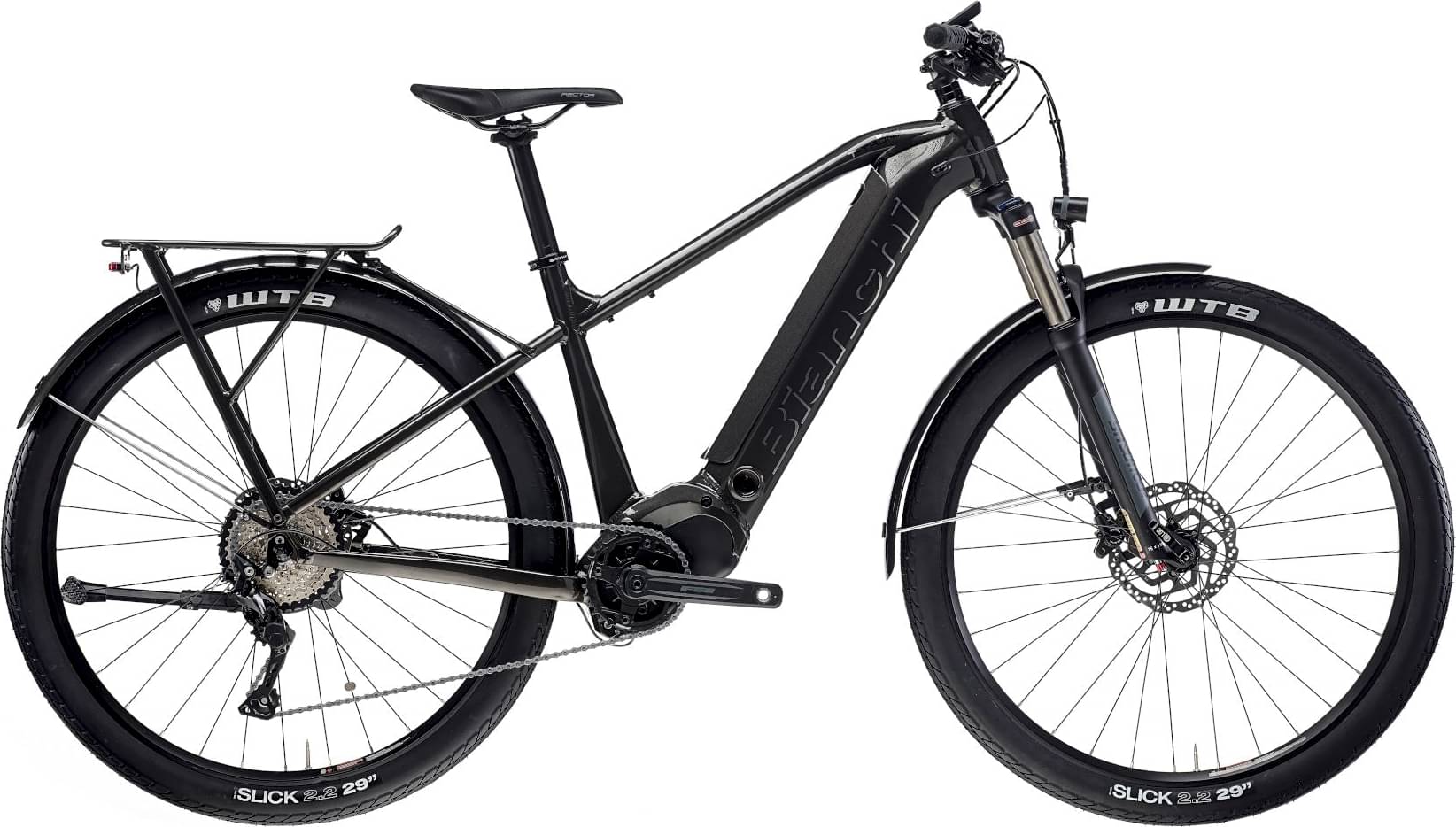

Bianchi T-Tronik Sport Tourer 9.2 2023
2023 E-bike
Estimate price |
3,176$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour XCM -
Groupset X7, X5 -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Phylion BN21S 522Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
T-Tronik Sport HT, alu 6061 triple butted, 1.5" tapered HT, seatpost diam. 31.6mm, seatpost clamp diam. 34.9mm, PM 160mm, Boost dropout QR 12x141mm, internal cable routing, sizes 38-43-48-53cm
Suspension Fork
SR Suntour XCM32 Boost NLO DS 29" 120mm
Drivetrain
Rear Derailleur
SRAM RD X7 9SP
Shift Levers
SRAM X5 TRIGGER REAR 9sp
Cassette
SRAM CS PG 920 11-34 9SP
Crank
Fsa Alu, crank length:165 mm, w/Fsa e-bike specific 34T chainring
Bottom Bracket
Included w/motor unit
Chain
Kmc E9s, 9sp, 1/2"X11/128"
Wheels
Front Hub
Shimano HB-MT400-B
Rear Hub
Shimano FH-MT200-B
Rims
Velomann XC25 TCS rim Tubeless Ready 29"
Tires
Wtb Slick 2.2 29"
Brakes
Brakes
Shimano BR-MT200
Cockpit
Stem
Velomann +/-7°, 1.1/8", diam.31.8mm, ext: 60mm-15/17/18" and 70mm-21", 3D forged alloy 6061
Handlebar
Velomann Rise, width 740mm, diam.31,8mm, 9° backsweep, 15mm rise
Grips
T-One Rock T-GP34
Headset
Fsa Orbit 1.5 ZS
Seat
Saddle
Velomann 2058DRN, 140mm width
Seatpost
Velomann, lenght 350mm-15/17'' and 400mm-19/21'', diam.31,6mm, 0mm seatback, AL2014 shaft
Motor & Battery
Motor
SHIMANO E7000 MOTOR UNIT, DU-E7000 DRIVE UNIT, W/SC-E7000 CYCLE COMPUTER, W/SPEED SENSOR
Battery
Phylion BN21S 522Wh
