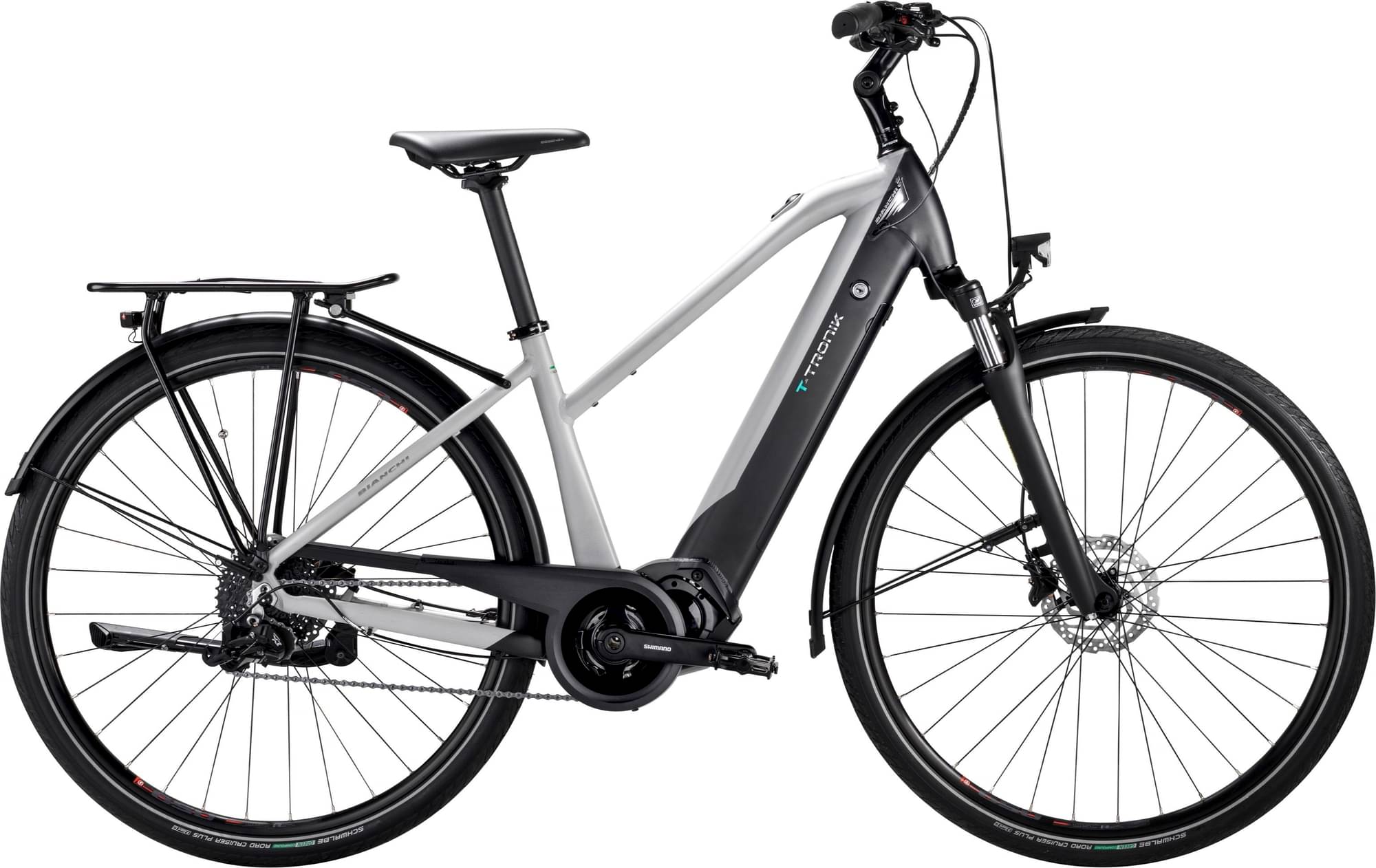

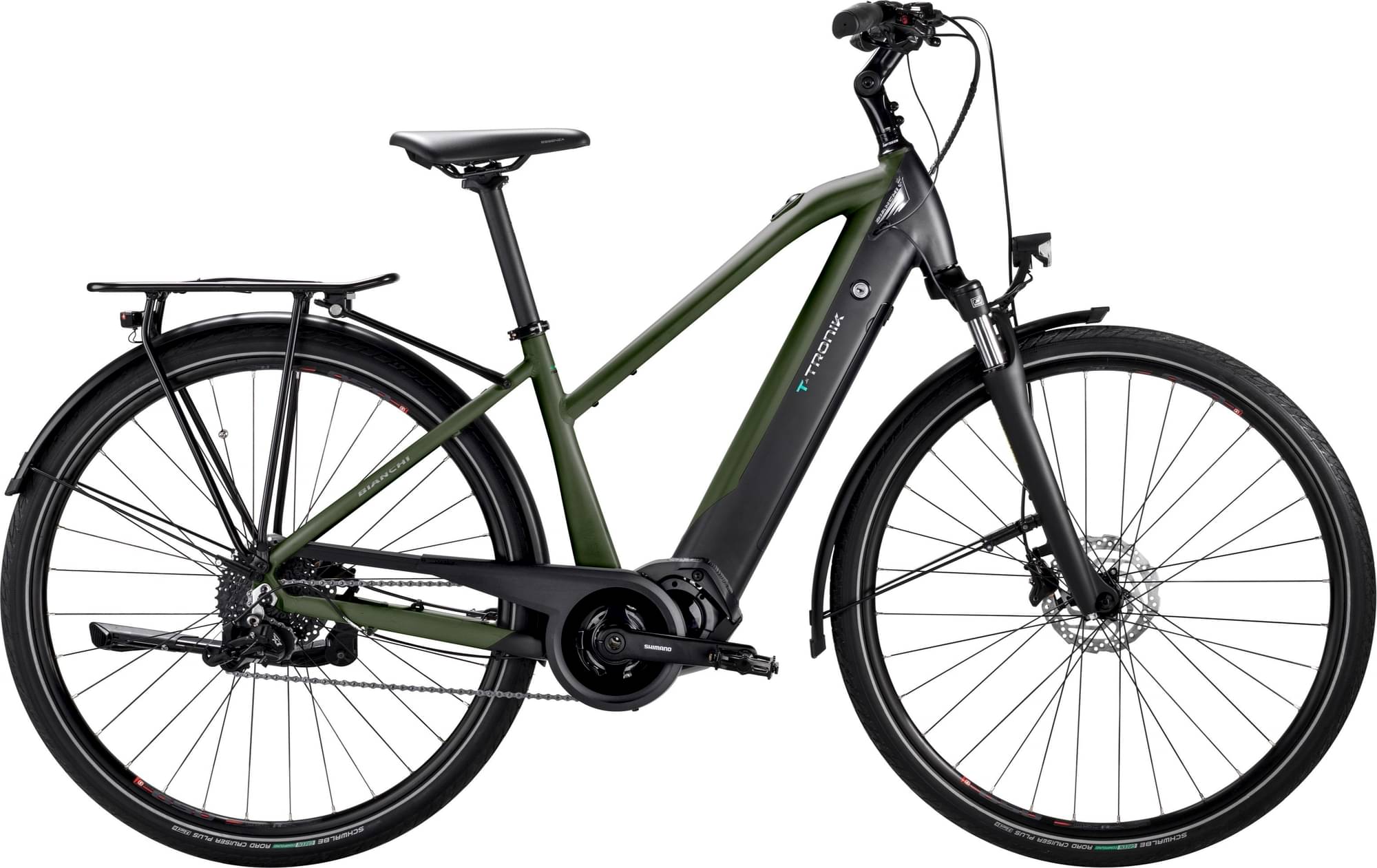

Bianchi T-Tronik T-Type Step-through X5 2025
2025 E-bike
Estimate price |
2,326$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset X7, X5 -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery 417Wh integrated battery -
Drivetrain 1 × 9 -
Brakes Promax Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
T-Tronik T-Type Step-through ALU sizes: 43, 47 - 9x135 mm quick release dropouts - Post mount 160 disc brake type
Suspension Fork
Suntour NEX-E25 DS 700C, 63mm travel, 1-1/8" HT,w/out 9x100 QR, minimum 160mm rotor, maximum 180mm rotor, 30mm stanchions
Drivetrain
Rear Derailleur
SRAM X7, 9sp, max. 36T
Shift Levers
SRAM X5, 9sp
Crank
Shimano CHAINRING, SM-CRE61, 38T FSA SMN E-Bike Forged Crankset - SMN / 170mm
Bottom Bracket
included in the motor
Chain
KMC e9S NPBK
Pedals
VP black aluminum, axle 7mm, 113,5x110,5mm
Wheels
Front Hub
Shimano, HB-TX505,32H OLD:100MM AXLE:108MM, QR:133MM
Rear Hub
Shimano, FH-TX505-8, 32H 8/9/10/11-SPEED,OLD:135MM,AXLE:146MM,QR:170MM
Rims
EBIKE 650 TR 28" - ETRTO 622 x 23C, 32hole, height 18mm
Tires
Chaoyang E-Liner City 700x45C, 60tpi
Brakes
Brakes
Promax, DSK-925
Cockpit
Stem
Velomann, 28,6 mm steerer ID Clamp, 31,8 mm
Handlebar
Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
Headset
FSA HST STbk 1-1/8" 44H-N10P
Seat
Saddle
Selle Royal
Seatpost
Velomann, lenght 350mm for SM size and 400mm for MD, diam.31,6mm, 0mm seatback
Motor & Battery
Motor
Shimano E6100, 250W, 60Nm
Battery
417Wh integrated battery
