Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Steel -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bianchi Chromoly, lugged
Suspension Fork
Bianchi Chromoly, 1"
Cockpit
Headset
Included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 49cm | 51cm | 53cm | 55cm | 57cm | 59cm | 61cm |
|---|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 278 mm | 278 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 579 mm | 585 mm | 584 mm | 586 mm | 592 mm | 602 mm | 607 mm | 612 mm |
| Top Tube Length | 502 mm | 512 mm | 517 mm | 527 mm | 542 mm | 552 mm | 567 mm | 577 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm | 590 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 110 mm | 120 mm | 125 mm | 135 mm | 145 mm | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 398 mm | 400 mm | 400 mm | 402 mm | 407 mm | 407 mm | 407 mm | 410 mm |
| Wheelbase | 970 mm | 978 mm | 974 mm | 978 mm | 989 mm | 1000 mm | 1005 mm | 1013 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

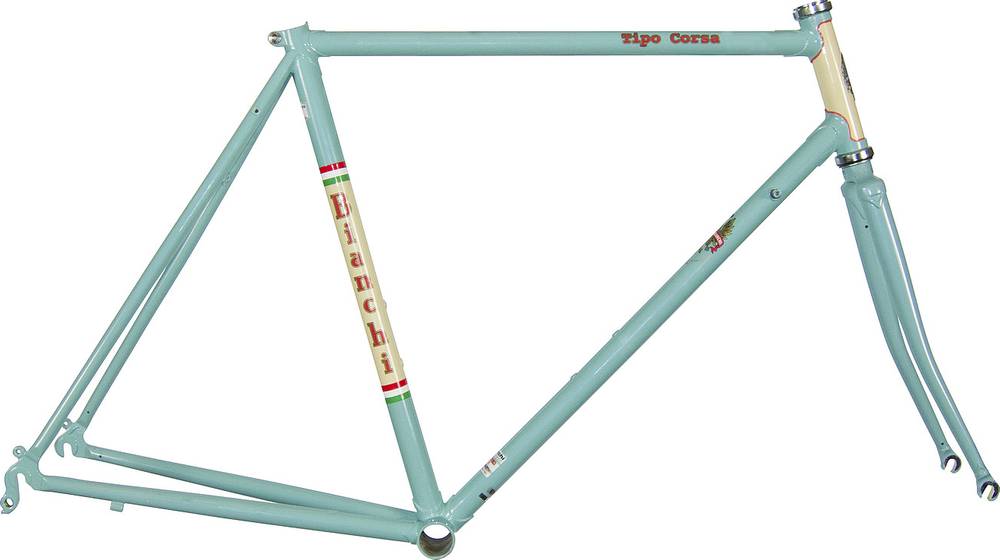

Tipo Corsa Frameset is part of the Bianchi Tipo model. There are 6 frames that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
General Road frames average price
If you want to purchase a solid General Road frame, it is important to know that the average cost is 2445$. However, this doesn’t mean that if you spend less money on a General Road frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2016 for 849$. Doing a quick comparison, we notice that Tipo Corsa Frameset price is 187.99% smaller than the average cost of a General Road frame.
Overview of components
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
