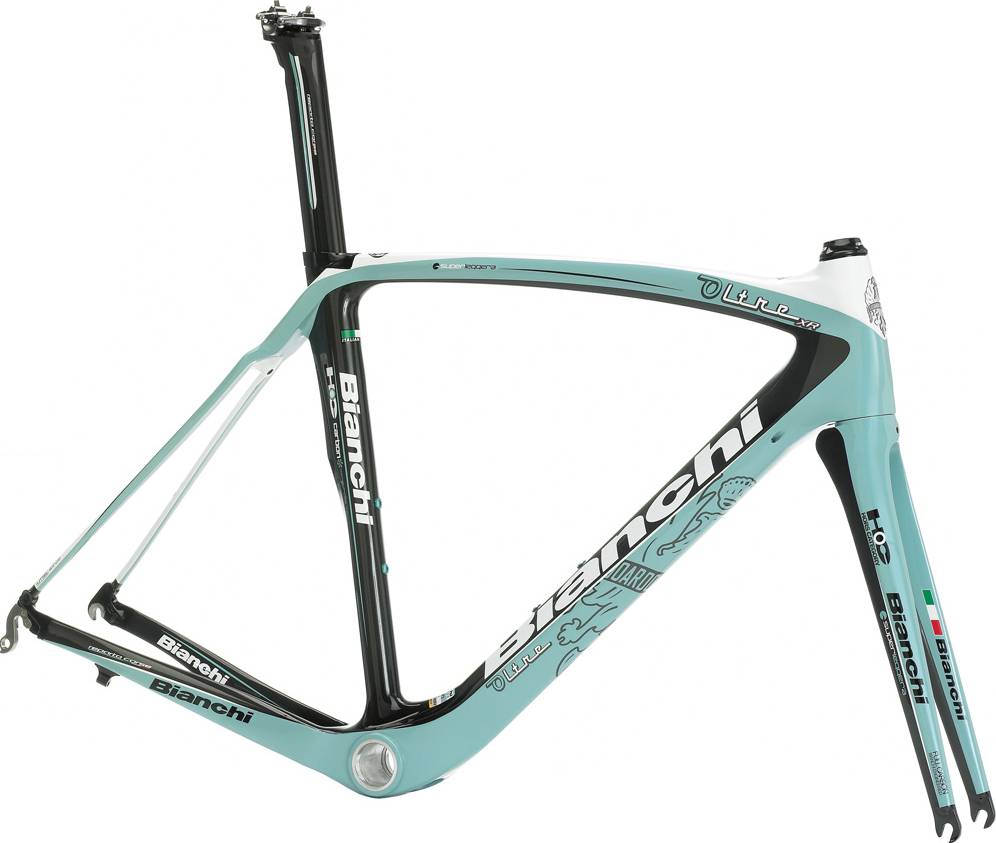

Bianchi Vacansoleil-DCM Team Replica Frameset 2013
2013 Road
Estimate price |
4,999$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Oltre Carbon, Nano Tube, X-TeX, UTSS, internal cable routing, tapered headtube, BB30
Suspension Fork
HOC Full Carbon 1 1/2">1 1/8"
Drivetrain
Bottom Bracket
BB30, press-fit
Cockpit
Headset
FSA Orbit C-40-CF-ACB
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 55cm | 57cm | 59cm | 61cm |
|---|---|---|---|---|---|---|
| Bottom Bracket Height | 278 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 580 mm | 581 mm | 587 mm | 593 mm | 603 mm | 603 mm |
| Top Tube Length | 524 mm | 534 mm | 549 mm | 559 mm | 574 mm | 584 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 475 mm | 495 mm | 515 mm | 535 mm | 585 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 399 mm | 405 mm | 406 mm | 406 mm | 408 mm | 410 mm |
| Wheelbase | 972 mm | 976 mm | 983 mm | 989 mm | 1001 mm | 1003 mm |
| Bottom Bracket Drop | 58 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Vacansoleil-DCM Team Replica Frameset belongs to the Bianchi Vacansoleil Dcm model. Bianchi launched 1 frame of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
General Road frames average price
If you want an acceptable General Road frame you should know that the average price is 2445$. However, this doesn’t mean that if you spend less money on a General Road frame, you couldn’t get a decent one. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4999$. Comparing this to the average General Road frame price, we see that the price is 104.46% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
